Heritage Audio OST-10 500-Series 10-Slot Rack

Model: HAOST10V2

Heritage Audio OST-10 500-Series 10-Slot Rack
Heritage Audio OST-10 500-Series 10-Slot Rack
  • Free Shipping!
  •  In Stock - Shipping Only
  • Not yet reviewed




About: Heritage Audio OST-10 500-Series 10-Slot Rack

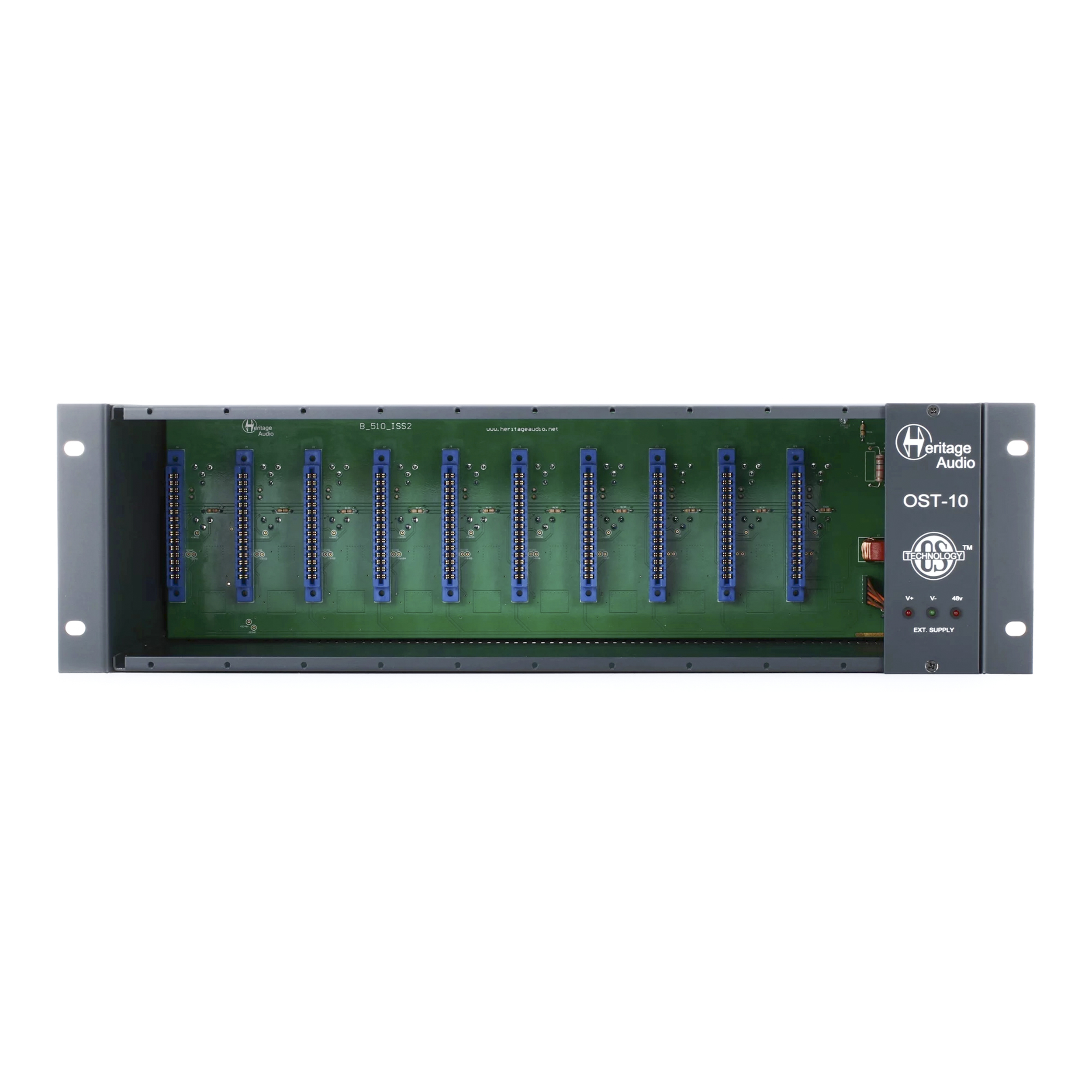

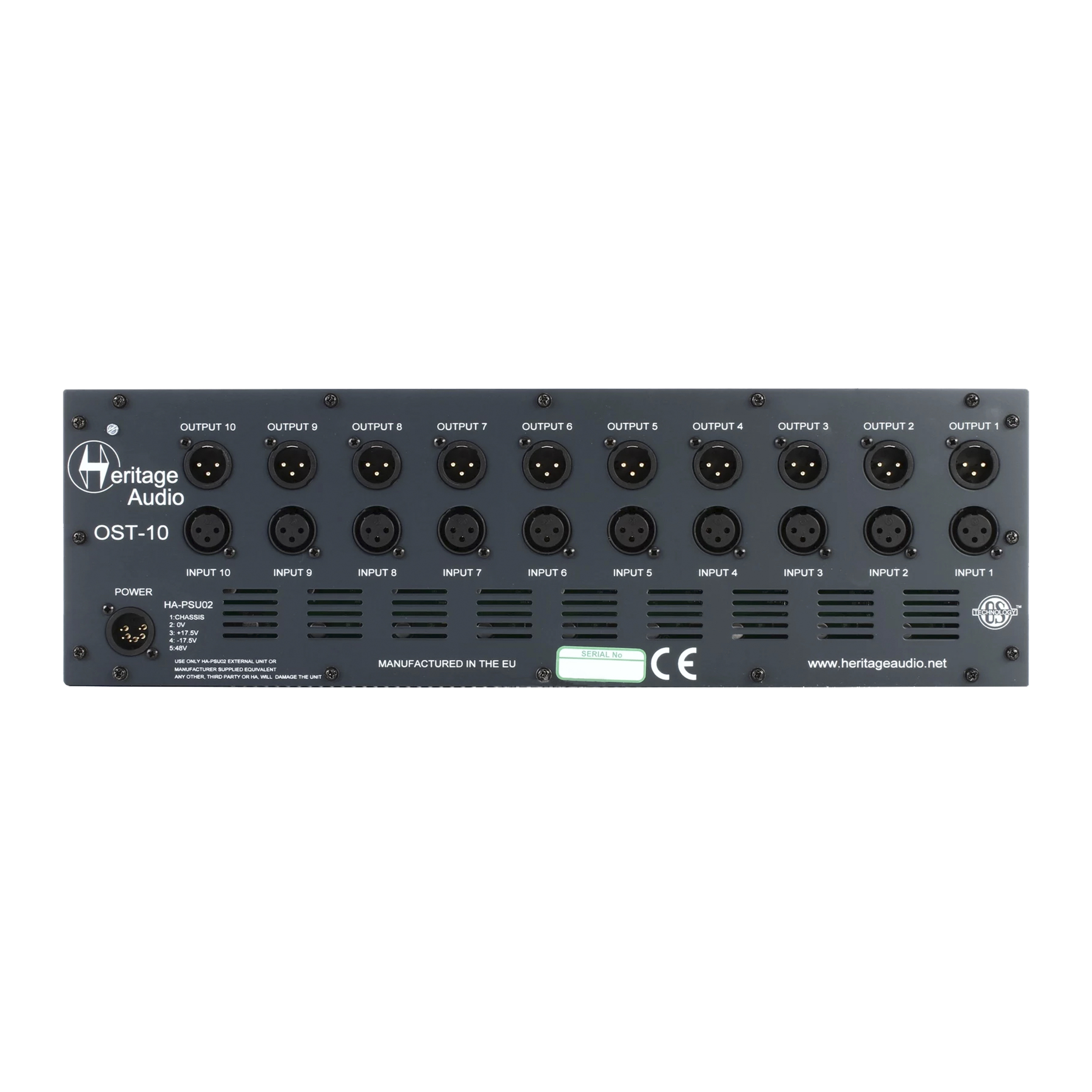

The OST-10 is a 500 Series enclosure in a 3U Rack format, able to accommodate up to 10 modules. As the rest of the new Heritage Audio line of 500 Series enclosures, it features "ON SLOT" Technology (OTS).

"ON SLOT TECHNOLOGY" takes advantage of last generation power electronics to handle power supply on a "per slot" basis. Each slot has its own power supply linear regulation stages, therefore modules are isolated from the rest. They just share the metal enclosure.

With literally hundreds of brands making 500 series modules, we at Heritage Audio think this is the professional way of handling this reliably, eliminating issues often associated with sharing power between different modules of different brands and natures.

Each slot features test leds for checking correct power operation (red for +16v, green for -16v), located aside of the slot connector.

Thanks to the use of OST, the power capability of the OST-10 is 400mA per rail per slot maximum, with an overall of 1.6A (1.8A non continuous) per rail, whichever is reached first. Each slot has its own red (+16v) and green (-16v) leds for easy testing of the power status.

The RAF Blue Gray enclosure is made out of heavy gauge steel with an aluminum front panel in the United Kingdom.

Phantom power available is 140mA total.

Features:

  • 500 Series enclosure in a 3U Rack format with room for up to 10 modules
  • Features “On Slot” technology that grants each slot its own power supply linear regulation stages, isolating individual modules from the rest
  • Each slot features test LEDs for checking correct power operation
  • power capability of  400mA per rail per slot maximum, with an overall of 1.6A (1.8A noncontinuous) per rail, whichever is reached first
  • Each slot has its own red (+16v) and green (-16v) LEDs for easy testing of the power status
  • RAF Blue Gray enclosure is made out of heavy gauge steel with an aluminum front panel

UPC: 609832678052

Reviews: Heritage Audio OST-10 500-Series 10-Slot Rack

There are currently no product reviews.


Warranty: Heritage Audio OST-10 500-Series 10-Slot Rack

AVShop.ca Warranty:

30 Days

Manufacturer's Warranty:

Three Years, parts and labour against manufacturer defects.
