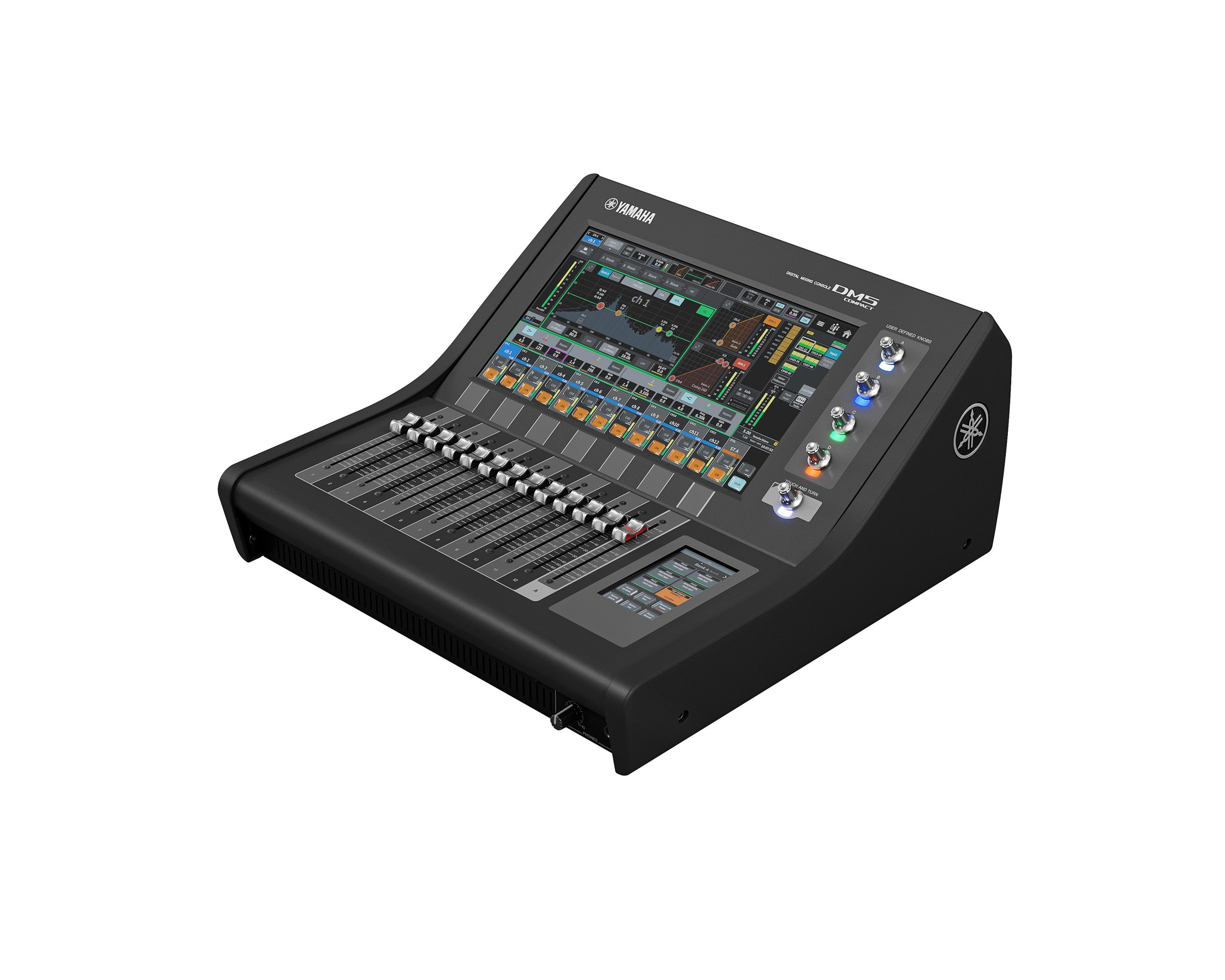

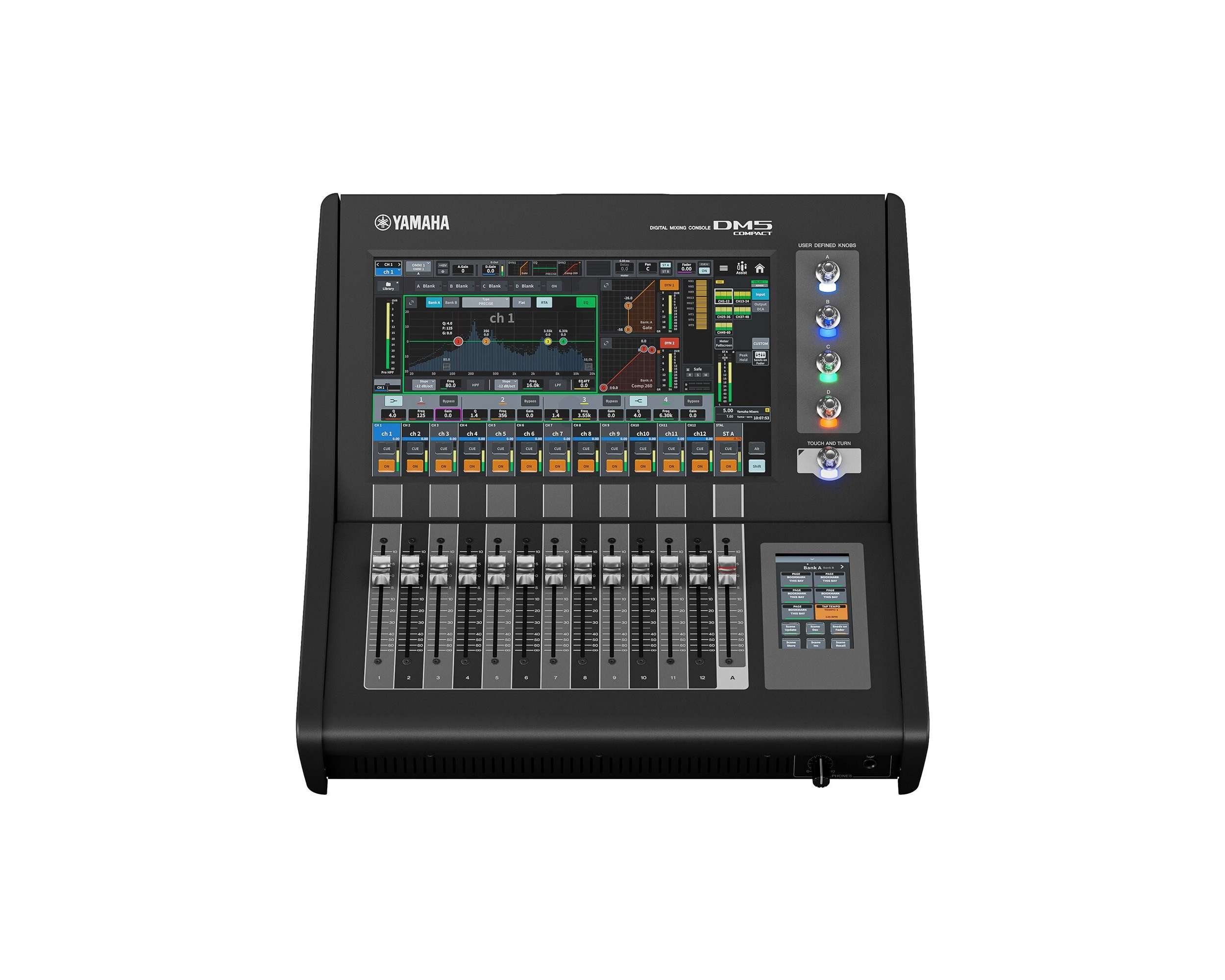

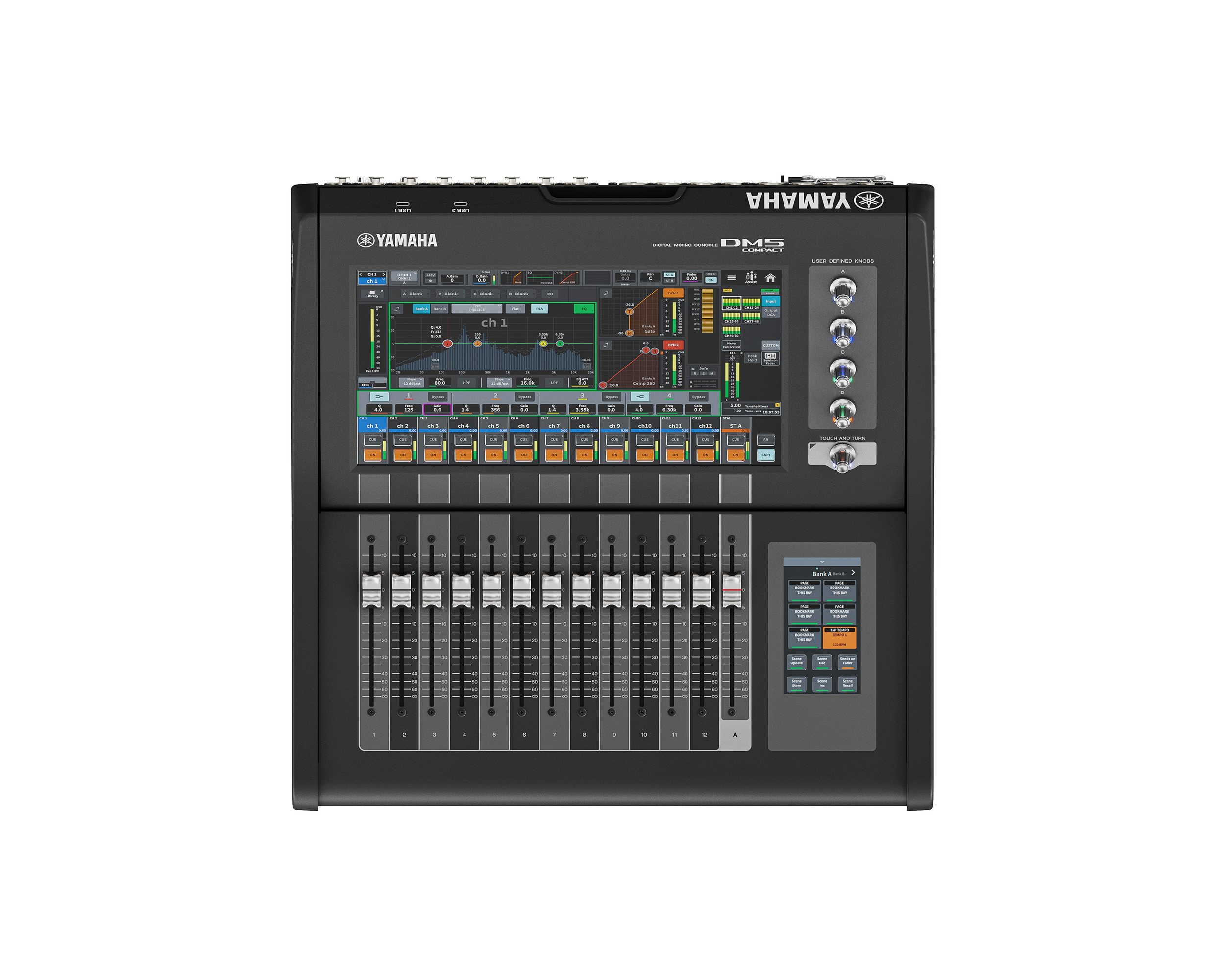

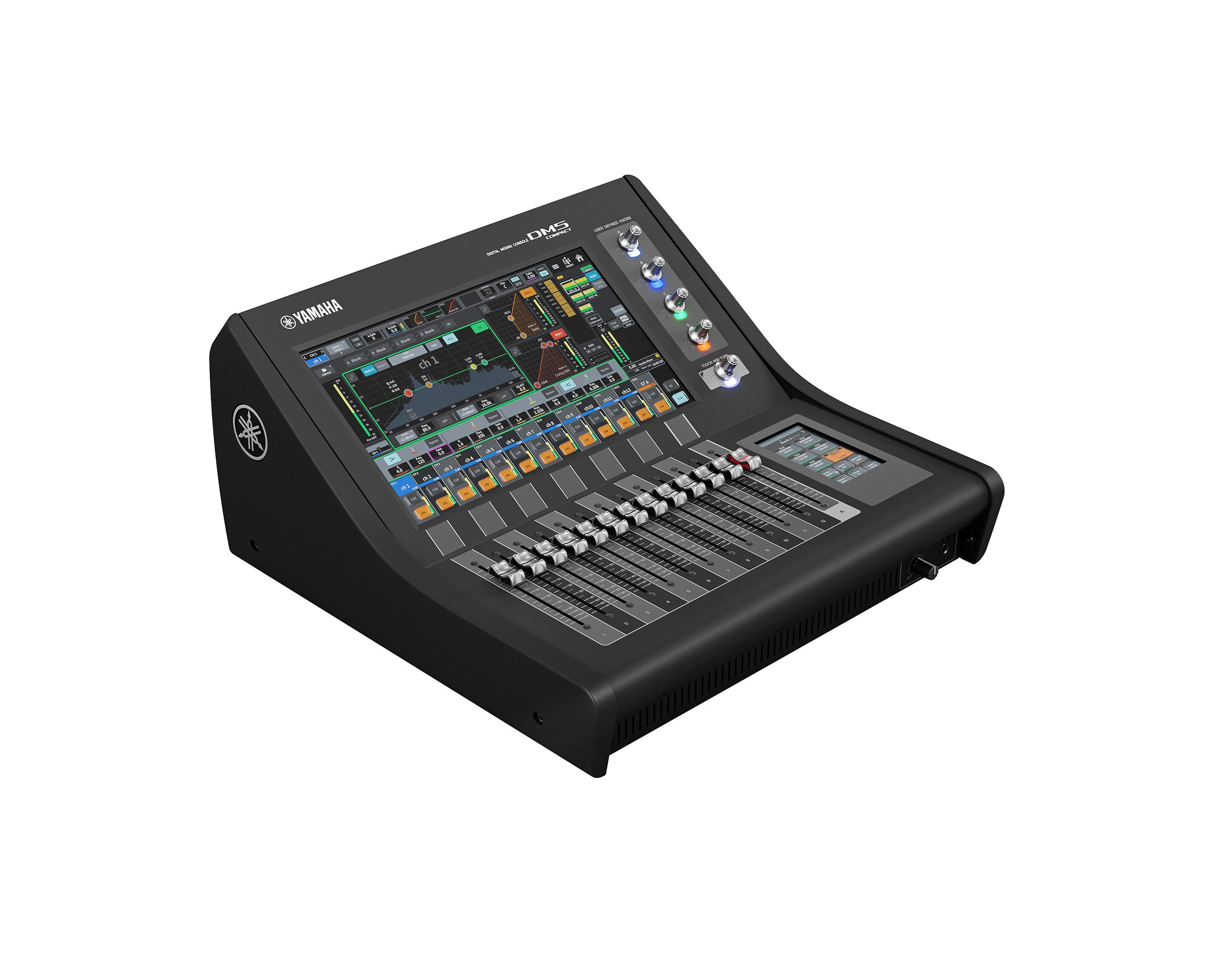

Yamaha DM5C Compact Digital Mixing Console

About: Yamaha DM5C Compact Digital Mixing Console

The DM5 Compact is a Dante-equipped versatile digital mixing console with unparalleled sound quality, ease of operation, and high reliability that make it perfect for a wide range of applications. The DM5 Compact is configured with 13 faders and a 1 x 13.3” + 1 x 4.3” multi-touch screen with glass keys.

• Compact mixing without compromise - Everything you need, nothing you don't.
• Glass keys-Go beyond the limits of physical buttons - Dynamic labeling that adapts instantly to the task at hand for intuitive control
• Tiltable display - Angle the display for optimal viewing in any environment
• Customizable controls - Customize User Defined Keys and Fader Banks on the 4.3" display for a more efficient, intuitive workflow.

Forward Thinking

Capture the sound from the stage as-is and overlay the tones you need to bring the artist and audience together. The DM5 series delivers the mix you want every time by bringing speed, certainty, and creativity to the process of building your sound, offering a plethora of functions to support your work in a range of compact formats with polished, intuitive user interfaces. A carefully selected set of controls with freely customizable functions and parameters that elevate your workflow to the next level.

Backed by over three decades of experience in this field, Yamaha provides undeniable reliability and uncompromising audio quality. By integrating seamlessly with your current processes, the DM5 series sets a new standard for professionals who are ready to take their workflows to the next stage.

SOUND - Everything You need to Take Your Sound to the Next Stage

The DM5 series honors Yamaha’s legacy of transparent sound , capturing sound direct from the stage that you can use to build and layer a mix that’s all your own. With powerful channel strip processing, effects, and plugins running on the PY-DSP, the DM5 series gives you everything you need to give free rein to your creativity and build your mix with confidence.

• Exceptional Sound Shaping Starts With the Channel Strip.
  • Extensive dynamics.
    • FET Limiter: Control with Punch. Ultra-fast peak control with punch and energy.
    • Diode Bridge Comp: Mix with Glue. Smooth, musical compression that adds depth and cohesion.
    • Comp 260: Shape with Impact. Versatile VCA-style compression for punchy drums, powerful instruments, and precise dynamics control.
    • Legacy Comp: Keep It Simple. Straightforward compression for fast setup and familiar operation.
    • Gate: Reduce the Noise. Helps reduce unwanted noise and signal leakage.
    • De-Esser: Smooth the Highs. Controls excessive sibilance while maintaining clarity.
    • Expander: Preserve Dynamics. Reduces low-level noise while maintaining a natural response.
    • Ducking: Priority Control. Automatically creates space for priority signals.
  • 4 EQ Types
    • ​Select from four EQ types to suit your sound sources and the way you build your sound, and use the real-time analyzer (RTA) display to aid in quick adjustment.
  • Flexible Signal Flow View
    • ​The flexible signal flow of the DM5 series puts you in control of your sound. Reorder processing—such as the EQ and Dyn2 stages—to shape both tone and dynamics with intent
  • Dugan Automixer
    • ​Dugan Automixer makes it easy to reinforce multiple mics while maintaining an overall level that avoids feedback thanks to the Dugan Speech System algorithm.
• An Extensive Range of Effects and Plugins to Shape Your Sound
  • The built-in multi-effects processor provides 43 high-quality effect types, delivering a powerful toolkit that expands your sound-shaping possibilities.
    • Reverb: Natural reverbs, including "REV HD" and "REV R3," add a realistic sense of depth and space to your sound. Select your preferred reverb from 13 different types.
    • Delay: Choose from 8 types of delay to suit your needs.
    • Modulation Effect: Multiple modulation effects can be used to add character to your sound.
    • Saturation and Others: Shape your sound with saturation effects such as Amp Simulator, or refine the overall balance of your mix using the MBC3 multiband compressor.
  • PY-DSP Card for Adding Plug-in Processing Resources
    • ​Installing a PY-DSP card in the PY slot enables the use of Premium Rack plug-ins on the DM5 series. The PY-DSP also adds 32 slots (16 x 2) of plug-in processing resources to the DM7 series for sound shaping without compromise.
  • Plug-ins Developed in Collaboration With Rupert Neve Designs
    • ​The Premium Rack features a wide range of plug-ins for diverse applications, including the Rupert Neve Designs Portico 5033 equalizer and the Portico 5043 compressor, developed jointly with Rupert Neve Designs, LLC—all designed to take your mixes to the next level.
  • Plug-ins Available in Premium Rack
    • ​The Premium Rack also comes with numerous Yamaha plugins that are highly regarded by sound engineers, such as Dynamic EQ, multi-band MBC4, Vintage Compressor, and the Dynamic noise suppressor DaNSe.

WORKFLOW - Built to Evolve With the Way You Work

Everyone has a different workflow, and having your own is key to consistently achieving your sound. The DM5 series lets you tailor the operating styles and parameters for each operator, giving you everything you need to make your current workflow smoother and more intuitive.

• Customize the console to support efficient operations
  • Glass keys overcome the limits of conventional buttons
    • New controls combine hardware reliability with software flexibility.
    • The glass keys on the display provide the tactile response of physical buttons when pressed, while dynamic labeling below the keys labeling enhances usability.
    • Thoroughly tested for durability, ensuring hardware reliability.
    • Unlike buttons with printed function names, these keys built into the display can change their labels dynamically to match their functions. For example, when Sends on Fader is active, the "ON" key label changes to "SEND ON."

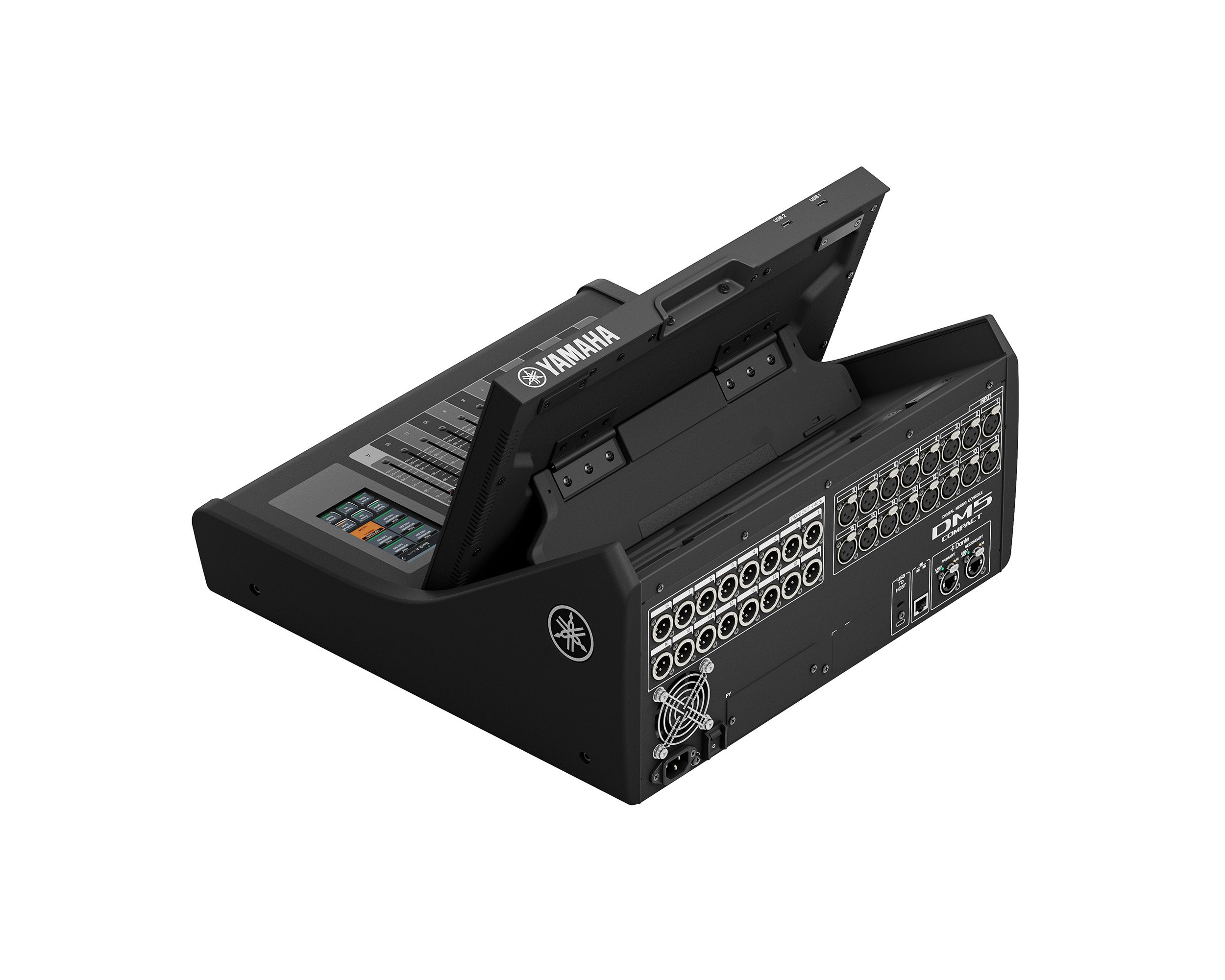

  • The tilted display ensures comfortable operation in any environment
    • Four adjustable angles ensure that the display can always be set to the perfect position for operation.
    • Adjusting the display angle minimizes reflections from sunlight or overhead lighting.
    • You can find a comfortable viewing angle to suit your working position, whether standing or seated.
  • ​Assist—focus on what matters
    • Assist functions on DM5 and DM7 models let the console help with engineering tasks, reducing setup and preparation time and giving you more time to focus on creative work.
      • HA Assist suggests optimal head amp levels based on the input signal levels.
      • Naming Assist suggests channel names and icons based on input signal data.
      • Comp Assist suggests appropriate compressor parameter values based on the audio source, helping you build the foundation of your mix.
      • Fader Assist suggests a balance of fader levels for the channels it is assigned to.
• Tailor Your System. Shape Your Workflow.
  • Configure DM5 series settings and add optional products to achieve usability and performance tailored to your operating style.
    • Compact, shallow design—easy to see, easy to reach
      • DM5 consoles are more than just compact. Designed with the operator in mind, the layout eliminates any unnecessary elements while preserving the space needed for efficient operation. A console depth similar to that of a laptop computer keeps the large 13-inch display within easy reach for intuitive operation. Light and compact, DM5 consoles are easy to transport and set up anywhere, making them ideal for a wide range of applications.
    • Selected Channel View and Overview—two ways to view your work
      • Yamaha mixers provide better operating environments for every stage of use. Choose either the Selected Channel View and Overview screens to suit the needs of individual operators and create a working environment that suits their needs. When setting up and configuring your system, the Selected Channel View allows at-a-glance monitoring of signal flows for individual channels while you work, while Overview allows monitoring of settings during live performances or when working across multiple channels.
    • Work in your own language
      • Channel visibility is a critical factor when it comes to operation speed. DM series consoles support multilingual channel name displays, enabling artist and instrument names to be shown in the operator’s own language for more intuitive operation. (Use the Editor or the StageMix app to input channel names in other languages.)
    • Expand your system with Broadcast and Theatre packages
      • Adding Broadcast Package or Theatre Package to access functions essential to broadcast and theatrical applications. The Broadcast Package adds seven essential broadcast functions, including Mix Minus, and Audio Follow Video, while the Theatre Package brings immersive control functions along with 4 Bank EQ/DYN, Actor Library, and other functions that are useful for musical and theater applications. A Loudness Meter will be added in the future updates. Licenses are managed via the PV Portal app, which allows a single license to be activated and deactivated for use across multiple consoles. (Not available in some regions)
    • PY Cards—expanded connectivity and control
      • The PY slot offers up to 64 channels of additional I/O. Insert any one of a variety of cards to allow connection with a variety of audio formats and expansion of control functions. The PY64-D features a Dante-compatible sampling rate converter (SRC). The PY64-MD supports 64 channels of MADI I/O. The PY8-AE features an AES/EBU D-sub 25-pin connector for 8 channels of I/O. The PY-MIDI-GPI adds MIDI/GPI control via DIN 5-pin and D-sub 15-pin connectors. The WSG-PY64 from Waves Audio Ltd. connects to the Waves Soundgrid system, enabling the use of Waves plug-ins.
    • Recording options to suit any workflow and environment
      • Easy-to-configure USB recording and playback functions allow two-track recording without the need for additional equipment, ideal for recording performances and playing background music. The DM5 also includes Nuendo Live software for reliable multitrack capture when recording live and supports multitrack audio recording with up to 18 channels of I/O via the USB connection on the rear panel or up to 64 channels using Dante. It also features a Virtual Sound Check function that allows you to adjust sound systems in a live-performance setting—even without the artist present.

CONTROL - Experience Refined Precision

In a digital mixer, control functions are essential for achieving better sound, faster. The DM5 series offers seamless integration with other connected devices for two-way control, as well as remote operation capabilities that enhance your workflow. Together, these capabilities help bring performances to life.

• Customize controls your way
  • Freely assignable User Defined Knobs and a 4.3-inch display let you customize the interface to suit your preferences.
    • Located within easy reach of the operator, the 4.3-inch display features six glass keys that can be freely assigned parameters. The display can also be configured to display the User Defined Keys and Fader Bank Select to suit your preferences.
    • Four User Defined Knobs beside the screen provide flexible hands-on control, allowing operators to assign their preferred parameters as they like. In addition, Dynamic Mode automatically follows selections in Selected Channel View and assigns the relevant function parameters, combining intuitive operation with customizable control tailored to each operator's workflow.
• Total control of your audio system
  • The DM5 series offers control and monitoring of Yamaha I/Os and power amplifiers as well as third-party wireless receivers, interfaces, and personal monitoring systems, providing a seamless workflow across your entire audio system.
    • Monitoring and control are supported for some 3rd-party wireless receivers. (Supported devices compatibility)
    • Remote control of mute and volume is supported on PC series amplifiers and other Yamaha power amplifiers and powered speakers, as well as the NEXO NXAMP.
    • Remote control of head amps, phantom power, and other parameters is supported on the RUi01608SB-D and other Yamaha I/O devices. (The parameters that can be controlled depend on the model.)
• Prepare offline, control from anywhere.
  • The DM5 series supports the DM Editor application for Windows and Mac, enabling offline setup and editing for advance preparation as well as online backup management. Both the DM5 series and DM7 series work with this application, with mutually compatible console data files for smooth data exchange. StageMix and MonitorMix provide convenient remote control from anywhere in the venue, while ProVisionaire Control PLUS offers a versatile custom control platform that helps bring your ideal system operation to life.
    • DM Editor
      • The DM5 series and DM Editor share a common GUI, ensuring quick, intuitive operation with no learning curve. Faders can also be shown on the editor app, allowing precise adjustments over a wireless connection even when far from the console.
    • DM StageMix
      • DM StageMix offers remote control from an iPad, ideal for fine-tuning monitoring from the stage and making adjustments from different positions in the audience. Two iPads can be connected via a Wi-Fi access point connected to the console, enabling simultaneous remote operation.
    • MonitorMix
      • The DM5 series also supports MonitorMix, an app that can be used as a personal monitoring system for performers. Access can also be password-protected, ensuring settings remain secure and allowing performers to use it with confidence.
    • ProVisionaire Control PLUS
      • Use ProVisionaire Control PLUS to create custom controllers that bring together just the parameters you want.
    • ProVisionaire Kiosk
      • In restaurants and other venues with live music, staff unfamiliar with the mixer may need to operate it, for example, to play background music (BGM) between sets. ProVisionaire Control PLUS lets you create a custom controller with just a BGM fader and a play button, simplifying operation and preventing mistakes.
• DAW Remote—streamline music production
  • DAW Remote functions help streamline your audio production and recording workflow by synchronizing the console with a DAW for tactile control of level adjustments, transport functions, and more, using the DM5’s faders, buttons, and knobs. Access to DAW Remote Mode is easy—just press the fader bank DCA and select “DAW Remote.”

Specifications

• Input mixing channels: 48 mono
• Buses: 24 Mix + 12 Matrix + 2 Stereo​
• Display: 13.3" multi-touch screen x 1, 4.3" multi-touch screen x 1
• Faders: 13 (12+1)

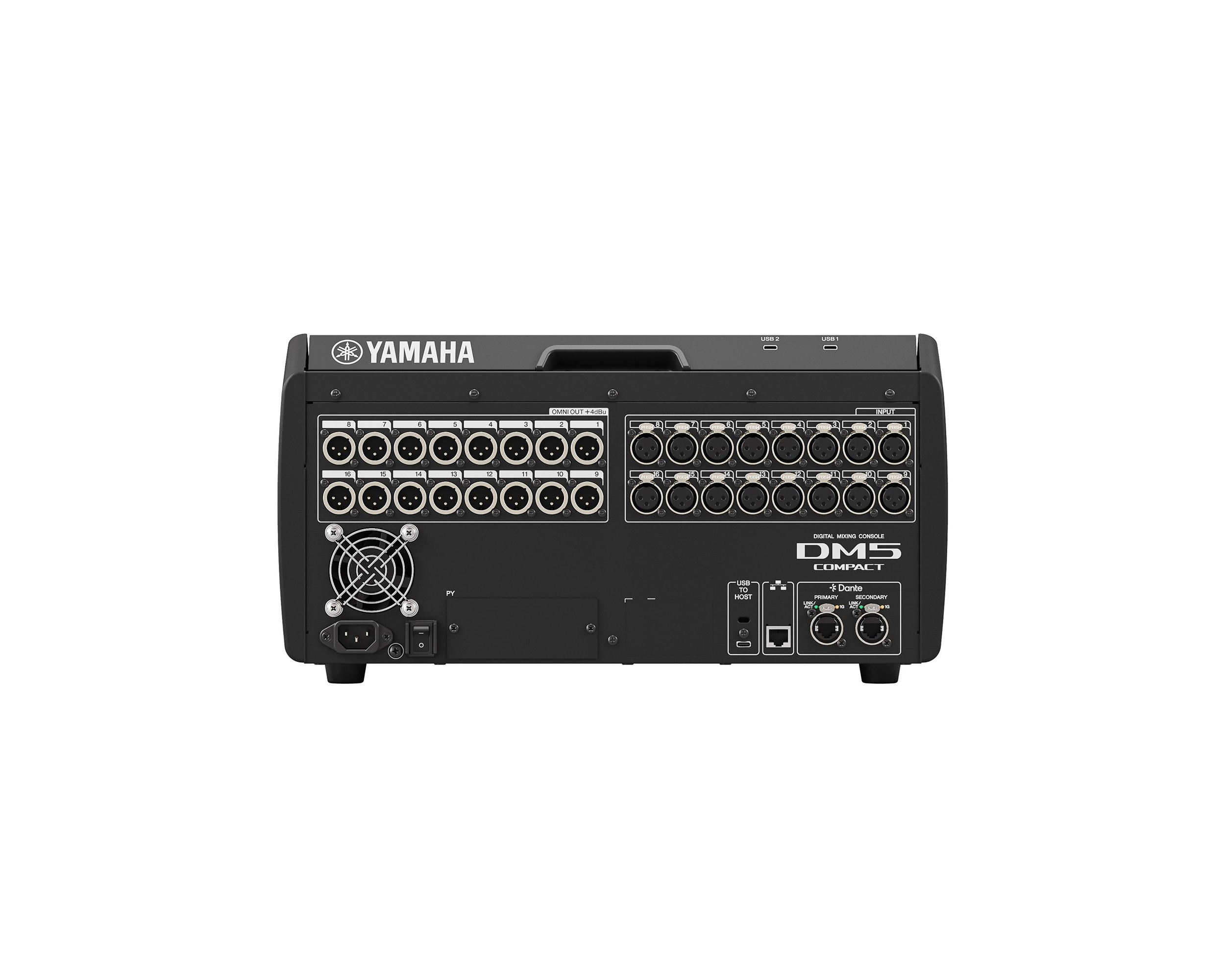

• Analog I/O: 16 inputs / 16 outputs
• Dante: 64 in / 64 out
• Slot: PY Slot x 1
• USB Audio Interface: 18 in / 18 out
• Power consumption: 130 W
• Dimensions (WxHxD): 17.6 x 9.3 x 17.4 inch (446 x 235 x 441 mm)
• Weight: 29.3 lb (13.3 kg)

What's Included

• Read This First
• Dust cover
• AC power cord
• Cable hook
• Nuendo Live and VST Rack Elements Download Information
