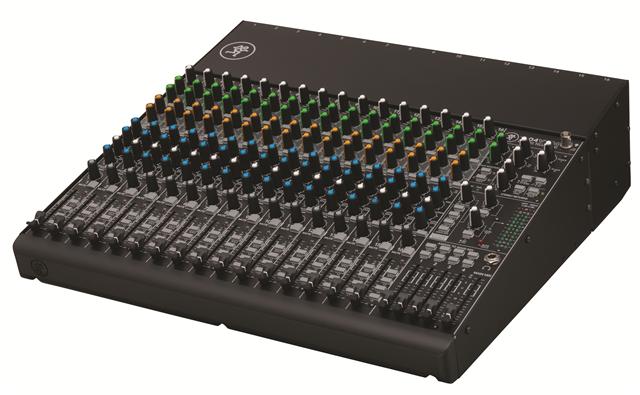

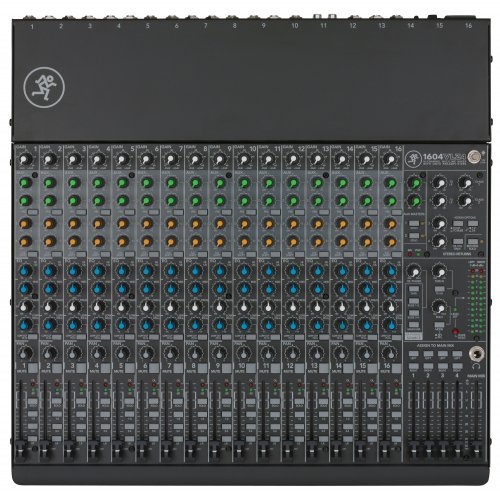

Mackie 1604VLZ4 16-Channel Mixer

About: Mackie 1604VLZ4 16-Channel Mixer

A legend in compact mixer design, the Mackie 1604VLZ4 now combines the proven performance of Onyx preamps with the no-compromise high-headroom/low-noise design that made the 1604 an industry mainstay. All 16 channels feature an Onyx mic pre, line input and insert in a compact 4-bus design built for application flexibility and professional performance. Plus, it is truly “Built-Like-A-Tank” with a ridiculously rugged solid steel chassis that includes high-contrast controls for ultimate tactile control. Found in countless professional broadcast and post facilities and easily the most proven band-friendly analog mixer ever, the Mackie 1604 stands alone in the world of compact mixing.

Features:

• 16-channel mixer featuring Mackie signature high-headroom/low-noise design
• 16 boutique-quality Onyx mic preamps
  • Ultra-wide 60dB gain range
  • 128.5 dB dynamic range
  • +22 dBu line input handling
  • Extended frequency response
  • Distortion under 0.0007% (20Hz – 50kHz)
  • Phantom power for studio condenser mics
• Improved RF rejection perfect for broadcast applications
• 16 high-headroom line inputs with +4/-10 operation control
• 16 balanced inserts perfect for integrating outboard gear
• 3-band EQ with sweepable midrange
• 18 dB/oct 75Hz low-cut filter on mic input channels
• 4 aux sends, level, pan, solo and overload/mute LEDs on each channel
• 4 stereo returns, 8 direct outs and 4 group/bus outputs
• 60mm long-wearing log-taper faders
• Control room / phones multi-input source matrix
• High-resolution 12-segment stereo meters
• Sealed rotary control resist dust and grime
• “Built-Like-A-Tank” rugged steel chassis with powder-coat finish
• High-visibility, high-contrast controls deliver convenient “at-a-glance” visual feedback
• Rack-mountable design with three physical configurations via Rotopod accessory (sold separately)
• Multi-voltage power supply for worldwide use
