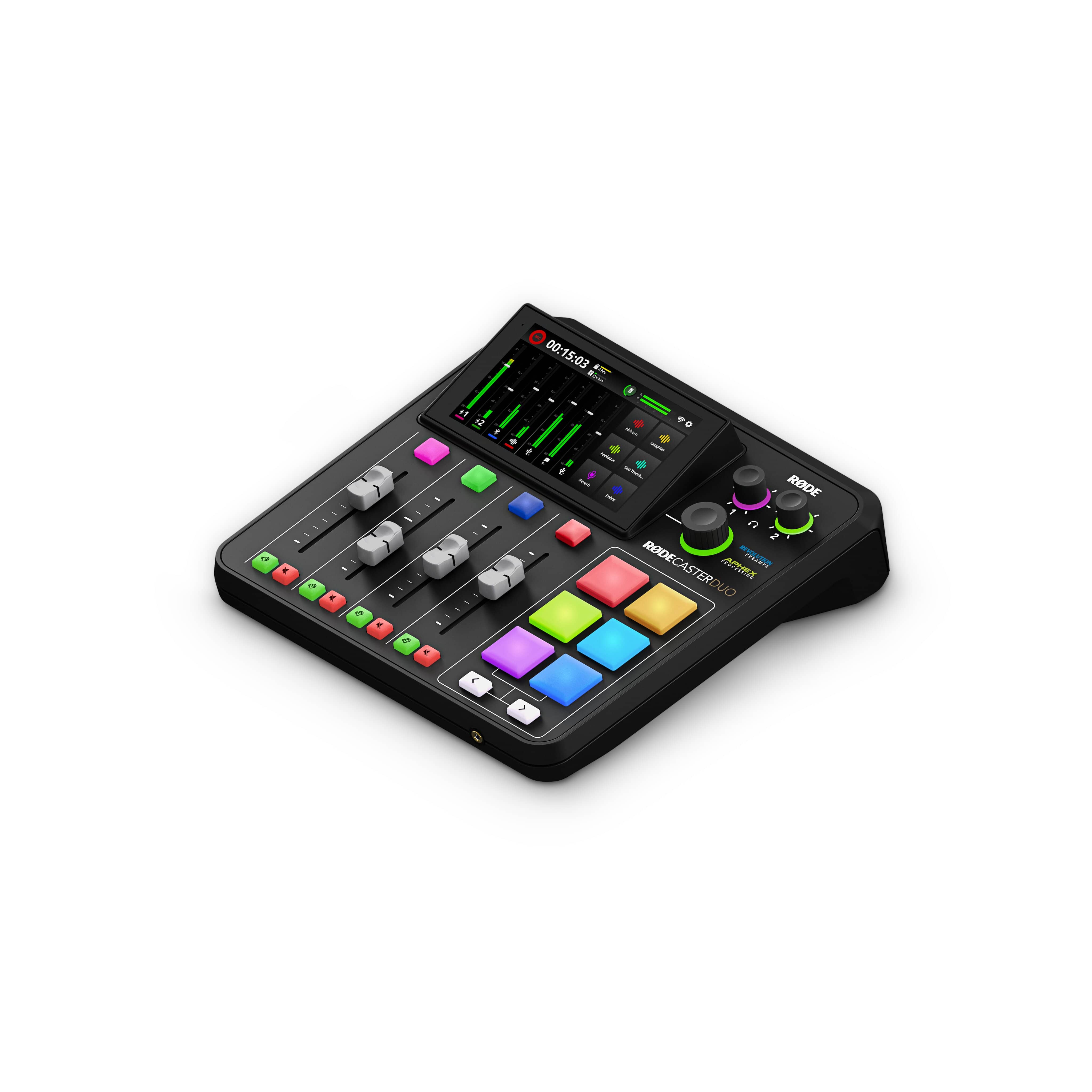

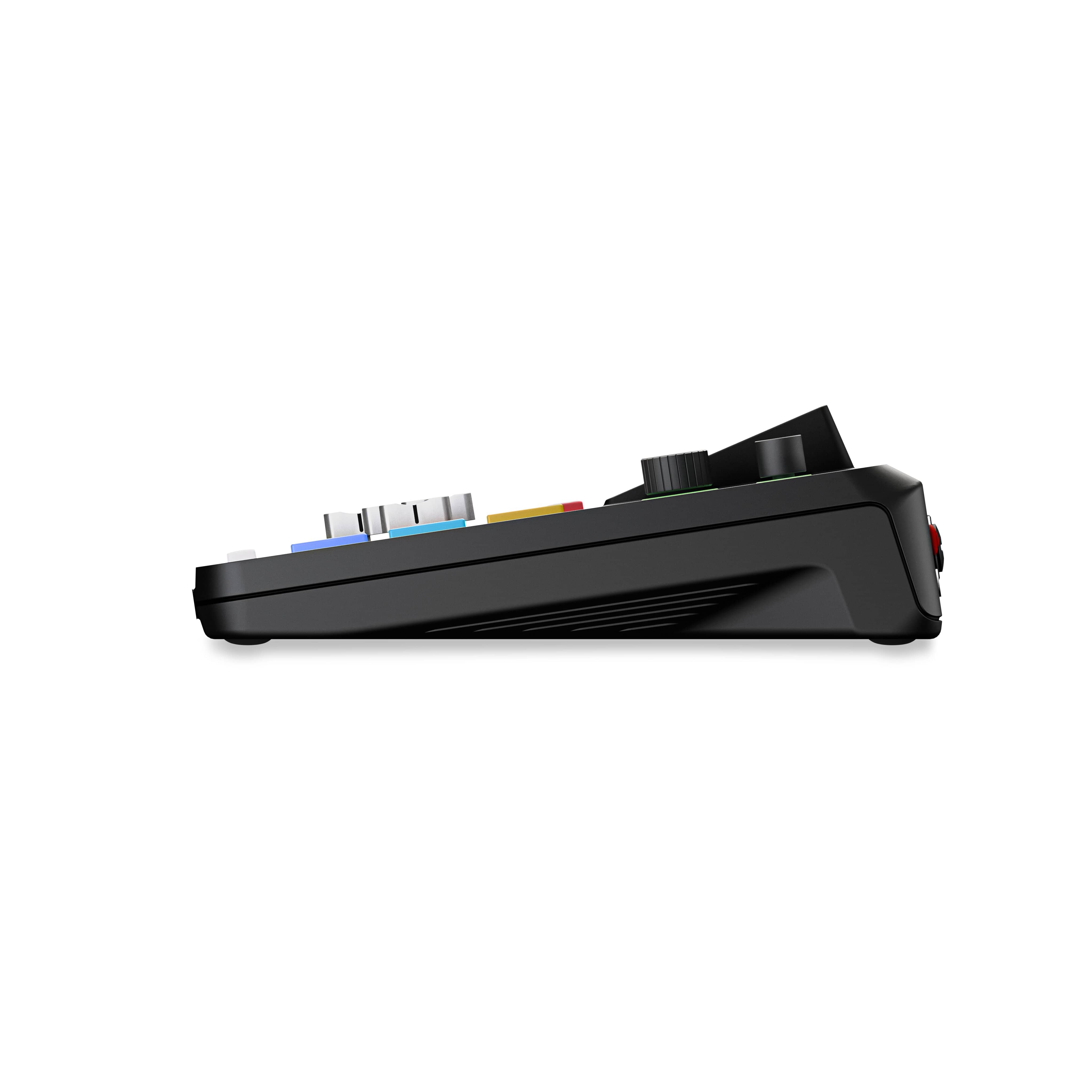

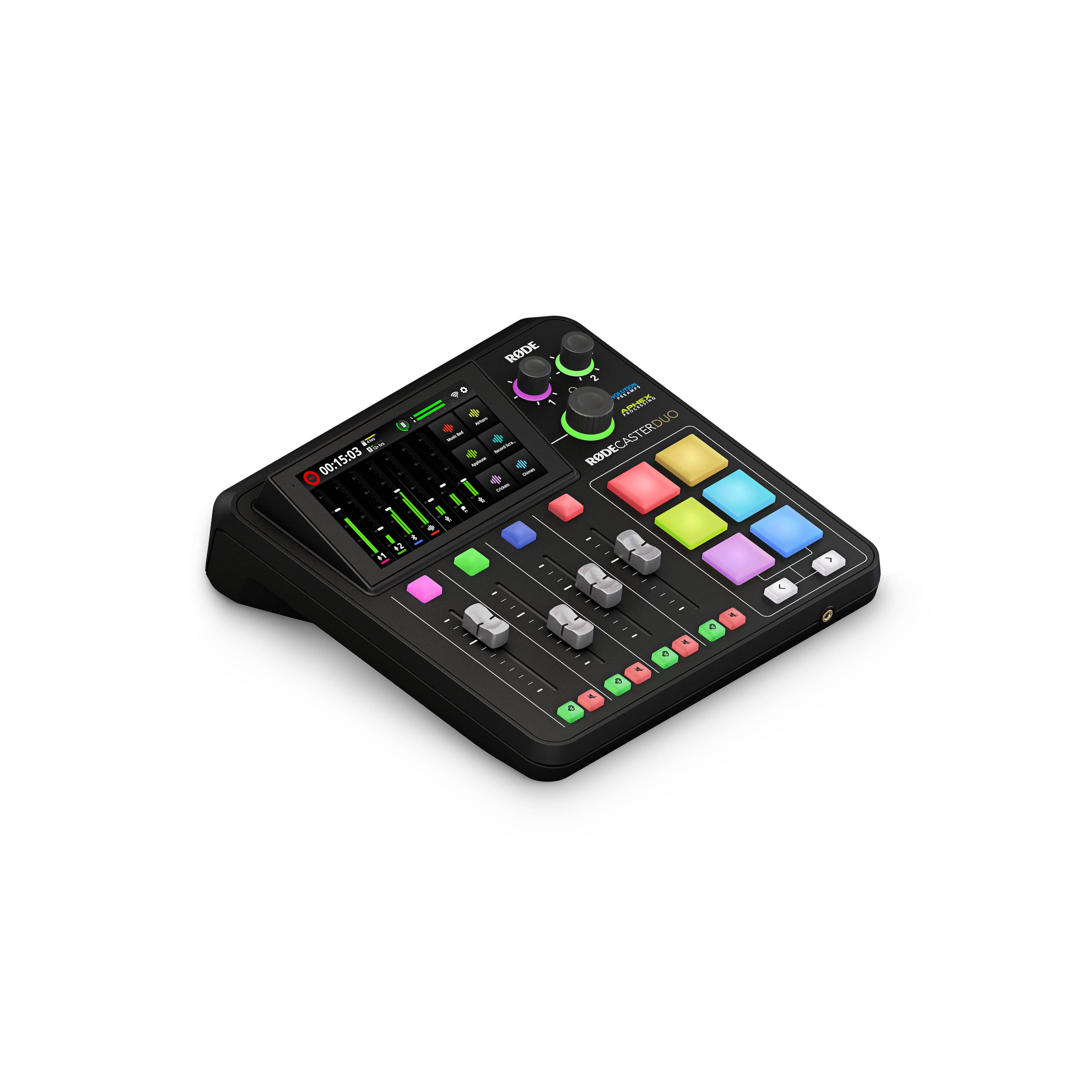

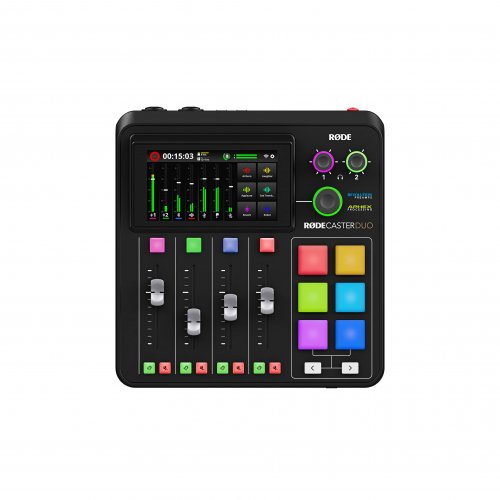

RODE RODECaster Duo Integrated Audio Production Studio (Black)

About: RODE RODECaster Duo Integrated Audio Production Studio (Black)

The RØDECaster Duo is a compact and incredibly powerful all-in-one audio production solution for podcasters and content creators. It features two combo inputs with ultra-low-noise, high-gain Revolution Preamps for connecting both microphones and instruments, plus an integrated Series IV 2.4GHz wireless receiver for connecting RØDE wireless microphones, and a 3.5mm TRRS input for connecting a headset. Studio-grade APHEX processing delivers superior audio quality, with perfectly tailored presets and flexible on-board editing making it easy to capture professional sounding recordings. Advanced Bluetooth connectivity, dual USB-C interfaces, and Wi-Fi and Ethernet connections offer unrivalled integration with computers, smartphones, and other devices, and the fully customisable mixer allows the RØDECaster Duo to be configured to suit any application or setup. Six programmable SMART pads can be used to trigger everything from sounds and voice effects to mixer actions and MIDI for unmatched creative flexibility and control. The RØDECaster Duo is also incredibly simple to use, with a large high-resolution touchscreen and rotary encoder for easy navigation, intuitive controls, and professionally tailored presets.

Features

• Fully integrated audio production studio for podcasters and content creators
• Ultra-low-noise, high-gain Revolution Preamps (-131.5dBV EIN, 76dB gain)
• Two high-quality Neutrik combo inputs for connecting microphones, instruments and line-level devices
• Seven individually assignable channels with four broadcast- quality physical faders and three virtual faders
• Integrated wireless receiver for connecting RØDE Series IV wireless devices (including the Wireless GO II and Wireless ME)
• High-performance quad-core audio engine
• Studio-grade APHEX audio processing and on-board effects
• Six fully programmable SMART pads with bank switching
• Dual USB-C interfaces for connecting two computers or mobile devices
• Advanced Bluetooth connectivity for high-quality phone call integration
• Multitrack or stereo recording to a microSD card, USB storage device or computer
• Two high-power headphone outputs, one TRRS headset output and two balanced 1⁄4-inch line outputs
• 5.5-inch high-definition touchscreen with haptic feedback and rotary encoder for easy navigation and control
• Designed and made in RØDE’s precision facilities in Sydney, Australia

Specifications

• Frequency Range
  • Mic Inputs: 20Hz - 20kHz
  • Monitor Outputs: 20Hz - 20kHz
• Microphone Input Impedance -  4KΩ
• Instrument Input Impedance -  1MΩ
• Preamplifier Gain Range -  0 - 76dB
• Equivalent Noise -  -131.5dBV (A-weighted)
• Line Output Maximum Level -  4dBu
• Headphone Output Power -  250mW
• Power Requirements -  USB-C PD (9V, 3A)
• Analogue Audio Input Connectivity
  • 2 x combo jack (mic, instrument, line)
  • 1 x 3.5 TRRS headset jack (I/O)
• USB Interface 1
  • 1 x 2-in/14-out multichannel device
  • 1 x 2-in/2-out with mix-minus
• USB Interface 2 -  1 x 2-in/2-out with mix-minus
• Bit Depth -  24-bit
• Sample Rate -  48kHz
• Recording Storage
  • microSDHC
  • microSDXC
  • USB-C removable drive (exFAT – minimum 100MB/s)
• Data Transfer -  USB 3.0 SD card reader 130MB/s
• Network Connectivity
  • WiFi 802.11g/n/ac 2.4GHz and 5GHz
  • Ethernet 100/100
• Internal Storage (GB) -  4GB (SMART pads)
• OS Requirements
  • macOS 10.15 or later,
  • Windows 10 (Version 1803 or later)
  • Windows 11
• Included Software -  RØDE Central
• Weight (grams) -  1131g
• Dimensions (LxWxH) -  235 x 225 x 76mm

What's in the Box

• 1 x RØDECaster Duo

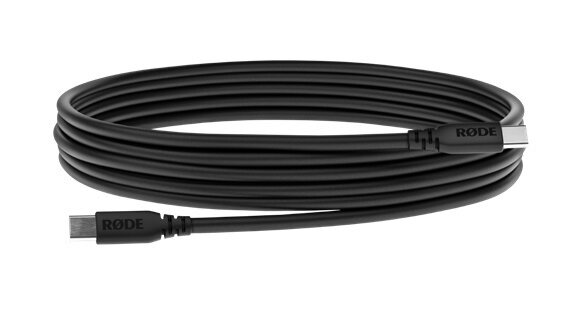

• 1 x USB-C to USB-C cable (1.5m)
• 1 x Power supply
