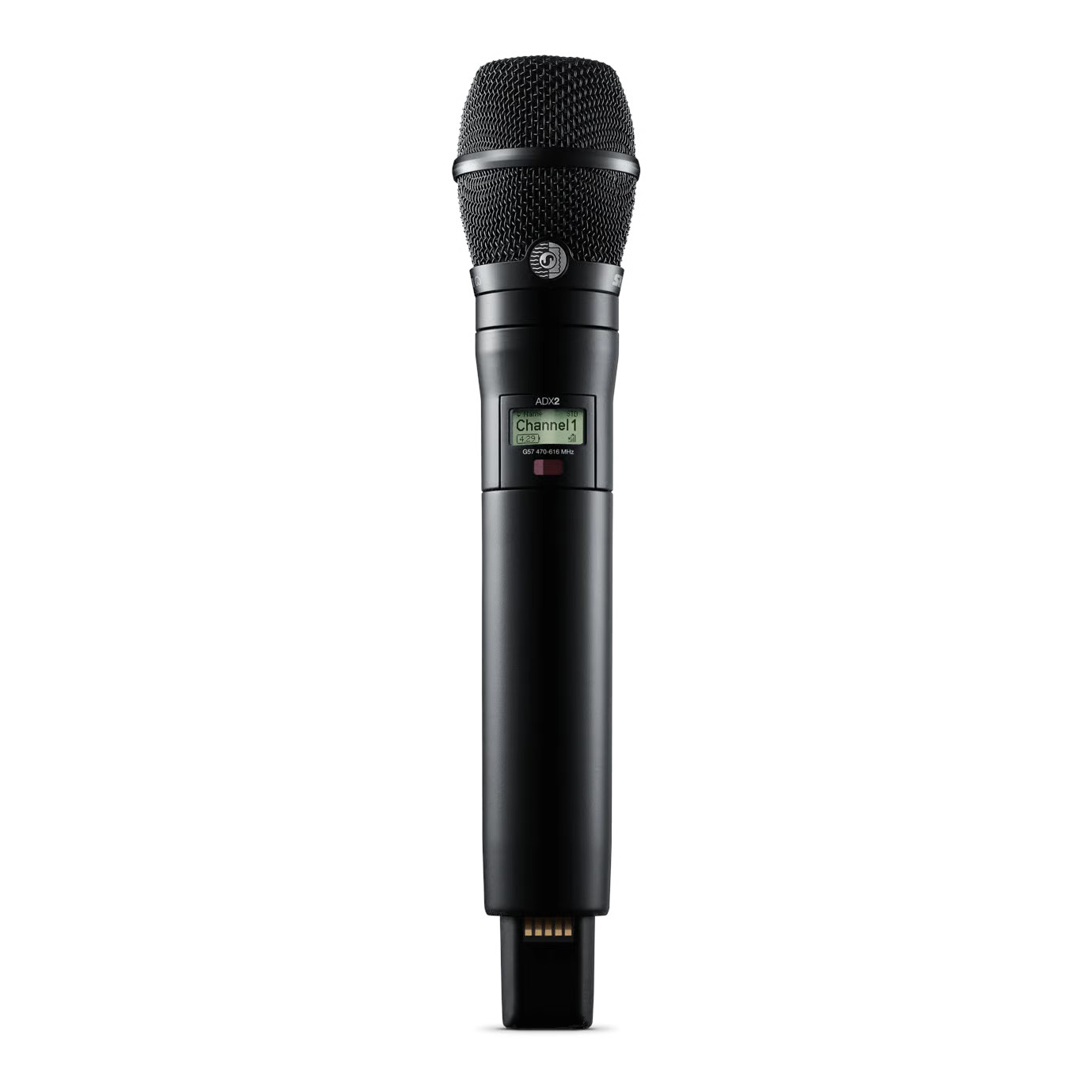

Shure ADX2 Handheld Transmitter w/KSM11 Capsule, Black (Freq: G57)

About: Shure ADX2 Handheld Transmitter w/KSM11 Capsule, Black (Freq: G57)

The Shure ADX2/K11 (Black) is a digital handheld wireless microphone transmitter compatible with Axient Digital series receivers. It is ShowLink-enabled for automatic interference avoidance and real-time remote control of parameters.

The ADX2/K11 comes equipped with a KSM11 condenser capsule featuring a cardioid polar pattern with consistent off-axis rejection that focuses audio capture on the talent and picks up less background noise. The capsule offers an aluminum and steel grille that protects the mic and provides a 3-layer pop filter to help reduce breath and plosive noises. The built-in shockmount helps reduce handling noise during live performance for clearer vocals. The deep cardioid pattern offers solid gain before feedback, with minimal off-axis coloration, for a warm, full sound.

The transmitter operates in a single 146 MHz ultrawide UHF bandwidth. It provides up to 9 hours of operation on the included SB920A rechargeable battery, with a transmission range up to 330' and a selectable 2/10/40mW RF output power.

With a durable, moisture-resistant, lightweight aluminum case, the ADX2/K11 transmitter delivers pristine audio quality, mission-critical RF performance, AES 256-bit encryption for secure transmission, and advanced rechargeability options, making it ideal for high-profile, sound-reinforcement applications.

ShowLink Enabled for Interference Avoidance & Parameter Control:

• ShowLink technology allows the ADX transmitter to execute an automatic, synchronized frequency change in a matter of milliseconds, ensuring clean, uninterrupted transmission, even in the most challenging RF environments.
• You can also make instantaneous remote adjustments to your ADX transmitter settings (RF output, gain, mute, and more) when it is difficult or impossible to access the transmitter.
• Interchangeable Design with KSM11 Capsule
• The KSM11B is a proprietary wireless condenser microphone capsule utilizing a 3/4" gold diaphragm and premium electronics for exceptional dynamic range and transient response.
• The capsule features a highly consistent, deep cardioid polar pattern that reduces off-axis phase distortion for pristinely focused vocal reproduction to provide rich and full low-frequency response, linear and transparent midrange, and natural high-end detail.
• The dent-resistant three-stage "pop" protection grille reduces plosives, wind, and other breath noise.
• The interchangeable capsule design allows you to replace the KSM11 capsule with a Shure capsule that’s ideal for your application and simply screw it onto the transmitter—including KSM9, KSM8, SM58, Beta 58A, Beta 87A, Beta 87C capsules, and more.
• User-Friendly Features in a Rugged Housing
• The unit quickly syncs with a wireless receiver via infrared at the touch of a button.
• The power button conveniently doubles as mute switch, while preserving RF lock.
• Frequency and power lockout functions prevent accidental or unauthorized changes during events.
• A backlit LCD with easy-to-navigate menu and controls lets you quickly access frequency, group, and channel settings, along with mute and lock status, RF output, and remaining battery life.
• Offset function lets you balance mic levels when assigning multiple transmitters to a single receiver slot. Adjustment range: -12 to +21 dB.
• 2/10/40mW selectable RF output power allows you to increase either the transmitter's range or the number of mics operating simultaneously.
• Two transmission modes: Standard for optimal coverage and High-Density for maximum system channel count and robust coverage.

Convenient Power Management Options:

• Operates for up to 9 hours on the included SB920A rechargeable lithium-ion battery.
• Rechargeable battery offers intelligent power management with precision metering in hours and minutes, and zero memory effect.
• External charging contacts allow for docked battery charging.
• SBC220 two-bay and SBC840 eight-bay networked chargers (both available separately) allow for remote power monitoring via Shure’s Wireless Workbench software.

What's in the Box

• 1x SB920A Rechargeable Lithium Ion Battery
• 1x 95B2313 Zipper Bag
• 1x WA371 Microphone Clip
• 1x 31A1856 Euro-Threaded Adapter
