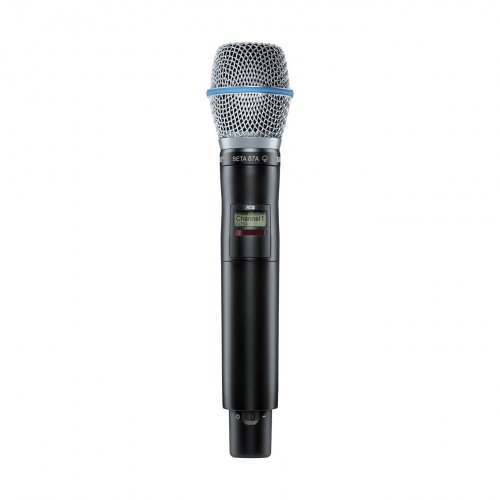

Shure AD2/B87A Digital Handheld Wireless Microphone with Beta 87A Capsule (G57)

About: Shure AD2/B87A Digital Handheld Wireless Microphone with Beta 87A Capsule (G57)

Shure AD2 Overview:

The Shure AD2/B87A is a digital handheld wireless microphone transmitter compatible with Axient Digital series receivers.

The AD2/B87A comes equipped with the Beta 87A condenser capsule designed to withstand extreme sound pressure levels, while still delivering a remarkably smooth frequency response for vocal performers and presenters. The capsule features a supercardioid polar pattern that offers excellent rejection of off-axis background noise, helping to reduce feedback.

The transmitter operates in a single 146 MHz ultrawide UHF bandwidth with selectable 2/10/35mW RF output power and a transmission range up to 330'. It provides up to 8 hours of operation on two AA batteries and up to 9 hours with an SB900A lithium-ion rechargeable battery (available separately).

With a durable, moisture-resistant, lightweight aluminum case, the AD2/B87A transmitter delivers pristine audio quality and RF performance, AES 256-bit encryption for secure transmission, and advanced rechargeability options, making it ideal for high-profile, sound-reinforcement applications.

Interchangeable Design with Beta 87A Capsule:

• The Beta 87A supercardioid condenser capsule handles SPL levels up to 140 dB and offers a smooth frequency response with a gradual presence rise and controlled proximity effect tailored for vocals.
• The interchangeable capsule design allows you to replace the Beta 87A capsule with a Shure capsule that’s ideal for your application and simply screw it onto the transmitter—including KSM9, KSM8, SM58, VP68, Beta 87C capsules, and more.

User-Friendly Features in a Rugged Housing

• The unit quickly syncs with a wireless receiver via infrared at the touch of a button.
• Automatic Gain adjusts the mic input level for you.
• The power button conveniently doubles as mute switch, while preserving RF lock.
• Frequency and power lockout functions prevent accidental or unauthorized changes during events.
• A backlit LCD with easy-to-navigate menu and controls lets you quickly access frequency, group, and channel settings, along with mute and lock status, RF output, and remaining battery life.
• Offset function lets you balance mic levels when assigning multiple transmitters to a single receiver slot. Adjustment range: -12 to +21 dB.
• 2/10/35mW selectable RF output power allows you to increase either the transmitter's range or the number of mics operating simultaneously.
• Two transmission modes: Standard for optimal coverage and High-Density for maximum system channel count and robust coverage.

Convenient Power Management Options

• Optional SB900A rechargeable battery offers intelligent power management with precision metering in hours and minutes, and zero memory effect.
• External charging contacts allow for docked battery charging.
• SBC220 two-bay and SBC840 eight-bay networked chargers (both available separately) allow for remote power monitoring via Shure’s Wireless Workbench software.
