Sennheiser TCC M-F-B TeamConnect Ceiling Medium Mic w/ Flush Mount Kit - Black

About: Sennheiser TCC M-F-B TeamConnect Ceiling Medium Mic w/ Flush Mount Kit - Black

With a coverage of up to 40 m2, our ceiling microphone TeamConnect Ceiling Medium is the right choice for mid-sized meeting rooms and lecture or collaboration spaces.

With this solution, Sennheiser provides an additional design option to seamlessly include our audibly superior ceiling microphone into your meeting room.

With all the great features of our trusted TeamConnect Ceiling 2 but in a more compact form, the TeamConnect Ceiling Medium microphone is a real problem-solver that allows cable-free tables und flexible furniture arrangement, while offering all of the TeamConnect Ceiling Solutions benefits like Trusted Sennheiser Audio Quality, efficient setup, brand agnostic integration, simple management and control, a sleek design and a sustainable impact.

The TCC M-F-B Flush Mount Kit is used to install the black TeamConnect Ceiling Medium flush to the ceiling. It comes with a TeamConnect Ceiling Medium and flush mount accessories

Specifications

• Product properties
  • Dimensions (Ø x H) -  477 x 46 mm (16 x 1.8 ")
  • Weight -  max. 4,9 kg (10.8lbs)
  • Audio output
    • 1 x 3-pin terminal (fits Phoenix contact MCVW 1.5-3-ST-3.81)
    • x Digital Dante Network Audio (RJ-45)
  • Network/Control -  1 x RJ-45 Ethernet Port for PoE power supply and data/control communication
  • Supply voltage -  PoE IEEE 802.3af Class 3 IEEE 802.3at / Typ 2 / Class 4 (when cascaded)
  • Power consumption -  Approx. 8 W
  • Safety certification -  IEC/EN 62368-1 (including UL 2043 testing and compliance)
• Acoustic properties
  • Transducer principle -  Pre-polarized condenser microphone
  • AF frequency response -  100 Hz to 16,000 Hz
  • Sensitivity -  0 dBV/Pa (890 mV/Pa)
  • Signal-to-noise ratio -  79 dB (A)
  • Equivalent noise level -  15 dB (A)
  • Number of KE 10-237 microphone capsules -  15
  • Pick-up pattern -  Beam pattern
  • Max. sound pressure level -  98 dB SPL
  • Dynamic range -  83 dB (A)
• Ambient Conditions
  • Temperature Range
    • Operation: 0 to 40°C
    • Storage: -10 to 60°C
  • Relative air humidity -  20 to 95%, non-condensing

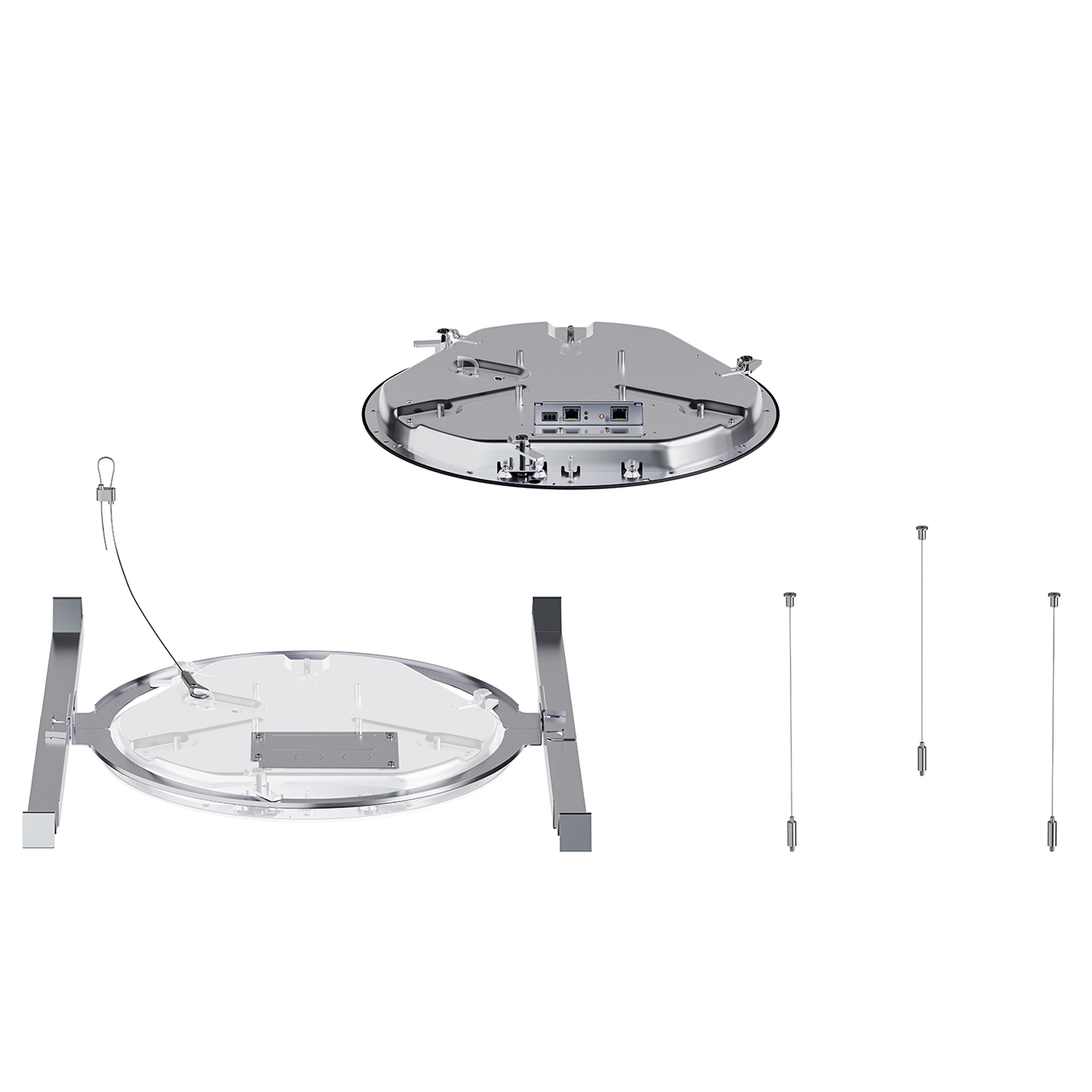

What's in the Box

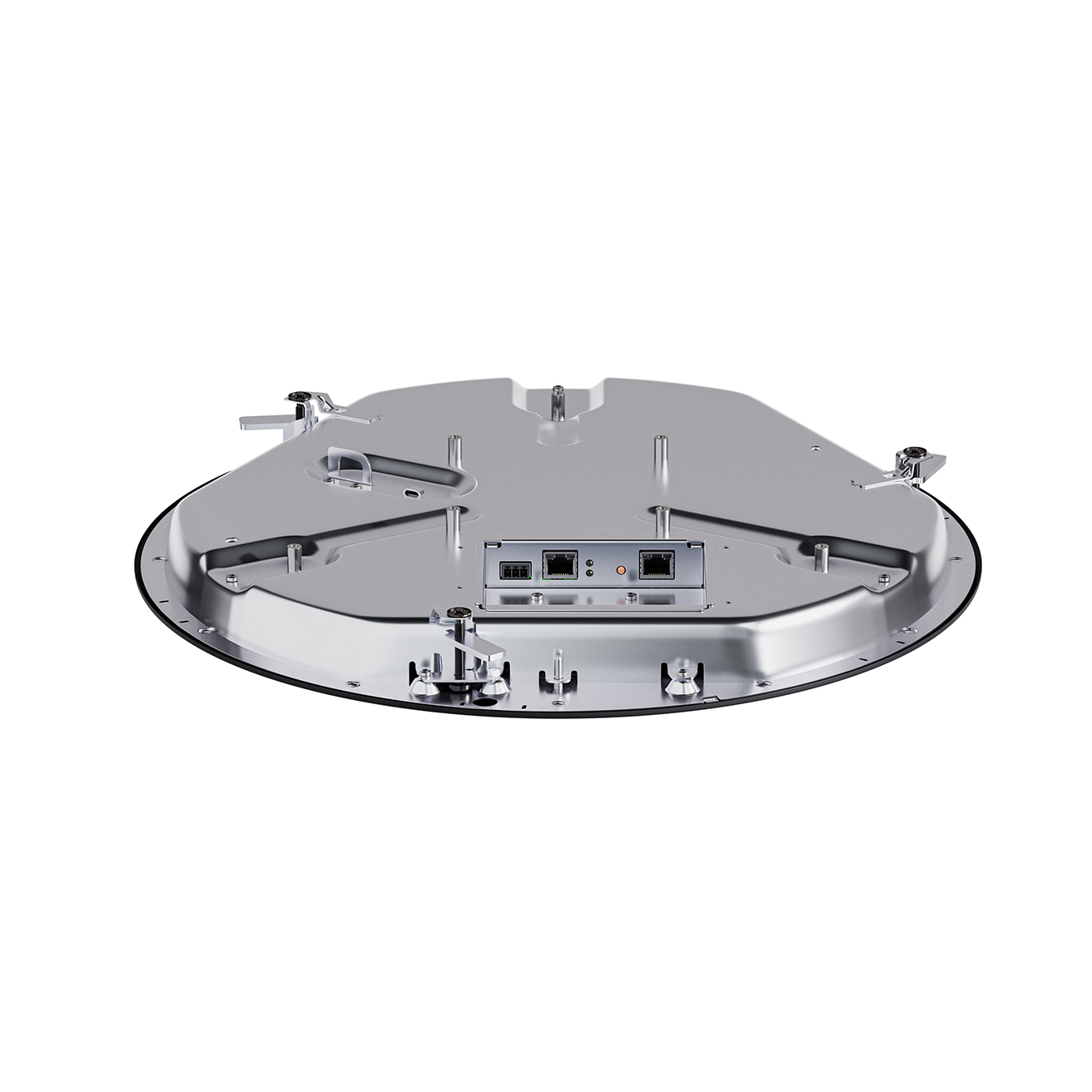

• TCC M microphone
• Front plate black

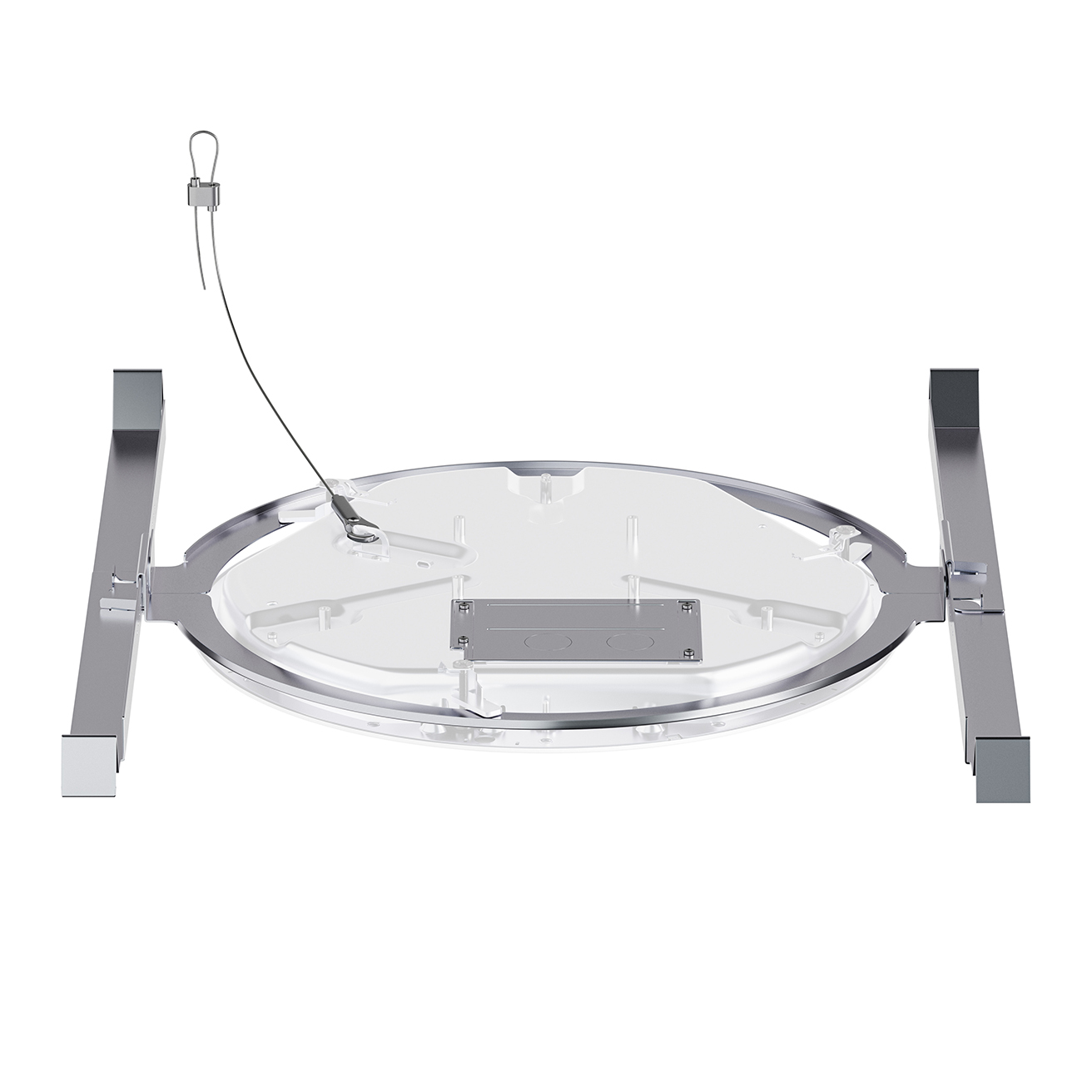

• Flush Mount Kit
• Chicago plenum connection box cover plate
• Drilling templates
• Phoenix connector
• Safety rope

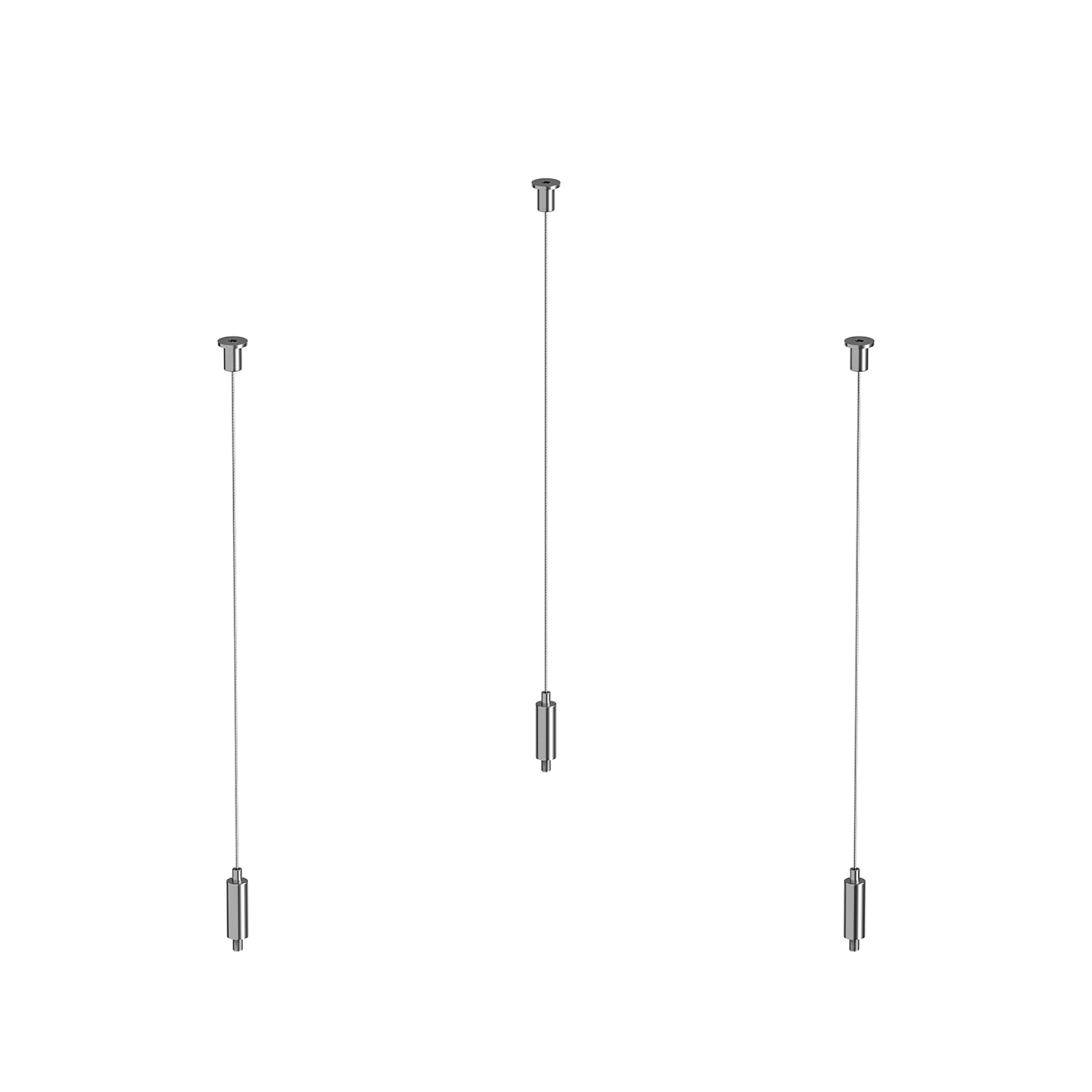

• Suspension kit
