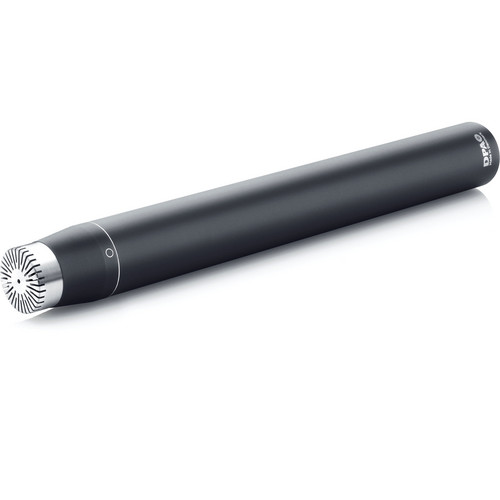

DPA 4006A Omnidirectional Condenser Mic

About: DPA 4006A Omnidirectional Condenser Mic

The 4006 Omni Mic offers total transparency in any recording situation. It picks up incredible detail and depth of sound. The definition of its high-frequency characteristics across a wide range of instruments is impressive. It offers natural sound, high sensitivity, low noise-floor and linear frequency response from 10 to 20 kHz (±2 dB).

Built on Earth, tested on Mars

NASA’s Mars 2020 Rover took off on July 30, 2020 for a seven-month journey to the mysterious Red Planet. It touched down successfully on February 18, 2021 with a DPA 4006 Omnidirectional, an MMA-A Digital Audio Interface and an MMP-G Modular Active Cable in tow.

This omnidirectional condenser microphone is linear and true in character. It has earned its status as a worldwide recording standard and is our most popular pencil mic. This highly sought after mic has forged its enviable reputation over the past quarter of a century by repeatedly exhibiting its total transparency in any recording situation.

4006A Omni Mic

This is a very flexible solution. Engineers, broadcasters and musicians alike can achieve clean, natural and precise sound reproduction. This omnidirectional condenser mic is ideal for A-B stereo pairs for symphonic concert hall recordings. It also excels on vocals, for close miking all types of instruments.

A wide selection of accessories is available, including acoustic pressure equalizers, a nose cone and interchangeable protection grids. These accessories can acoustically transform the mic. By changing grids, it is possible to gain several unique frequency responses and directional characteristics. Furthermore, these accessories will not produce any phase shift, noise or distortion that would otherwise be introduced by an electrical filter. These accessories are available in the Stereo Kits and Surround Kits.

Specifications

• Directional pattern: Omnidirectional
• Principle of operation: Pressure
• Cartridge type: Pre-polarized condenser
• Frequency response: 10 Hz - 20 kHz
• Effective frequency range ±2 dB: 10 Hz - 20 kHz
• Sensitivity, nominal, ±2 dB at 250 Hz: 40 mV/Pa; -28 dB re. 1 V/Pa
• Equivalent noise level, A-weighted: Typ. 15 dB(A) re. 20 µPa (max. 17 dB(A))
• Equivalent noise level, ITU-R BS.468-4: Typ. 27 dB (max. 29 dB)
• Distortion, THD < 1%: 136 dB SPL RMS, 139 dB SPL peak
• Dynamic range: Typ. 124 dB
• Max. SPL, THD 10%: 146 dB SPL peak
• Switchable attenuator, filters etc.: 0 dB / -20 dB
• Rated output impedance: 200 Ω
• Minimum load impedance: 2 kΩ
• Cable drive capability: 100 m (328 ft)
• Output balance principle: Impedance balancing with Active Drive
• Common mode rejection ratio (CMRR): > 60 dB
• Power supply (for full performance): P48 (Phantom Power)
• Current consumption: 2.8 mA
• Connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
• Color: Matte black
• Weight: 163 g (5.7 oz)
• Microphone diameter: 16 - 19 mm (0.6 - 0.75 in)
• Capsule diameter: 16 mm (0.6 in)
• Microphone length: 170 mm (6.7 in)
• Maximum output voltage, RMS: 8 V
• Polarity: +V at pin 2 for positive sound pressure
• Temperature range: -40°C to 45°C (-40°F to 113°F)
• Relative humidity (RH): Up to 90 %
• Matching tolerance (frequency response and sensitivity): ±0.5 dB
• Phase deviation for kit: < 5°
