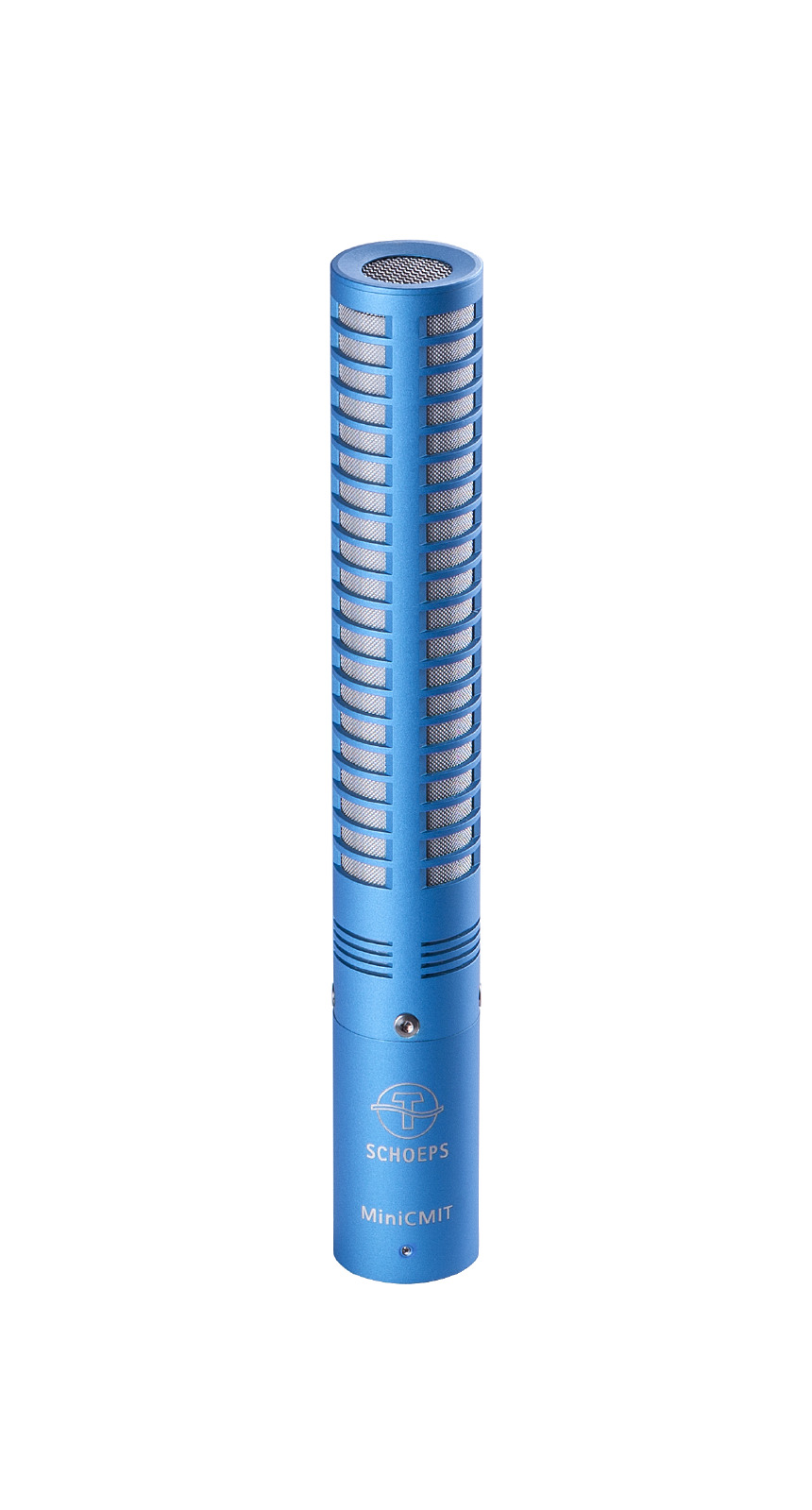

Schoeps MINICMIT Miniature Shotgun Microphone (Blue)
Model: MiniCMIT
About: Schoeps MINICMIT Miniature Shotgun Microphone (Blue)
The shotgun microphone MiniCMIT offers the characteristics of a CMIT 5 in more compact form. The MiniCMIT, CMIT 5 and SuperCMIT (ch2) have identical frequency response curves. Furthermore, the MiniCMIT and CMIT 5 have circuitry with similar characteristics, such that the microphones can be interchanged without altering the sound.
- Offers the characteristics of a CMIT 5 in more compact form
- Phantom Powering with P12 and P48
- low current draw
- Fixed 4th order low-cut filter at 70 Hz
TECHNICAL SPECIFICATIONS
- Pickup pattern: Supercardioid / lobe-shaped
- Frequency range: 60 Hz - 20 kHz
- Sensitivity:-35 dB (V/Pa), 17 mV/Pa
- Equivalent noise level (A-weighted): 14 dB
- Equivalent noise level (CCIR): 24 dB
- Signal-to-noise ratio (A-weighted): 80 dB
- Maximum sound pressure level (THD < 0.5 %): 130 dB-SPL (P48), 115 dB-SPL (P12):
- Maximum output voltage: 1 V (0 dBV) with 2 kΩ load
- Low cut filter: fixed, 70 Hz, 24 dB/oct.
- Minimum recommended load impedance: 2 kΩ
- Output impedance: 100 Ω
- Maximum cable length: >100 m
- SCHOEPS RFI Shield: Yes
- Powering standard / Valid range: P48 / >24 V, P12 / >11 V
- Current consumption: 2.3 mA (P48)
- Common mode rejection ratio (at 1 kHz): > 55 dB
- Output: XLR-3M, analog, 1 channel
- Length: 151 mm
- Diameter: 21 mm
- Weight: 78 g
- Surface finish: blue
