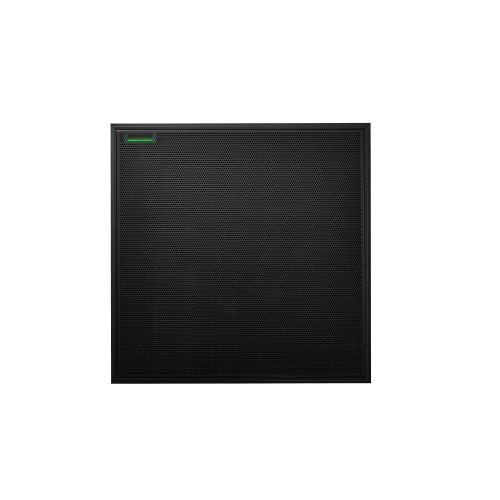

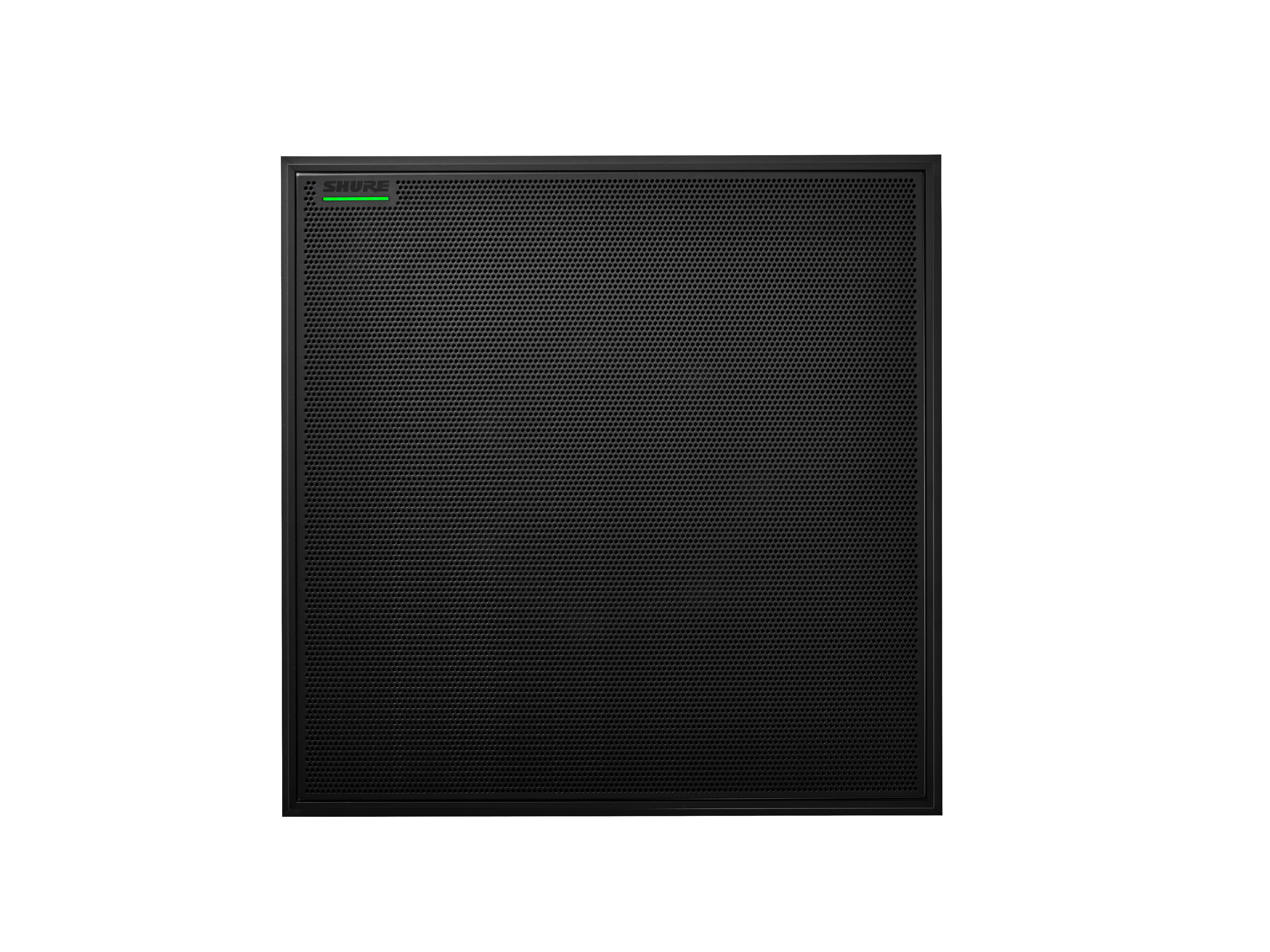

Shure MXA925 Square Ceiling Array Microphone - Black

About: Shure MXA925 Square Ceiling Array Microphone - Black

Reimagine collaboration with the Shure MXA925 Ceiling Array Microphone—an enhanced successor to the MXA920 for next-generation meeting rooms. Automatic Coverage delivers fast, out-of-the-box room pickup, while AI-enabled IntelliMix DSP (AI AEC, AI Denoiser, and AI Deverb) helps keep speech clear and natural in challenging spaces. Dual RJ45 networking, enterprise security, and ShureCloud remote management make MXA925 an IT-friendly, future-ready conferencing audio solution.

• Automatic Coverage provides default 30 ft x 30 ft (9 m x 9 m) pickup out of the box
• Up to eight configurable coverage areas for precise voice capture in complex room layouts
• Supports AV conferencing, camera tracking, and voice lift for versatile applications
• AI-enabled IntelliMix DSP including AI Acoustic Echo Cancellation (AEC), AI Denoiser, and AI Deverb algorithms.
• Virtual Acoustic Boundary ensures that voices or noises outside of defined automatic coverage areas will not be heard.
• Optimize Tracking feature streamlines setup and greatly improves talker location accuracy when using multiple MXA925 microphones in larger spaces
• Command strings and Device API support integration with third-party cameras and room control systems
• Certified for Microsoft Teams Rooms and Zoom Rooms for seamless platform integration
• Enterprise-grade security with 802.1X authentication, audio encryption, and secure boot
• Dual RJ45 ports enable flexible, redundant, and secure deployments
• Remote monitoring and firmware management via ShureCloud

AI-enabled premium voice capture for AV conferencing, camera tracking, and voice lift in modern meeting spaces. Automatic Coverage enables fast setup with 30 ft x 30 ft (9 m x 9 m) default coverage- ability to configure up to eight coverage areas for more focused pickup. Onboard IntelliMix DSP adds AI-powered processing—AI AEC, AI Denoiser, and AI Deverb—to keep speech clear and natural for remote participants and transcription. Dual RJ45 connections support flexible deployment, including separating audio and control for high-security installs. Built for scalable, IT-friendly rollouts, MXA925 includes enterprise security (802.1X and audio encryption) plus ShureCloud monitoring and firmware updates, and comes in square or round (black or white) with MXA920 mounting-accessory compatibility.

Specifications

• Connector Type: Dual RJ45 connectors
• Power Requirements: Power over Ethernet (PoE), Class 0
• Control Software: Web Application or Shure Designer
• Cable Requirements: Cat5e or higher (shielded cable recommended)
• Operating Temperature Range: −6.7°C (20°F) to 40°C (104°F)
• Plenum Rating: Not rated
• Dust Protection: IEC 60529 IP5X Dust Protected
• Frequency Response: 125 Hz to 20 kHz
• Polar Pattern: Array
• Microphone Elements: 113 MEMS
• Coverage Type: Automatic Coverage / Steerable Coverage
• Coverage Size: 30 x 30 feet (9.1 x 9.1 meters)
• Latency
  • Direct outputs (Automatic coverage off): 13 ms
  • Automix output (Includes IntelliMix processing): 47 ms
• Dynamic Range: 77.5 dB
• Dimensions: 23.77 x 23.77 x 2.15 inch (603.8 x 603.8 x 54.69 mm)
• Weight: 11.8 lbs (5.4 kg)

What's in the Box

• 1x MXA925 Ceiling Array, Black, Square
• 8x Cable ties
• 3x Strain relief tabs
• 1x Rubber pad set
