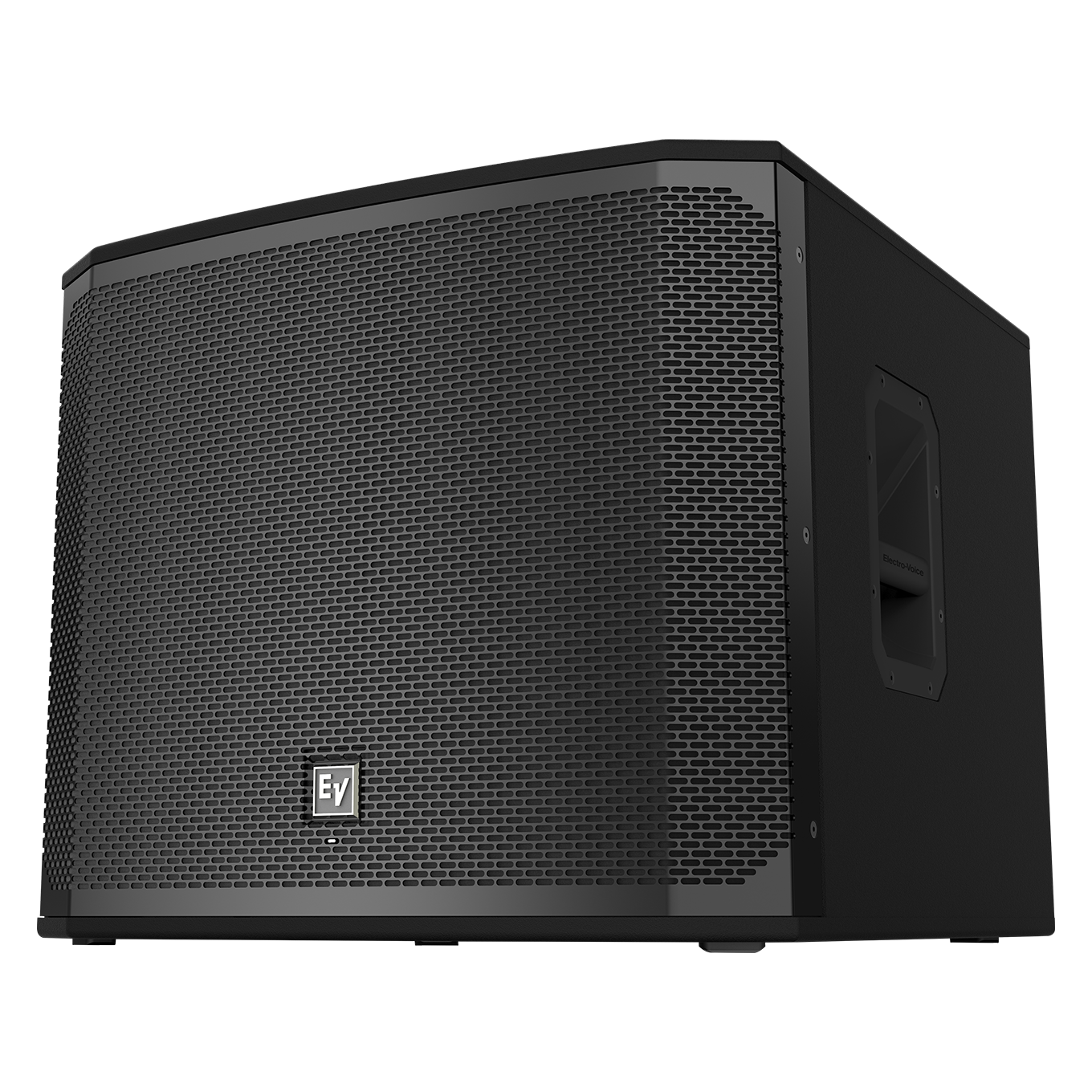

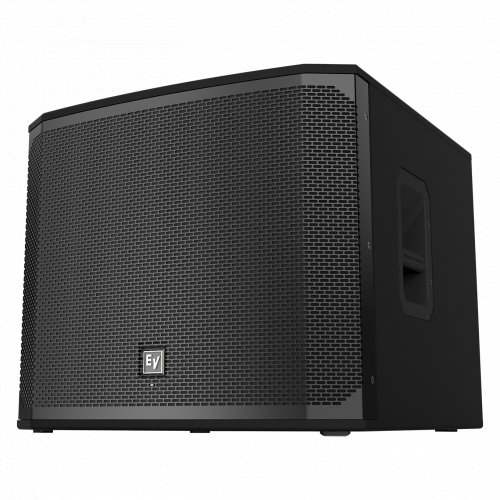

Electro-Voice EKX-18S 18in Passive Subwoofer
Model: EV EKX-18S
About: Electro-Voice EKX-18S 18in Passive Subwoofer
The EKX series is the newest member of the Electro Voice portable loudspeaker family, and combines legendary EV sound quality and reliability with the latest technology — all in a compact package suitable for a wide range of sound reinforcement scenarios, including musicians/DJs and live/club/installed sound applications. The EKX series features eight models (four powered and four passive), including 12" and 15" two-way models and 15" and 18" subwoofers. EKX is positioned above the ZLX and ELX series and below the ETX series.
Features:
- 1600 W (peak), 134 dB peak SPL on the EKX-18S utilizing highsensitivity transducers designed and engineered by EV.
- Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish.
- Large slot ports for low distortion and excellent bass extension.
- Metal grille reinforcement bar (two bars on the EKX-18S).
- M20 threaded pole mount plate.
Specifications:
- Axial Sensitivity (SPL, 1 W @ 1 m) 96 dB
- Connector Type Dual NL4
- Coverage (Nominal -6 dB) H 90 °
- Coverage (Nominal -6 dB) V 60 °
- Enclosure Material 15 mm, plywood with EVCoat
- Frequency Response (-10 dB) 35 Hz - 300 Hz Half Space Measurement
- Frequency Response (-3 dB) 50 Hz - 100 Hz Half Space Measurement
- Grill 18 AWG steel with powdercoat
- LF Transducer EVS-18C 457 mm (18 in)
- Maximum SPL 134 dB
- Minimum Impedance 7 Ω
- Nominal Impedance 8 Ω
- Power Handling (Continuous / Peak) 400 W/1600 W
- Recommended High-Pass Frequency 30 Hz
- Shipping Weight 40.1 kg (88.41 lbs)
- Height 12RU 520 mm (20.47")
- Width 606 mm (23.86")
- Depth 612 mm (24.09")
- Weight Net 31.8 kg (70.11 lbs)
