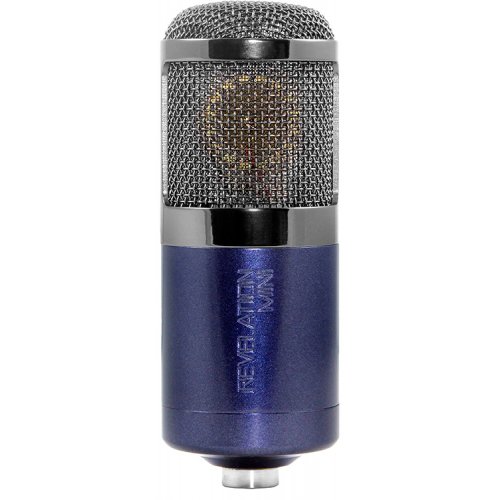

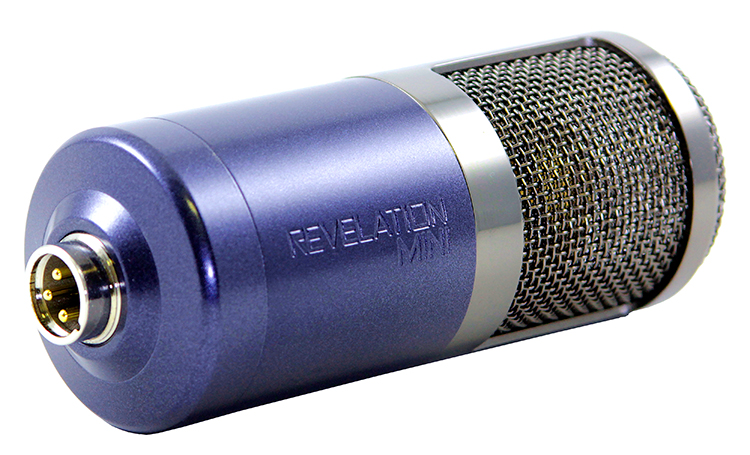

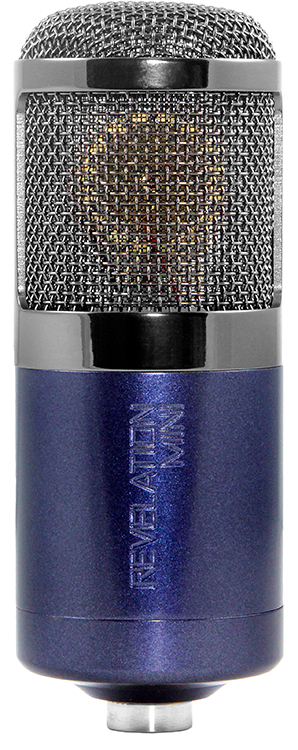

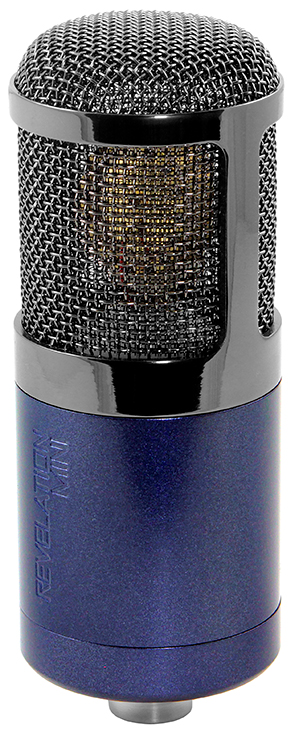

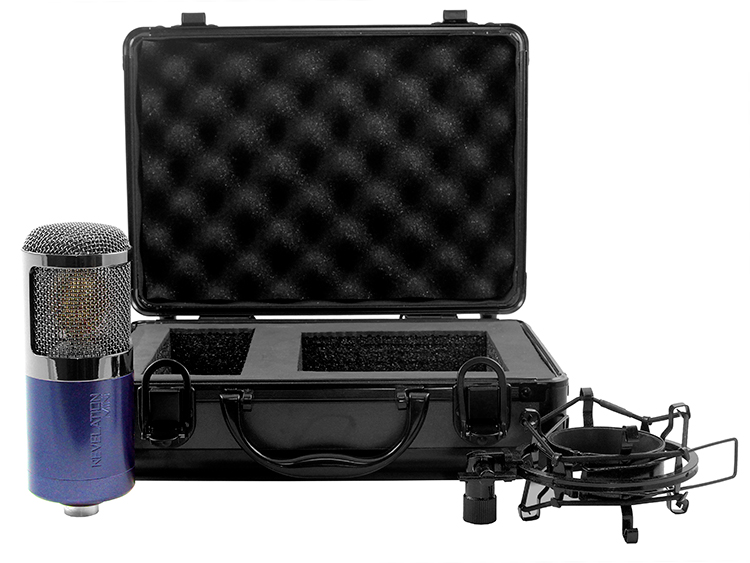

MXL Revelation Mini FET Condenser Microphone

Model: MXLREVMINIFET

MXL Revelation Mini FET Condenser Microphone
MXL Revelation Mini FET Condenser Microphone
MXL Revelation Mini FET Condenser Microphone
MXL Revelation Mini FET Condenser Microphone
MXL Revelation Mini FET Condenser Microphone
  • Free Shipping!
  • Not In-Stock - Available to Order
  • Not yet reviewed




About: MXL Revelation Mini FET Condenser Microphone

The MXL REVELATION MINI FET is a compact, large diaphragm condenser microphone inspired by the legendary MXL REVELATION tube microphone. MXL set out to design a smaller, FET-based microphone that would carry the classic tone and sonic image of the REVELATION, while increasing durability and versatility for a variety of studio and live applications.

The REVELATION MINI FET utilizes a premium 32mm center terminating, gold-sputtered capsule combined with a low noise circuit to provide a classic sound for a range of uses. The FET-based circuit design offers a low noise and discreet signal path when paired with the 32mm capsule, allowing the REVELATION MINI to deliver the classic REVELATION sound at a lower price. The inclusion of a -10/-20db pad allows the mic to be used on a variety of sources including hard-hitting kick drums, blasting trumpets and everything in-between.

The REVELATION MINI FET has been designed to exceed expectations. From its black chrome accents to the hand-selected FET and capacitors, the REVELATION MINI FET is sure to stand out in your mic locker by emphasizing the natural characteristics of vocals and instrumentals.

  • The REVELATION MINI FET is designed to emulate the classic valve-based circuits of higher-end microphones, such as the MXL REVELATION, providing a rich, velvety tonality for your recordings.
  • A 32mm center terminating, gold sputtered capsule and a classic head basket delivers transparent and natural sound while minimizing internal reflections.

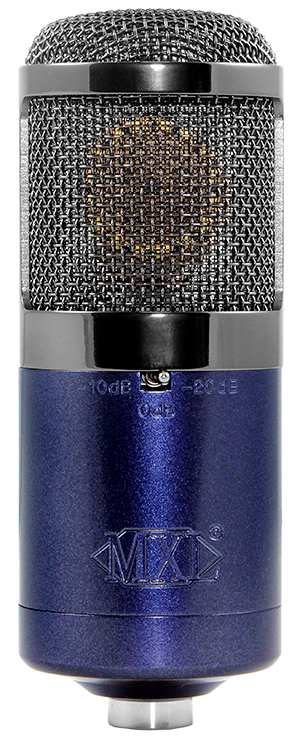

  • A 3-stage Pad (0, -10dB, -20dB) provides the flexibility needed for recording high SPL sources, such as horns and kickdrums.
  • The FET-based circuit design provides a low noise recording for more music and less hum.

Specifications:

  • Type: Condenser pressure gradient mic with large 32mm capsule
  • Diaphragm: Gold-sputtered, 6 micron diaphragm
  • Frequency Response: 20 Hz - 20 kHz
  • Polar Pattern: Cardoid
  • Sensitivity: 25mV/Pa
  • Impedance: 150 ohms
  • Attenuation Switch: (Pad/Pre attenuation) -10 dB, -20 dB
  • Max SPL for .5% THD: 158 dB (with pad set to -20 dB)
  • Power Requirements: 48V Phantom Power
  • Metal Finish: Blue with Black Chrome Accents

UPC: 801813227536

Reviews: MXL Revelation Mini FET Condenser Microphone

There are currently no product reviews.


Warranty: MXL Revelation Mini FET Condenser Microphone

AVShop.ca Warranty:

30 Days

Manufacturer's Warranty:

1 - 3 years; varies by product. See user manual for details
