Austrian Audio OC818 Studio Set
Model: OC818-STUDIO-SET
About: Austrian Audio OC818 Studio Set

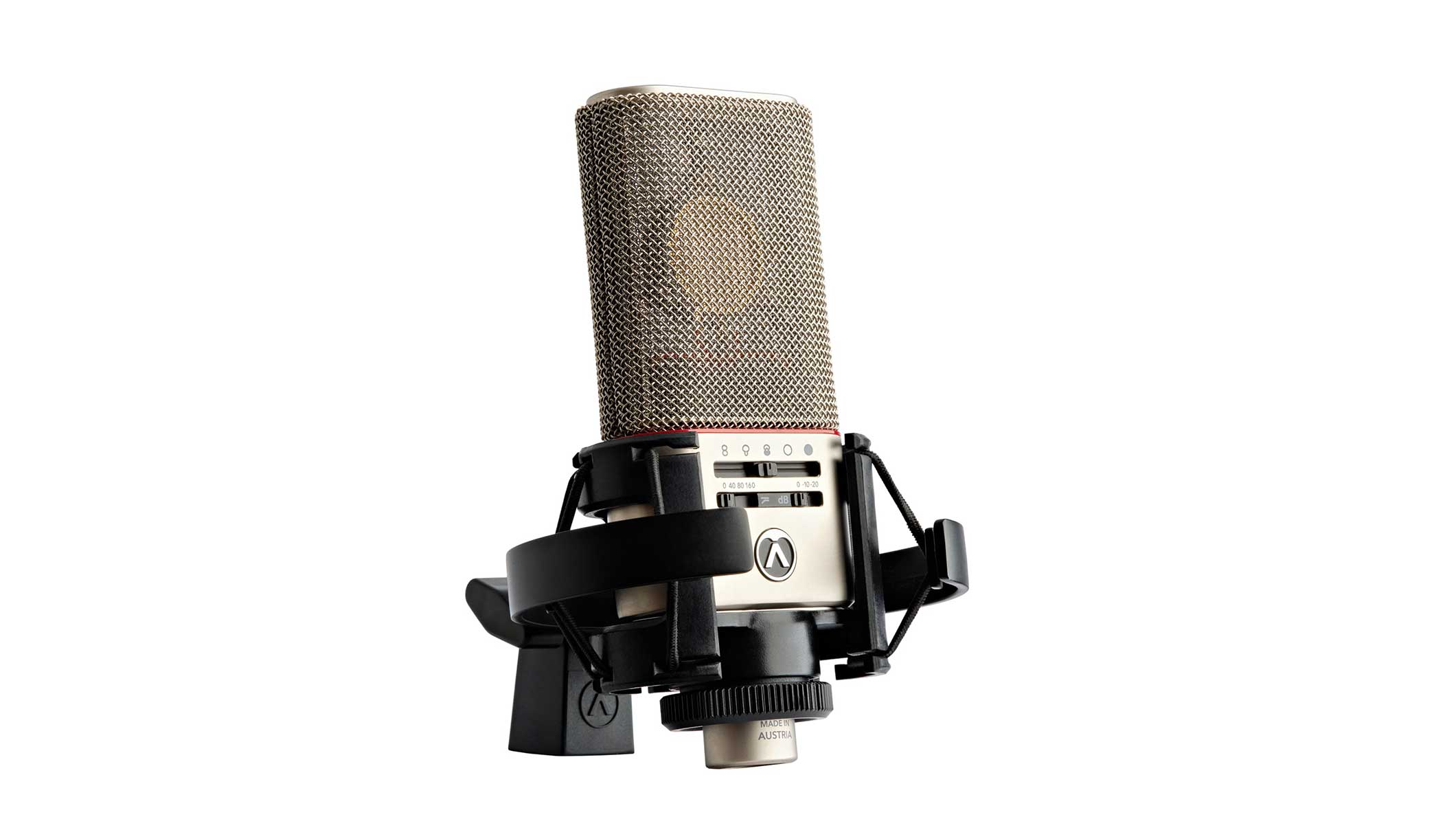

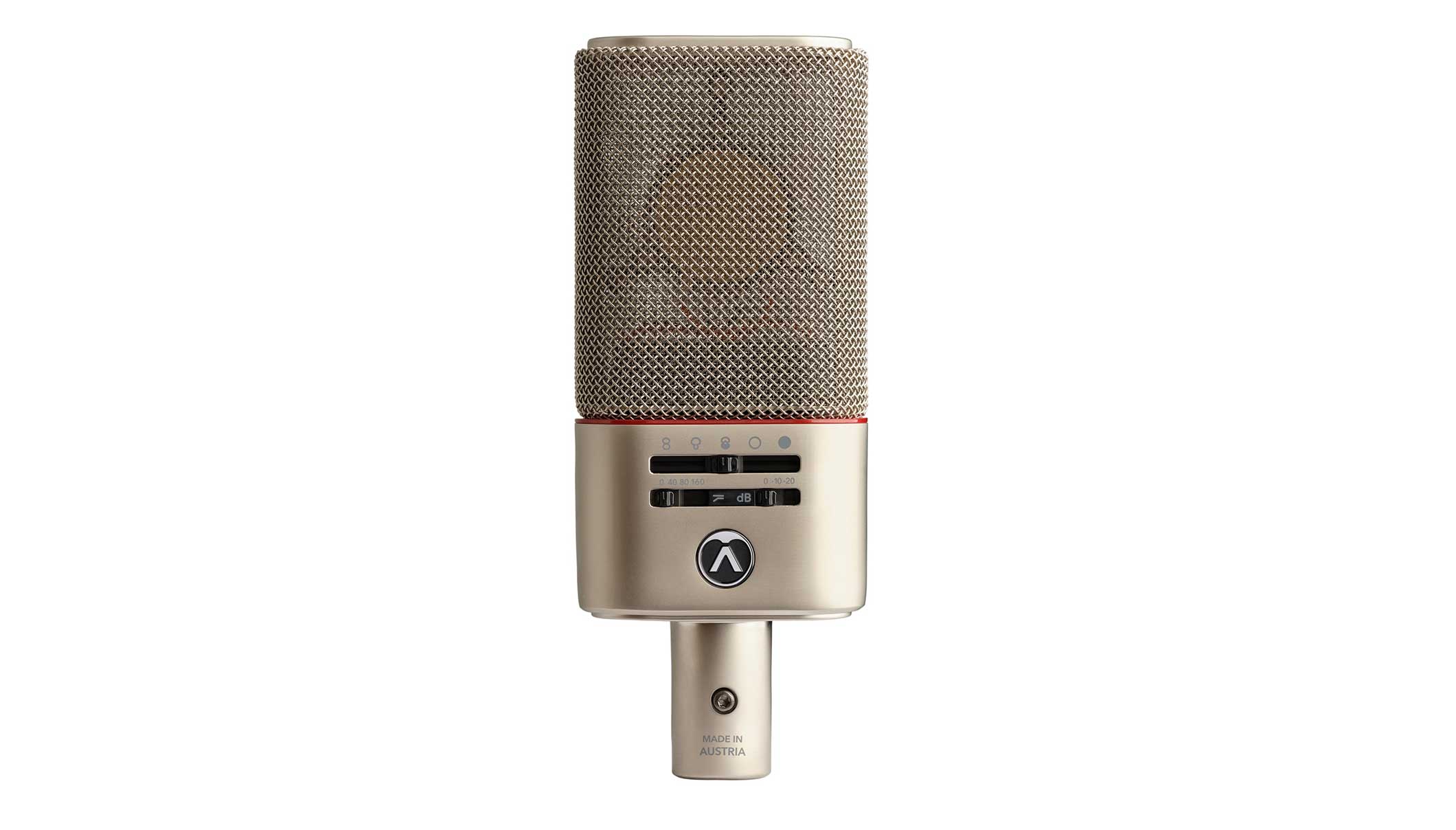

Engineered and manufactured in Austria, The OC818 is Austrian Audio’s premier, professional, large diaphragm microphone. Its high sensitivity, low self-noise and ability to handle everything from a whisper to extreme SPLs make it the most advanced microphone for studio, broadcast and live applications. As the unique ceramic capsule design is so consistent, any OC818 is match-paired with any other OC818, and when in cardioid mode, it can also be match-paired with any OC18, its affordable, smaller sibling.
Key Features
- Handmade CKR12 ceramic capsule - Made to the same critical dimensions as the classic CK12 capsules
- Multiple polar patterns - Cardioid, omnidirectional & custom programmable
- Microprocessor control of polarisation voltages - Allows remote controlled polar pattern settings
- Two different analogue high-pass filters with three settings - 40 Hz, 80 Hz, 160 Hz
- Two different types of analogue pads - -10 dB, -20 dB
- Dual outputs - for recording each diaphragm separately

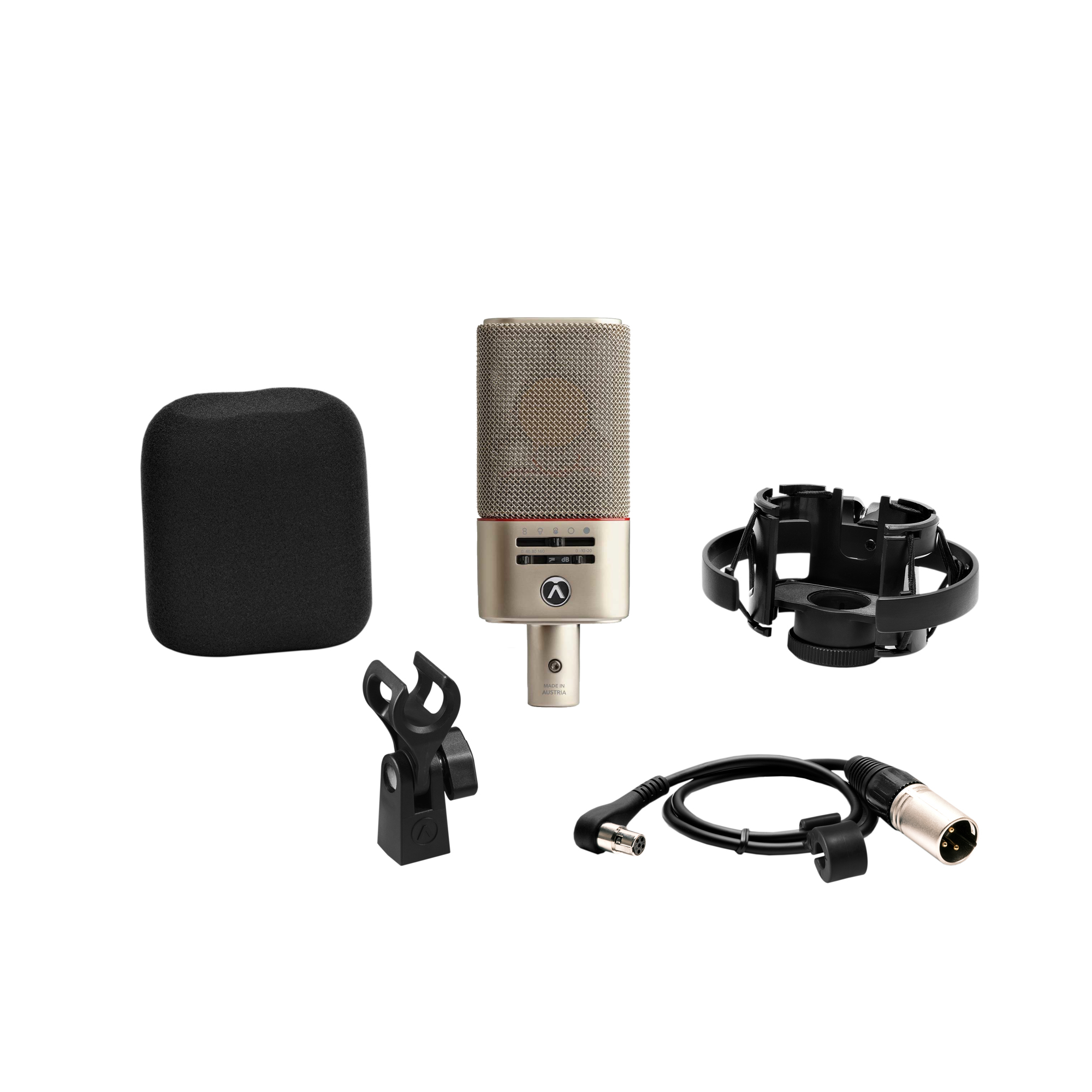

OC818 Studio Set Includes:
- OC818 Microphone
- Shockmount
- Mini XLR
- Mic Clip
- Windsheild
- Case
Specifications
- Directional characteristics: Multi
- Impedance: 275 Ω (symmetrical)
- Polar pattern: cardioid, omnidirectional, figure-8, supercardioid & custom programmable
- Load impedance: > 1 kΩ
- Frequency range: 20 Hz - 20 kHz
- Supply voltage: 48 V (< 4mA, typical 2.1mA)
- Sensitivity (all directions): 13mV/Pa
- Main Connector: XLR 3 pin or remote: Mini XLR 5 pin Connector for back membrane
- Equivalent noise level: 9 dB SPL (A)
- Max SPL: 148 dB SPL (158 dB SPL)
- Dimensions: 157 x 63 x 35 mm
- Switchable pad: -10 dB, -20 dB
- Weight: 360g
- Analog Low Cut filter: 40 Hz (2nd order), 80 Hz (2nd order), 160 Hz (1st order down to 80Hz, 2nd order below)
UPC: 810019100024
