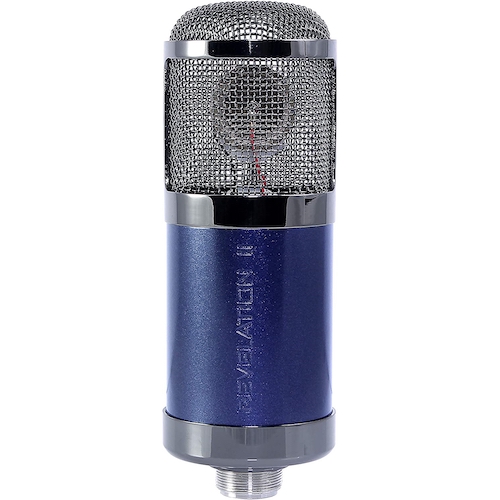

MXL Revelation II Variable Pattern Tube Microphone

About: MXL Revelation II Variable Pattern Tube Microphone

The MXL Revelation II is a studio microphone that delivers the warmth and intimacy of a classic tube microphone with a lush mid-range providing a unique color and sound to any microphone locker. A dual gold-sputtered, 6-micron diaphragm and hand-selected EF86 pentode tube provide warmth and character giving the Revelation II an iconic sound. The Revelation II’s variable selection knob allows for limitless transitions between cardioid, omnidirectional, and figure-8 polar patterns. Whether you record vocals, instruments, percussion or simply use it as a room mic, the Revelation II brings a classic sound in any recording application.

Application

The deep midrange and balanced top end of the Revelation II helps it becomes a true utility in the studio. Tame harsh sources like cymbals or acoustic guitar or bring out the depth in a vocalist. The variable polar pattern allows creators to dial in a unique and purpose-driven sound in any recording space.

Features:

• Flagship variable polar pattern tube mic
• Voiced after the music industry’s most sought after mics, delivering a clear and pronounced midrange, tight lows and smooth highs
• Perfect for vocals and acoustic instruments
• EF86 Pentode Tube and Mogami Tube Cable  internal wiring for top performance

Specifications:

• Type:  Variable pattern tube condenser microphone
• Capsule: Dual gold-sputtered, 6 micron diaphragm
• Tube type: EF86
• Frequency response:  20 Hz – 20 kHz
• Polar pattern: Continuously variable
• Sensitivity: -40 dB re 1 V/Pa
• Impedance: 140 ohms
• Attenuation switch: 0 dB, -10 dB
• High pass filter: 12 dB/octave @ 125Hz
• Equivalent noise: -18 dB (A-weighted IEC 651)
• S/N ratio:  76 dB
• Max SPL for .5% THD: 138 dB SPL
• Power requirements: Revelation® Power Supply Unit 110/220 VAC, 50/60Hz
• Size and weight: 7 1/2″ X 2 1/2″/190mm x 63.5mm (mic only), 2 lbs / 907g (mic only)
• Metal finish:  Dark violet and black chrome
• Included accessories: MXL flight case I MXL89 I Mogami tube cable 15”
