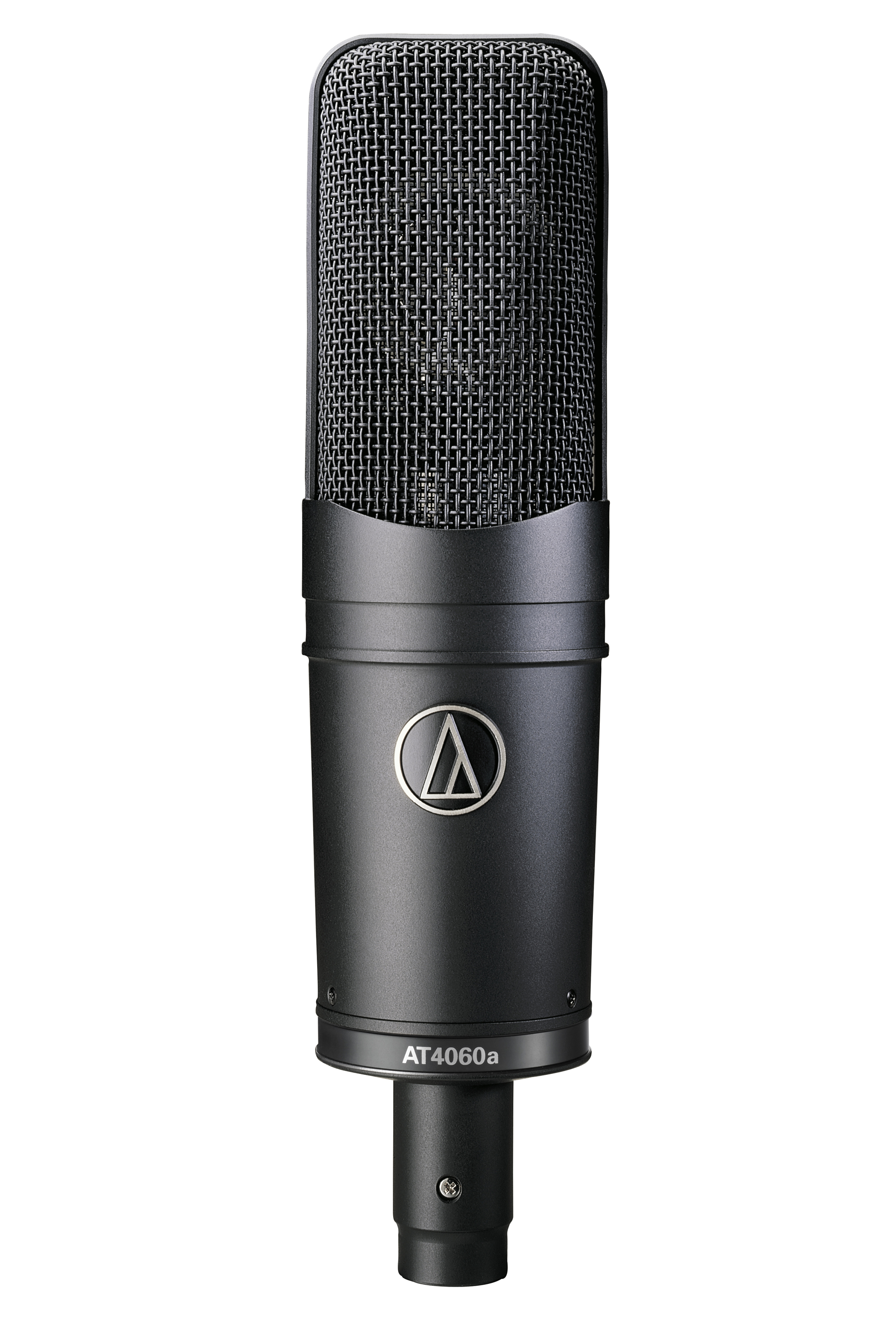

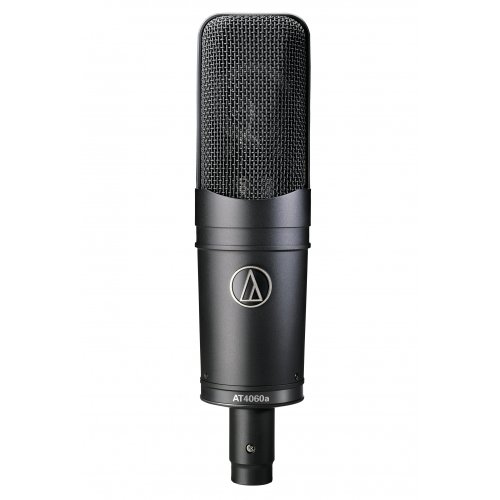

Audio Technica AT4060A Cardioid Condenser Tube Microphone

About: Audio Technica AT4060A Cardioid Condenser Tube Microphone

The AT4060a is a large-diaphragm cardioid condenser tube microphone, designed for use in the most demanding studio applications.
Each hand-selected tube is individually aged and tested, then employed in a uniquely configured circuit for enhanced tube performance.

Specially tuned elements improve dynamic range and the allow the AT4060a to handle high SPLs without sacrificing high-frequency characteristics.
Floating-construction mounting of the elements provides isolation from noise and vibration.

The AT4060a operates in conjunction with the included tube microphone powering unit, featuring low-impedance output and a ground-lift switch.

• Vintage tube sound with the versatile performance necessary for the most demanding studio applications
• Hand-selected tubes are individually tested and aged to maintain peak performance
• Regulated and heavily filtered heater current prevents noise contamination of audio signal chain
• Wide dynamic range, low self-noise and high max SPL capability
• Large coupling transformer provides superior low-frequency linearity
• Dual-diaphragm capsule design maintains precise polar pattern definition across the full frequency range of the microphone
• The 2-micron-thick, vapor-deposited gold diaphragms undergo a five-step aging process so that the optimum characteristics achieved remain constant over years of use
• Precision-machined, nickel-plated brass, acoustic element baffle provides enhanced element stability and optimal sensitivity

Specifications:

• Polar Pattern: Cardioid
• Frequency Response: 20-20,000 Hz
• Open Circuit Sensitivity: –34 dB (19.9 mV) re 1V at 1 Pa
• Impedance: 200 ohms
• Max. Input Sound Level: 150 dB SPL, 1 kHz at 1% T.H.D.; 149 dB SPL, 1 kHz at 0.5% T.H.D.
• Noise: 19 dB SPL
• Dynamic Range (typical): 131 dB, 1 kHz at Max SPL
• Signal-to-Noise Ratio: 75 dB, 1 kHz at 1 Pa
• Power Requirements: AT8560a tube microphone powering unit (100-240V AC)
• Weight: Microphone: 645 g - Tube microphone powering unit: 1.3kg
• Dimensions: Microphone: 215.0 mm long - 53.4 mm maximum body Ø Tube microphone powering unit: 212.0 mm W x 131.5 mm D x 46.0 mm H
• Output Connector: 3-pin XLRM-type (on tube microphone powering unit)
• Cables: 7.6 m cable with 6-pin XLR-type connectors for use between microphone and tube microphone powering unit; AC power cable
• Accessories furnished: AT8560a tube microphone powering unit; AT8447 shock mount for 5/8”-27 threaded stands; rack-mount adapters for tube microphone powering unit; protective mic carrying case
