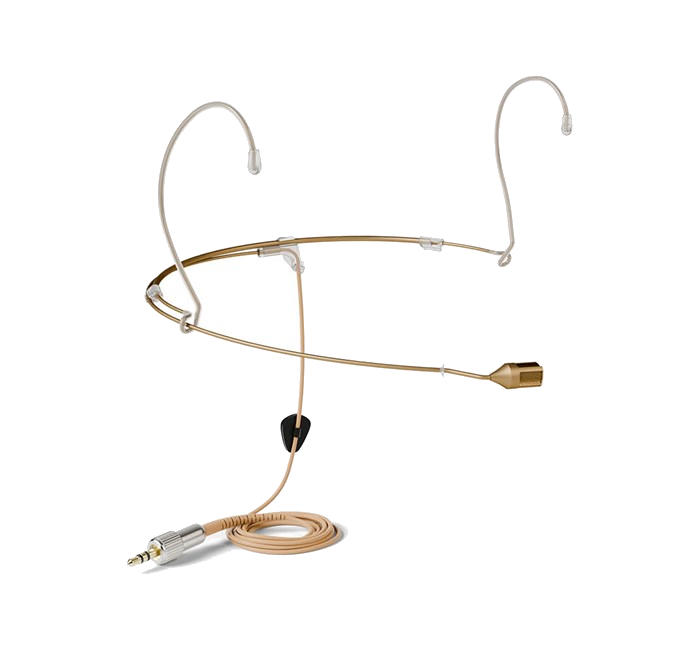

DPA 6388 CORE+ Directional Headset Microphone w/Mini-Jack - Beige
Model: 6388-DP-A-F34-LH
About: DPA 6388 CORE+ Directional Headset Microphone w/Mini-Jack - Beige
The 6388 CORE+ Directional Headset Microphone delivers DPA's renowned natural, authentic sound with outstanding feedback rejection and exceptional speech intelligibility — in a secure, discreet headset built for the most demanding live environments.
Specifications
- Directional pattern: Supercardioid
- Principle of operation: Pressure gradient
- Cartridge type: Pre-polarized condenser
- Frequency response: 20 Hz - 20 kHz
- Effective frequency range ±2 dB: 100 Hz - 18 kHz with 1 dB soft boost at 14 kHz
- Sensitivity, nominal, ±2.4 dB at 1 kHz: 8 mV/Pa; -42 dB re. 1 V/Pa
- Equivalent noise level, A-weighted: Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))
- Equivalent noise level, ITU-R BS.468-4: Typ. 37 dB (max. 39 dB)
- Distortion, THD < 0.5%: 138 dB SPL, RMS, 141 dB SPL peak
- Distortion, THD < 1%: 140 dB SPL RMS, 143 dB SPL peak
- Dynamic range: Typ. 117 dB
- Max. SPL, THD 10%: 144 dB SPL peak
- Rated output impedance: From MicroLock: 60 - 80 Ω. From DAD9001: 100 Ω
- Cable drive capability: Up to 300 m (984 ft) with DAD9001 XLR Adapter
- Current consumption: Typ. 1.0 mA (microphone). 3.5 mA with DAD9001 XLR Adapter
- Connector: Mini-Jack
- Weight: 15 g (0.53 oz) incl. cable and connector
- Microphone head size: Ø6,3/ 13,3mm (Ø0.25 / 0.52 in)
- Capsule diameter: 5.1 mm (0.2 in)
- Cable length: 1.3 m (4.3 ft)
- Polarity: Positively increasing sound pressure produces positive going voltage on MicroLock pin
- Temperature range: -40°C to 45°C (-40°F to 113°F)
- Relative humidity (RH): Up to 90%
- Color: Beige
UPC: 5713055034665
Reviews: DPA 6388 CORE+ Directional Headset Microphone w/Mini-Jack - Beige
Warranty: DPA 6388 CORE+ Directional Headset Microphone w/Mini-Jack - Beige
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
All DPA microphones are covered by warranty for a minimum of two years. Some of them come with a five-year warranty.
The five-year warranty is valid for the following microphones: The d:facto™ Vocal Microphone with the 4018V capsule and all d:dicate™ microphones except the 2006 and 2011.
The DPA warranty covers:
- Only the microphone
- Mechanical functionality
- Documented specifications
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
