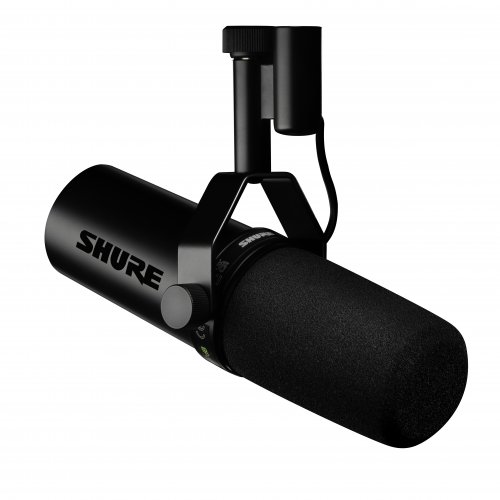

Shure SM7dB Dynamic Microphone w/ Preamp

About: Shure SM7dB Dynamic Microphone w/ Preamp

The Shure SM7dB is a cardioid dynamic microphone with a Shure-designed built-in preamp providing up to +28 dB of low-noise, flat, transparent gain ideal for lower-output interfaces and simplified audio chains. Delivers warm and smooth audio for vocal and studio applications. Preamp bypass switch, adjustable bass roll-off and presence boost, electromagnetic hum shielding, internal shock mounting, and external windscreen ensure clear and consistent audio reproduction.

Features

• Built-in active preamp providing either +18dB or +28dB of extra gain delivers levels suitable for any interface.
• Flat, wide-range frequency response for exceptionally clean and natural reproduction of both music and speech.

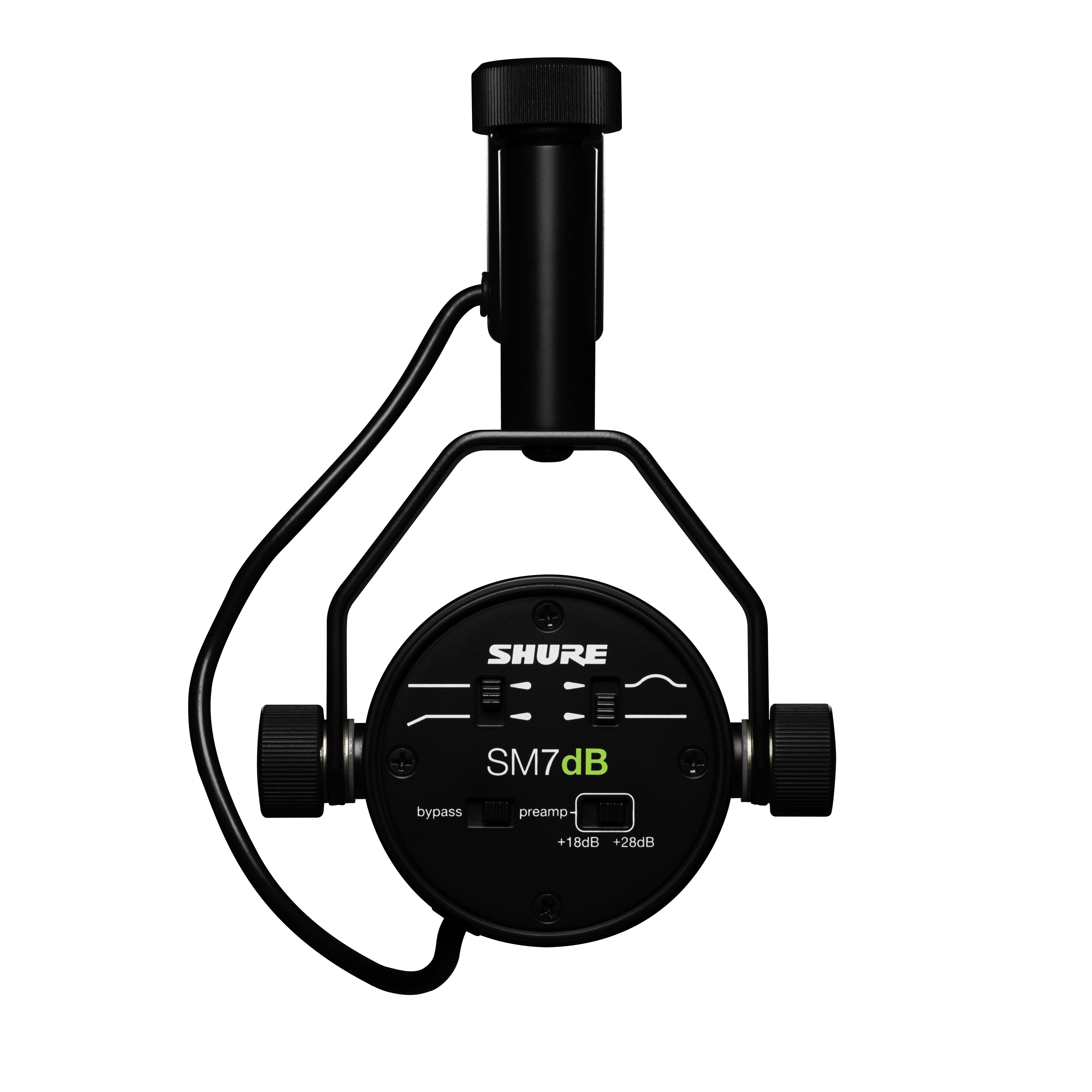

• Preamp bypass switch to revert to original SM7B performance.
• Bass roll-off and mid-range emphasis (presence boost) EQ switch controls.
• Superior rejection of electromagnetic hum, optimized for shielding against broadband interference emitted by computer monitors.
• Internal “air suspension” shock isolation virtually eliminates mechanical noise transmission.
• Highly effective pop filter eliminates need for any add-on protection against explosive breath sounds, even for close- up vocals or narration.
• Yoke mounting with captive stand nut for easy mounting and dismounting provides precise control of microphone position.
• Classic cardioid polar pattern, uniform with frequency and symmetrical about axis, to provide maximum rejection and minimum coloration of off-axis sound.
• Rugged construction and excellent cartridge protection for outstanding reliability.

Specifications

• Type: Dynamic (moving coil)
• Polar Pattern: Cardioid
• Frequency Response: 50 Hz to 20 kHz
• Output Impendance:
  • 150 Ω in Bypass Mode
  • 27 Ω in Preamp Mode
• Sensitivity (at 1 kHz, open circuit voltage) [1] 1 Pa=94 dB SPL
  • -59 dBV/Pa[1] (1.12 mV) Flat Response Bypass Mode
  • -41 dBV/Pa[1] (1.12 mV) Flat Response +18 Preamp Mode
  • -31 dBV/Pa[1] (1.12 mV) Flat Response +28 Preamp Mode
• Polarity relative to Pin 3: Positive pressure on diaphragm produces positive voltage on Pin 2
• Net Weight: 837 g (1.875 lbs)
• Housing: Black enamel aluminum and steel case with black foam windscreen
