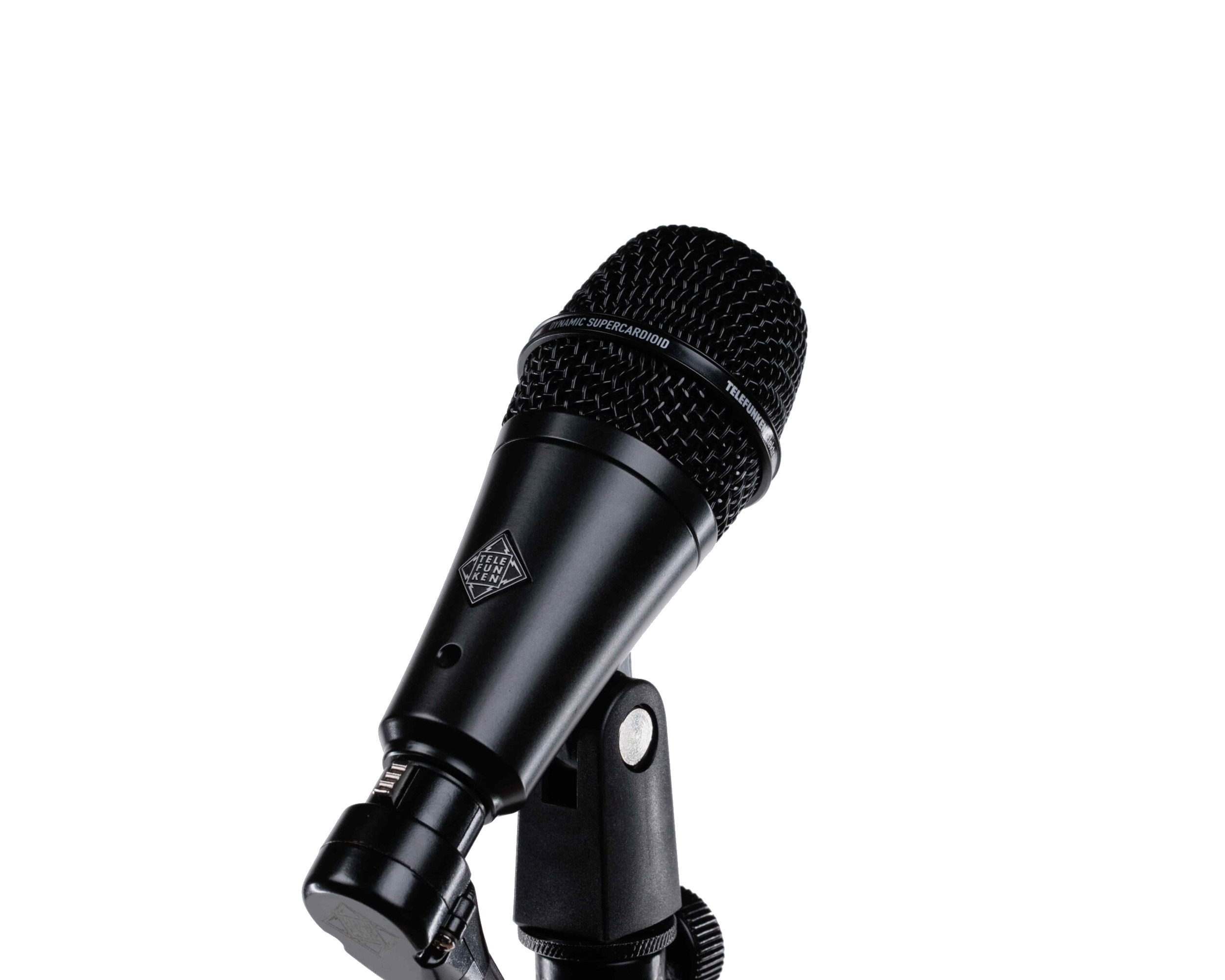

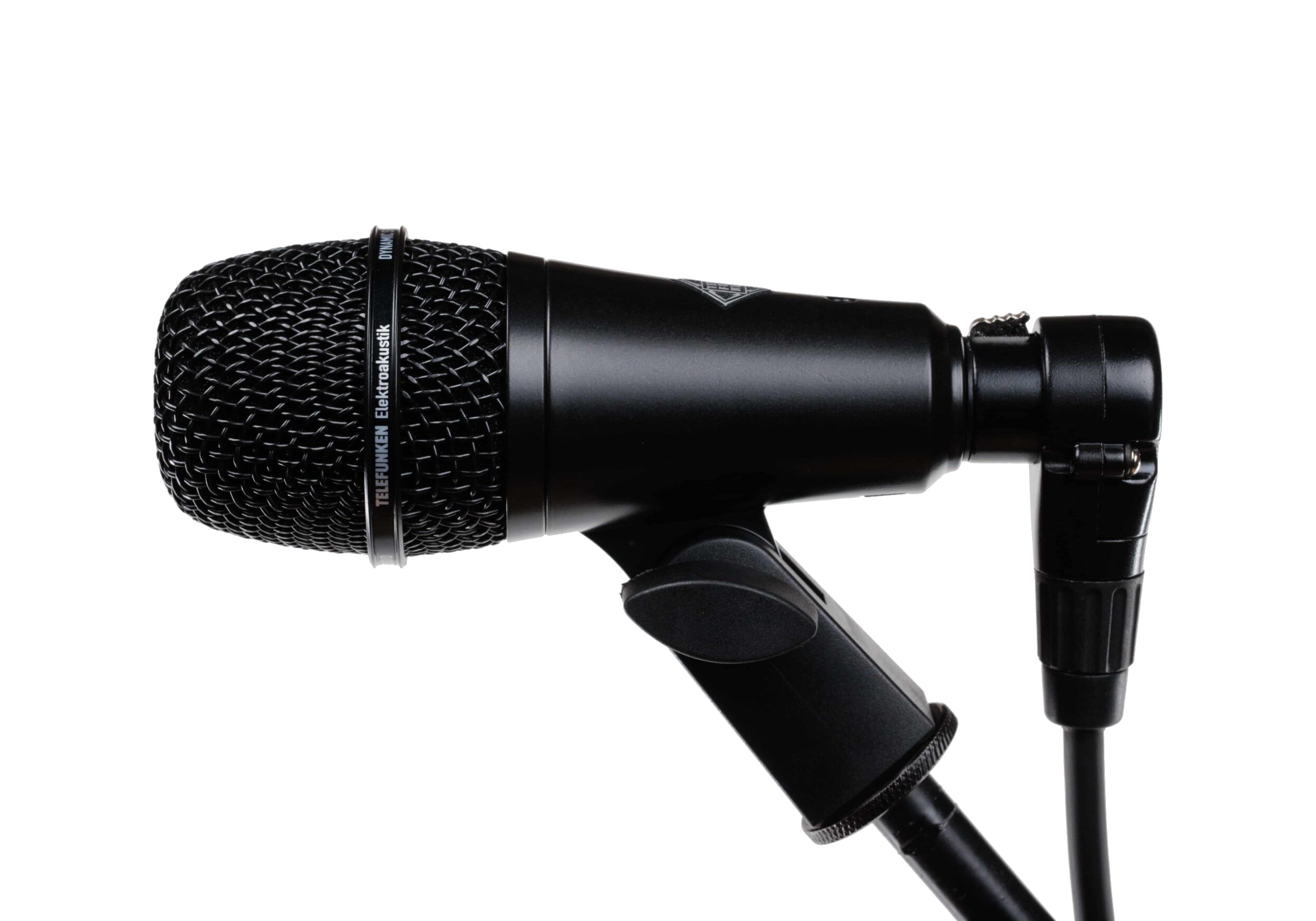

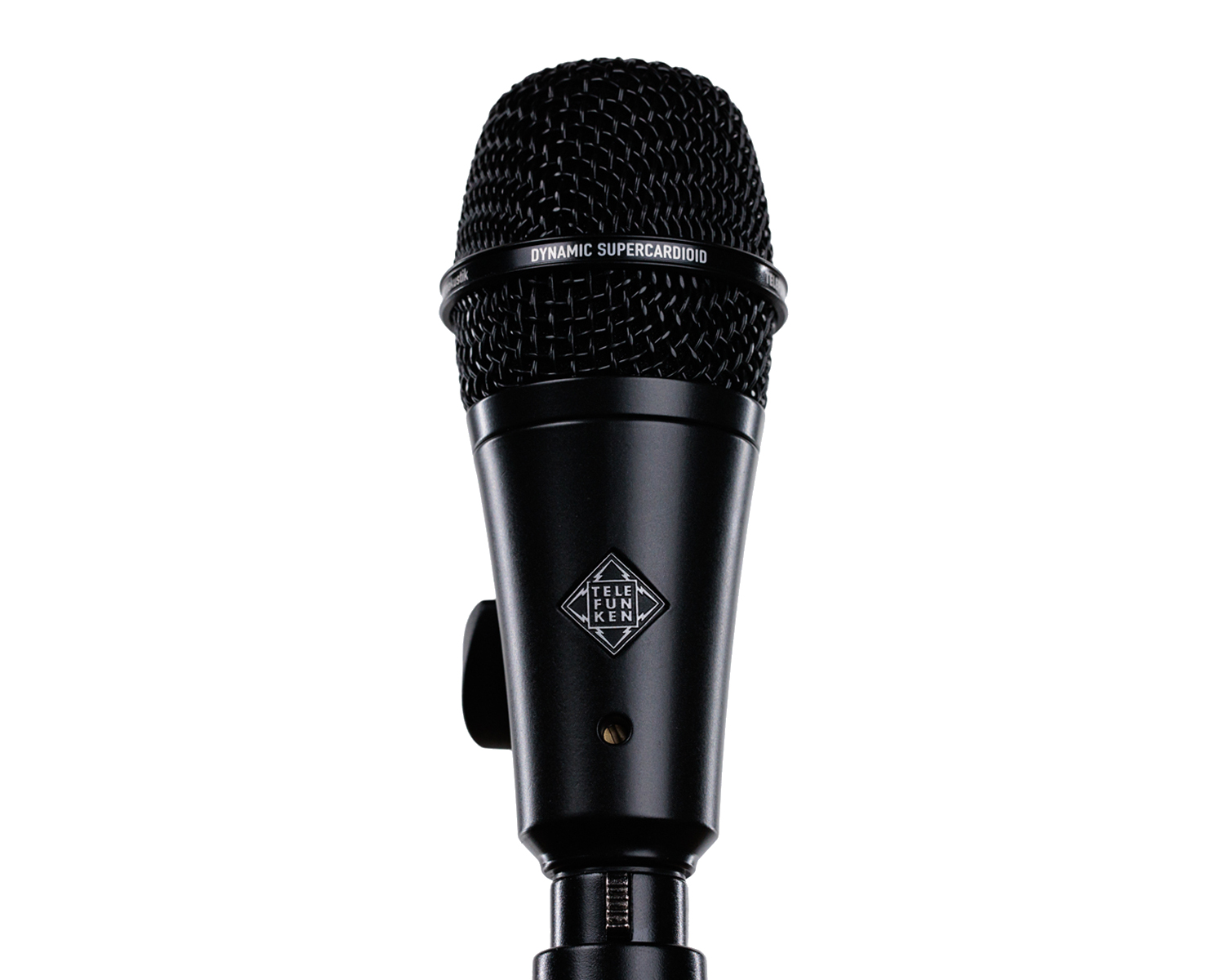

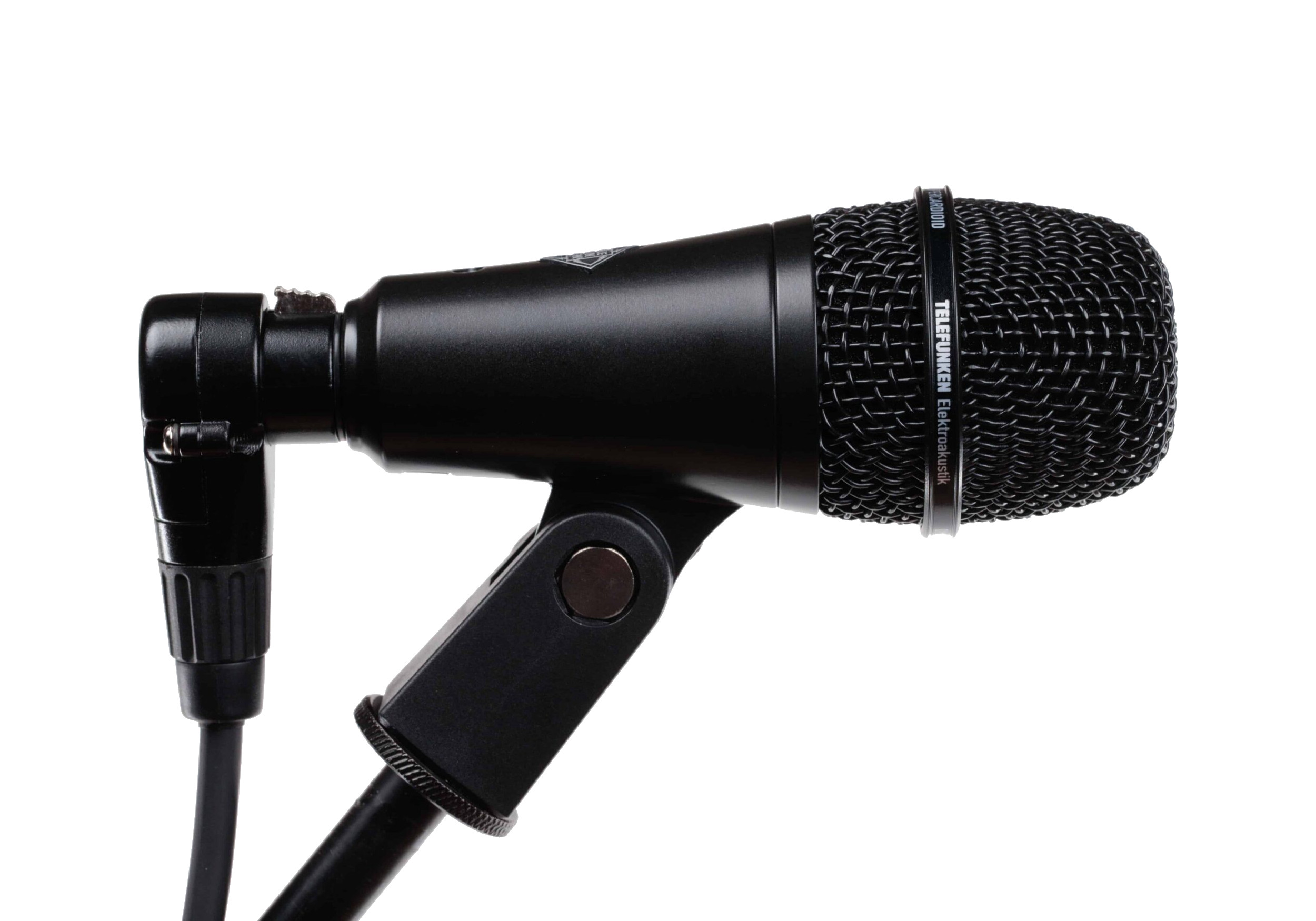

Telefunken M80-SH Low Profile Dynamic Microphone

About: Telefunken M80-SH Low Profile Dynamic Microphone

The M80-SH is made for low profile microphone applications, while still delivering the wide frequency response and high SPL handling the M80 is known for.

• Same detailed, condenser-like performance as the handheld M80
• Smaller size and built-in mount allow for easier positioning
• Custom-wound impedance-matching audio transformer
• High SPL handling and excellent off-axis rejection
• Right-angle XLR cable included
• Designed and hand assembled in the USA
• Recommended Applications: Snare Drum, Singing drummers or keys players, Woodwinds

Now lighter, shorter, and sleeker than ever, the redesigned M80-SH delivers improved performance and modernized styling, with a 40% reduction in overall weight, a 10% shorter length, vibration-dampening technology, and finishes matched to our handheld microphones. Updated for 2026, these models set a new standard for low-profile dynamic microphones and offer enhanced stability, refined aesthetics, and updated packaging for a premium experience on stage and in the studio.

The compact footprint of the M80-SH makes it ideal for tight-fit applications such as drums and guitar amps on stage, as well as vocal positions for drummers and keyboard players where a full-size microphone may be obstructive. It delivers the same character and high-SPL handling as its handheld counterparts, with a natural, condenser-like response and subtle high-frequency rise, while its Supercardioid pickup pattern minimizes proximity effect and provides superior off-axis rejection.

Specifications

• Type: Dynamic
• Polar Pattern: Supercardioid
• Frequency Range: 50 Hz – 18 kHz, ±3 dB
• Capsule: 25mm Dynamic Moving Coil
• Transformer: TELEFUNKEN Elektroakustik T80
• Sensitivity: 1.54 mV/Pa, ±1 dB
• Output Impedance: 325 Ω
• Maximum SPL (for 1% THD): 135 dB
• Dimensions (LxDia.): 4.49 x 1.89 inch (114 x 48mm)
• Weight: 0.46 lbs (210 g)

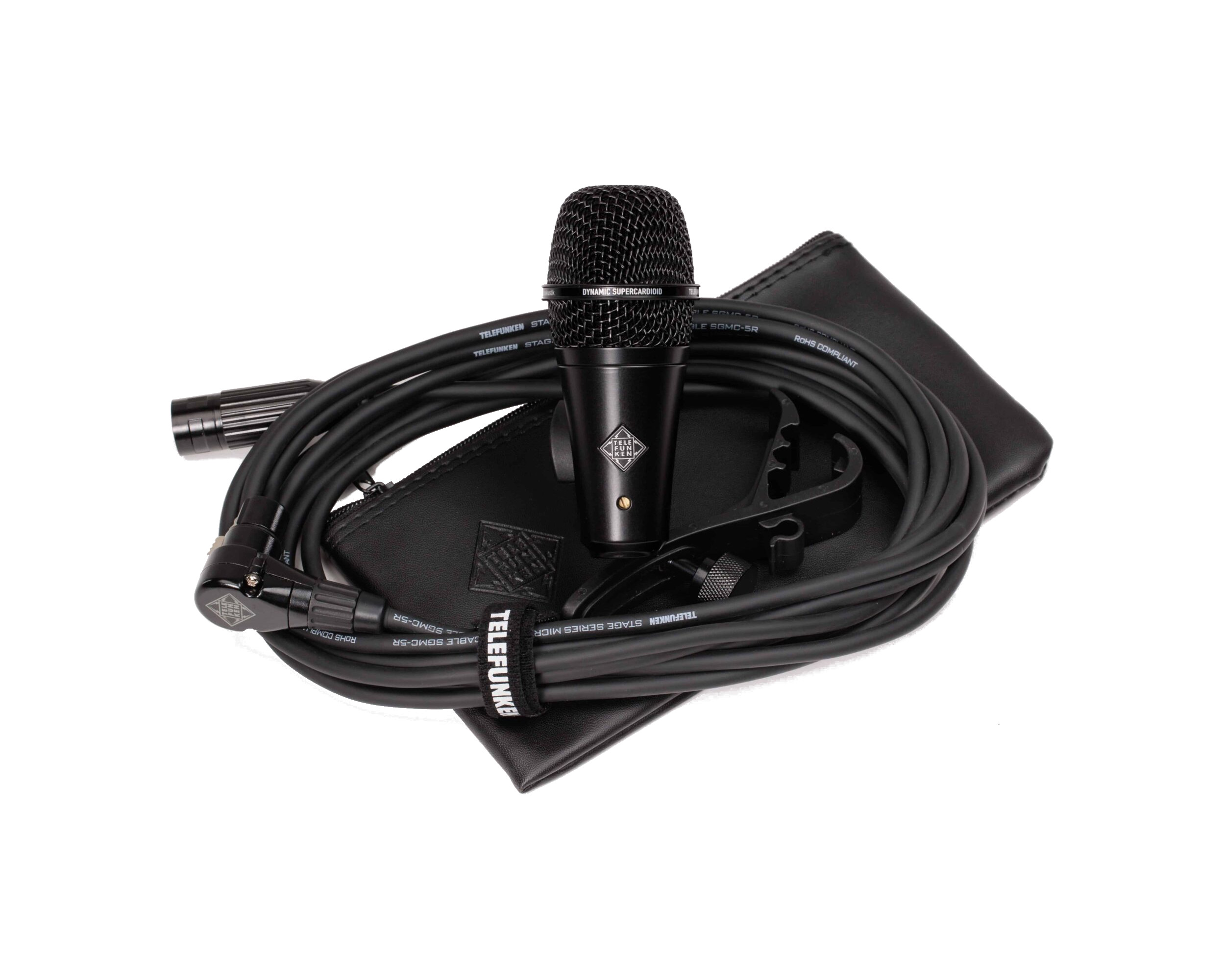

What's Included

• Right Angle XLR Cable
• Plastic Mount
• Zipper Bag
