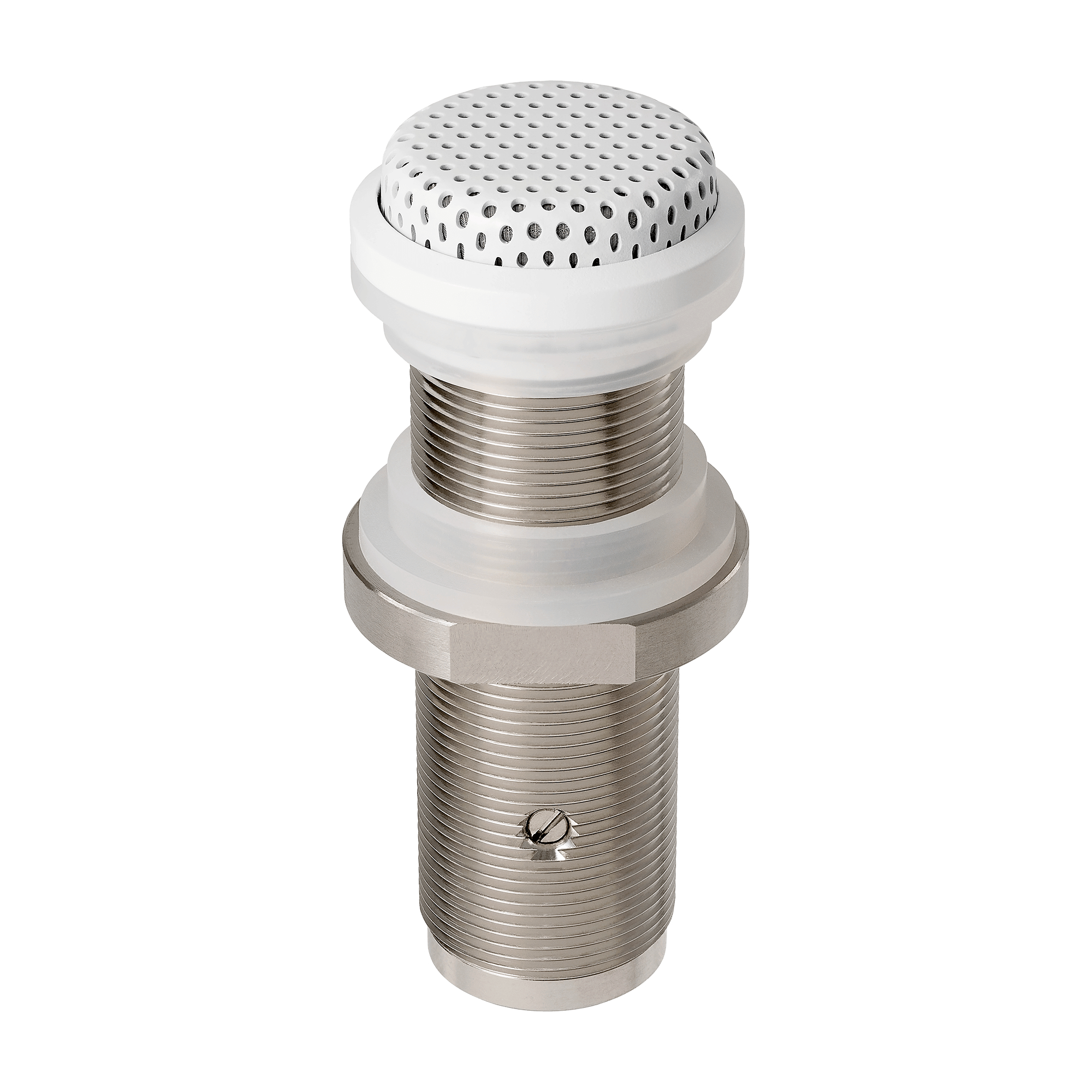

Audio Technica ES945O/XLR Omni Boundary Mic w/ XLR - White

About: Audio Technica ES945O/XLR Omni Boundary Mic w/ XLR - White

With its low-profile design that mounts unobtrusively in tabletops, ceilings or panels for minimum visibility, the ES945O/XLR omnidirectional condenser boundary microphone provides clear, highly intelligible audio that is perfect for conferencing, recording, monitoring and other demanding sound pickup applications.

Protected by a rugged all-metal case with a two-layer perforated grille, the microphone’s omnidirectional polar pattern affords a 360° pickup angle, while its UniGuard® RFI-shielding technology provides outstanding rejection of radio frequency interference (RFI). The microphone also offers IPX4 water resistance to protect it from splashes of water.

The ES945O/XLR is equipped with a self-contained power module with an XLRM-type output connector, eliminating the need for an external power module. The microphone is available in black (ES945O/XLR) and white (ES945WO/XLR), and comes with a pair of rubber isolators for optional mechanical isolation from the mounting surface.

Features:

• Designed for surface-mount applications such as conferencing, recording, monitoring and other demanding sound pickup applications
• Low-profile element provides uniform omnidirectional polar pattern with 360° acceptance angle

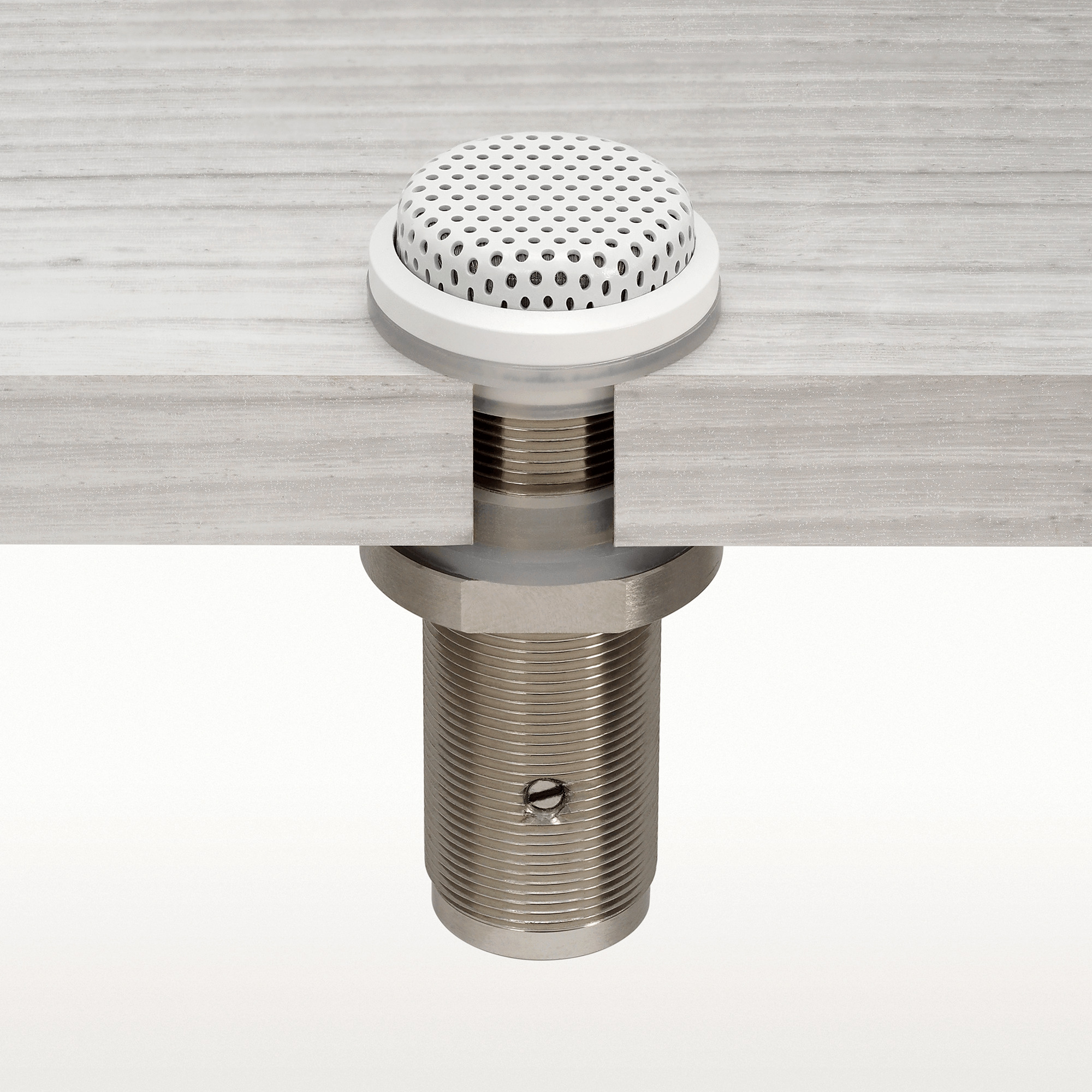

• Mounts unobtrusively in tabletops, ceilings and panels
• IPX4 water resistance protects the microphone from splashes of water

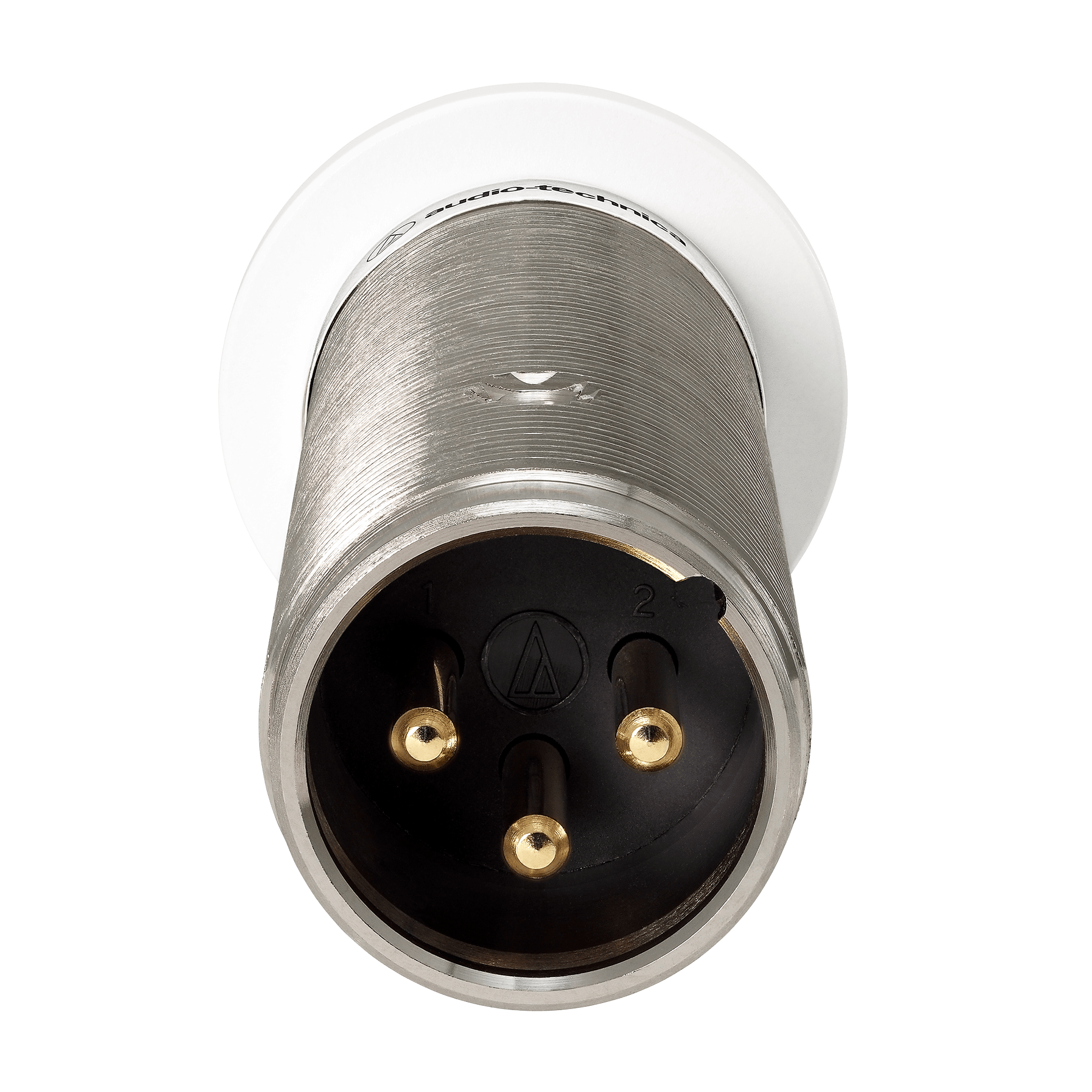

• Self-contained power module with XLRM-type output connector
• Rugged all-metal case with a two-layer perforated grille
• Rubber Isolators provide mechanical dampening of mounting-surface vibration
• Requires 11V to 52V DC phantom power
• UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
• Available in two colors: black (ES945O/XLR) and white (ES945WO/XLR)
• RoHS compliant—free from all substances specified in the EU directive on hazardous substances

Specifications:

• Element: Fixed-charge back plate, permanently polarized condenser
• Polar Pattern: Omnidirectional
• Frequency Response: 60-15,000 Hz
• Open Circuit Sensitivity: -33 dB (0 dB = 1V/Pa, 1 kHz)
• Output Impedance: 100 ohms
• Maximum Input Sound Level: 130 dB SPL (1 kHz at 1% THD)
• Dynamic Range (Typical): 109 dB (1 kHz at max SPL)
• Signal-to-Noise Ratio: 73 dB (1 kHz at 1 Pa, A-weighted)
• Power Requirements: 11-52V DC, 2 mA
• Weight: 62 g (2.2 oz)
• Dimensions: 69.0 mm (2.72") long, 28.0 mm (1.10") head diameter
• Output Connector: 3-pin XLRM-type
• Accessories Included: Rubber isolator (x 2), nut
