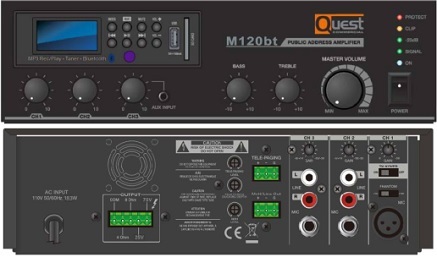

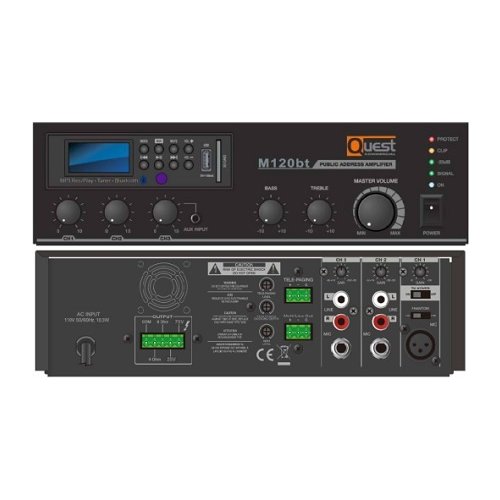

Quest M120bt 120W Compact Mixer-Amplifier with Bluetooth
Model: M120BT
About: Quest M120bt 120W Compact Mixer-Amplifier with Bluetooth
The Quest M120BT is an all-in-one solution for light commercial and industrial applications; restaurants, retail stores, coffee shops, medical/dental offices, schools, factories, warehouses and more. It's a 3 input channel commercial mixer amplifier with MoH and telephone paging. Phantom power supply for input channel 1. The built-in Media Player Bluetooth, USB/SD & FM, with the ability to record to USB or SD allows you options for easy music playback.
Features
- Designed for the most common commercial installation requirements
- Built-in Media Player USB/SD, FM & Bluetooth, with the ability to record to USB or SD.
- Ideal for background music, mic, and paging with integrated Bluetooth, FM tuner and Media Player, and the ability to connect three external sources
- Industry standard connectors to make installs fast and efficient
- Front panel controls to easily manage source and master volumes with bass & treble control
- Speaker outputs on 5-prongs Phoenix Terminals
- Power, Signal, -20dB, Clip and Protect Indicators
Specifications
- Rated Power Output - 120W
- Speaker Output - 4Ω/8Ω/25V/70V
- Connectors
- CH1 : Mic input on balanced 3-Conductor Phoenix Connector with Phantom Power
- CH2-3 : Mic input on 3-Conductor Phoenix Connector, Line input on stereo RCA
- CH3 : 3.5mm stereo Aux input on front panel
- Input Sensitivity /Impedance
- MIC 1-3 : '-50dB to -6dB Variable / 20 kΩ Balanced
- Line 2, 3 : '-30dB to +14dB Variable / 47 kΩ Unbalanced
- Telephone-Paging : -21dB ± 3dB / 600 Ω Balanced
- Music On Hold Output Level - ∞ to +10 dB Variable / 600Ω Balanced
- Frequency Response - 80Hz - 18kHz (±3dB)
- Tone Control - ±12dB for bass and treble
- S/N Ratio - < 90 dB
- T.H.D (1 kHz) - < 0.5 %
- Protection - Output Current Limiting, Thermal Protection & DC Offset Protection
- Power Supply - 110V AC, 50-60Hz
- Chassis Dimensions - 10.63" x 3.0" x 9.06" (270 x 76 x 230mm)
- Weight (Net) - 12.24 lbs. (5.6 kg)
UPC: 6949700063172
Reviews: Quest M120bt 120W Compact Mixer-Amplifier with Bluetooth
There are currently no product reviews.
Warranty: Quest M120bt 120W Compact Mixer-Amplifier with Bluetooth
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
Quest Commercial Audio Products sold in Canada are covered by a 3 year limited warranty.
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
