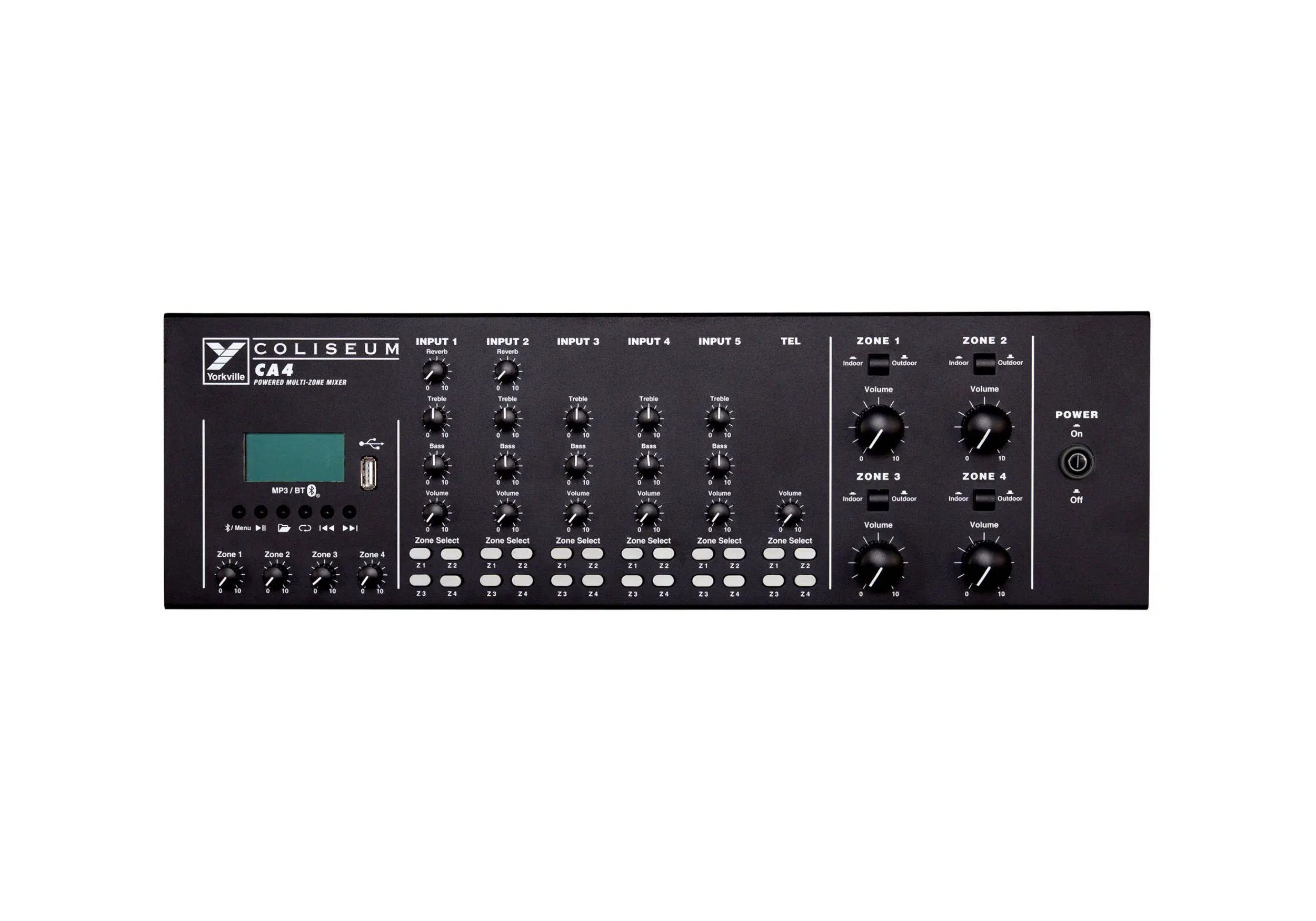

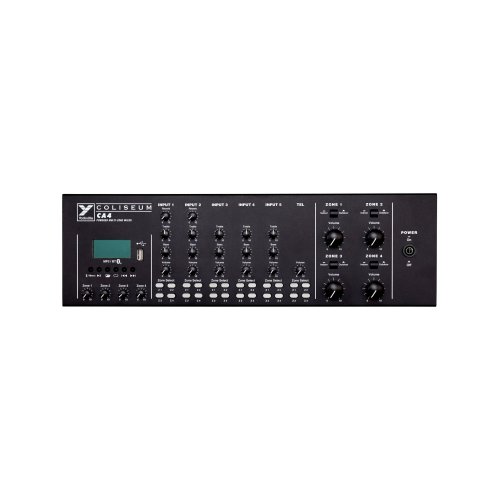

Yorkville CA4 Coliseum Installation Amplifier
Model: CA4
About: Yorkville CA4 Coliseum Installation Amplifier
The CA4 is a rack-mountable power amplifier for retail, restaurant, office, and worship applications.
- 4 Output Zones
- 4Ω, 70V, and 100V Output Connections
- 4 Mic / Line Inputs (XLR / 1/4”) with Switchable Phantom Power
- Aux Input (RCA)
- Bluetooth Receiver
- USB Media Input
It features five input channels which can be assigned to four output zones. Channels 1 - 4 have mic / line inputs with switchable phantom power, and channel 5 has stereo aux inputs that are summed to mono. Each output zone has 4Ω, 70V, and 100V terminals so it’s easy to integate with a range of speaker systems.
The media module features a Bluetooth® receiver and USB-A port, for playback from wireless sources or flash drives.
The mixer offers 2-band EQ on all input channels, and reverb on inputs 1 and 2. Output zones have a switchable Outdoor voicing, which limits low-frequency bandwidth to enhance clarity and projection.
Powerful, flexible, and intuitive, the CA4 sets a new standard for Yorkville zone amplifiers.
Specifications
- Maximum Power Consumption: 1449 W
- Rated Power Consumption: 1000 W
- Rated Output Power: 4x 250 W
- Sensitivity / Impedances
- -40 dBV (Mic)
- -5 dBv (Line, Aux)
- -15 dBV (Tel)
- (All +/- 2 dB)
- S/N Ratio
- >65 dB (Mic)
- >75 dB (Line, Aux)
- Frequency Range
- Indoor Mode
- 132 Hz - 7.96 kHz (Mic)
- 70 Hz - 12.6 kHz (Line)
- 76 Hz - 17 kHz (Aux)
- Outdoor Mode
- 178 Hz - 7.96 kHz (Mic)
- 138 Hz - 12.6 kHz (Line)
- 144 Hz - 17 kHz (Aux)
- Indoor Mode
- THD + N: ≤ 1 W
- Tone Control
- +/- 10 dB @ 100 Hz (Bass)
- +/- 10 dB @ 10 kHz (Treble)
- Phantom Power: 18V
- Priority Sensitivity: -60 dBv / 3S
- CMRR: > 60 dB
- Noise: < 30 mv
