RDL STA-2A Dual High Gain Line Amplifiers
Model: RDL STA-2A
About: RDL STA-2A Dual High Gain Line Amplifiers

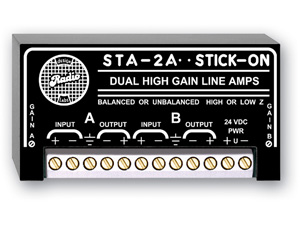

The STA-2A is a dual-channel, line-level audio preamplifier. Each channel is identical. The audio inputs are bridged at 20 kΩ and accept either an unbalanced or a balanced audio signal. Gain is adjustable from unity to +24 dB using a 25-turn precision audio taper trimming potentiometer. The output line driver circuits are designed to drive long balanced audio lines into 600 Ω loads.
The STA-2A features wideband circuitry for excellent phase response, low noise, low distortion and exceptional audio clarity. RDL's SupplyFlex power input configuration is included in the STA-2A. The power supply input may be fed from a floating (not ground-referenced) 24 Vdc power source, from a bipolar power supply (+/- 12 Vdc or +/-15 Vdc) or from a ground-referenced 24 Vdc power supply.
Many audio products provide optimum performance when feeding into a bridging input, but may not provide the output needed to directly drive low-impedance lines terminated with 600 Ω transformers. The STA-2A is specifically designed for such installations, and is also ideal in installations requiring high gain in line-level audio transmission.
Features:
- Up to 24 dB Gain in Audio Lines
- Conversion between Unbalanced and Balanced
- Conversion between High and Low Impedance
- Low-Impedance, High-Current Line Drivers
- Dual-Channel Line-Level Preamplifiers
- High Gain, High Output, High Performance
- RDL® SupplyFlex™ Power Input Configuration
UPC: 813721012258
Reviews: RDL STA-2A Dual High Gain Line Amplifiers
Warranty: RDL STA-2A Dual High Gain Line Amplifiers
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
Radio Design Labs, Inc., also referred to as RDL®, warrants to the Purchaser that products manufactured by RDL are free from defects in material and workmanship. This warranty applies to the period of three years from the date of shipment, except for component parts or products purchased from other sources and supplied by RDL. Such component parts or products bear only the warranty of the manufacturer thereof in effect at the time of shipment to the Purchaser.
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
