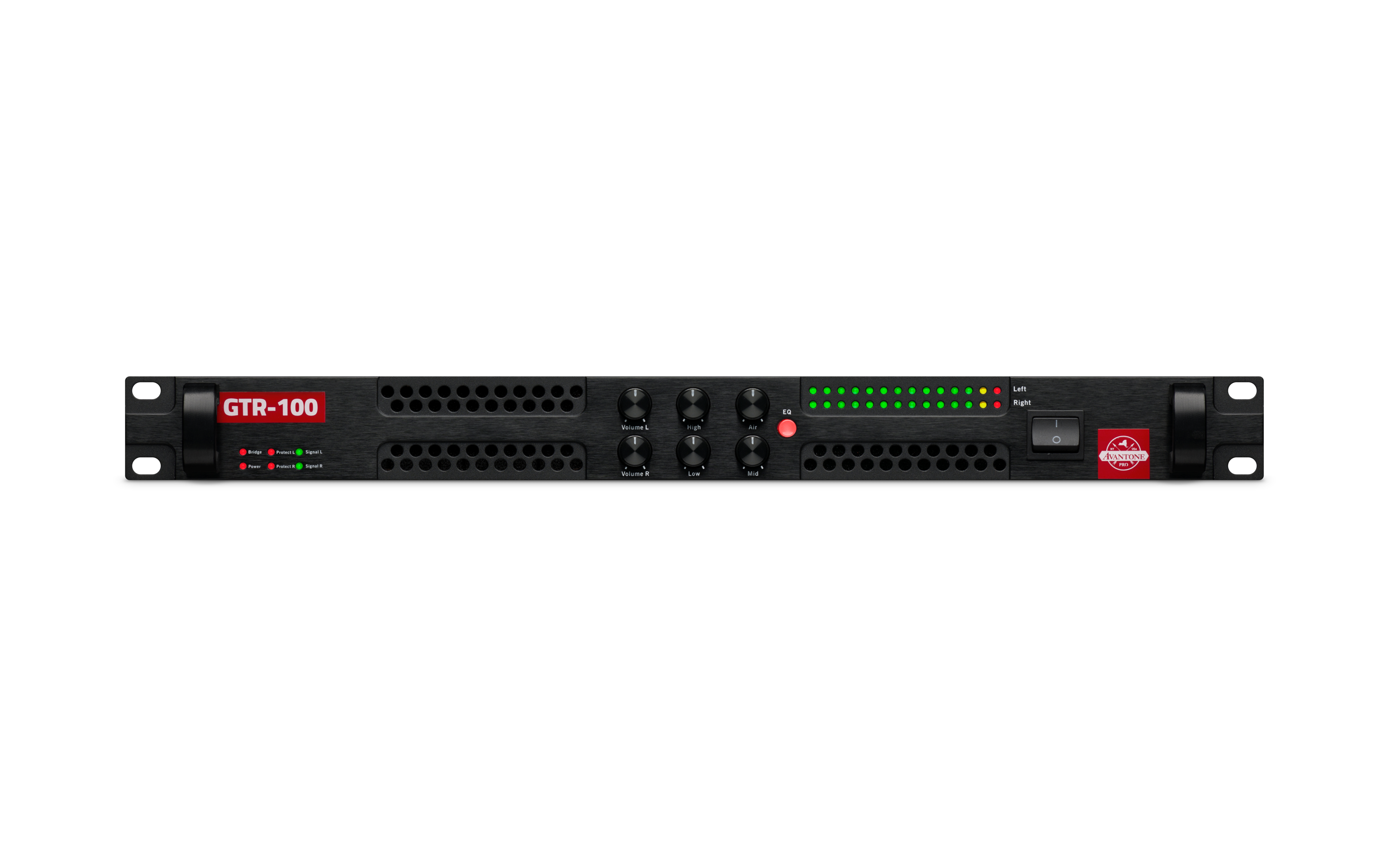

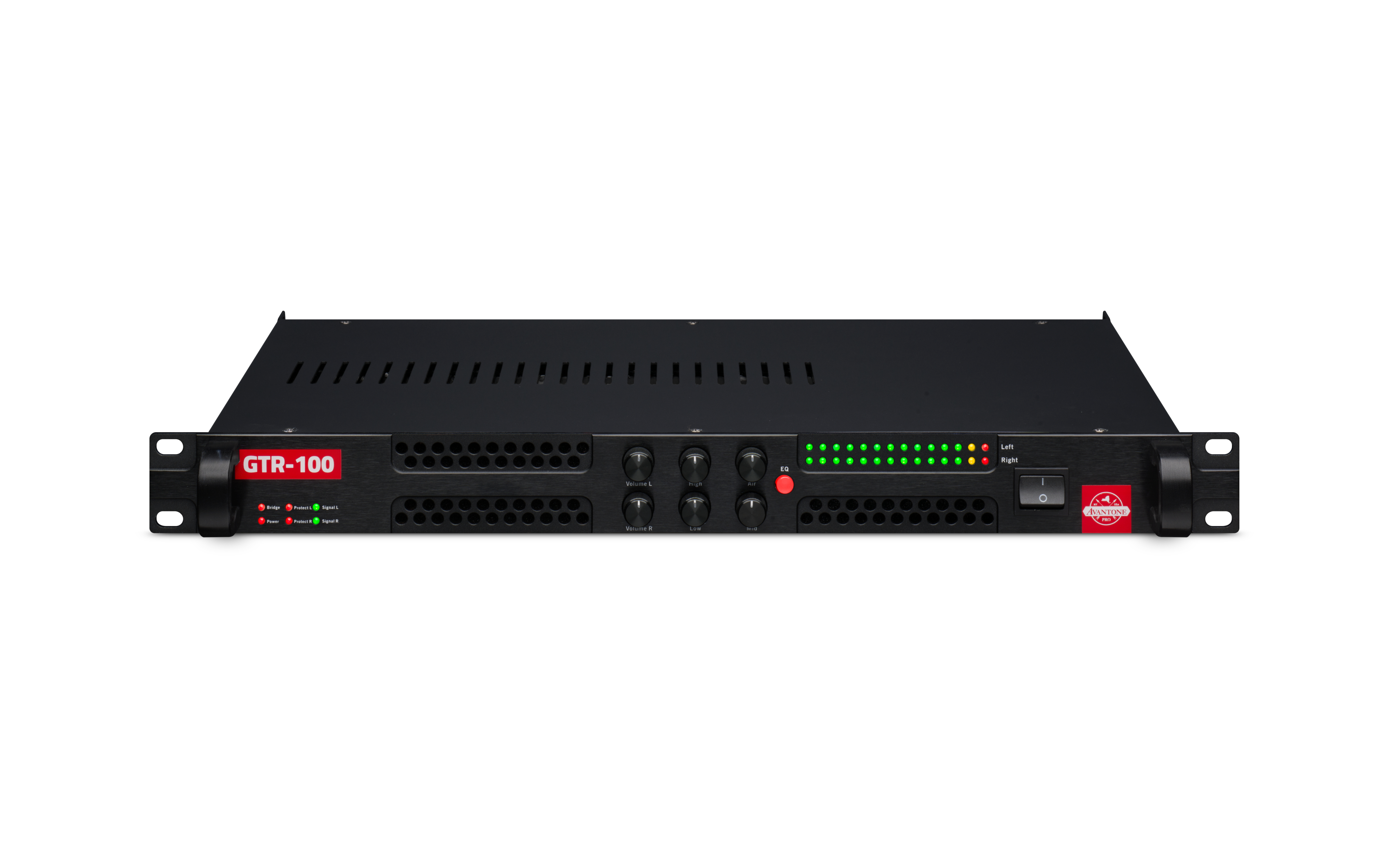

Avantone GTR-100 Class A/B Studio Power Amp, 100w/CH w/Guitar Input & DSP

About: Avantone GTR-100 Class A/B Studio Power Amp, 100w/CH w/Guitar Input & DSP

The GTR-100 is a 2-channel class A/B power amp designed for modern guitarists who rely on guitar modelers like AxeFX or Quad Cortex to shape their sound. Its solid-state design ensures that your tones ring true, and with up to 140 watts of power per side—or 245w in bridged mono mode—it can make ears ring as well. Switchable Line/Instrument inputs let you connect either your modeler or stompboxes directly with perfectly matched impedance.

• Class A/B power amplifier for modern guitarists
• Ideal for use with amp modelers and stompboxes
• 100w per channel at 8 Ω /140 w per channel at 4 Ω / 245 w bridged mono at 8 Ω
• Rugged, lightweight, portable 1U enclosure
• Switchable 4-band EQ and independent channel volume controls
• XLR direct outs w/ cabinet simulation option
• Low-noise cooling fan

The clean amplification GTR-100 provides won’t add unwanted noise or distortion to your carefully-crafted tones, even when pushed to earsplitting volumes, and comes with none of the maintenance hassle or cumbersome weight of tube amplifiers.

You can even use the channels as two independent amps if you’ve got two guitarists in your band, making the GTR-100 a perfect solution for an all-in-one road rack.

The features you need; the power you want.

GTR-100s stereo ins and outs let you bring your stereo modulation and delay effects to the live arena, while its switchable 4-band EQ grants nuanced tone-shaping to suit whatever room you’re playing in this weekend. The XLR Thru outputs allow you to split your outputs to a mixing desk or recording device for reinforcement or recording of your performance—no cabinet mic required. A switchable per-channel analog cabinet simulation emulates the sound of a miked 4x12 cabinet, and sends this processed signal to the XLR outs.

Perfectly balance your output levels with independent level controls and 14-stage input/output metering.

Road-ready reliability

GTR-100 is ruggedly built for the road, while weighing far less than your average tube amp. Its sturdy metal handles extend well past the extrusion of the control knobs, ensuring that they won’t get damaged in the event the amp takes a tumble. The protect indicator lights to warn you of any conditions that could lead to damage to the amp or connected speakers, while the whisper-quiet cooling fan ensures overheating will never be a problem. Its rear-mounted rack rails make cable management a breeze when racked.

Specifications

• 8 Ω STEREO POWER (1 KHZ): 100 W
• 4 Ω STEREO POWER (1 KHZ): 140 W
• 8 Ω BRIDGE POWER (1 KHZ): 245 W
• SLEW RATE (AT 1 KHZ): 28 V/µs
• INPUT SENSITIVITY (1 KHZ): LINE 0.775 V
• INPUT SENSITIVITY (1 KHZ): INST 0.125 V
• TOTAL HARMONIC DISTORTION (1 KHZ): <0.1%
• INTERMODULATION DISTORTION (AT 10% RATED POWER 1 KHZ): <0.1%
• CROSSTALK: -70 dB
• FREQUENCY RESPONSE: 20 Hz-20 kHz (+/-0.25 dB)
• INPUT IMPEDANCE LINE: 20 KΩ
• INPUT IMPEDANCE INSTRUMENT (HI-Z): 1 MΩ
• DAMPING FACTOR (100 HZ, 8 Ω): 275
• SIGNAL TO NOISE RATIO (A-WEIGHTED): >101 dB
• AMPLIFIER: Class AB
• DIMENSIONS (WxHxD): 19 x 1.75 x 15.2 inch (483 x 44 x 386 mm)
• WEIGHT: 17 lb (7.7kg)
