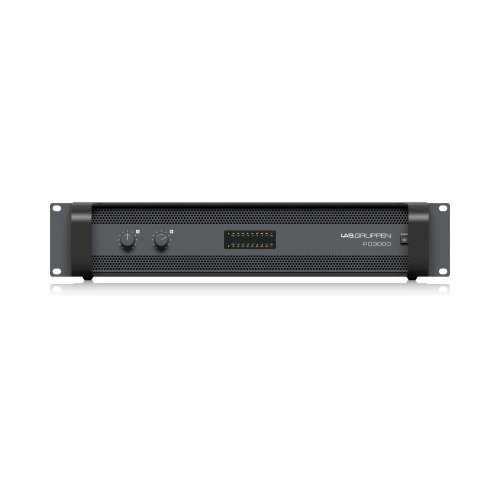

Lab Gruppen PD3000 Two Channel Amplifier w/ SM-GO Power Management

About: Lab Gruppen PD3000 Two Channel Amplifier w/ SM-GO Power Management

The Lab Gruppen PD3000 is a two-channel amplifier delivering 2 X 1500W of power for entry/mid-level live sound applications. PD Series amplifiers employ our unique IDEEA Class-D output stage that is ideally matched to the rated power output. To provide flexibility, each channel offers sufficient voltage swing and current capacity to drive loads in any impedance without any additional configuration. In order to have low thermal losses as well as a high voltage swing, the design is based on a permanently bridged output.

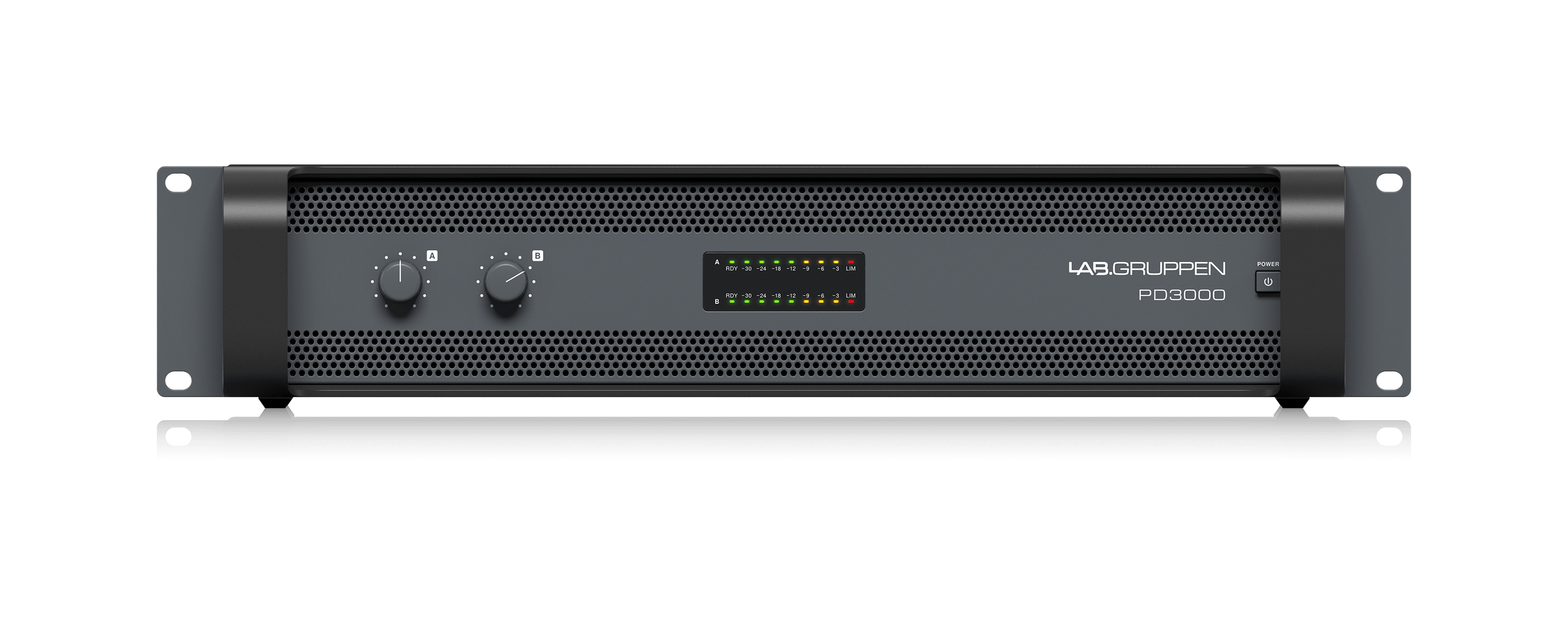

PD3000

Lab Gruppen PD3000 power amplifier is designed and built with competitive price, good performance and protection features in mind. Each amplifier draws on the engineering that has made Lab Gruppen the benchmark of quality for touring concert systems: exceptional sonic performance, rugged construction, proven reliability, and protection features that anticipate every unwelcome possibility.

Applications

PD3000 is a proven and reliable Class-D amplifier and can provide superb audio performance in both background and foreground music sound systems. PD3000 suits a wide range of applications such as entry/mid-level touring, live portable sound, hotels, bars and restaurants, house of worship, performance spaces, and many more.

Simple Control

Just plug it in, crank it up and play. The comprehensive circuit protection will protect your PD3000 and your speakers against short circuits, DC and thermal overload.

Inputs

Balanced XLR and TRS input and linking connectors with optimized sensitivities. Easy set up with configuration of modes and X-over functionality.

Speaker Outputs

PD3000 amplifier employ our unique IDEEA Class-D output stage that is ideally matched to the rated power output. To provide flexibility, each channel offers sufficient voltage swing and current capacity to drive loads in any impedance without any additional configuration. In order to have low thermal losses as well as a high voltage swing, the design is based on a permanently bridged output.

Rugged and Lightweight Rack Mount Chassis

Appropriate and reliable power amplification is vital to any audio system. Inadequate or faulty power amplifiers could cause damage to loudspeakers, or in some cases to the power amplifiers themselves. To prevent damage or service interruptions, the PD3000 amplifier offer advanced features to protect both internal circuits and connected loads.

Specification

• General
  • Number of amplifier channels - 2
  • Peak total output all channels driven - 3000 W
  • Peak output voltage per channel - 115 V
  • Peak output current per channel - 32 A
  • Bridge mode - No
  • Output circuit type - Class-D
• Amplifier Outputs
  • Max Output Power
    • All channels driven
      • 2 Ω per channel, stereo - 1000 W
      • 4 Ω per channel, stereo - 1500 W
      • 8 Ω per channel, stereo - 800 W
• Audio Performance
  • THD+N 20 Hz - 20 kHz @ 1 W - < 0.1%
  • THD+N @ 1kHz, 1 dB below clip - < 0.1%
  • Signal-to-noise - >90 dB
  • Channel separation (Crosstalk) @ 1 kHz - >75 dB
  • Frequency response - 10 Hz to 20 kHz, +0.5/ -1 dB
  • Input impedance - 10 kΩ unbalanced, 20 kΩ balanced
  • Distortion,1/8 rated power - < 0.1%
• System
  • Controls
    • Front
      • Power switch
      • Gain controls (channels A and B)
    • Rear
      • Stereo / mono,
      • switchable Xover: LF / full range / HF, switchable
    • Crossover frequency - 100 Hz
  • Indicators
    • Power - RDY LEDs lit green
    • Limit, per channel - LIM LEDs lit red
    • Signal, per channel - -30 dB, -24 dB, -18 dB, -12 dB, -9 dB, -6 dB, -3 dB, LEDs lit green/orange
    • Thermal Warning, per channel - RDY LED blink orange
    • Thermal Warning 90%, PSU - Both RDY LEDs blink orange
    • Thermal fault, per channel - RDY LED blink red
    • Thermal fault 100%, PSU - Both RDY LEDs blink red
    • Fault, channel - RDY LED lit constantly red
    • Fault, device - Both RDY LEDs constantly lit red
  • Connectors
    • Inputs / link
      • 2 x XLR
      • 2 x 1/4" TRS
    • Outputs - Neutrik speakON (2 x NLT4)
    • Mains connector - Locking IEC appliance inlet, C14
  • Protection Features
    • Cooling - Two fans front-to-rear air flow, temperature controller speed
    • Amplifier protection - Thermal and DC protection, Rail sensing and peak current limiting.
    • Load protection - Controlled start and shutdown, behavior, DC-fault protection, Short-circuit protection
• Power Supply
  • Voltage - Separate 230 V and 115 V versions available. Not selectable on the product.
  • USA / Canada / Japan - 100-120 V, 50/60 Hz
  • UK / Australia / Europé / Korea / China - 220-240 V, 50/60 Hz
  • Power consumption @ 4 ohms - 1050 W
• Dimensions / Weight
  • Dimensions (H x W x D) - 93 x 483 x 326 mm (3.7 x 19 x 12.8")
  • Weight - 6.5 kg (14.3 lbs
  • Finish - Black painted aluminium chassis and grey front
  • Approvals - CE, cTUVus, PSE, RCM, CCC, FCC
