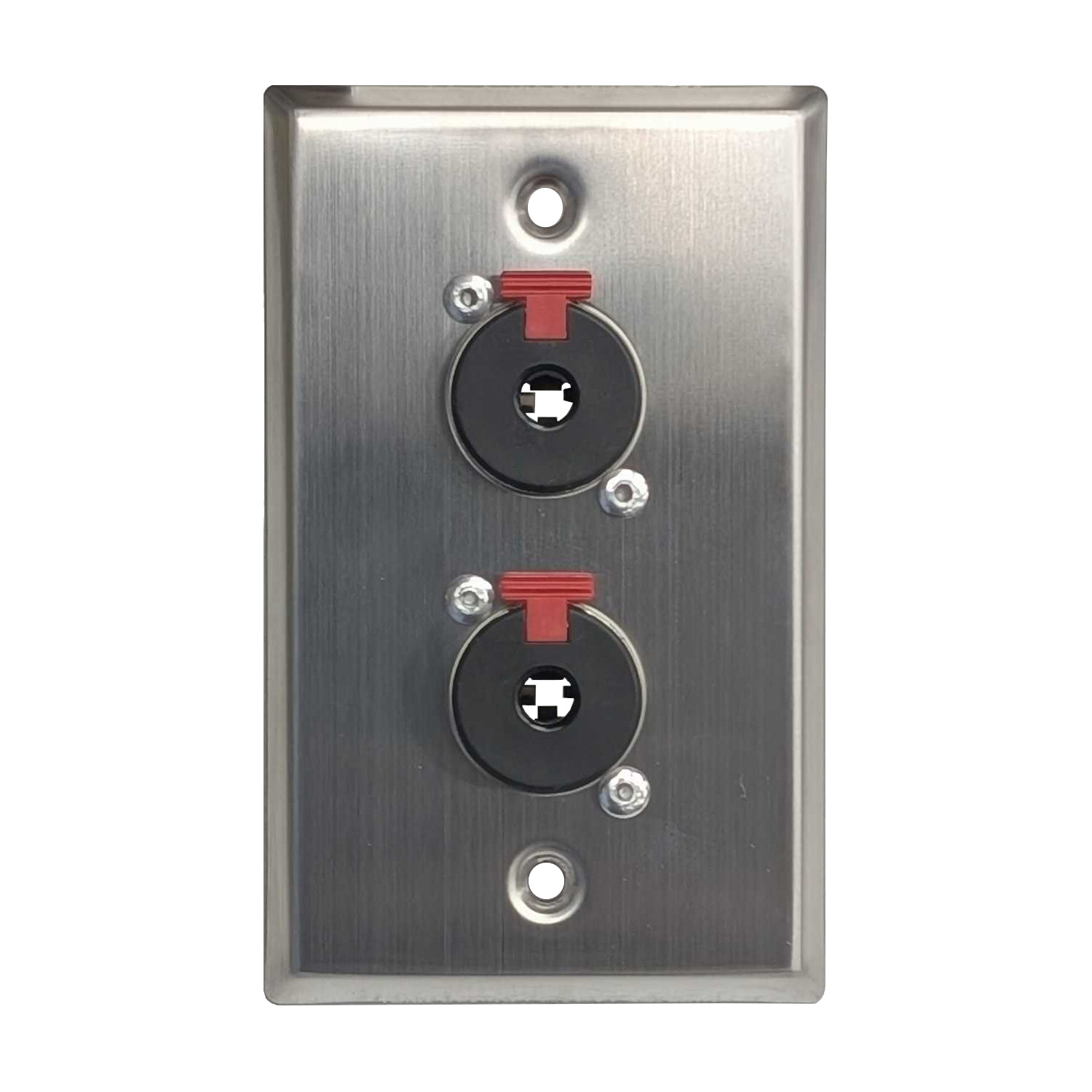

AVShop Single Gang Wall Plate w/ Dual 1/4in TRS D-Type Mounts
Model: AV-WP-NJ3FP6C
About: AVShop Single Gang Wall Plate w/ Dual 1/4in TRS D-Type Mounts
AVShop Single Gang Wall Plate w/ Dual 1/4in TRS D-Type Mounts
Wall Plate
- Single Gang "J" stainless steel wall plate cover
- Features 2 Neutrik "D" Style punch out
Neutrik NJ3FP6C 1/4in TRS D-Type Connector
Locking 1/4" phone jack, D-size shell, nickel metal housing and silver contacts
The 3 pole phone jack panel mount version provides stable and secure connections where accidental disconnect or shock and vibration may occur. It latches with standard A-gauge mono or stereo plugs. Plug locks-in automatically when mating and unlocks only by pressing red release tab. Standard D size front panel appearance. Selectable grounding options.
- Securely locking chassis jack
- Mates with all mono and stereo plugs specified acc. EIA RS-453 (A-gauge)
- Closable grounding options: standard isolated, to get a sleeve/panel connection red isolator on lateral screw must be removed
- Dimensionally compatible with D Series (31 x 26 mm)
- Solder terminals
