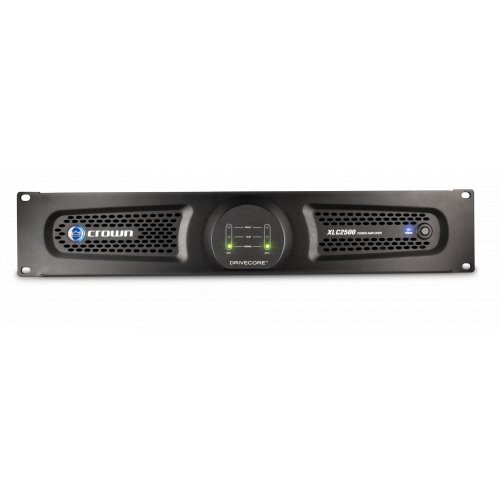

Crown XLC 2500 500W Power Amplifier
Model: XLC2500
About: Crown XLC 2500 500W Power Amplifier
Available in two models, the XLC2500 and XLC2800 incorporate Crown’s proprietary DriveCore™ Technology, which significantly reduces the amplifiers’ size, while yielding much more energy efficient operation – without sacrificing performance. Compact, powerful and cost-effective, the XLC Series provides ease of installation, outstanding sound quality and the unwavering reliability inherent in every Crown product. These amplifiers are powerful, affordable options for both the cinema and install markets.
- Two models of 500W (XLC2500) and 800W (XLC2800) per channel at 4-ohms
- XLC Amplifiers are compatible with CXM2000 for monitor, fault detection and crossover functions
- XLC Amplifiers are compatible with Crown Monitor System DSi-8M for monitor function
- Power for 2-ohm, 4-ohm and 8-ohm outputs, supporting stereo and bridge outputs
- Support parallel connection of cinema surround speaker

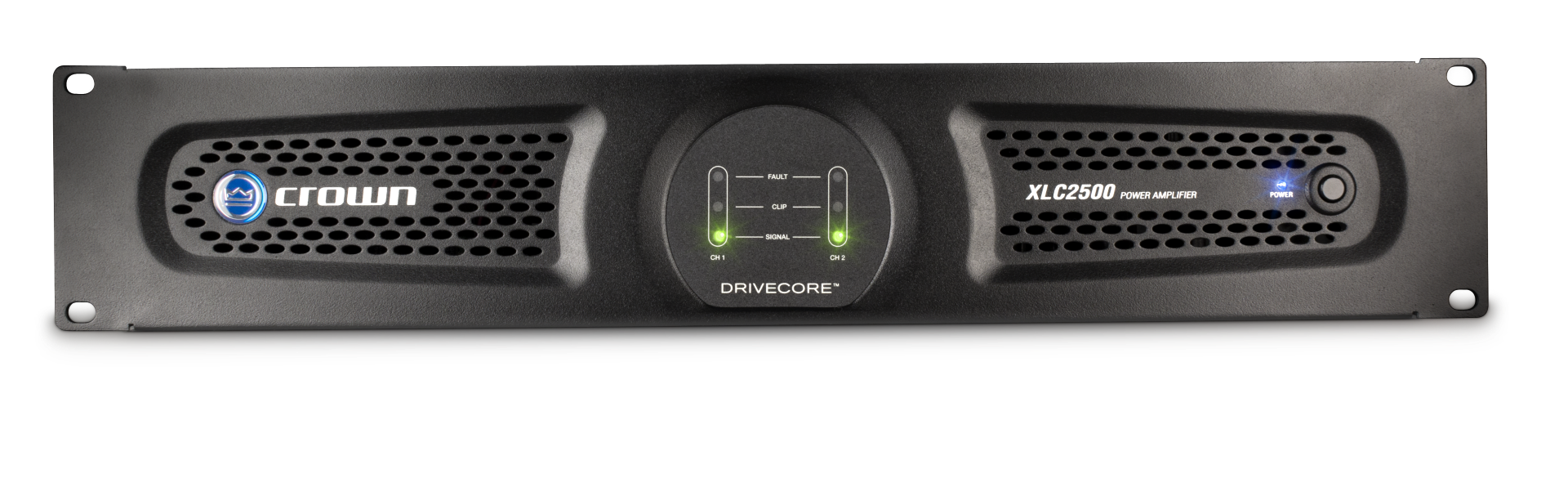

- Indicators provide accurate diagnostics: Power, Signal, Clip and Fault

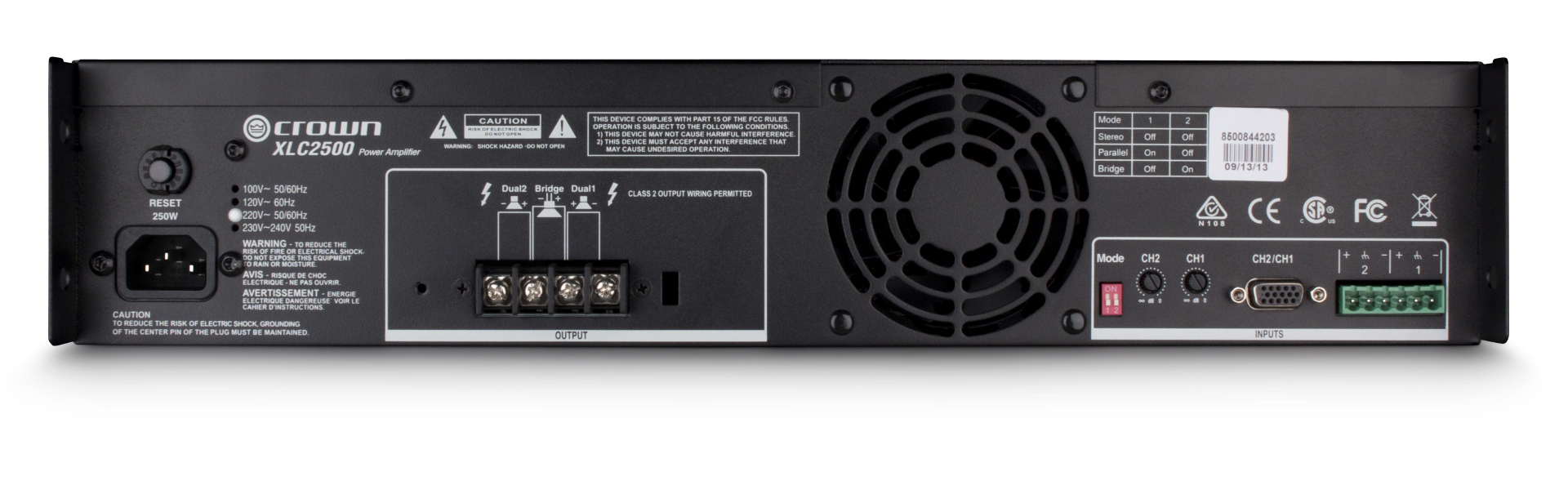

- Volume control on rear panel of amplifiers
- High performance, light weight
- DriveCore based amplifier – weighs less than 14lbs (6 kgs)
| Channels | 2 Ohm | 4 Ohm | 4 Ohm Bridge | 8 Ohm | 8 Ohm Bridge | |
| XLC2500 | 2 | 775W | 500W | 1550W | 300W | 1000W |
| XLC2800 | 2 | 1200W | 775W | 2400W | 400W | 1550W |
Specifications
- AC Line Voltage and Frequency Configurations Available: (+/- 10%) 100VAC 50/60 Hz, 110VAC 60 Hz, 220 and 230~240VAC 50 Hz
- Voltage Gain: 35
- Sensitivity: 1.4V (for full rated power at 4 ohms)
- Signal to Noise Ratio (ref. rated power, 8 ohms, 1 kHz): > 103 dB
- THD: <0.5%
- Damping Factor (8 ohms, 10 Hz to 400 Hz): >200
- Intermodulation Distortion (from full rated output to -30 dB): <0.3%
- Frequency Response (at 1W, 20 Hz - 20 kHz): 0 dB
- Crosstalk: >85 dB (below rated 8 ohms power, at 1 kHz); >55 dB (below rated 8 ohms power, at 20 kHz)
- Input Impedance (nominal): 20 kilohms balanced, 10 kilohms unbalanced
- Load Impedance: 2~8 ohms per channel in Stereo; 4~8 ohms in Bridge
- Dimensions: 19" x 3.5" x 8" (48.3cm x 8.9cm x 20.6cm)
- Weight: 8.3 lbs (3.75 kg)
- Shipping Weight: 10.7 lbs (4.85 kg)
- IEC Power Connector: 15A
UPC: 871015007762
Reviews: Crown XLC 2500 500W Power Amplifier
Warranty: Crown XLC 2500 500W Power Amplifier
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
Most Crown amplifiers are guaranteed by Crown's 3 year no-fault full warranty. With this No-Fault protection your new Crown amplifier is guaranteed to meet or exceed original specifications for the first three years of ownership. During this time, if your amplifier fails for any reason it will be repaired or replaced at our expense. This includes parts, labor, and round-trip shipping (ground transport). This also applies to IQ System and PIP products.
Exceptions:
- iTHD, MAi and CTsB (current modified version in production since August 2010) will offer a 5 year standard warranty.
- LPS series, 135MA, 160MA, and 140MAx pack have a 1 year limited warranty.
NOTE: for a modest fee Crown will extend that protection for an additional three years with our 3+3 No-Fault Extended Full Warranty (amplifiers only).
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
For Quebec Residents - Disclosure under the Consumer Protection Act
In compliance with Bill 29, AVShop.ca and Crown do not guarantee the availability of replacement parts, repair services, or maintenance information for any products. Any applicable manufacturer warranties will remain in place.
