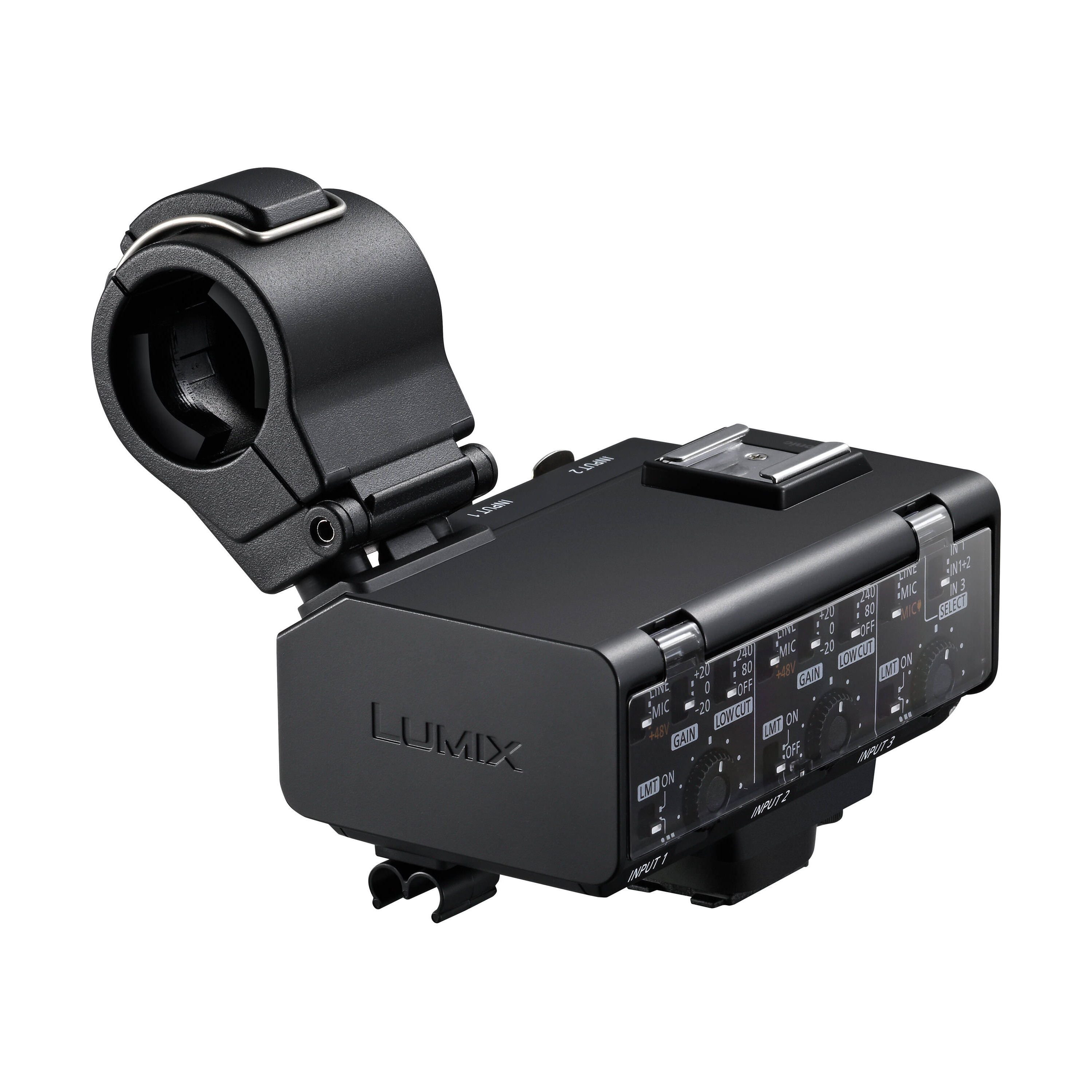

Panasonic LUMIX XLR Microphone Adaptor DMW-XLR2

About: Panasonic LUMIX XLR Microphone Adaptor DMW-XLR2

LUMIX XLR microphone adaptor allows the camera to deliver 32-bit float recording, improving the quality and efficiency of the entire workflow. With its wide dynamic range, the 32-bit float format records more information, from quiet to loud sounds. As a result, there is no need for tedious sound level adjustments during audio recording. Video and music can be managed in a single file, making post-production much more efficient.

Features

• Enables 32-bit Float Recording
• LUMIX XLR microphone adaptor allows the camera to deliver 32-bit float recording, improving the quality and efficiency of the entire workflow
• There is no need for tedious sound level adjustments during audio recording.
• Video and music can be managed in a single file, making post-production much more efficient.

Specifications

• INPUT1 / INPUT2
  • Input Terminal - XLR 3-pin (female)
  • Standard Input Level
    • LINE: 0 dBu
    • MIC, +48V: -40 dBu
    • (0 dBu=0.775 Vrms)
  • Standard Recording Level - -12 dBFS (at the standard input)
  • Frequency Characteristic - 20Hz to 40kHz, +1/-1 dB (during Fs=96kHz, during LINE)
  • Phantom Power Source - 48V
• INPUT3
  • Input Terminal - φ3.5mm stereo mini jack
  • Standard Input Level
    • LINE: -10 dBV
    • MIC, MIC (plug-in power): -40 dBV
    • (0 dBV=1 Vrms)
  • Standard Recording Level - -12 dBFS (at the standard input)
  • Frequency Characteristic - 20Hz to 40kHz, +1/-1 dB (during Fs=96kHz, during LINE)
  • Plug-in Power - 2.5V
• Sampling Frequency Bit Length / Number of Recording Channels
  • Linear Recording
    • 48kHz/24-bit/2ch, 96kHz/24-bit/2ch
    • (Select one of INPUT1, INPUT1+2, or INPUT3)
    • 48kHz/24-bit/4ch
  • Float Recording
    • 48kHz/32-bit/2ch, 96kHz/32-bit/2ch
    • (Select one of INPUT1, INPUT1+2, or INPUT3)
    • 48kHz/32-bit/4ch
  • Dimensions (WxHxD) (excluding the projecting parts)
    • Approx. 61.2 x 60.9 x 92 mm / 2.41 x 2.40 x 3.63 inch (without microphone holder)
    • Approx. 94.6 x 106.2 x 92 mm / 3.73 x 4.19 x 3.63 inch (with microphone holder)
  • ​Weight
    • Approx. 158 g / 0.35 lb (without microphone holder)
    • Approx. 192 g / 0.43 lb (with microphone holder)
• Operating Temperature - -10℃ to 40℃ (14℉ to 104℉)
• Operating Humidity - 10 - 80 %RH
• Standard Accessories - Cable Holder, Microphone Holder, Pouch
