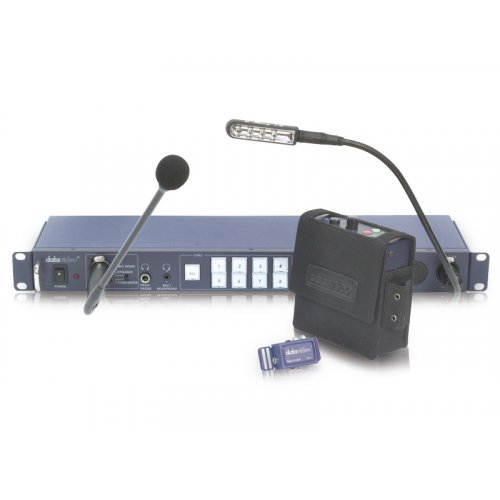

Datavideo ITC-100 Intercom System (4x Belt Packs & Headsets)

About: Datavideo ITC-100 Intercom System (4x Belt Packs & Headsets)

The ITC-100 is a 19” Rack Mount 8 Channel Intercom / Talkback System. It incorporates tally indicators for each channel and individual channel call buttons. The ALL button enables the feature that allows the director to communicate with all channels. The ITC-100 is designed for communication purpose in a live mixing environment and allows easy bi-directional communication between the director and other members of the crew. It is a perfect communication system for Datavideo SE-500, SE-500HD, SE-650, SE700, SE-2200 and SE-2850 video mixers.

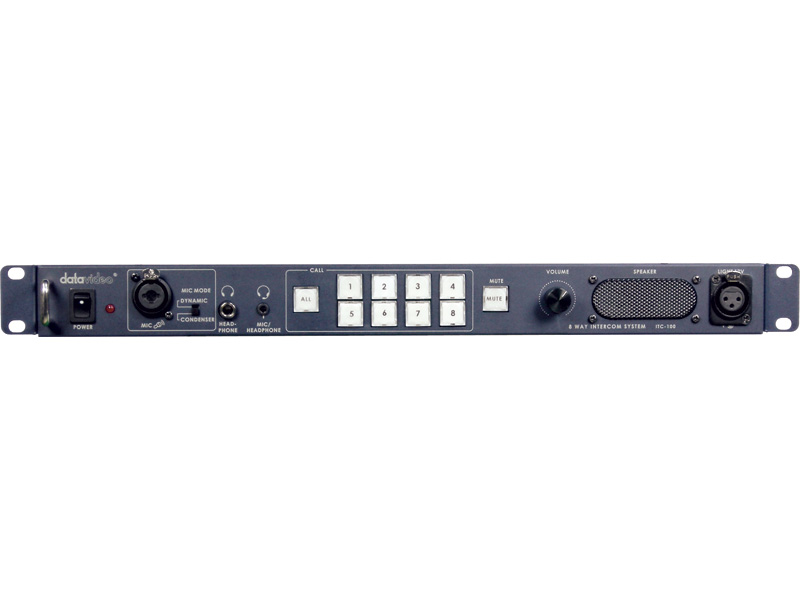

Front Panel

• Combined XLR and 1/4' (6.3 mm) microphone input
• Dynamic / Condenser microphone selection switch
• 1/4' (6.3mm) Jack for Headphones without microphone
• 3.5mm Jack for Headset with microphone
• Speaker with volume control knob
• Channel buttons 1 – 8 for communicating with individual channels
• ALL button to activate communication with all channels
• Base Unit MUTE button

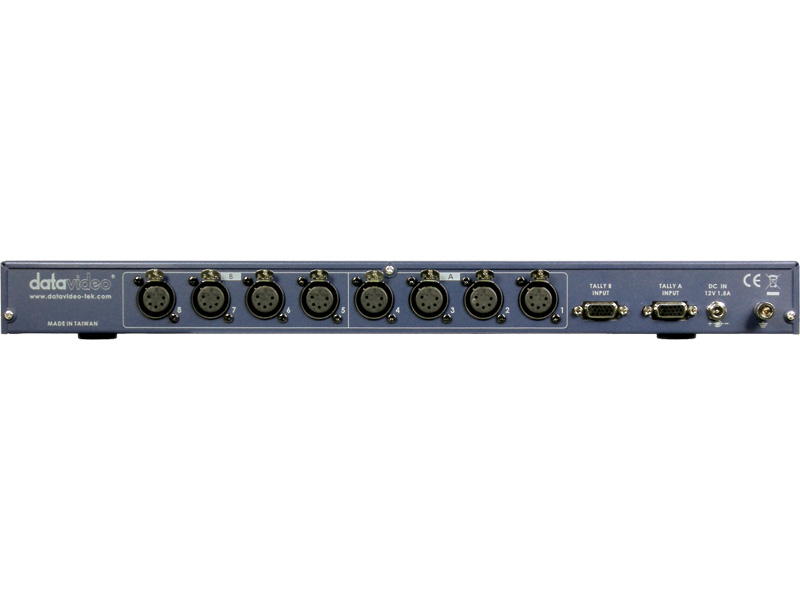

Rear Panel

• 8 x 5pin XLR connectors for cable connection to ITC-100SL Belt Packs. Additional cable purchase: CB-3 is a 20m 5pin XLR Male to XLR Female cable which allows cable connection to the ITC-100SL of up to 200m
• 2 x 15pin D Sub Tally Input sockets for tally communication from the switcher to tally light box

ITC-100SL Belt Pack for Crew Members

• Call Button for sending paging signal to Base Unit
• Press and hold the Talk button to communicate with the director on the Base Unit end
• Headset volume control knob
• Bi-Color Tally LED on Belt Pack Unit
• TD-2/3 Camera Tally Indicator connected to the Belt Pack

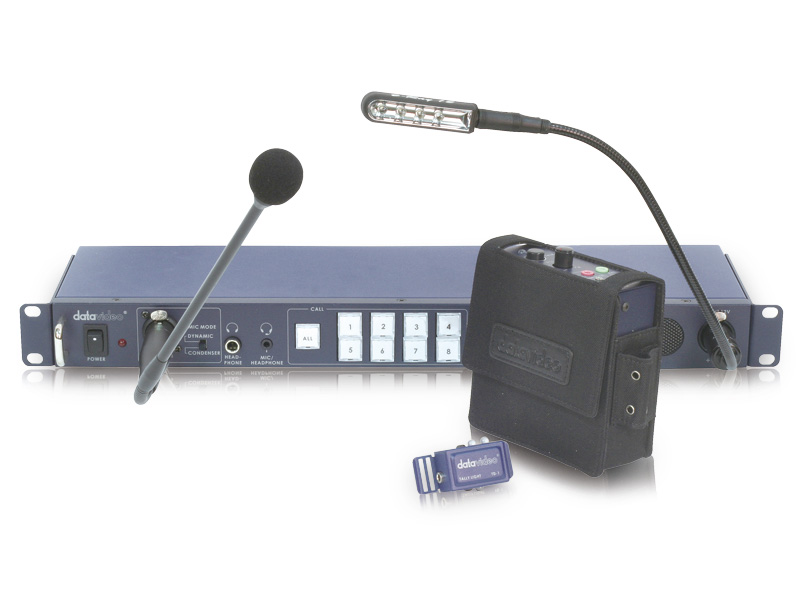

What's in the Box

• 1 x ITC-100 Base Unit
• 4 x ITC-100SL Belt Pack
• 4 x ITC-100SL Carry Case
• 4 x Cable 5piin XLR to XLR
• 4 x 3.5mm Jack to 3.5mm Jack Cable
• 4 x Headset with microphone
• 4 x Tally LED Indicator
• 1 x XLR Gooseneck Microphone
• 1 x XLR Gooseneck Light
• 1 x 12V 1A Power Supply Unit
• 1 x Thank You Card
