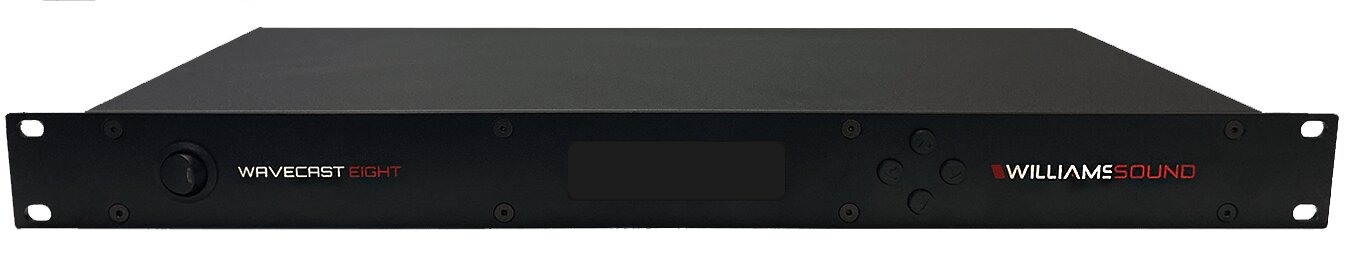

Williams AV WaveCAST EIGHT

About: Williams AV WaveCAST EIGHT

WaveCAST EIGHT is the new, multi-channel Wi-Fi assistive listening platform designed for larger assistive listening applications or for streaming audio in a bar, gym or other device where multiple sources of audio exist. The WaveCAST Eight is designed for pro-audio applications where high-quality sound is required for streaming multi-channel audio in real time to smartphones and/or tablets.

Up to 8 channels are available on a single WaveCAST EIGHT, and up to 8 WaveCAST EIGHTs can be used on one network.

The new WaveCAST app provides an easy-to-use, intuitive user interface and is available in iOS or Android. Listeners easily select channel and volume level once their personal device is connected to the Wi-Fi network.

Specifications

• Dimensions -  17” W x 7.625” D x 1.72”H (43.18 cm x 19.37 cm x 4.4 cm)
• Weight -  5.0 lbs (2.27 kg)
• Color -  Black
• Rack Mount -  Standard 19” Rack, one EIA rack space high, one rack space wide
• Power Supply -  Desktop Style Transformer (TFP 062); Input: 100-240 VAC, 50/60 Hz. IEC Line Cord; Output: 24 VDC, 750 mA, 18W. 2.5mm ID center positive barrel connector
• Power Switch -  Rocker; backlit red indicates power on
• Temperature Range -  Operating: +32° F to +122° F (0° C to 50° C); Storage: -4° F to +158° F (-20° C to 70° C)
• Audio Processor Functions -  DSP based; Compression: 1:1, 1.5:1 or 2:1; High-pass and Low-pass Filter Frequency control
• Frequency Response -  31 – 16000 Hz, ±3 dB (“Music” Audio Preset)
• Signal-to-Noise Ratio -  Greater than or equal to 69 dB (streaming to Iphone)
• Total Harmonic Distortion -  Less than 0.25% @ 1 kHz
• Common Mode Rejection -  Greater than 52 dB @ 1 kHz
• Audio Inputs -  8 Phoenix-style Line Level Analog Audio, Balanced or Unbalanced Line Level
• Audio Input Gain Adjust -  In menu, adjustable to +6 to -60 dB, in 1dB steps
• Ethernet -  RJ-45 on back of unit supports CAT 5e cable lengths up to 328 feet (100 meters); 10/100 Base-T IEEE 802.3 compliant, unique MAC address
• Approvals -  FCC, RoHS3, WEEE, Industry Canada, CE, PSE, RCM, CB Scheme
• Warranty -  2-year parts and labor
