TOA Canada IR-800 Infrared Wireless Classroom System - Kit 1

About: TOA Canada IR-800 Infrared Wireless Classroom System - Kit 1

TOA’s Infrared Wireless Classroom System brings classrooms to life by providing clear, interference-free voice transmission through wireless technology.

• Uniform classroom-wide sound quality with single wide-dispersion speaker
• Minimized system components (tuner, 2 microphones and integrated speaker)
• Quick, easy installation requiring just one CAT-5 cable.
• Selection of three TOA lightweight, low-fatigue IR wireless microphones
• System expandable with optional interface unit for external device control and paging operations

Assembled specifically for classroom use, TOA’s Infrared Wireless Classroom System includes a ceiling-mounted wide- dispersion speaker (with integrated receiver and amplifier), an easily accessed desktop tuner and a pair of lightweight IR wireless microphones, one each for the teacher and students.

The system is tailored to classroom size, moreover, thus avoiding unnecessary equipment installation. The wide-dispersion speaker provides ample 30 ft x 30 ft coverage, transmitting teachers’ and students’ normal speaking voices to everyone in the room, from front to back, with equal clarity and TOA’s renowned superior sound quality. The resulting easy interactive communication stimulates students and improves their understanding of the course content.

IR-820SP Infrared Wireless Speaker​

• Built-in infrared receiver and 20W digital amplifier
• Unique wide-dispersion acoustic structure employing innovative TOA technology to achieve uniform output over a wide radius
• Bass-reflex speaker system achieving a wide frequency range and high power-handling capability
• Easy installation with quick, optimally positioned ceiling mounting

IR-802T Infrared Wireless Tuner​

• 3 AUX inputs for PC, TV/DVD player and MP3 audio player
• Output muting by 25 V line signal from telephone paging
• Equalizer control knobs for low-, mid- and high-frequency outputs
• Mixing output terminal for ALD (Assistive Listening Device)
• Frequency response optimized to reduce acoustic feedback in 30 ft x 30 ft classrooms

IR-300M  Infrared Wireless Microphone (for Teacher)

• Easy-to-wear, neck-suspension design permitting immediate use
• 2-level adjustable infrared light emission intensity
• Lightweight body can be worn for long periods of time without causing fatigue (0.29 lb [131 g] with 2 alkaline batteries)
• Usable as transmitter for external microphone
• Antibacterial treatment

IR-200BC Battery Charger for IR-200M and IR-300M

• Rapid-charging function permitting simultaneous charging of 2 infrared microphones within 3 hours (max.

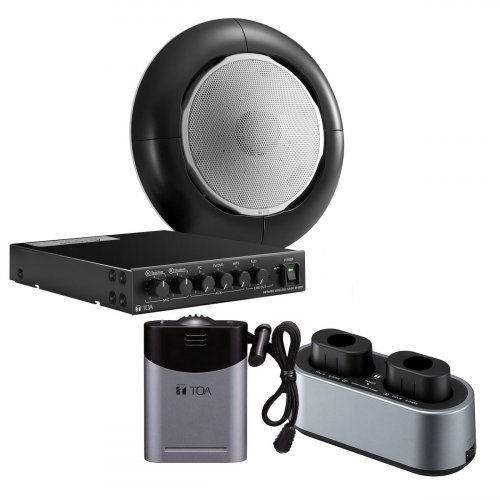

What's Included

• 1x IR-820SP Infrared Wireless Speaker
• 1x IR-802T Infrared Wireless Tuner
• 1x IR-300M  Infrared Wireless Microphone
• 1x IR-200BC Battery Charger for IR-200M and IR-300M
• 1x IR-200BT-2 Y Ni-MH Battery (1 pair)
• 1x HY-TB1 Support rails for ceiling speaker
• 1x WB-802 Wall-mount bracket for tuner
• 1x CAT-5E 50ft. Categroy 5 Ethernet Cable
• 1x CSTEREO-03 3ft. 3.5mm Stereo Cable
• 1x ACG36 3ft. RCA Stereo Cable
