Listen TP-KIT4 TalkPerfect Speech Transfer Kit (2 Pod Mics + 2 Pod Speakers)
Model: TP-KIT4
About: Listen TP-KIT4 TalkPerfect Speech Transfer Kit (2 Pod Mics + 2 Pod Speakers)
TalkPerfect Speech Transfer Kit is a full-duplex communication system designed to enhance speech clarity at fixed-screen counters, such as those found in banks, post offices, and security receptions. By minimizing background noise and actively reducing acoustic feedback, it facilitates clear conversations between staff and customers through physical barriers.
Key Features
- Full-duplex (two-way) communication
- Built-in feedback and echo suppression
- Multiple microphone and speaker configurations to suit various environments
- Simple integration with CLD1 loop amplifier for assistive listening compatibility
- Compact design with all connections on a single panel for ease of installation
- Fully adjustable gain on both channels
- Low cost of ownership
- 5-year warranty (note: accessories carry a 1-year warranty)
Kit Variants
The TalkPerfect system is available in several configurations to meet different installation needs:
| Kit Code | Description | Notes |
|---|---|---|

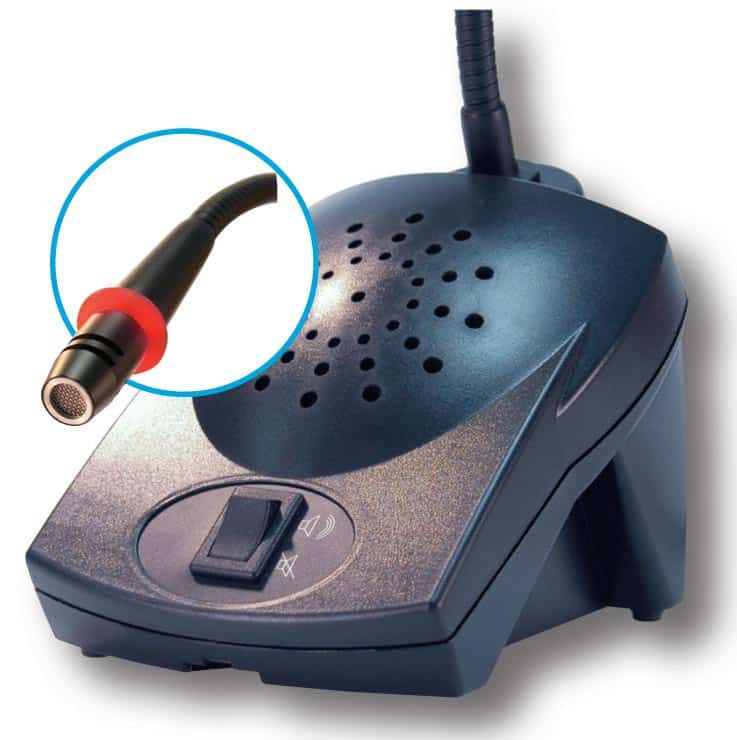

| TP-KIT1 | 1 Glass Mount Microphone, 1 Combi Unit, 1 Pod Speaker | Provides optimal volume and sound quality; suitable for standard installations. |
| TP-KIT3 | 1 Pod Microphone, 1 Pod Speaker, 1 Combi Unit | Designed for robust, vandal-proof installations; ideal for high-security areas. |

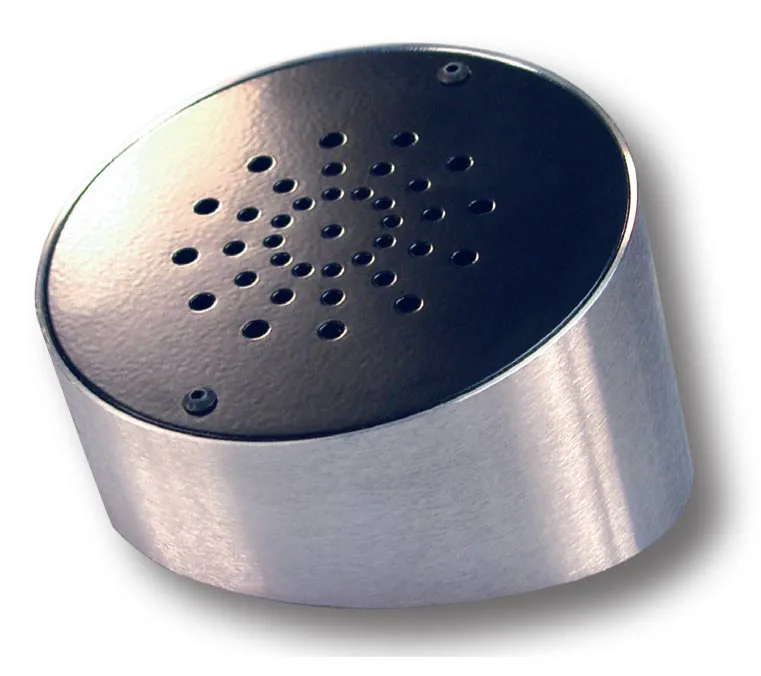

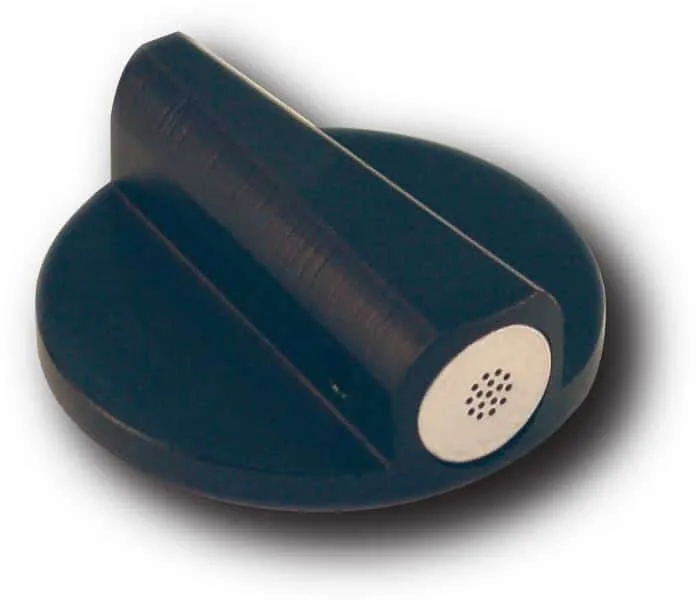

| TP-KIT4 | 2 Pod Microphones, 2 Pod Speakers | Suitable for environments requiring public access on both sides of the window. |
Technical Specifications
- Speaker Output: Two outputs with less than 0.5% THD at 1kHz, delivering +11dBu (1W into 8Ω); bandwidth of 20Hz to 10kHz.
- Microphone Input: Two inputs suitable for unbalanced electret capsules, providing DC bias voltage of 6V through 1kΩ; input impedance of 8kΩ.
- Line Output: Unbalanced phono socket for connection to CLD1 line input.
- Control Port: LED output connects to combi mic speaker to indicate system activity; includes PTT and mute functions.
- Power Requirements: Nominal voltage of 12VDC; quiescent current of 170mA (2W), maximum current of 1.0A (12W).
- Dimensions: 1.75 inches (44 mm) height x 7.90 inches (200 mm) width x 4.33 inches (110 mm) depth.
- Operating Temperature: -10 to +45ºC, with 20% to 90% humidity tolerance.
Reviews: Listen TP-KIT4 TalkPerfect Speech Transfer Kit (2 Pod Mics + 2 Pod Speakers)
Warranty: Listen TP-KIT4 TalkPerfect Speech Transfer Kit (2 Pod Mics + 2 Pod Speakers)
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
ListenRF and ListenIR Products: 5 years
ListenWiFi Products: 2 years
ListenLoop Products: 5 years
ListenPoint Products: 5 years
All others: 1 year
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
For Quebec Residents - Disclosure under the Consumer Protection Act
In compliance with Bill 29, AVShop.ca and Listen do not guarantee the availability of replacement parts, repair services, or maintenance information for any products. Any applicable manufacturer warranties will remain in place.
