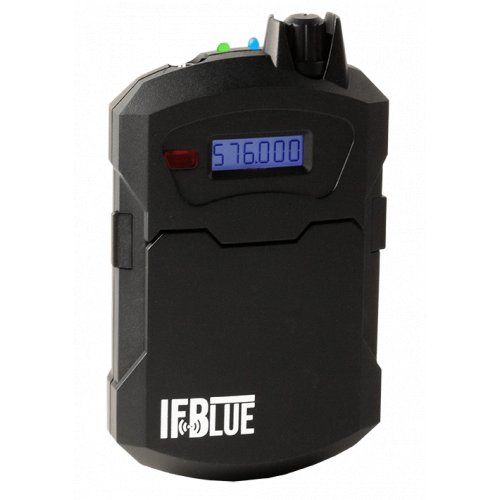

IFBlue IFBR1C Compact IFB Receiver (Freq: VHF)

About: IFBlue IFBR1C Compact IFB Receiver (Freq: VHF)

The IFBlue receiver provides simplicity and flexibility in a tough package that is intuitive for untrained users to operate. In spite of its small size, the receiver pack offers excellent performance and convenience. The dock charging feature and supplied rechargeable batteries make daily use a snap, while 10 programmable preset frequencies give you excellent flexibility on set or in the studio.

The IFBlue receiver pack is offered in five different frequency ranges to match existing T4 transmitters: VHF (174-216 MHz), A1 (470-537 MHz), B1 (537-614 MHz), C1 (614-692 MHz) and 941 (941-960 MHz).Transmitters available from Lectrosonics include the IFBT4, IFBT4-VHF, or any Digital Hybrid Wireless transmitter in IFB compatibility mode.

• PRESETS - Stores up to 10 frequency presets in memory
• INTERFACE - LCD interface for programming and operation
• RANGE - High sensitivity for extended operating range indoors or outdoors
• CONNECTIVITY - USB port for firmware updates
• DURABLE - Compact, rugged injection molded ABS housing
• POWER - 2 AA batteries; alkaline, lithium, or NiMH rechargeables (supplied)

Specifications

• Operating Frequencie (MHz): VHF: 174.100 - 215.750
• Frequency Selection Steps: 25 kHz, selectable; VHF: 125 kHz
• Sensitivity: 1 uv (20 dB SINAD)
• Signal/Noise ratio: 95 dB A-weighted
• Squelch quieting: 90 dB
• AM rejection: 50 dB, 10 uV to 100 mV
• Modulation acceptance: ±20 kHz
• Spurious rejection: Greater than 70 dB
• Operating temperature range: -20 to 50 degrees C.
• Third order intercept: 0 dBm
• Frequency response: 100 Hz to 10 kHz, (+/-1 dB)
• Audio output: 1V RMS into 50 ohms minimum
• Antenna: Headphone cable
• Min. headphone impedance: 16.0 Ohms
• Programmable memory: 10 frequencies can be stored as presets
• Controls
  • Top Panel: Single knob controls Audio Output Level and Power On
  • Side Panel: Membrane switches with LCD interface for Frequency Selection and Preset function
• Indicators: Multi-color LED indicator for power on and battery status
• Battery: Two AA batteries
• Battery Life
  • 10+ hours (Alkaline)
  • 12+ (NiMh)
  • 20+ (Lithium)
• Current consumption: 120 mA
• Weight: 4.6 oz (130 g) with batteries
• Size: 4.25 x 2.75 x 1.125 in. (108 x 70.0 x 28.5 mm)
