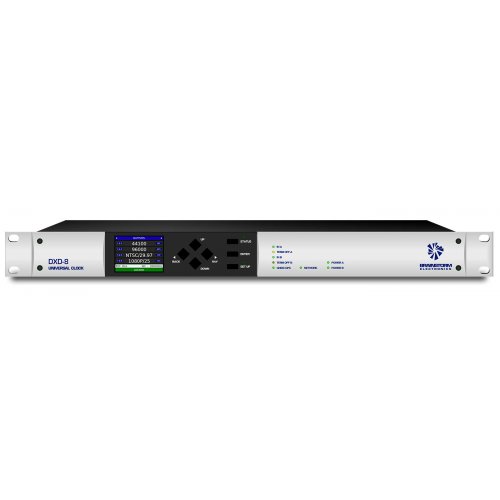

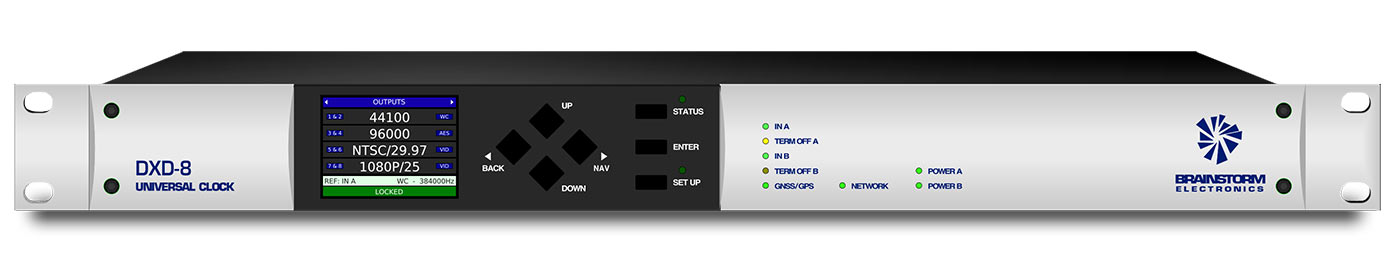

Brainstorm DXD-8 Universal Grandmaster Clock
Model: DXD-8
About: Brainstorm DXD-8 Universal Grandmaster Clock
The DXD series from Brainstorm is designed to ease the transition to IP. The precision multiformat reference generator generates up to 4 independent video syncs and audio clocks simultaneously. With the PTP option, the DXD-8 acts as a clocking bridge between an IP infrastructure and legacy A/V equipment.
Features:
- 4 separate Reference Generators
- 8 BNC outputs: WC, AES, VID SYNC or 10MHz (user-defined)
- 2 BNC inputs for external references with failover
- NTP Server & NTP Client
- PTP Grandmaster or PTP Slave (w/ PTP option)
- GPS Receiver (hardware option)
- Synchronizes to a legacy reference, a PTP network or GPS
- Generates TOD Time Code (w/ DXD/LTC option)
- Remote control via web browser
- Available options: PTP (v2, v1, AVB) , LTC, GPS, OCXO
UPC: 860014318603
