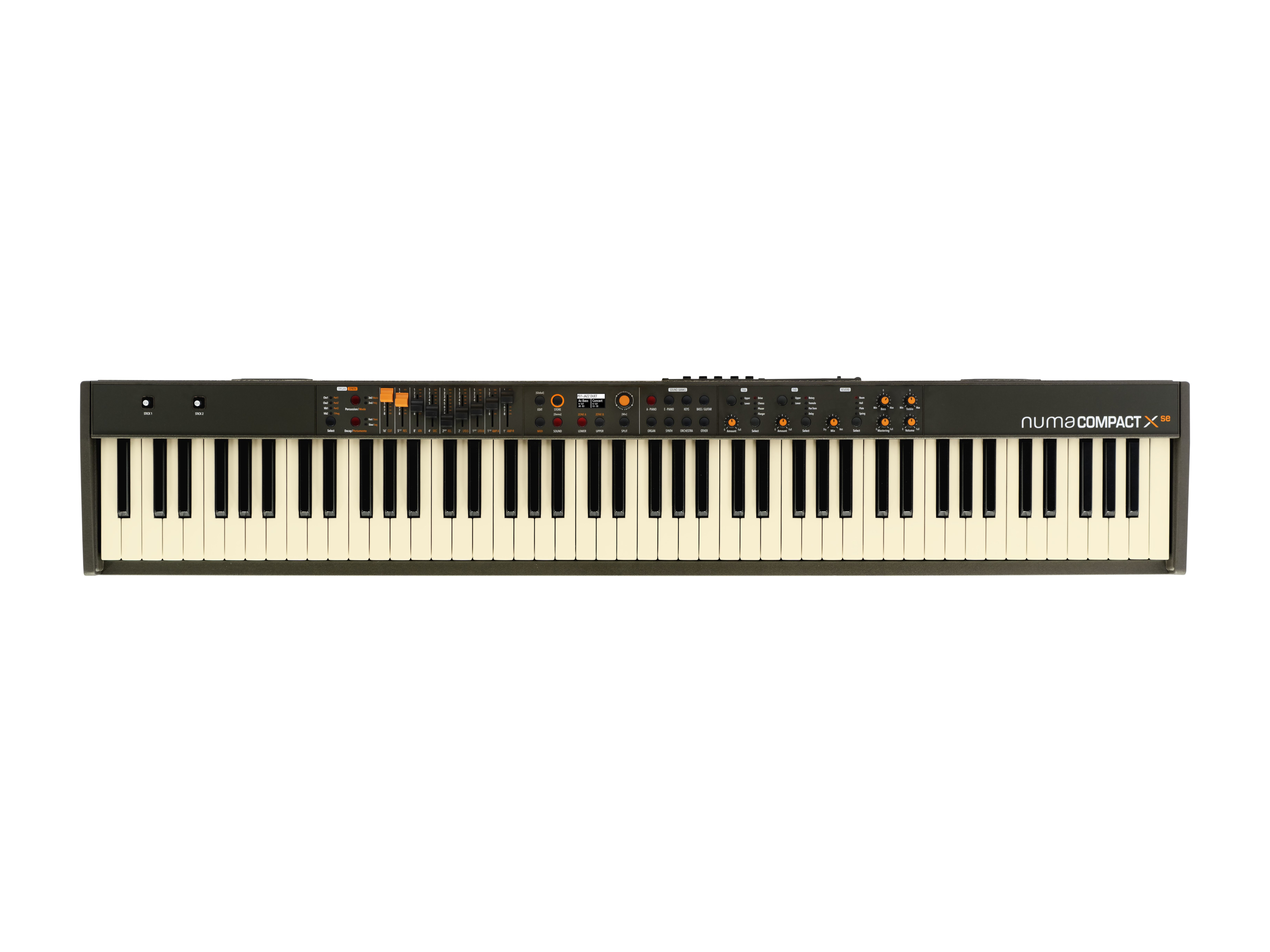

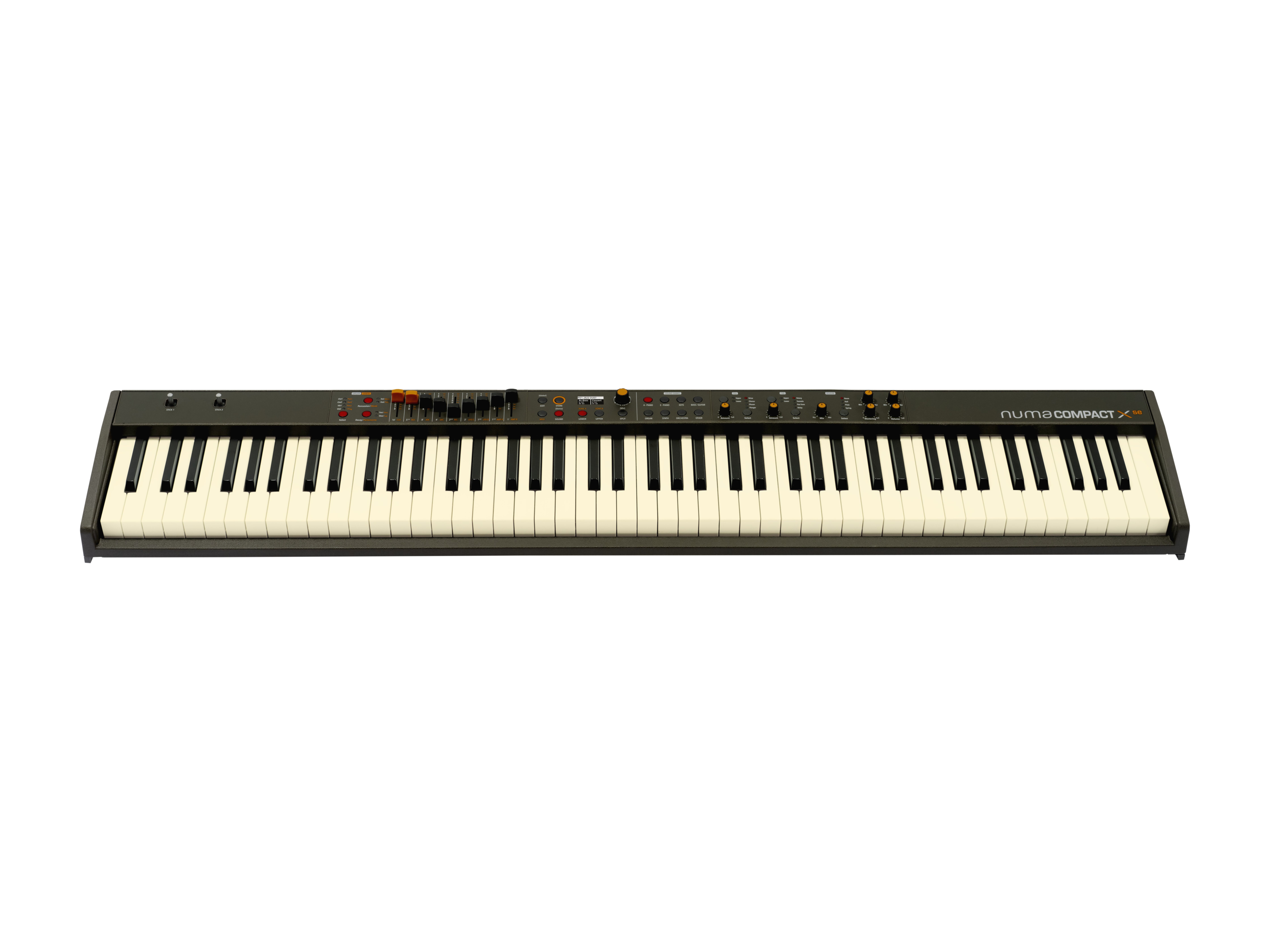

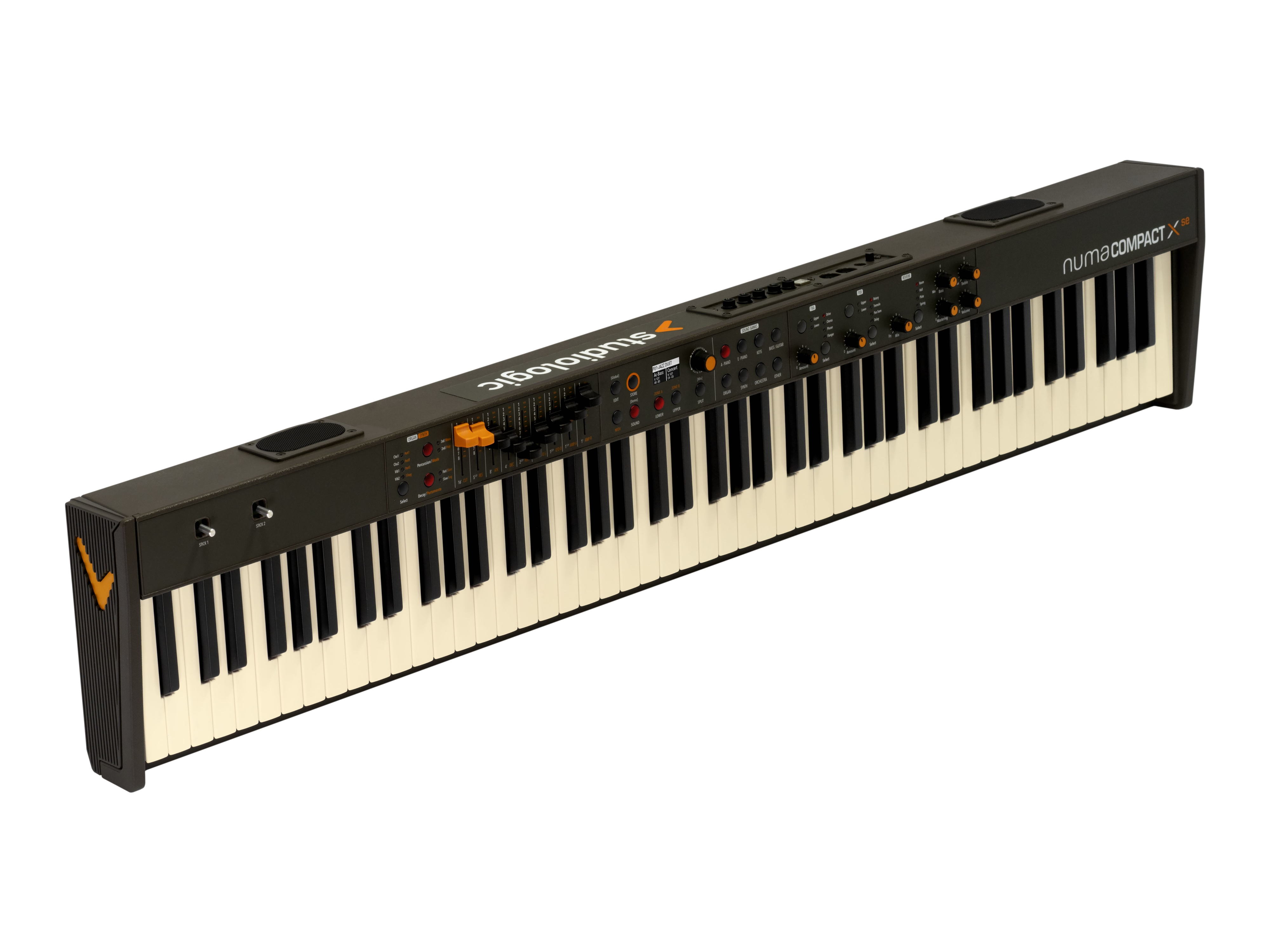

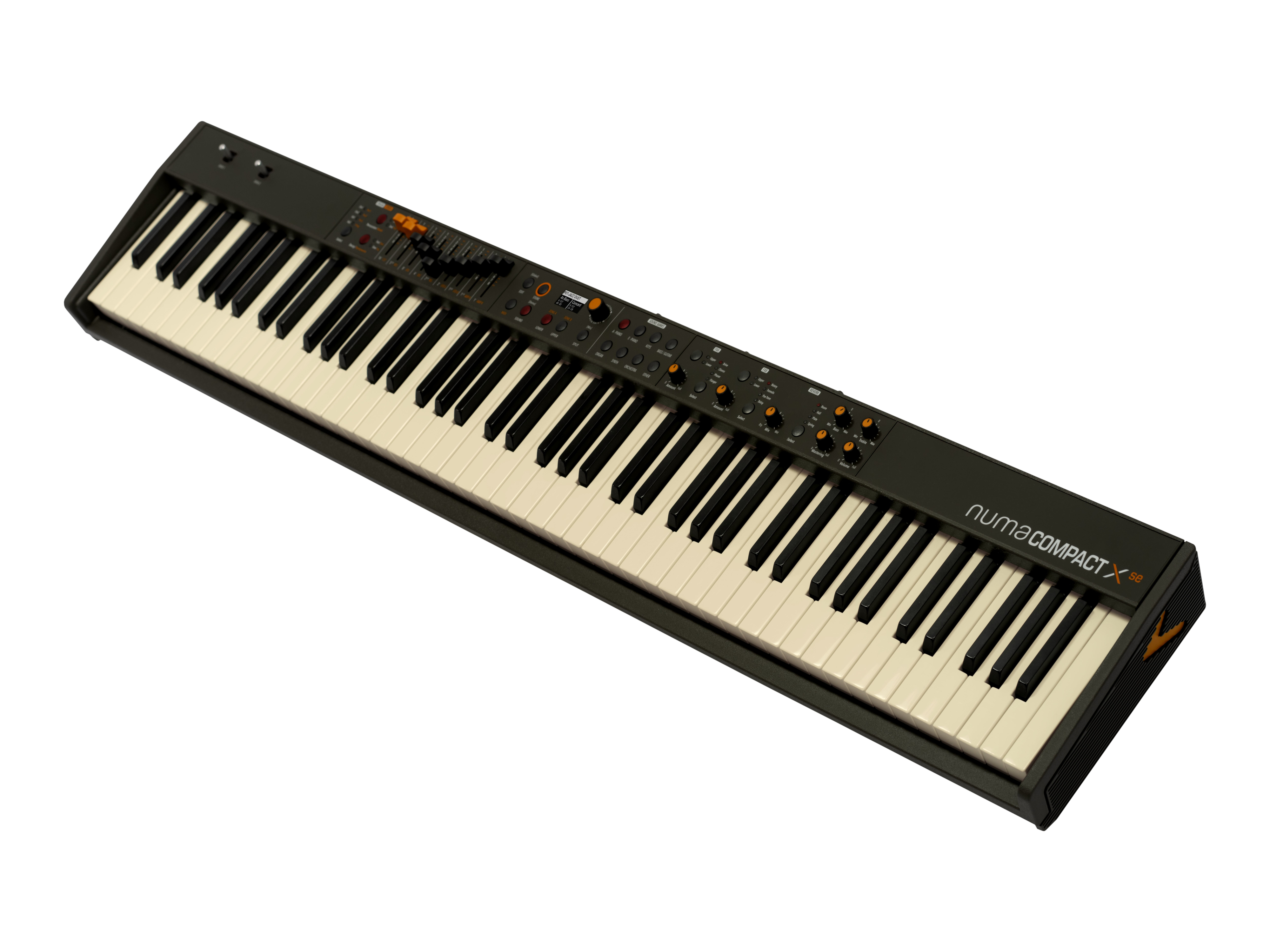

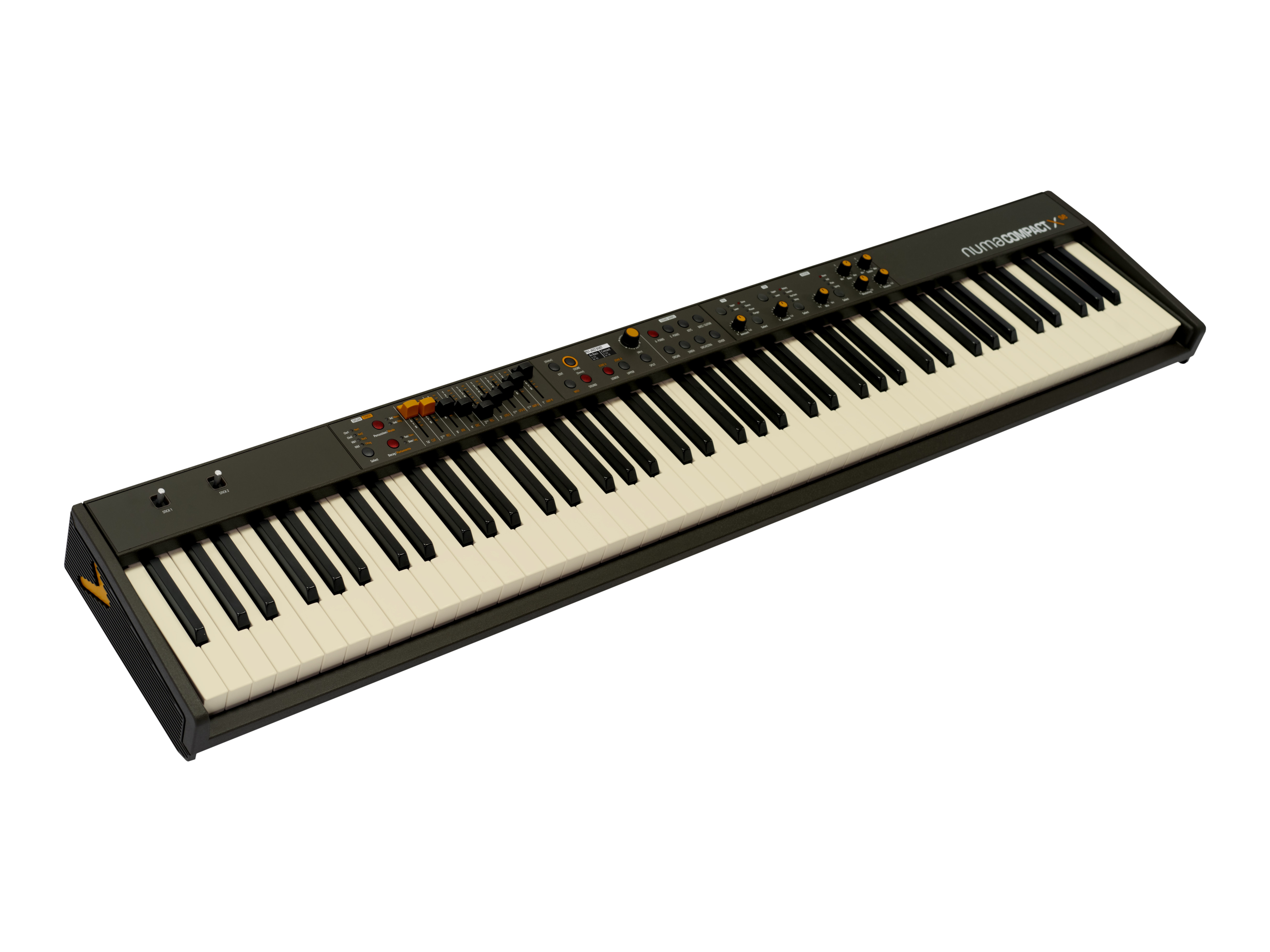

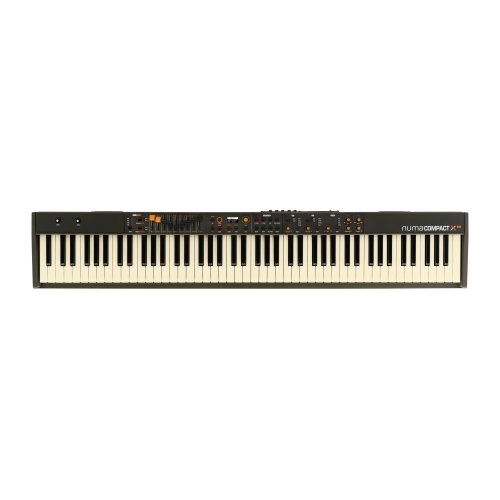

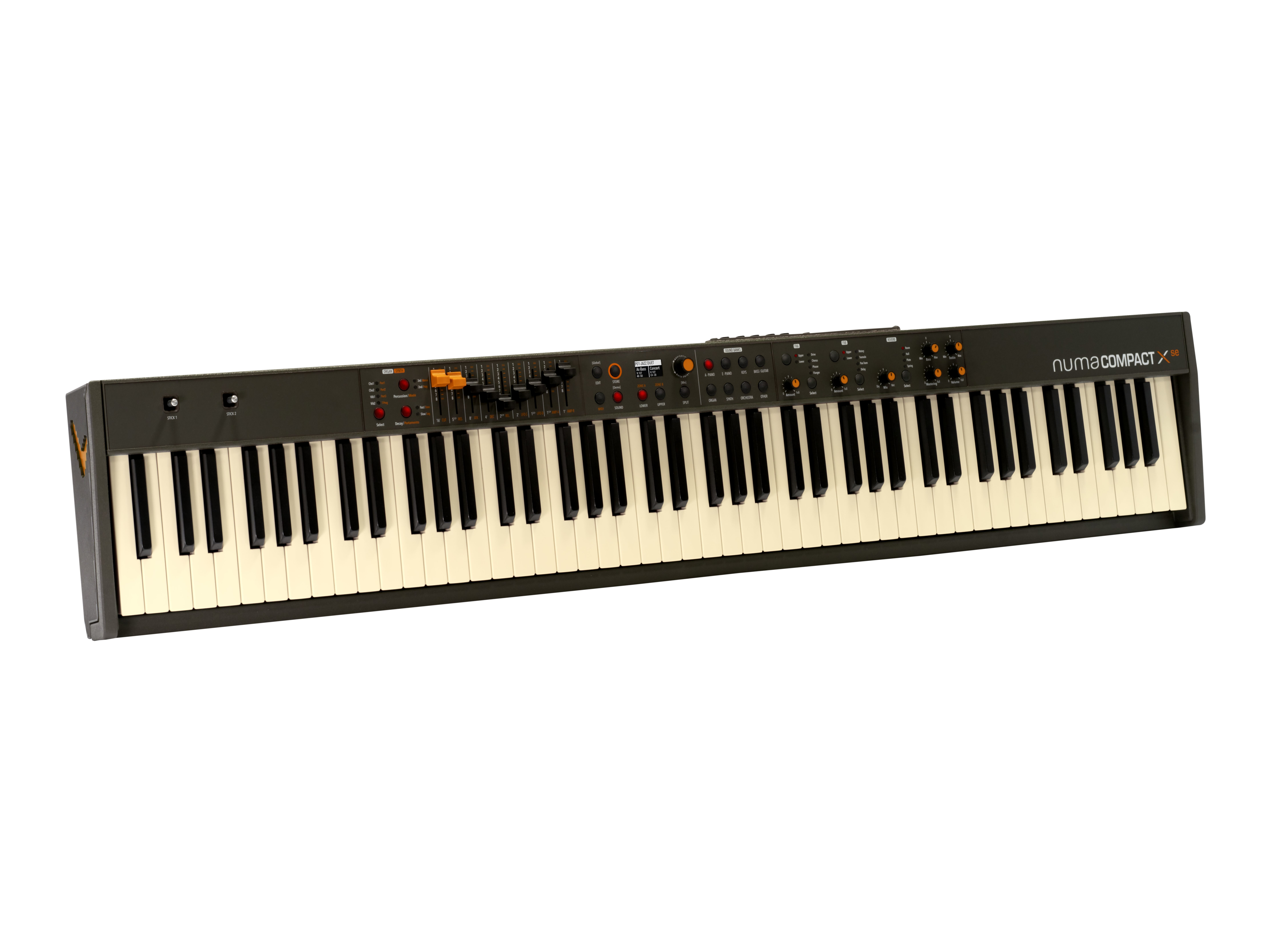

Studiologic Numa Compact X SE 88-Key Piano/MIDI Controller w/Drawbars

About: Studiologic Numa Compact X SE 88-Key Piano/MIDI Controller w/Drawbars

Compact size to the power of four.

Numa Compact SE and Numa Compact X SE evolve thanks to the technologies derived from Numa X Piano.

Everything we loved about the Numa Compact in the same lightweight and portable cabinet is now equipped with a powerful new sound engine.

• 200 Max Polyphony
• +60 more sounds than Numa Compact 2
• Professional semi-weighted keyboard
• Built-in speakers
• TRS - True Sound Stereo multi-samples
• 7kg weight
• 9 Drawbars for real-time control
• USB Audio

Acoustic Engine

New Acoustic Piano sounds are enhanced by a totally revamped Acoustic Engine.

High resolution samples are combined with adjustable additional layers to reproduce every note even more real.

• New Acoustic Piano samples
• More control of the Strings and Duplex Resonance
• Adjustable Damper and Hammer noise

Organ Engine

A true tone wheel organ model is implemented as a separate sound engine. Numa Compact SE provides a stunningly reproduction of some of the most notable organ sounds.

The 9 programmable drawbars of Numa Compact X SE can control organ sounds or send MIDI messages as well.

• Brand new Rotary FX, Chorus and Vibrato
• Percussion controls
• Real time control of the sound

Electric Engine

A new dedicated engine combines a mix of samples and effects to emulate the realism of Numa X Piano physical modelling technology.

Numa Compact SE can reproduce the most famous vintage electric pianos in a mind-blowing accuracy.

• New Tine sounds and FM emulations
• Tine volume control
• Damper noise control

Synth Engine

The brand new virtual oscillators engine can generate classic and complex analog waveforms and transform Numa Compact SE into a powerful synth machine.

Use the sliders to design your own unique sound from one of the forty included in the library.

• Portamento, Staccato and Legato control
• Monophonic and Polyphonic mode
• Real time control of the sound

Play. Listen.

Numa Compact SE grows with your demands. You can either use it with the high quality built-in speakers in a training session, practice at home with your headphones and plug it to the PA system when playing with your musician friends or performing live on stage.

Solid Control.

Expressive performance with ergonomic metal stick controllers. The programmable sticks and the Aftertouch add to the performance a total musical control.

Total Access.

All the power of the sound engines is under control thanks to the user-friendly user interface with its clear OLED screen.

The FX processor has a dedicated control section to perform up to 6 effects simultaneously.

Impressively powerful. Impossibly light.

The new Numa Compact SE with its contemporary vintage look is now loaded with a large sound library and 4 dedicated sound engines. It features a professional semi-weighted keyboard and provides a list of functions never found before in any instrument of its category.

What's more? Oh yes... it weighs only 7 kg!

Not enough Sounds? Here comes Numa Manager.

Transfer new sounds and choose their positions thanks to the new Numa Manager desktop app, that also allows you to update the firmware and organize the Programs in a fast and easy way.

Additional sounds

Download free stunning Sounds for your Numa Compact SE and X SE.

• Japan Grand: Original recording of a Japanese Concert Grand Piano, digitally recorded with 8 high quality microphones. All 88 notes are included, plus the natural release sound of each string.
• German Grand: From an accurate 8 Tracks digital recording of a famous reference "Model D" concert Grand piano, this new sound has been mixed and mastered in the final warm stereophonic tracks, from which all 88 notes of the original instrument have been made, including the released key sounds and all suble details.
• Mell Pack: The 4 most popular sounds of the tape-player keyboard, made famous by top hits and Bands of the Sixties: Brass, Choir, Flute and Strings.
• Movie Pack: A mix of Brass & Strings ensemble sounds suitable for many musical styles and soundtracks music, from intimate comping to epic finale.
• Clarinets: A warm modulated sound that includes the subtle frequency and timber modulations of the real instrument, with a particular recording that allows also to play Ensemble Reeds parts.
• Strat & LesPaul: Two iconic Electric Guitars in their more typical and quite different timbre, from the cutting edge of the Strat to the mellow sound of the LesPaul humbuking pickup.
• Wind Pack: Trombone and Trompete allow to play Classic and Jazz Music, while English Horn and Alto Flute can create Orchestral solos. The audio demo is played live with the Movie Strings at the Lower zone.
• Plectra & Harp: A Mandolin Orchestra with Staccato and Tremolo double articulations in addition to Harp sounds for Arpeggio or Solo parts.

Specifications

• Keyboard
  • 88 Keys
  • TP/9 PIANO semi-weighted Action
  • Dual switch detection system
  • Aftertouch
  • Ivory look
    • Touch: Soft, Medium, Hard, Fixed (programmable)
• Sound Generation
  • 148 Factory Sounds
    • 12 Acoustic Pianos, 12 Electric Pianos, 12 Keyboards, 16 Basses & Guitars, 24 Organs, 40 Synthesizers, 16 Orchestrals, 16 Others
  • Max Polyphony 200 voices
    • TrS (True Sound) Stereo multi-samples
    • Additional downloadable sounds
  • Acoustic Engine
    • Strings and Duplex Resonance
    • Damper noise
    • Hammer noise
  • Electric Engine
    • Tine dedicated controls
    • Tine sounds for EP, Wurly and FM emulations
    • Damper noise
  • Organ Engine
    • Integrated tone wheel organ model
    • Real time control by drawbars and dedicated buttons
  • Synth Engine
    • Integrated waveform generator
    • Real time control by sliders and dedicated buttons
• Effects / Processing
  • Up to 6 effects simultaneously: 2 FX on Lower + 2 FX on Upper + Reverb + Strings resonance
  • Dedicated effects for acoustic piano, electric piano, organ and synth sounds
    • FX1: Drive, Chorus, Phaser, Flanger
    • FX2: Rotary, Tremolo, Pan Trem, Delay
    • REVERB: Room, Hall, Plate, Spring
• Features
  • Sound and Programs
    • 120 User programs
    • 1GB Samples memory
  • 6 Sections
    • 2 Sounds in Layer or Split mode
    • 2 Sounds (additional) from MIDI/USB
    • 2 MIDI Zones in Layer or Split mode
  • Edit functions
    • Global, Program, Part, Mixer (Lower / Upper / Zone A / Zone B volume control)
  • Master controls
    • ​Bass, Treble, Mastering, Volume
  • MIDI
    • 2 Programmable Zones - A/B
    • Program Change, Bank Select (LSB, MSB), MIDI Channel, Volume, Split assign, Transpose, Octave
    • Pedals 1-2 assign, Sticks 1-2 assign
    • 9 assignable sliders
• Speaker system
  • 10 + 10W built-in digital Amplifier
  • 2 Elliptical full range speakers
    • Internal speakers cannot be used with USB power
• Controls / UI
  • OLED display 128 x 64 dots
  • Encoder with push function
  • 7 potentiometer
  • 23 buttons
  • 2x Sticks
    • Stick 1: Pitch
    • Stick 2: Mod + FX Control
  • 9 drawbars | sliders

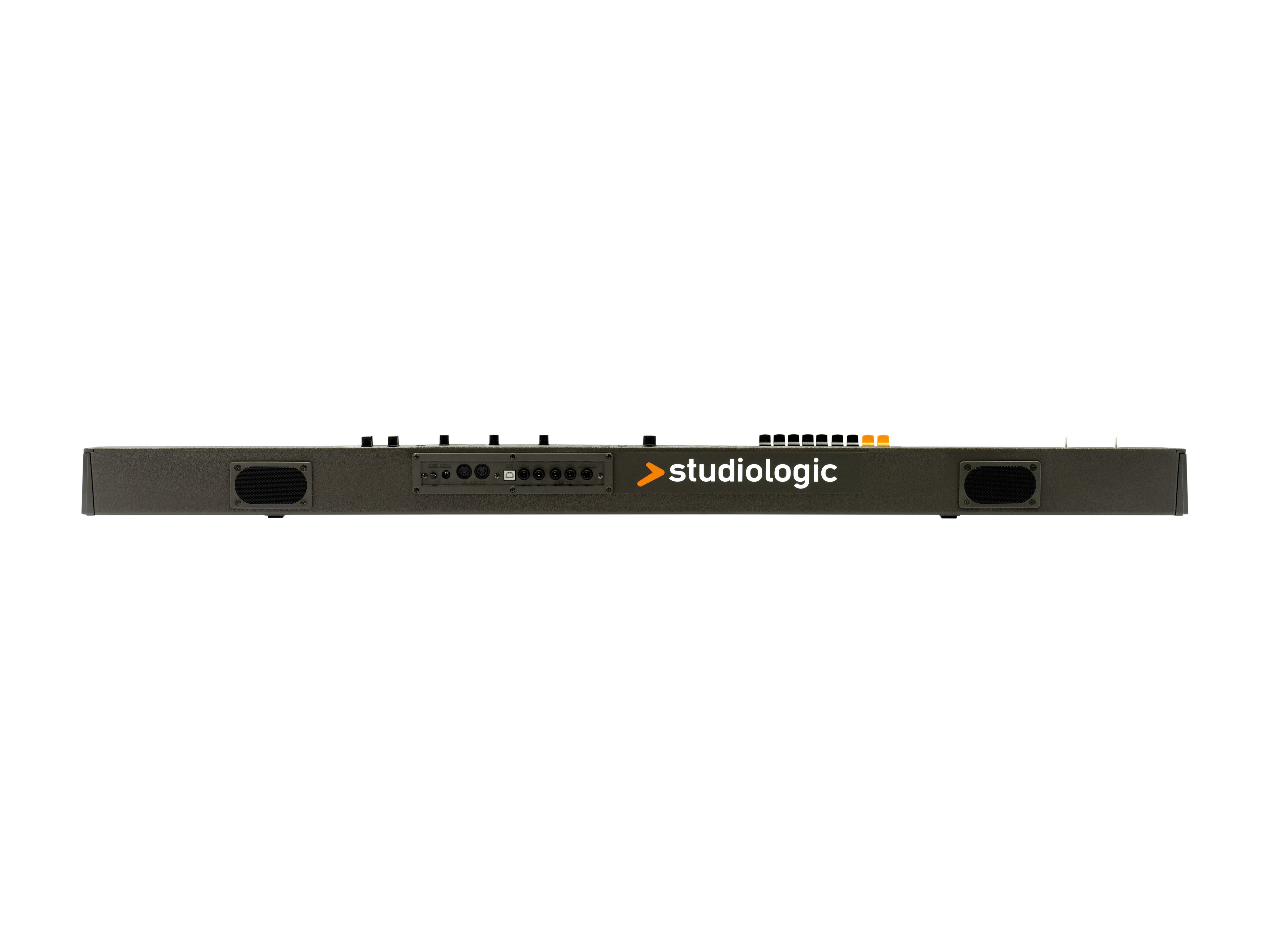

• Connections
  • Audio OUT: 2x 6.3 mm mono jack (L+R)
  • Headphones: 6.3 mm TRS jack (programmable as Aux out)
  • Pedals: Expression, Universal
  • MIDI: In, Out
  • USB: Audio, MIDI, power, Numa Manager
    • Internal speakers cannot be used with USB power
• Power supply
  • DC IN: 12V
  • Adapter
    • Input: 100-240V
    • Output: 12V-2,5A
• Dimensions (WxDxH): 50 x 9 x 4 inch (127 x 23 x 10 cm)
• Weight: 15.65 lbs (7.1kg)

What's in the Box

• Numa Compact X SE
• USB cable
• Power adapter
