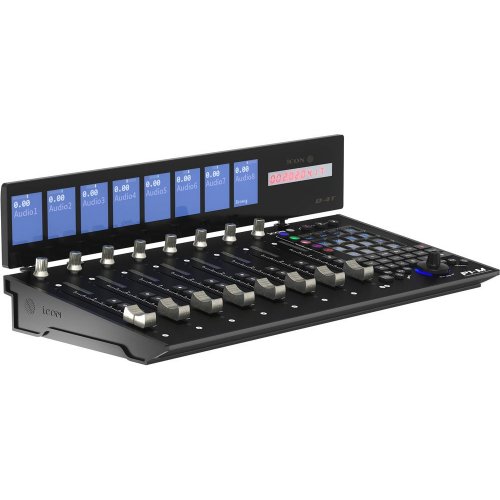

ICON P1-M DAW Control Surface with Motorized Faders + D4T Bundle

About: ICON P1-M DAW Control Surface with Motorized Faders + D4T Bundle

Experience ultimate control with the P1-M DAW controller + D4T OLED Display, designed to revolutionize your productivity and accelerate project completion. This powerful device puts tactile control at your fingertips, streamlining your workflow for a faster and more efficient creative process. Discover the remarkable features that make the P1-M the perfect match for your audio adventures:

• Customizable Touchscreen: A large, customizable touchscreen grants you effortless control over your DAW, tailored to your specific workflow. Access essential controls with ease, all without diverting your focus from the mix.
• Expandable Channels: With 8 motorized faders and the ability to bank 8 channels at a time, the P1-M provides ample control, but it’s expandable up to 64 channels (depending on your DAW) using optional P1-X expansion modules. No matter the complexity of your project, you’ll have full command over your mix.
• Seamless DAW Integration: Compatible with leading DAWs like Bitwig, Cubase/Nuendo, Logic Pro X, Ableton Live, and Pro Tools, the P1-M ensures seamless compatibility with your preferred software. Plus, work with up to 3 DAWs simultaneously, ensuring a smooth and uninterrupted creative experience.

Features

• 8x touch-sensitive motorized faders with 12-bit resolution
• Programmable 4-inch,16 panel digital touchscreen display showing DAW functions with 5 color modes – a potential total of 80 displayable and actionable functions
• Organize DAW functions in the 16 panel touchscreen easily via ‘drag and drop’ in the iMAPTM
• Connect up to 3 DAWs at one time via the DAW select buttons
• Extremely hard wearing, durable and versatile
• Precise, clear and attractive LED meters
• Smooth-action jog wheel shuttle for fast search, scrub and control
• 8 smooth action dual-function encoder knobs (Rotate and Enter)
• Illuminated function buttons for ‘Read’, ‘Write’, ‘Touch’, ‘Latch’, ‘Trim’; and ‘Off’ – activated/deactivated as required by the DAW
• Illuminated buttons for channel control including Mute, Solo and Record
• 6 illuminated transport buttons including Play, Stop, Rec, Rewind, Fast Forward and Loop
• Dedicated ‘Flip’ and ‘Master’ buttons for fader flipping and access to the master channel (Channel 8 becomes the Master channel)
• Illuminated “Zoom” button with 2 directional keys (Left/Right & Up/Down) – used in combination with the jog wheel
• Illuminated ‘Focus’ button which allows the user to “focus” in and adjust plug-in, EQ parameters etc. via the smooth-action jog wheel
• 2 illuminated “Track” buttons for selecting individual channels
• 2 illuminated “Bank” buttons for shifting 8-channels at a time
• Supports Universal Mackie Control and HUI protocols for seamless integration with compatible music production software
• Supports Ability, Audition, Ableton Live, Bitwig, Cakewalk, Cubase/Nuendo, Digital Performer, FL Studio, Mixbus 32C, Pro Tools, Logic Pro, Luna, Reaper, Reason, Samplitude, Studio One and Tracktion Waveform
• iMapTM software included
• USB C high-speed connectivity
• Firmware upgrade available via USB C connection and iMap TM software
• User A & User B 1/4 inch inputs for connecting footswitch pedals
• Class-compliant with MacOS, Apple Intel and Apple Silicone processors, Windows 10 and Windows 11
• Superior build quality and robust metal casing with Kensington lock port
• Optional D-4T display unit with OLED display showing channel name, control values, channel colors etc., (DAW dependent) and timecode displayed in SMPTE or beat clock (bars.beats.ticks)
• Expandable with the P1-X extender unit (8 channels per P1-X)
• Optional D4 display unit for the P1-X

Different Applications

• Music Production - Empower your creativity. The P1-M is just the right size for your workspace giving you tactile control with faders, knobs and DAW functions right at your fingertips.
• Recording and Mixing - Whether you’re setting up your project studio or working on a large format console, the P1-M is the perfect controller to complement your workflow. Its adaptability allows it to seamlessly serve as the heart of your production suite or integrate effortlessly as an 8 fader DAW controller on your expansive console setup.
• Content Creation - Elevate your podcast, broadcast or channel and streamline your editing workflow with customizable functions for engaging audiences with ease.
• Post Production and Sound Design - With the P1-M, the possibilities are limitless. Depending on your DAW, you have the freedom to add up to 64 channels to your setup. This proves invaluable when tackling intricate projects, brimming with dialogue tracks, or when crafting immersive soundscapes and otherworldly creations.

P1-X DAW Control Expander

Expand your P1-M’s capabilities to an impressive 16, 32, or even 64 channels, depending on your DAW, by incorporating the P1-X DAW Control Expander. Each P1-X module boasts eight touch-sensitive motorized channel faders with 12-bit resolution, eight dual function encoder knobs, LED meters and essential mute, solo, select, and record buttons.

Take advantage of the optional D4 OLED display, presenting crucial channel information such as track names, pan positions, and various control parameters for each channel. The P1-X DAW Control Expander empowers you to create a truly personalized control surface, tailored to your specific needs and your workspace.

• Note: The expandability of the P1-X is subject to your Digital Audio Workstation’s capabilities. Please consult your DAW’s manual to determine the number of expanders your setup supports.

Specifications

• Connector: To computer USB connector
• Power supply: 12V/2. 5A DC
• Current consumption: 2. 0A or less
• Compatibility
  • Windows 10 - 11 (with intel/AMD CPU)
  • Mac OS 10.9 - 13 (with intel/M1-Series/M2-Series CPU)
• Weight: 4.23 lb (1.916 kg)
• Dimensions (LxWxH): 15.9 x 8 x 2.4 inch (405 x 204 x 61 mm)

What's in the Box

• P1-M USB C – MIDI Controller
• USB C Cable
• AC adaptor
