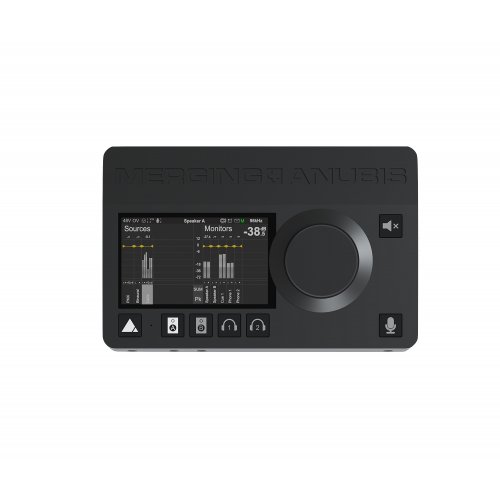

Neumann Merging Anubis Pro RAVENNA/AES67 Audio Interface

About: Neumann Merging Anubis Pro RAVENNA/AES67 Audio Interface

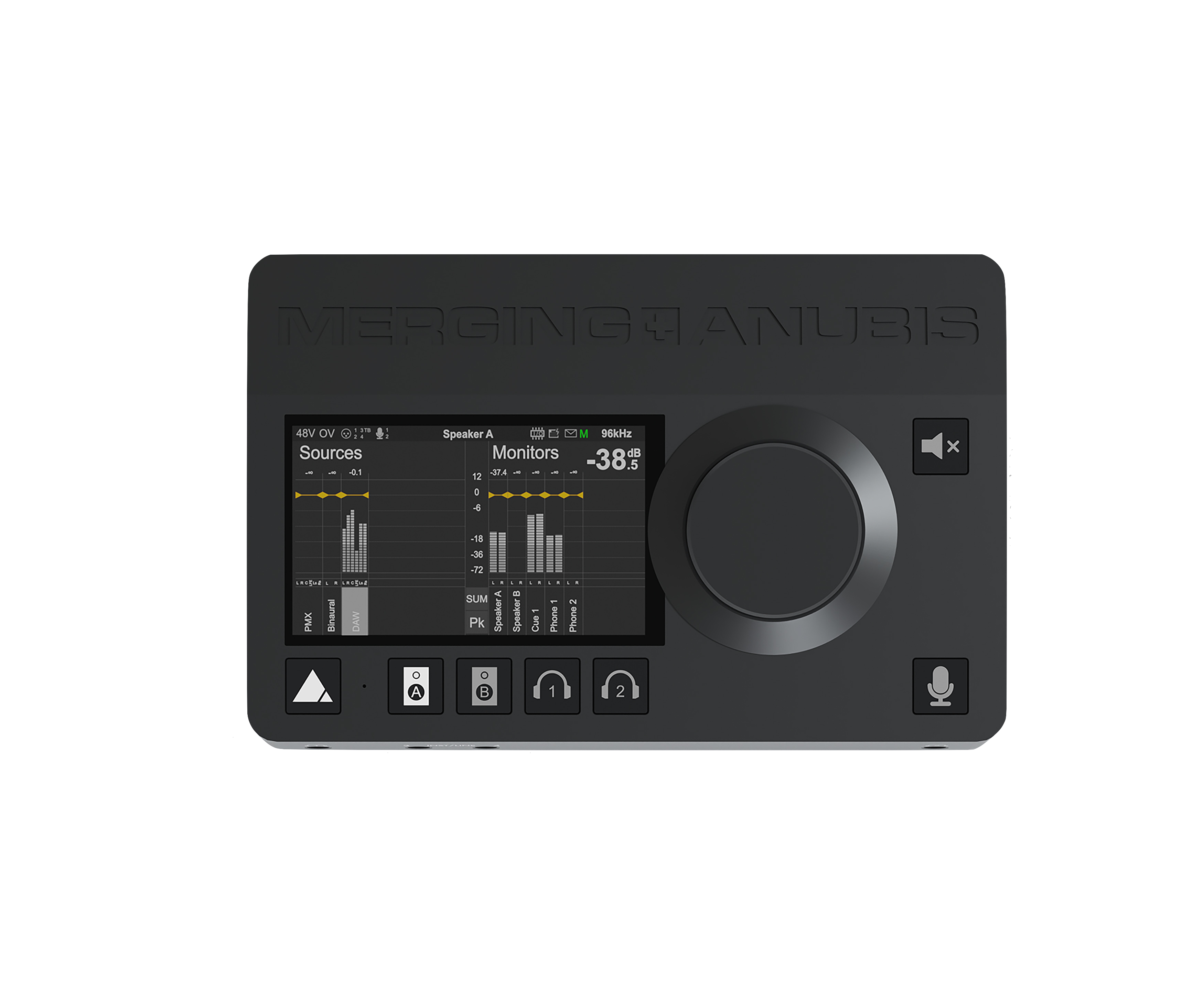

Anubis is a powerful and versatile audio interface with state-of-the-art technology. It offers switchable Missions for different audio applications, internal signal processing, and redundant network connectivity for I/O expansion via RAVENNA/AES67 or Dante.

• Cutting-edge converter technology with unparalleled dynamic range
• Dedicated Missions for optimal workflow in various key applications
• Advanced digital signal processing (EQ, dynamics, reverb) and routing capabilities
• Redundant AES67 connectivity enables seamless I/O expansion and complete control
• Intuitive touchscreen GUI, allows for stand-alone operation

A Multi-Tool with Outstanding Audio Quality

Anubis is a multi-tool with exceptional sound quality that allows you to record and process audio with the highest resolution available. It is thus the perfect choice for audio professionals with the highest demands. Thanks to its unique 32 bit dual preamp topology, designed by Merging Technologies, Anubis offers unparalleled audio performance with a dynamic range of up to 136 dB A (mic) / 139 dB A (line).

Anubis also features two reference-quality headphone amps with extremely low impedance ratings, offering high output levels without any distortion. This ensures the highest linearity and audio fidelity for all types of headphones.

Anubis is the quintessence of Merging Technologies' pioneering innovations of the last 30 years and is available in two versions. Anubis Pro offers sample rates up to 192 kHz/32 bit. The Premium version even supports DSD/DXD extreme resolution formats.

Features

• Class-leading AD-converter resolution with a dynamic range of 136/139 dB A (mic/line)
• 2 premium-quality mic/line preamps, 2 pristine line/instrument inputs
• Up to 78 dB gain (with Boost)
• 4 line/monitor outputs
• 2 ultra-low impedance headphone outputs with adjustable crossfeed
• Redundant AES67/RAVENNA, NMOS and ST2022-7 support, Dante Ready with Dante redundancy.
• Several Missions and 3rd party plug-ins/add-ons (SoundID) available
• Control and route up to 128 x 128 I/O channels
• DSD/DXD ultra high definition (Premium only)

Missions

The optional Commentary Unit Mission is specially designed to be used by commentators and podcasters, providing a simple and minimalistic interface, for easy operation.

The optional Venue Mission is a revolutionary solution for live events, combining distributed remote controllable preamps with sophisticated on-stage headphones monitoring and the endless routing possibilities of networked audio. In other words: personal tailored mixes for the performers with high quality preamps for the engineers and minimal cabling on stage for the technicians. The Venue Mission has been used at major events for live orchestral miking and musician monitoring, with each two players sharing one Anubis.

With its high-resolution touchscreen and stand-alone capabilities, you can access all the powerful Missions with ease. Additionally, the snapshots feature allows for quick and effortless recall of your session configurations.

The ultimate AoIP solution

Anubis is a powerful AES67/RAVENNA control center, making it an excellent choice for broadcast studios, OB vans, and editing suites. Its compactness and robustness make it ideal for location recording and live events, where it acts as a cost-effective and efficient interface for large-scale network installations. Combined with Merging's MAD/VAD infrastructure packs, Anubis offers full ST2022-7, Virtual Machine, LAWO HOME and NMOS support!

Adding more I/O is easy - simply connect an AES67 device like a Merging Hapi or Horus. Thanks to Merging’s revolutionary “Peering” feature, Anubis is in total control. Anubis is also a perfect companion for Neumann's KH-line AES67 speakers, allowing you to set up and control a fully featured immersive audio environment.

Dante Ready

From Q4/2024, Anubis is delivered Dante Ready.* The Dante option allows compatibility with more than 4000 devices from over 600 manufacturers, opening up a whole new world of applications, especially in the live and installation sector. Ex factory, Anubis will continue to have the RAVENNA/AES67 firmware preinstalled. An alternative Dante firmware is offered by Merging free of charge to be installed by the user. In addition, a Dante license must be purchased from Audinate, who also offer Dante driver software (e.g. Dante Virtual Soundcard). This ensures there are no extra costs for users who do not need Dante.

• * More information about Dante and a Dante Ready upgrade for existing customers can be found in our Dante FAQs.

Offering a Dante option has no implications on Merging’s commitment to RAVENNA/AES67 but is testament to our customer-centric approach. Both AoIP protocols have their specific advantages and use cases. For more information visit our FAQ page.

Unprecedented functionality

Anubis includes high-quality EQs, limiters, compressors, gates, expanders and sends on each channel, plus a reverb processor and an additional parallel dynamics module. Anubis even lets you record the wet and dry signal simultaneously. Outputs, too, can be processed with EQ and dynamics, if needed. Additional plug-ins like De-esser and Eventide Blackhole reverb are available via the online store, as is a Sonarworks SoundID add-on for speaker and headphone calibration using the internal DSP.

With its multiple Cues support, you'll be able to prepare, mix, and control cues straight from the touchscreen, monitor them, and talk to the singers and musicians, making them feel at ease to get their best performance.

Specifications

• MICROPHONE INPUTS 1-2 (COMBO)
  • Dynamic Range Mic / Mic Boost: 137 dB / 128 dB (A-weighted, typ.)
  • Equivalent Input Noise Mic / Mic Boost (150Ω Source): < -125 dBu / -128 dBu (A-weighted, typ.)
  • Input Impedance (Differential): ~ 10kΩ
  • Gain Range (Software controlled): 0 dB to +66 dB
  • Phantom Power (Software Switchable Per Channel): +48V
  • Phase Reverse (Software Switchable Per Channel): Yes
  • Low Cut filter (Software Switchable Per Channel): -12 dB/octave, 80 Hz
• LINE INPUTS 1-2 (COMBO)
  • Dynamic Range, ref +24 dBu: 139 dB (A-weighted, typ.)
  • Max Line Input Level: +24 dBu
  • Input Impedance (Differential): ~ 10kΩ
  • THD+N Preamp + A/D 1kHz @ 0 dBFS: < - 104 dB (0.0006%)
  • Interchannel Crosstalk @ 1kHz: < -140 dB
  • Sensitivity Range for 0 dBFS (Software controlled): +24 dBu to -42 dBu
• INSTRUMENTS / HI-Z & LINE INPUTS 3-4
  • Dynamic Range, ref +18 dBu: 136 dB (A-weighted, typ.)
  • Max Input Level: +18 dBu
  • Input Impedance (Single ended / Differential): ~ 1MΩ / ~ 2MΩ
  • Gain Range (Software controlled): 0 dB to +66 dB
  • Sensitivity Range for 0 dBFS (software controlled): +18 dBu to -48 dBu
• MAIN OUTPUTS 1-2
  • Dynamic Range: 123 dB (A-weighted, typ.)
  • Output Impedance: < 70Ω
  • THD+N 1 kHz @ 0 dBFS: < - 110 dB (0.0003%)
• LINE OUTPUTS 3-4
  • Dynamic Range: 123 dB (A-weighted, typ.)
  • Max output Level (Differential / Single ended): +24 dBu (12.2 Vrms) / +18 dBu (6.1 Vrms)
  • Output Impedance: < 70Ω
• HEADPHONES
  • Headphone Jacks: 2 Independent ¼” TRS Female Stereo 6.3 mm
  • Dynamic Range (A-weighted, typ.) High / Low: < -122 dB / - 117 dB
  • Max output Level High / Low: 17.1 dBu / 7.8 dBu
  • Output Impedance: < 0.035Ω
  • THD+N 1 kHz @ 0 dBFS High/Low: < -108 dB (0.00039%) / -110 dB (0.0003%)
• A/D – D/A CONVERSION
  • Supported Sample Rates (PRO): 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz and 192 kHz
  • Bit Depth Per Sample: 32
• COMPLEMENTARY I/O
  • RAVENNA/AES67 (Gigabit Ethernet): 2x Locking EtherCON compatible with standard RJ45 connectors
  • Built-in Talkback microphone: Mono omnidirectional CMOS/MEMS membrane technology
  • GPI/MIDI Input: ¼” TRS Female
  • GPO/MIDI Output: ¼” TRS Female
• POWER
  • Power Supply Voltage (DC): 9V to 15V DC
  • Power Supply Connector Type: Barrel jack, int. 2.5mm/out. 5.5mm, with locking function
  • Power Consumption (Typ.): 15W
  • PoE (Power Over Ethernet): IEEE 802.3at (PoE+) class 0 Power-over-Ethernet standard
