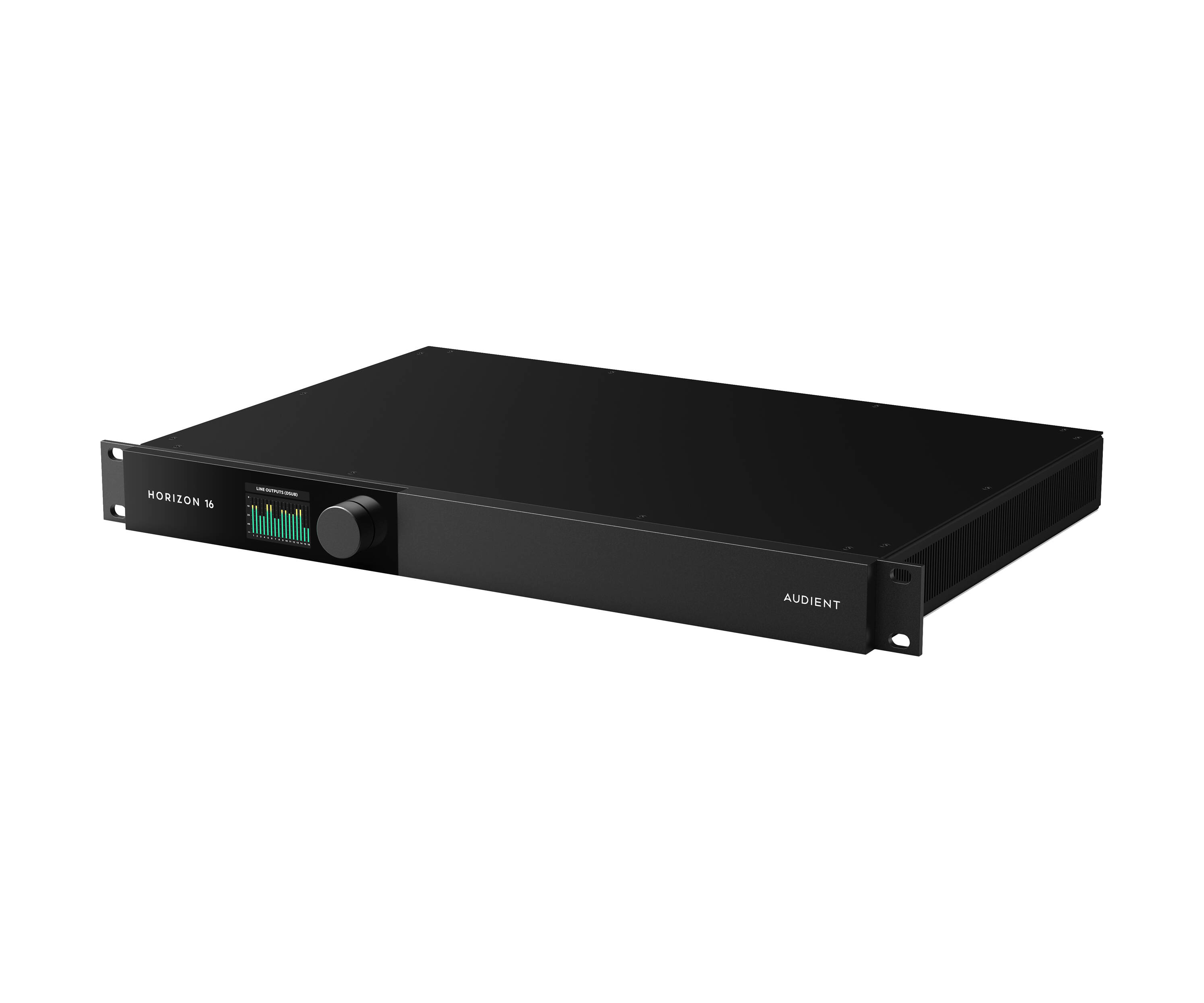

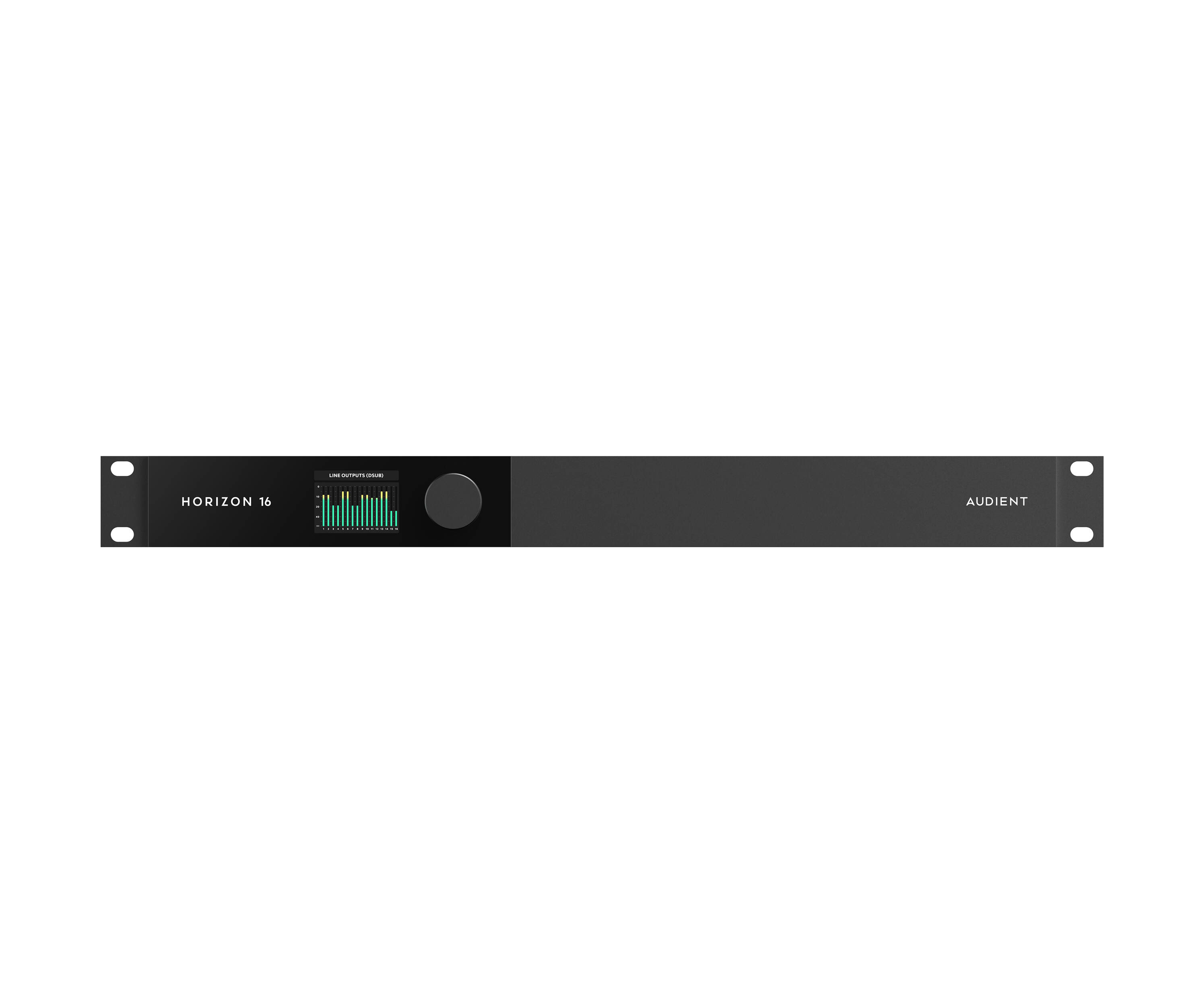

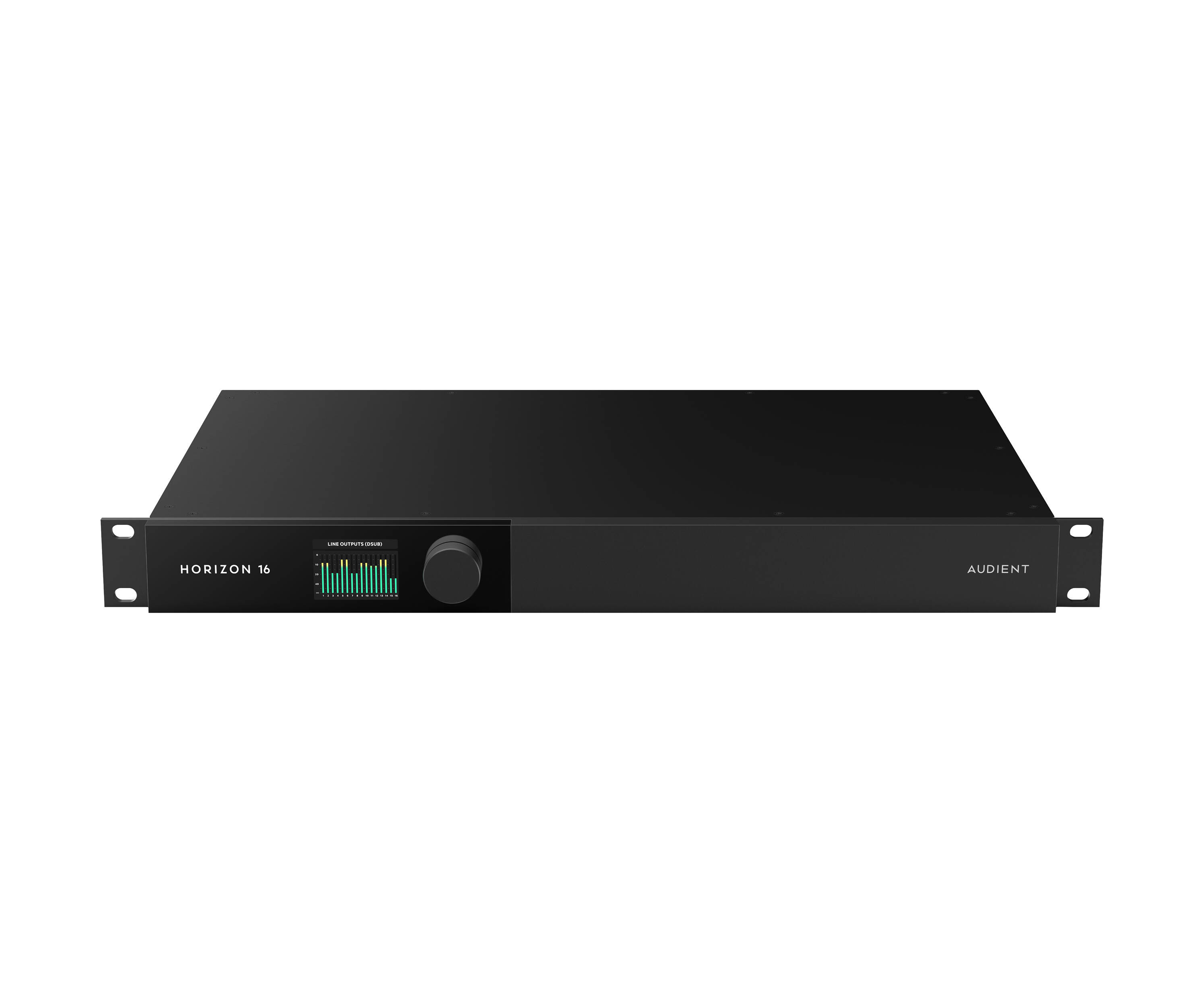

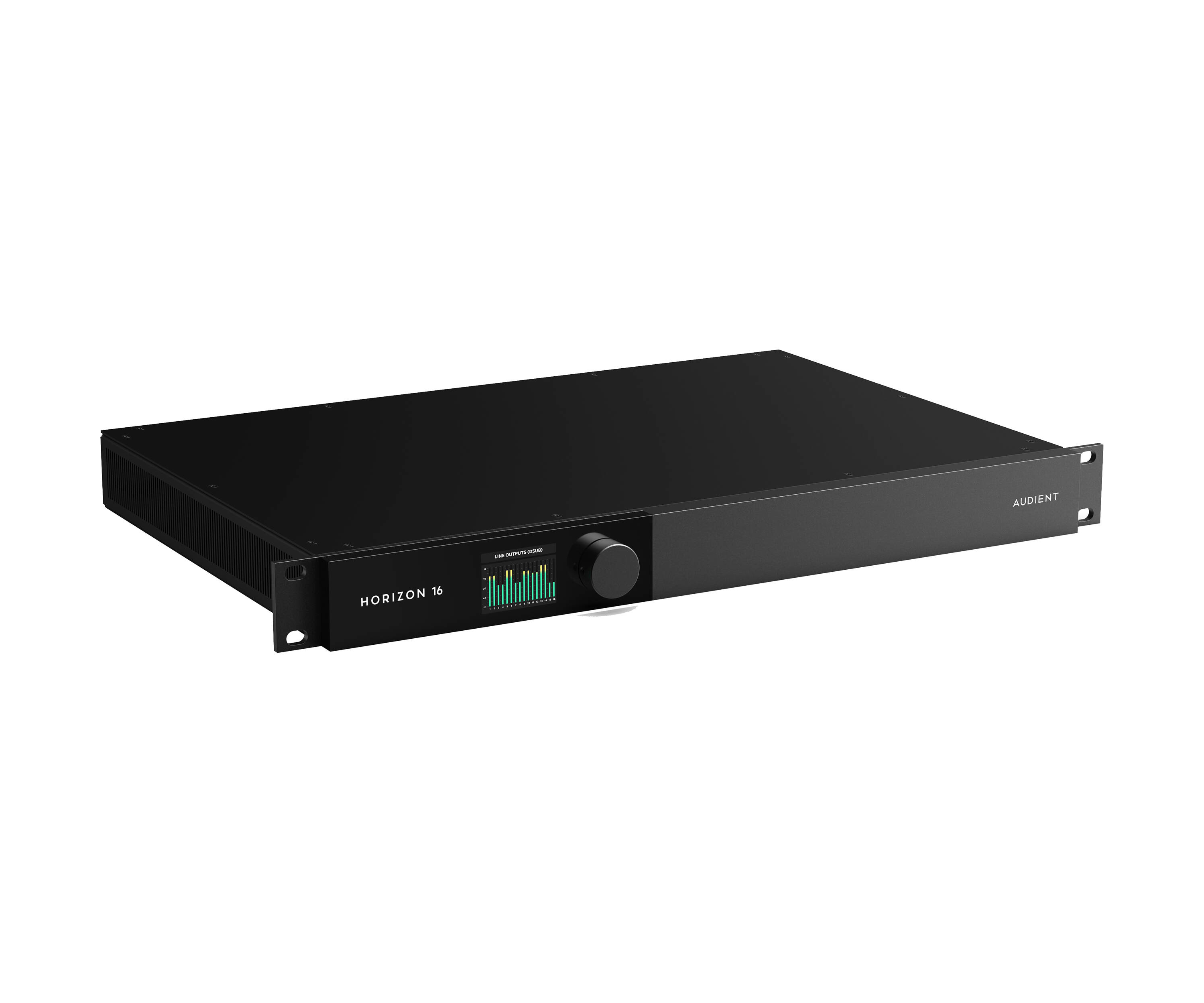

Audient Horizon 16 34-in/34-out Thunderbolt 3 Audio Interface

About: Audient Horizon 16 34-in/34-out Thunderbolt 3 Audio Interface

NOTE: For use with macOS only.

The Horizon 16 is the definitive 34-in / 34-out Thunderbolt 3 audio Interface for the professional project studio. It delivers 16x16 channels of primary analogue I/O via four industry-standard DB25 connectors, providing a transparent bridge for boutique outboard racks and summing workflows.

With 0.99ms round-trip latency and Elite 32-bit Mastering-Grade Converters, Horizon 16 eliminates technical friction, ensuring only the uncoloured character of your analogue chain remains. Welcome to the new standard of conversion.

• 34-in / 34-out connectivity over Thunderbolt 3

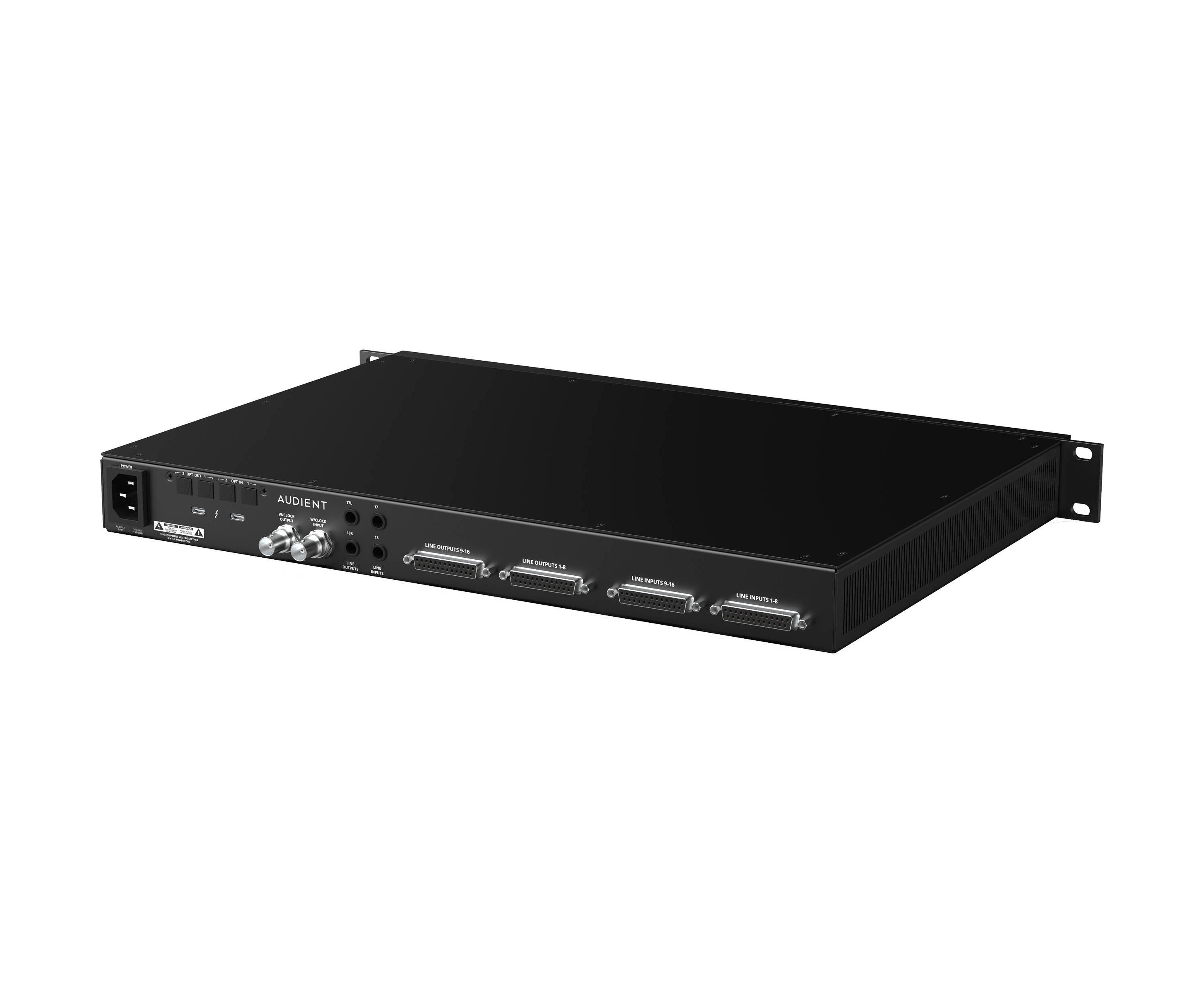

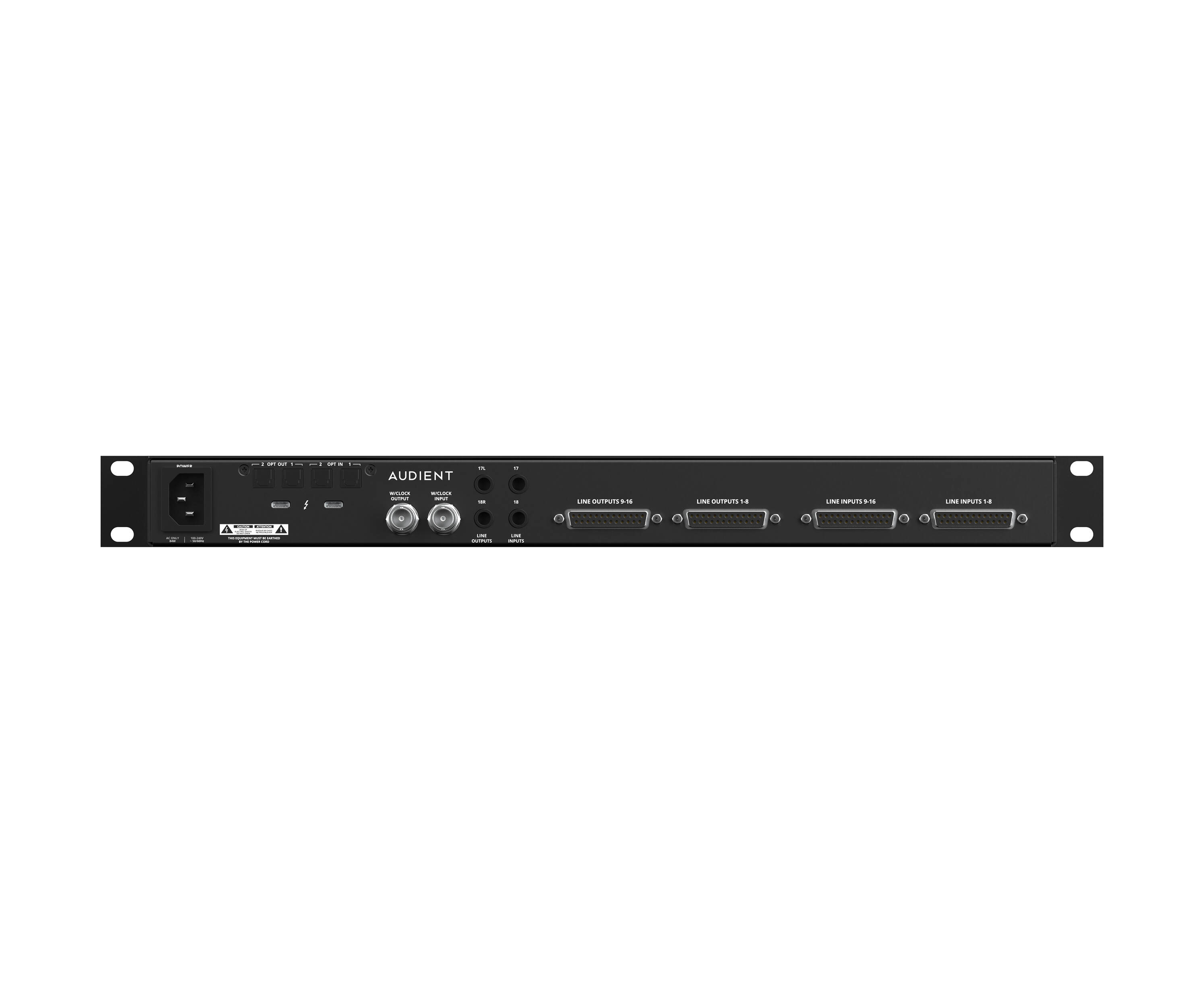

• 16-in / 16-out primary line I/O over four DB25 connectors
• Dedicated stereo mix-bus inputs for printing your master
• Dedicated stereo monitor outputs for independent reference listening
• 32-bit / 192kHz conversion, 133dB dynamic range
• 0.99ms round-trip latency (192kHz, 64-sample buffer)
• Dual ADAT I/O – 16 channels of digital expansion
• Horizon Control software – virtual patch bay, custom monitoring, and extensive metering
• Advanced monitor control – mono, polarity, dim and reference level
• Selectable reference levels (+18dBu, +24dBu) and BNC word clock I/O
• Scalable architecture – daisy-chain up to four Horizon units on a single driver, with a system maximum of 200 x 200 I/O
• 1U all-metal chassis, three-year warranty
• macOS, up to 192kHz

Hear nothing but the truth - Mastering-Grade Conversion

The Horizon 16 features high-performance 32-bit AD/DA converters delivering a staggering 133dB of dynamic range. This is conversion without compromise, providing the absolute transparency required to identify micro-details in a mix and make critical decisions with total confidence.

• Flagship ESS Converters - Features ES9823PRO and ES9039 converters - the highest-performing chips available, selected for unrivalled depth and imaging.
• Precision Transient Capture - Ultra-low noise OPA1602 and OPA1612 op-amps ensure fast, percussive transients are captured with surgical precision.
• Ultra-Low Jitter Clocking - Features hybrid analogue/digital PLL circuits for reliable jitter attenuation and rock-solid stereo imaging.

Native Performance - Power without restrictions

Ditch proprietary DSP and restrictive ecosystems. Horizon 16 utilises a high-bandwidth Thunderbolt 3 connection to deliver 0.99ms round-trip latency (192kHz / 64-sample buffer) – the benchmark for real-time native monitoring.

• Total Plugin Freedom - Run your entire VST/AU/AAX library at professional speeds using your Mac’s full processing power.
• Sub-Millisecond Performance - Achieve near-zero latency for mission-critical monitoring and real-time signal processing.
• Rock-Solid TB3 Driver - Minimises CPU overhead and buffering for rock-solid, high resolution performance in large-scale sessions.
• Forward Compatible with Thunderbolt 4 and 5.

Future-proof your studio - Massive Scalability

Never outgrow your interface. Horizon’s Thunderbolt 3 architecture allows you to scale from a single 16-channel unit to a massive 200-in x 200-out studio centrepiece without ever changing your workflow.

• Unified 200x200 Rig - Daisy-chain up to four Horizon units for a staggering 200-in / 200-out total capacity on a single MacOS driver.
• Unified MacOS Driver - Manage up to 400 channels of unified routing and synchronisation through a single software panel and host connection.
• Digital Expansion - Dual ADAT I/O per unit provides additional digital connections for external preamps and more.

Frictionless Software & Monitoring - Built for session speed

Manage your signal flow with Horizon Control and the high-resolution Motion UI hardware display. Achieve total command over your studio with software-hardware integration designed for session speed.

• Routing Matrix - Route any input to any output instantly within the software.
• Custom Monitoring - Define bespoke layouts and instantly switch between multiple speaker sets.
• Extensive Metering - Monitor all D-Sub banks simultaneously with accurate hardware feedback.
• Professional Monitoring - Access Mono, Polarity, Dim, and Reference Level controls.

More I/O for your gear - ​Dedicated Mix-Bus Capture

Maximise your workflow without sacrificing primary inputs. The Horizon 16 features a dedicated Stereo Mix-Bus Path, so you can record your final console or summing box mix-down without ever unplugging your gear. Keep all 16 D-Sub I/O permanently connected to your outboard racks while having a dedicated ‘Print Path’ for your master bus.

Professional Utility

• Selectable Reference Levels - Calibrate your I/O to perfectly match your analogue gear’s sweet spot and headroom ( +18dBu, +24dBu).
• BNC Word Clock I/O - Integrate seamlessly into complex digital environments with dedicated sync I/O and switchable internal termination.
• Optimised for Modern Macs - Seamless macOS integration and improved security without disabling system settings.
• Silent Thermal Design - High-efficiency fanless cooling ensures silent operation, critical for machine-room-free control rooms.

Built to Last

Housed in a rugged 1RU full-metal chassis with a sleek black finish, the Horizon 16 is a durable, long-term investment in your studio’s future. Backed by a three-year warranty, it is built to handle 24/7 operation in the world’s most demanding studios.

ARC (Audient Resource Centre) - Unlock Over $1000 Worth of Free Software

Register your Audient products in ARC and unlock full access to everything you need to get started and stay supported, including free plugins and software from our industry leading partners.

• Roland Cloud - Over 50 Roland virtual instruments
• Rhodes V8 - Virtual Instrument plugin
• Excite Audio - The Lifeline Lite Bundle
• Softube - Flow Guitar Essentials
• Torpedo Wall of Sound - Highly realistic speaker simulation from Two notes
• Strymon Cloudburst - Ambient Reverb Plugin
• AXXESS - Fat, Gnarly, Flexible, Poly Synth Plugin
• Sonarworks - Accurate reference sound for perfect translation
• Waldorf Edition 2 LE - Software emulations of classic Waldorf products
• Arcade by Output - Play, perform, and manipulate Loops instantly.
• Spitfire Audio - Widescreen organic synth textures made from an orchestra
• Cubase & Cubasis LE 3 - Music creation software from Steinberg
• Retrologue 2 - Classic analog synth from Steinberg
• M-tron Select - Digital emulation of the classic Mellotron from Gforce
• Produce Like a Pro - 3 Free online courses from Produce Like A Pro
• Loopcloud - Access the world’s biggest library of samples

Specifications

• ADC Input
  • MAXIMUM INPUT LEVEL: 24dBu = 0dBFS
  • THD+N @ -1dBFS: -117dB, 0.00014%
  • DYNAMIC RANGE: 127dB A-Weighted
  • FREQUENCY RESPONSE: ±0.2dB 10Hz to Fs/2 (Nyquist)
  • CROSSTALK: <130dB
• Line Outputs
  • MAXIMUM OUTPUT LEVEL: 24dBu = 0dBFS
  • THD+N @ -1dBFS: -122dB, 0.00008%
  • DYNAMIC RANGE: 132dB A-Weighted
  • FREQUENCY RESPONSE: ±0.5dB 10Hz to Fs/2 (Nyquist)
  • CROSSTALK: <130dB
  • IMPEDANCE: 47Ω
• Monitor Outputs
  • MAXIMUM OUTPUT LEVEL: 24dBu = 0dBFS
  • THD+N @ -1dBFS: -120dB, 0.00008%
  • DYNAMIC RANGE: 133dB A-Weighted
  • FREQUENCY RESPONSE: ±0.5dB 10Hz to Fs/2 (Nyquist)
  • CROSSTALK: <130dB
  • IMPEDANCE: 47Ω
• Digital Features
  • INPUTS: Optical Input SPDIF/ADAT x2
  • OUTPUTS: Optical Output SPDIF/ADAT x2
  • WORD CLOCK: Input and Output, ±10ppm accuracy
  • SUPPORTED SAMPLE RATES: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
• DSP Mixer Roundtrip Latency
  • All figures at 64 sample buffer size
    • 44.1kHz: 4.286ms
    • 48kHz: 3.938ms
    • 88.2kHz: 2.143ms
    • 96kHz: 1.969ms
    • 176.4kHz: 1.077ms
    • 192kHz: 0.99ms
• Connectivity
  • THUNDERBOLT 3
• Power Requirements
  • INPUT VOLTAGE: 85 – 264 VAC
  • INPUT FREQUENCY: 47 – 63Hz
• Physical
  • DIMENSIONS (WxHxD): 19 x 1.75 x 13 inch (48.3 x 4.45 x 33 cm)
  • WEIGHT: 8.93 lbs (4.05kg)
