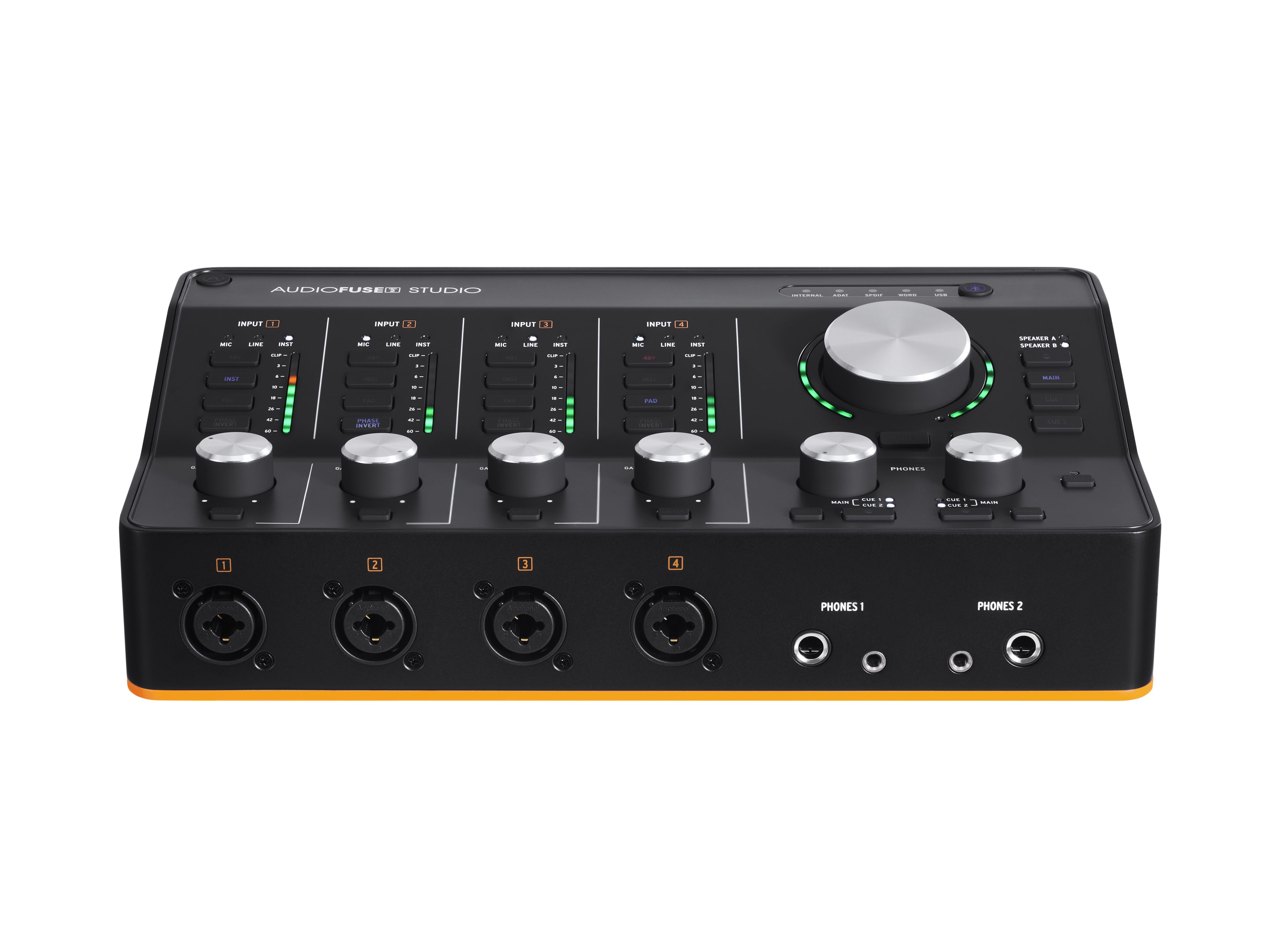

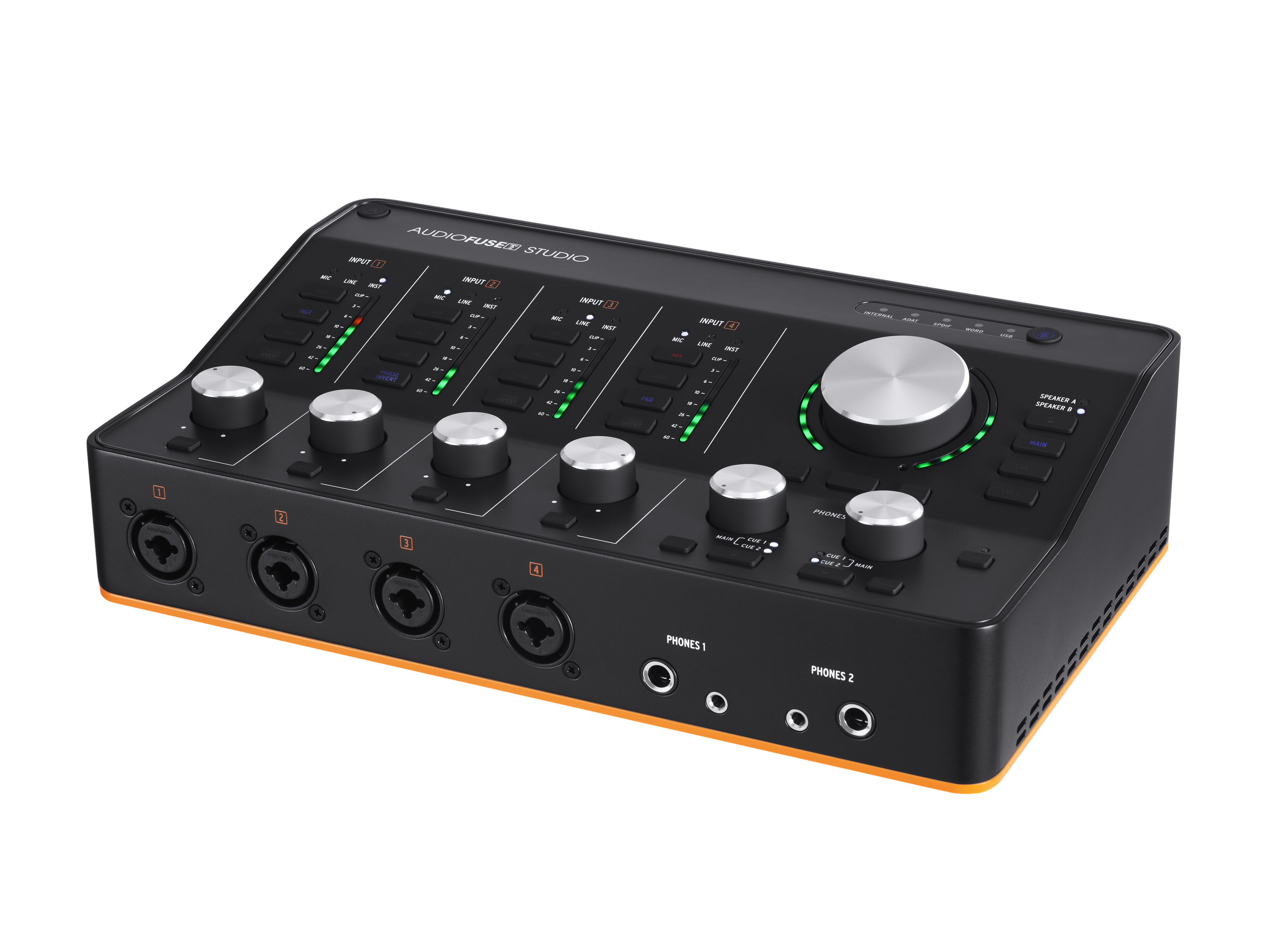

Arturia AudioFuse Studio Rev2 USB-C Audio Interface

About: Arturia AudioFuse Studio Rev2 USB-C Audio Interface

AudioFuse Studio returns in an elevated Rev2 edition, featuring optimized preamps and an updated Bluetooth module. Combining pristine conversion with extensive connectivity, it’s the perfect all-in-one hub for any professional recording studio.

• Four optimized DiscretePRO preamps
  • Four analog insert points
  • Individual performance certificate included
• 8 analog inputs
  • Four mic/line/instrument inputs
  • Four additional line inputs
  • Inputs 5–6 switchable to the integrated phono/RIAA preamp
• Flexible outputs and monitoring
  • Four line outputs and two Aux/reamping outputs
  • Speaker A/B switching, with support for speakers with digital input
  • Two independently controlled headphone outputs
  • Integrated talkback and ultra-low-latency direct monitoring
• ADAT and digital synchronization
  • 8-channel ADAT input and output at up to 96 kHz
  • S/PDIF input/output or Word Clock input/output/thru
  • Updated clocking system for refined stability
• Flexible routing and software control
  • Expanded source options for Aux and ADAT outputs
  • Comprehensive routing and configuration through AudioFuse Control Center
• Bluetooth streaming
  • Supports AAC, aptX as well as aptX HD and aptX Low Latency for AudioFuse Studio rev.2
  • Stream, monitor and record audio directly from compatible devices
• USB-C, MIDI and USB hub
  • Low-latency USB-C connection
  • MIDI input and output
  • Integrated three-port USB 2 hub
• AudioFuse Creative Suite included
  • 11 software titles, including Analog Lab Intro and the newly added Comp DIODE-609
• Studio-ready construction
  • Robust metal desktop chassis
  • 24-bit AD/DA conversion at up to 192 kHz

Pristine Quality

AudioFuse Studio Rev2 features 4 DiscretePRO preamps to track your music, and a pristine analog signal path to reveal every nuance of your audio.

Each unit comes with its individual measurement certificate, providing a super-low Equivalent Input Noise (EIN) to capture every subtle detail, and a huge 72dB gain to drive even the quietest ribbon mics.

Every detail is captured with absolute transparency and faithful accuracy, preserving the true character of your source. Latest-generation 24-bit AD/DA converters running at up to 192kHz carry that signal into your DAW and back out again.

Ultimate Creative Hub

AudioFuse Studio Rev2 features 8 analog inputs—comprising 4 mic/line/instrument inputs, 4 line inputs including a dedicated Phono input for vinyl—alongside 4 line outputs, 4 analog inserts, and 2 Aux/guitar reamping outputs.

Combined with robust digital connectivity (ADAT, SPDIF, Word Clock, MIDI, USB-C), an upgraded Bluetooth receiver, and advanced monitoring capabilities—including the ability to drive 2 speaker sets and dual independent headphone outputs— it serves as the ultimate all-in-one hub for any studio configuration

Complete Production Bundle

AudioFuse Studio Rev2 comes bundled with the AudioFuse Creative Suite, a premium, expanding collection of software effects and instruments featuring titles from the acclaimed FX Collection.

Preamps, compressors, reverbs, delays and modulation, plus virtual instruments: everything needed to mix, master and finish a record from the moment the box is opened.

• Analog Lab Intro
• Pre 1973
• Pre V76
• Pre TridA
• Comp FET-76
• Comp DIODE-609 Delay TAPE-201
• Filter MINI
• Rev PLATE-140
• Chorus JUN-6
• Phaser BI-TRON

Ecosystem Update

We support our products on the long run: the AudioFuse ecosystem keeps evolving with free updates. Your unit is cared for, years after purchase.

Audio Fuse Control Center 2.5.0 brings a new preset import/export feature to all existing AudioFuse devices, allowing users to save and recall custom presets from their computer.

AudioFuse Studio (rev1 and rev 2) owners get new clock management, enhanced output routing, and improved monitoring with digital speaker support.

Specifications

• Dimensions: 2.87 x 10.43 x 6.30 in (73 x 265 x 160 mm)
• Weight: 3.53 lbs (1.6kg)
