Titus Labs Hanging Plexiglass On-Air or Recording Light
Model: HPL
About: Titus Labs Hanging Plexiglass On-Air or Recording Light
Titus Technological Laboratories ON AIR light provides the broadcaster and recording studio with a beautiful but practical means of indicating that a studio is in use. The TTL ON AIR light features a smoked glass window mounted in either a gold or silver frame which is attached to an oak mounting base. The warning “ON AIR” or “RECORDING” only appears when illuminated and is blacked out when not in use. The TTL ON AIR light uses LED lighting which almost completely eliminates the chance of total failure. Class 2 wiring, using #18 to #24 gauge wiring directly to your audio console’s relays, eliminates the need for special interface boxes.
- Light fixtures measure 12" x 8 1/2"
- Edge lit standard red LEDs
- Mount to wall using steel plate (supplied) with magnet on back of aluminum top frame. (Back mounted)
- Power required: 12 VDC - 300 mA (RED LEDS)
- Two Color or Custom
- Custom lettering or logo or size

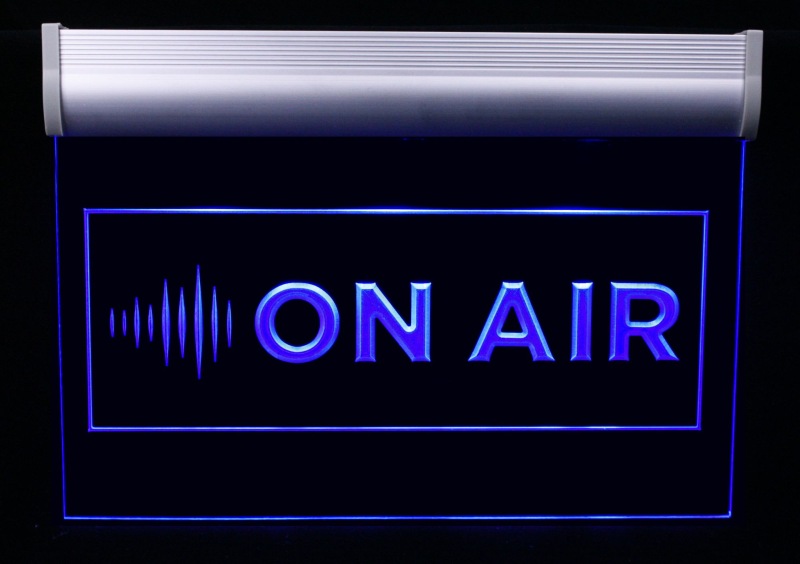

- Different color LED lighting (optionally green, blue, amber, white)
- Top mounting
- Flashing
Light Fixture Customization Options
- HPS-2 - 12 VDC OUTPUT, 100 to 240 VAC input POWER SUPPLY - Powers ONE OAL/LPL/HPL/BPL series light – for mounting INSIDE single gang box
- LPL-PS - 12 VDC OUTPUT, 120 VAC input Power Supply - Powers up to TWO OAL/LPL/HPL/BPL series lights – PLUG IN WALL RECEPTCAL
- FLASH - Flasher for OAL/HPL series - installed in fixture (NOT FOR BPL Series Lights)
- Custom Lettering - for each light fixture (excluding HPL/BPL)
- Second LED color option for HPL and BPL series (red LEDs primary color)
- Ceiling mount option for HPL series
- Powder coating for HPL or BPL series (Gloss White, Gloss Black, Matte Black)
- Plexiglass base plate to cover single gang electrical box – black or white
- Custom Laser Engraving – VECTOR ARTWORK required – AI, PDF, etc.
For a quote, please email us with the Titus Labs light model and customization options you would like to order.
*12V DC Power supply sold separately
