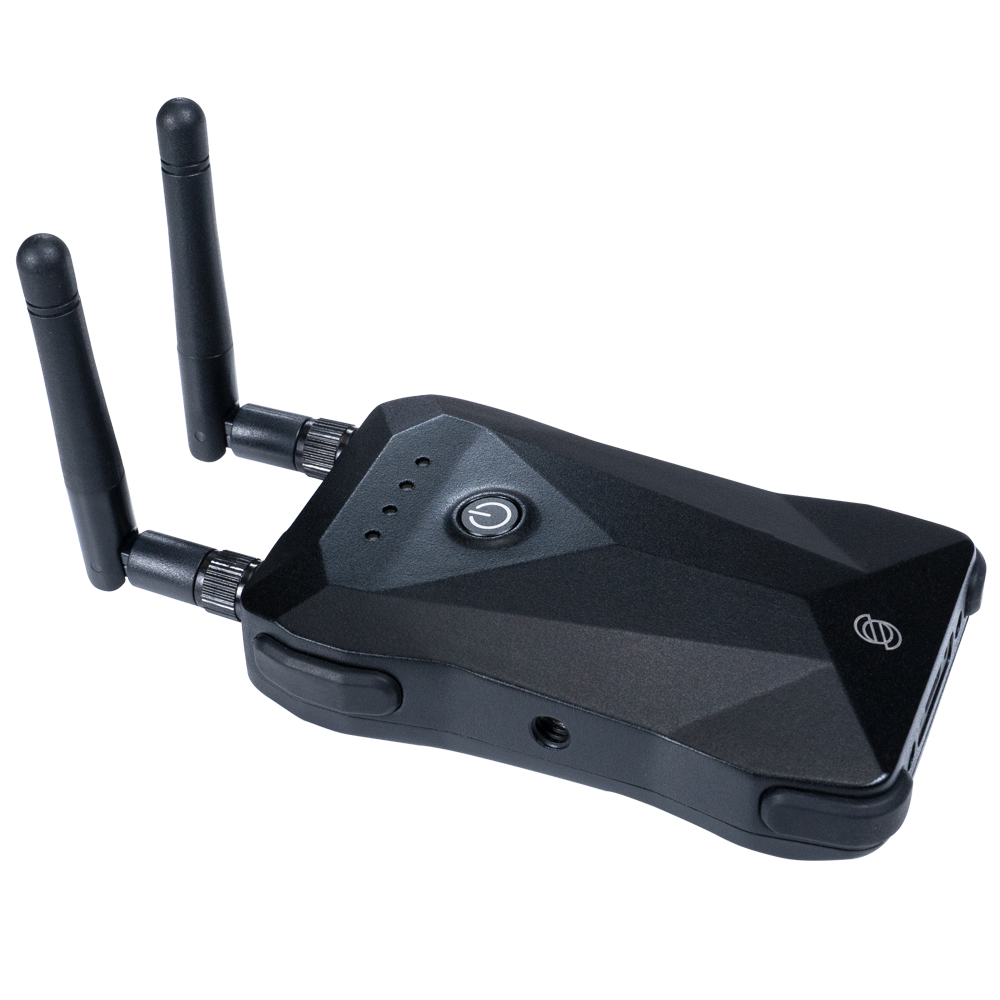

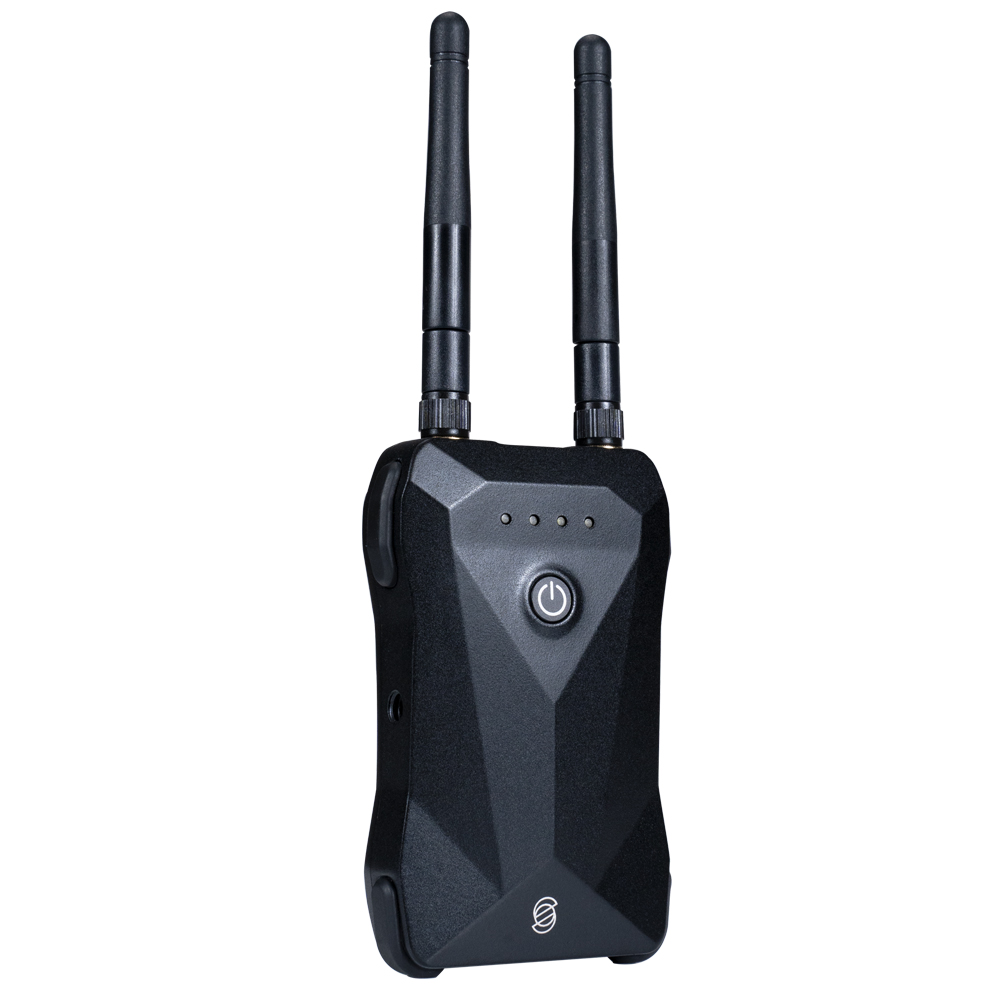

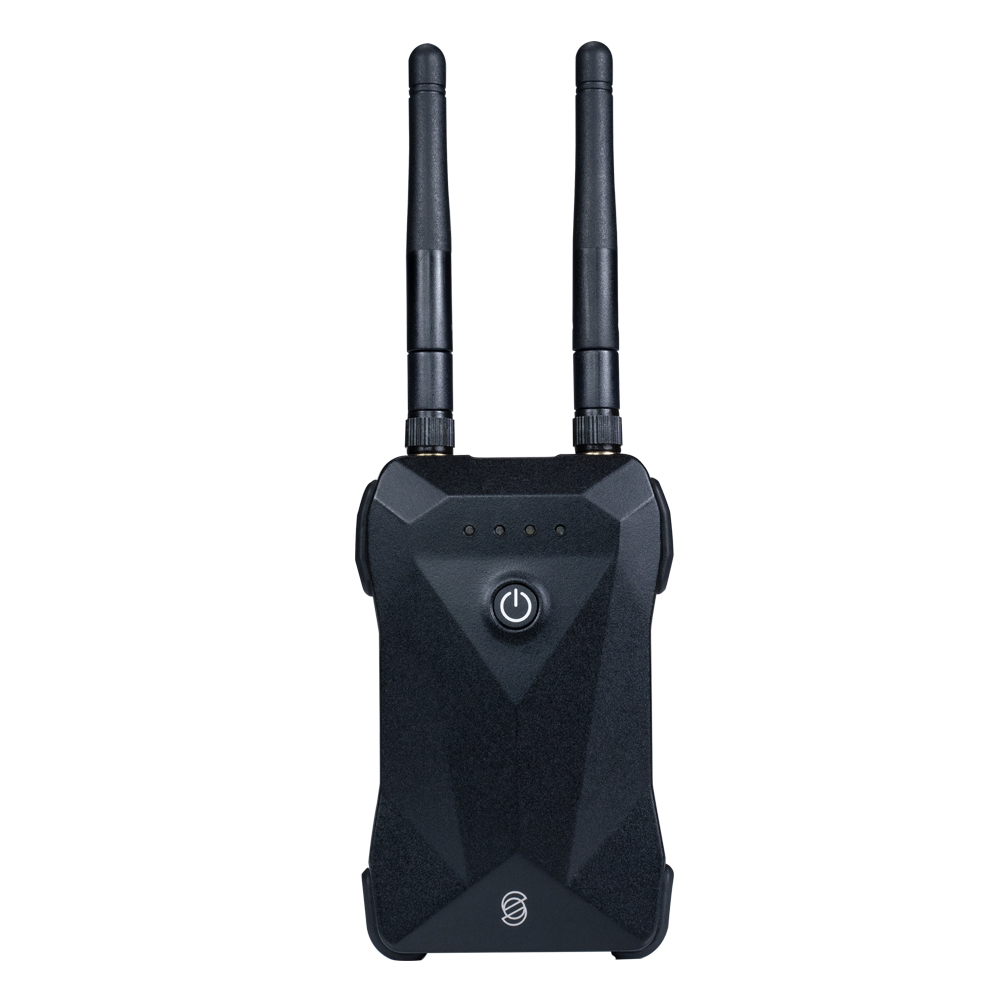

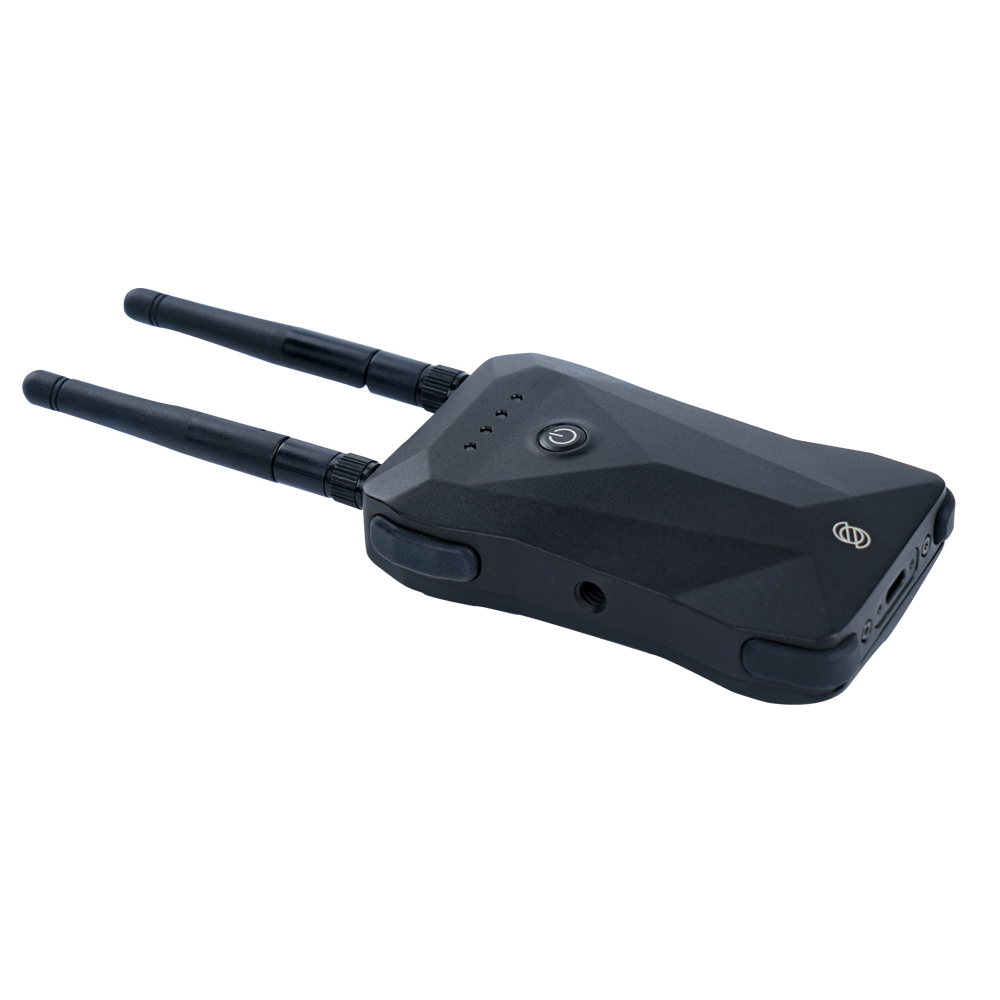

Aputure Sidus Link Bridge Wireless Transceiver
Model: APA0043A30
About: Aputure Sidus Link Bridge Wireless Transceiver
The Sidus Link Bridge is a 2.4GHz RF/Bluetooth intermediary wireless transceiver that allows users to connect their legacy 2.4GHz Aputure lighting fixtures with the Sidus Link mobile app. The Sidus Link mobile app is one of the latest innovations in the world of wireless lighting control. This robust ecosystem allows users to use a compatible smartphone or iPad to control fixtures such as the Aputure LS C300d II, MC, and Nova P300c.
The Sidus Link Bridge uses two-way Bluetooth communication to connect to a user’s mobile device and other Sidus Mesh fixtures. It then transmits commands to legacy lights, such as the HR672, Tri-8, and LS C120d II via the 2.4GHz Wireless RF Protocol. Not only does this allow users to control these lights from their phones, but it also unlocks 9 built-in Sidus Link lighting FX, as well as access to the SidusPro FX feature set.
Features
- Control legacy 2.4GHz Aputure fixtures via Sidus Link App
- Control Aputure 2.4GHz lights up to 100m away
- Compatible with legacy Aputure fixtures, such as the HR672 series, LS 1 series, Tri-8, LS C300d, and LS C120d
- Sidus Mesh enabled
- Works with the Sidus Link App
- 9 Built-in Lighting FX for compatible legacy Aputure fixtures: Lightning, Fireworks, Pulsing, Strobe, etc.
- SidusPro FX support: Use Picker FX to capture and transmit new effects to legacy Aputure fixtures
- Control up to 12 groups (3CH*4GR) of legacy Aputure fixtures
- 18+ hours of battery life

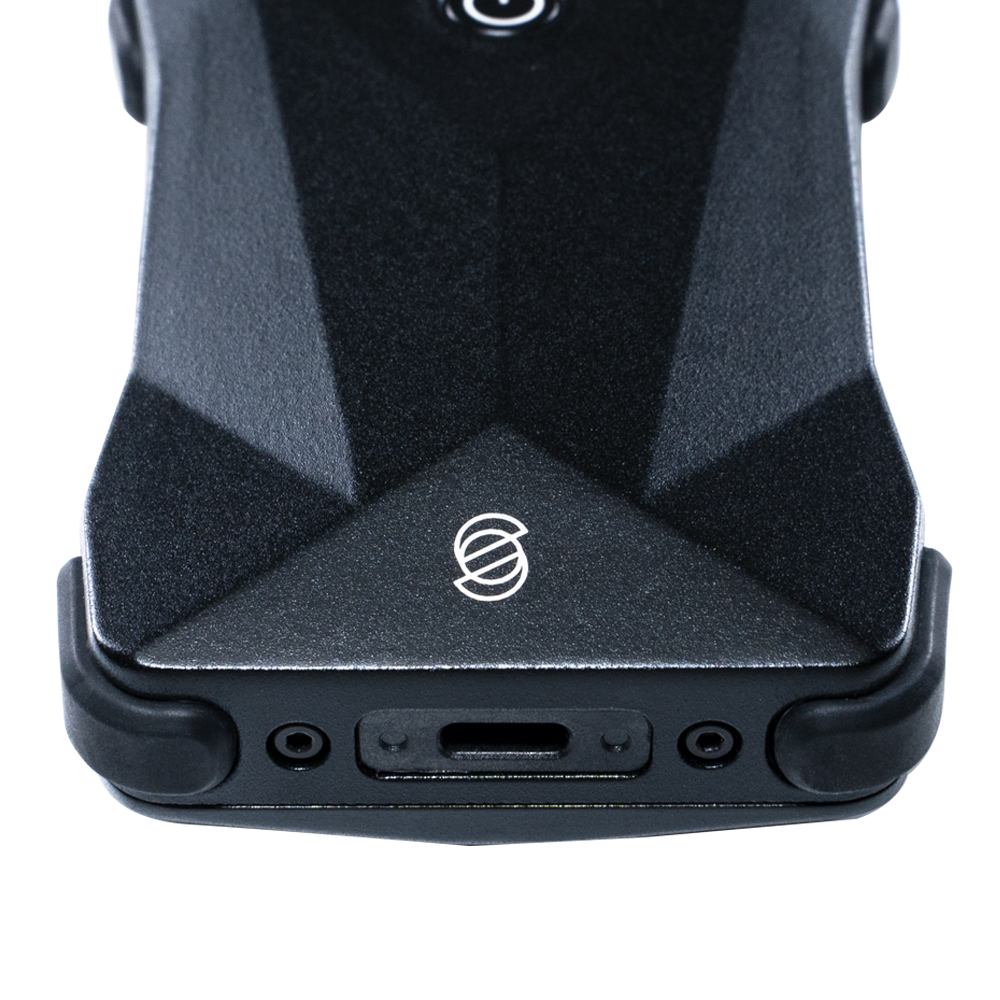

- Supports USB-C PD Quick Charging
- IP65 Dustproof & Waterproof
- Automatically adjusts LED indicator brightness based on the ambient light levels

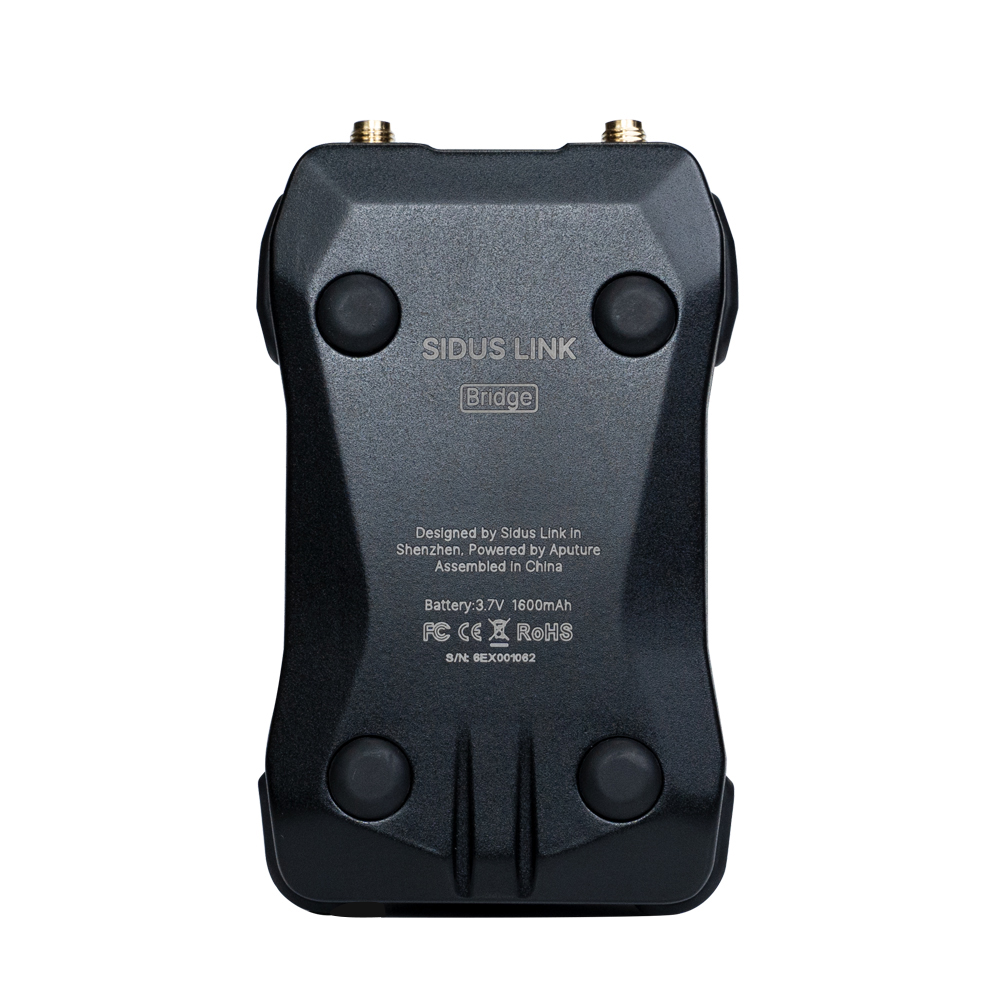

- ¼-20” Screw Mount for attaching to the top of a light stand
Specifications
- Bluetooth Operating Range - ≥80M
- 2.4GHz Operating Range - ≥100M
- Operating Battery Life - ≥18H (Standard)
- Battery Recharge Time
- ~50 min via USB-C PD
- ~70 min via USB-C 5V/2A
- Battery Type - Lithium-polymer (3.7V 1600mAh)
- DC Input - USB-C 5-9V 1-2A
- Power Consumption - ≈0.2w
- Operating Temperature - 0°C to 45°C
- IP Rating - IP65

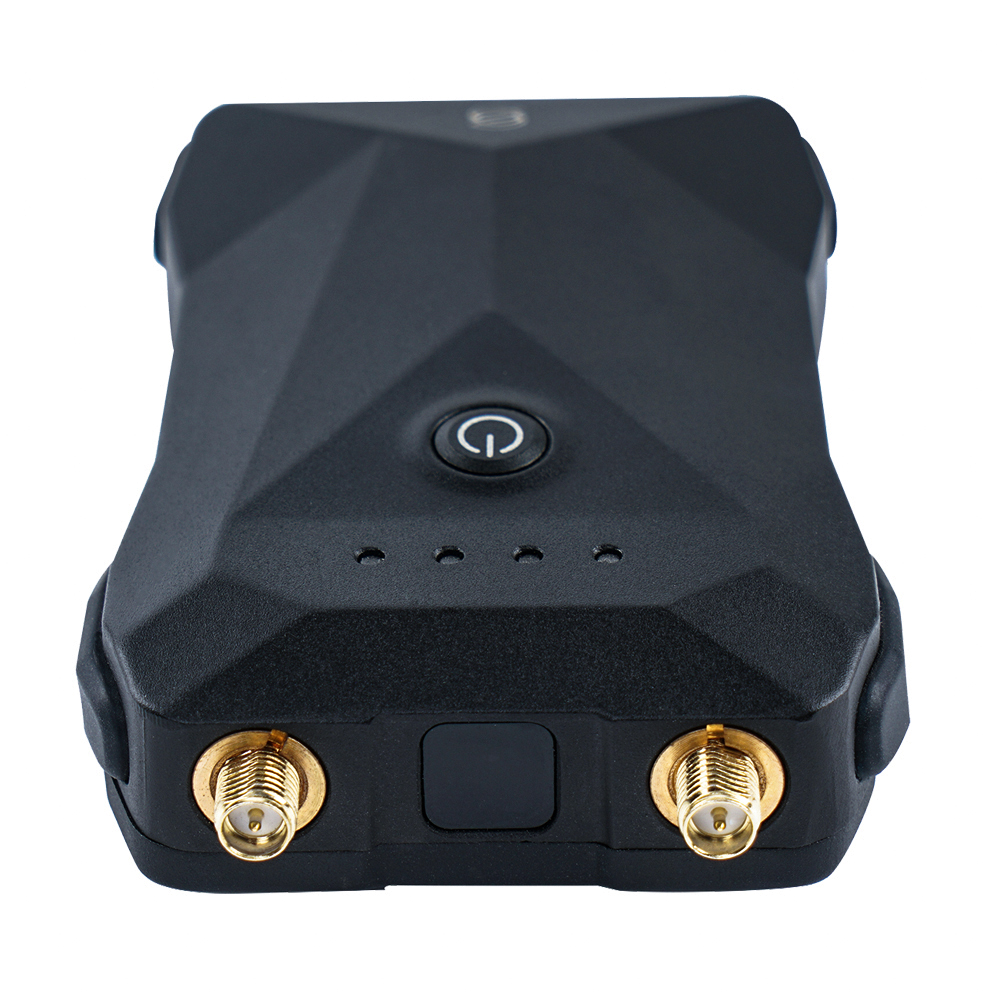

- Antenna Type - 2.4G SMA Antenna
- # of Channels - 3
- Channel Bandwidth - 4MHz@FSK 2.4G
- Frequency Range - 2401-2480MHz
- Latency - ≤100ms
- RF Power - ≤10dBm
- RF Sensitivity - -90dBm
- Mounting - ¼ -20” Screw Mount
- Weight - 172g / 0.38lbs
- Dimensions (Without Antenna) - 105x63.4x24mm / 4.13x2.50x0.94in
- Dimensions (With Antenna) - 62x179.4x25.4mm / 2.44x7.06x1.0in
- Certifications - FCC/CE/KC/MIC/RoHS
UPC: 6971842180967
