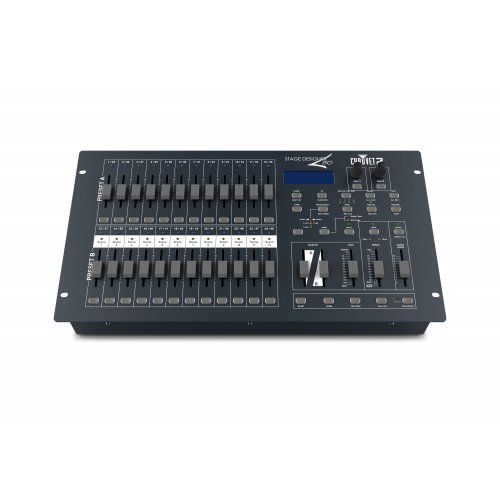

Chauvet DJ Stage Designer 50 - 48 Channel DMX Controller
Model: STAGEDESIGNER-50
About: Chauvet DJ Stage Designer 50 - 48 Channel DMX Controller
The Stage Designer™ 50 takes the size of a 24-channel dimming console and the functionality of a 48- channel console and combines the two into one powerful dimming unit. The Stage Designer™ 50 has up to 8 pages with 12 scenes each and 96,000 programmable steps. The console allows the user to re-assign channels as needed and allows for MIDI input.
Features:
- 48-channel DMX-512 dimming console
- 8 pages with 12 scenes each yields 96 total playback faders (simultaneous playback)
- 96,000 programmable steps
- 2 programmable aux buttons
- Adjustable chase and fade times
- Re-assignable channels

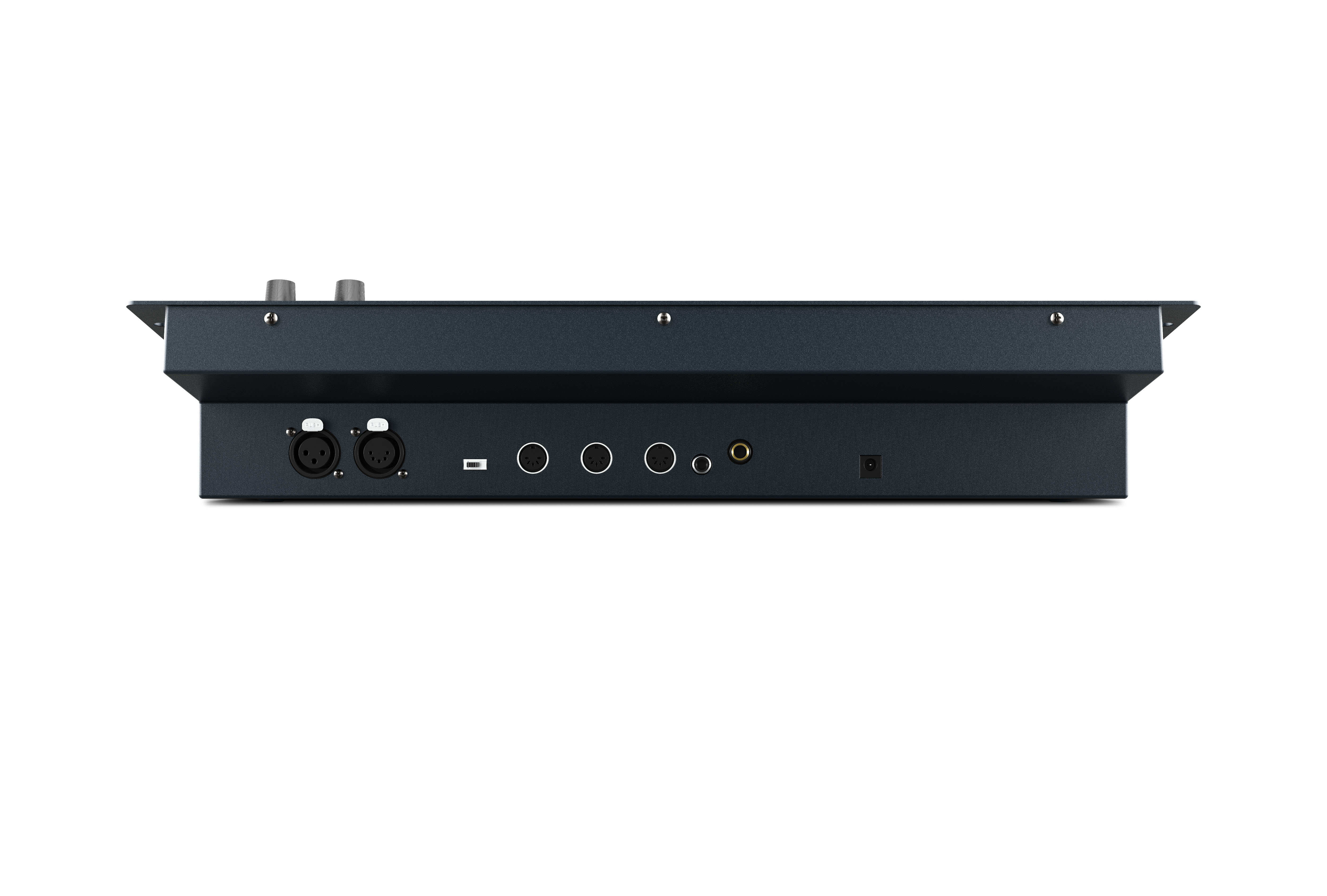

- 3-pin and 5-pin DMX connections
- Built-in cross fader, dark and kill buttons
- MIDI in, out and thru (with file dump)
- Direct audio input
- Sequential linking or simultaneous playback of chases
- Override chases on the fly
- Beat-activation, tap sync, auto run, MIDI in/out
- 6-space (6U) rack mount
- Polarity selector
Options:
- Blackout Controller (CH-X)
Specifications:
- Power: DC 12-20V 500mA 115V or 230V
- Weight: 10.3lbs (4.7kg)
- Size: 19in x 10.5in x 3.5in / 483mm x 267mm x 89mm
UPC: 781462202637
Reviews: Chauvet DJ Stage Designer 50 - 48 Channel DMX Controller
Warranty: Chauvet DJ Stage Designer 50 - 48 Channel DMX Controller
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
2-year warranty on DMX controllable lighting fixtures
2-year warranty on DMX512 controllers
1-year warranty on effect fixtures and non-programmable controllers
1-year warranty on foggers and hazers
3-month warranty on laser diodes
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
For Quebec Residents - Disclosure under the Consumer Protection Act
In compliance with Bill 29, AVShop.ca and Chauvet DJ do not guarantee the availability of replacement parts, repair services, or maintenance information for any products. Any applicable manufacturer warranties will remain in place.
