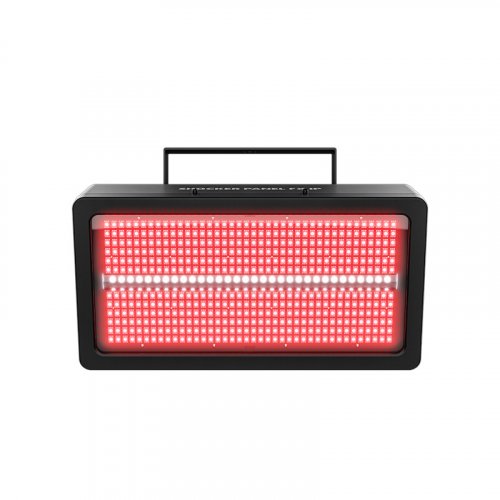

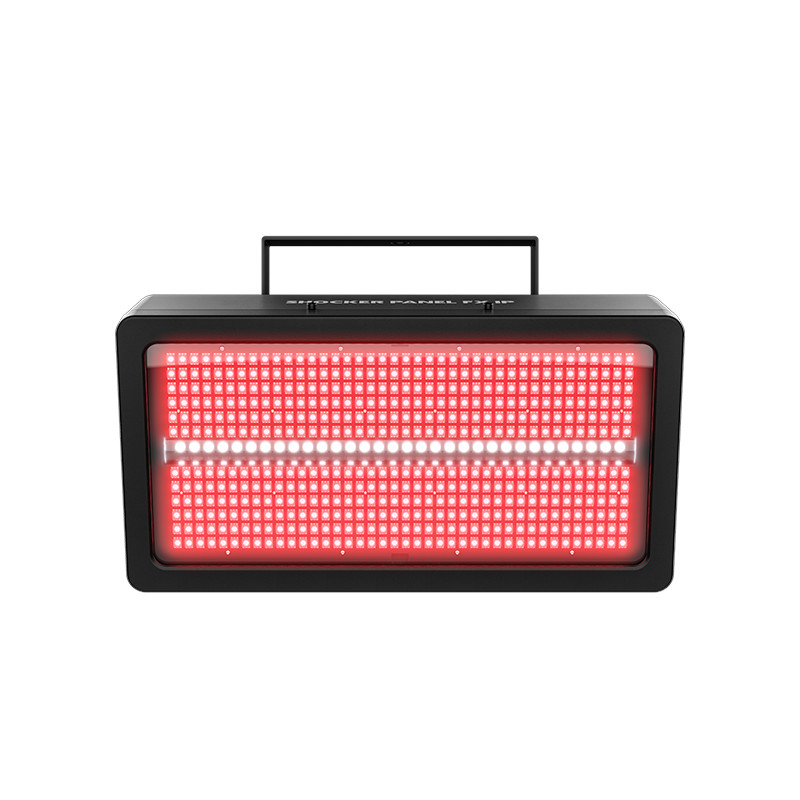

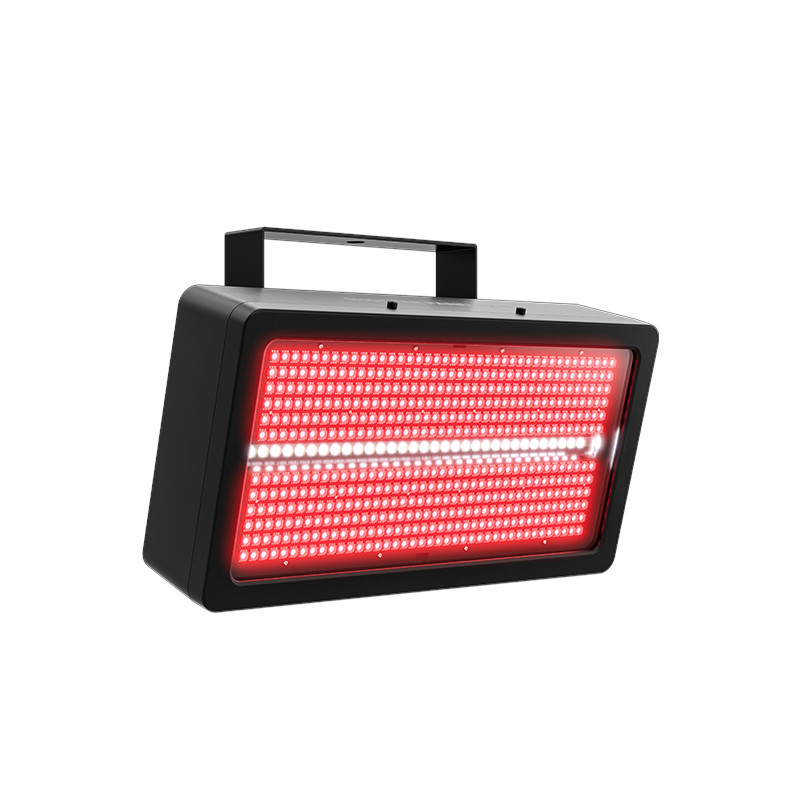

Chauvet DJ Shocker Panel FX IP

About: Chauvet DJ Shocker Panel FX IP

Shocker Panel FX IP instantly shifts between strobe, wash, and blinder looks as easily as it moves between indoor and outdoor events. 8 sections of bright RGB color + an intense 8-section cool white LED strip add up to endless eye candy effects from one compact IP66-rated powerhouse. Setups are fast and secure with a digital touch display for choosing dazzling built-in effect macros and setting password access, all with the press of a button. Wherever they take this rugged unit, event managers and entertainers will wow party-goers with Shocker Panel FX IP’s high output and fast transitions.

• Outdoor-rated versatile blinder, wash and strobe light, with compelling eye candy effects
• Neutrik TRUE1 power input/output connections save setup time while maintaining water resistance
• 16 controllable sections (8 RGB + 8 white) provide creative programming flexibility
• Robust IP-rated housing repels the elements in outdoor situations

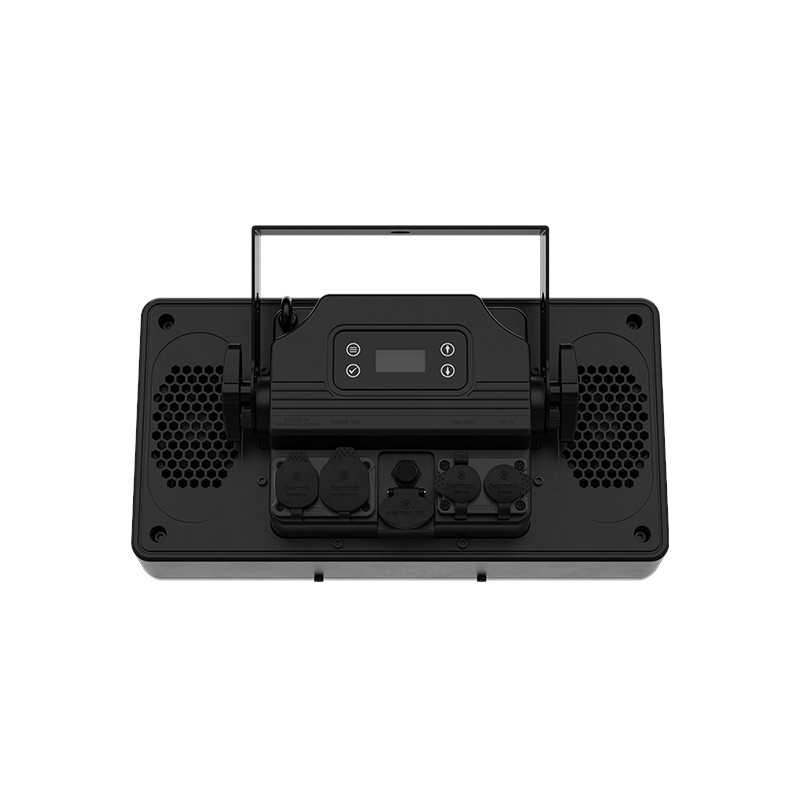

• Password-protected and touch-sensitive digital display
• Trigger eye-catching, built-in macros via the display or DMX
• Integrated GORE valve allows the fixture to breathe and prevents internal humidity build-up
• Easily transported in the optional CHS-25 VIP gear bag

Specifications

• DMX Channels: 8, 18, 34 or 47
• DMX Connectors: 5-pin XLR
• Light Source
  • 480 LEDs (tri-color) 2W, (1A), 50,000 hours life expectancy
  • 32 LEDs (cool white) 1.8 W (0.5 A), 50,000 hours life expectancy
• Strobe Rate: 0 to 20 Hz
• Beam Angle: 119°
• Field Angle: 158°
• Illuminance: 1,131 lux @ 2 m
• Lumens: 13,626
• IP Rating: IP66
• Power Linking: 6 units @ 120 V; 11 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current
  • 238 W, 2 A @ 120 V, 60 Hz
  • 231 W, 1 A @ 230 V, 50 Hz
• Startup Temperature: -4 °F to 113 °F (-20 °C to 45 °C)
• Operating Temperature: -22 °F to 113 °F (-30 °C to 45 °C)
• Cable Length: 5 ft (1.5 m)
• Max Output Current: 12 A (6 units @ 120 V) (11 units @ 230 V)
• Approvals: CE, ROHS, MET
• Weight: 10.4 lbs (4.7 kg)
• Size: 12.9 x 5.1 x 6.8 in (330 x 130 x 173 mm)

What's Included

• Shocker Panel FX IP
• Power cable
• Quick Reference Guide
