Chauvet DJ COLORband Pix ILS

About: Chauvet DJ COLORband Pix ILS

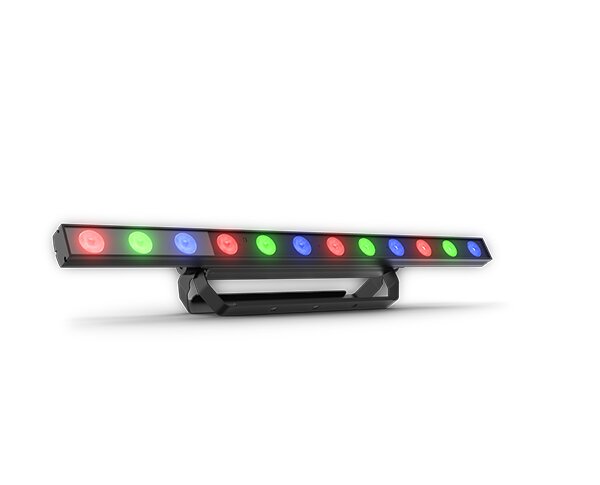

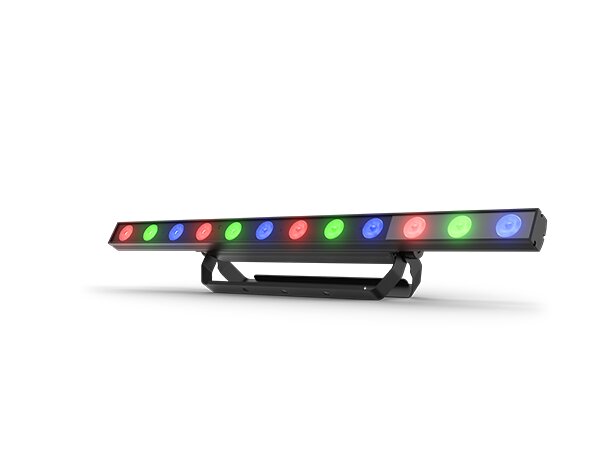

COLORband Pix ILS is a feature-packed full-size LED strip light functions as a pixel mapping effect, blinder, or wall washer. Its built-in RF receiver offers wireless control using the RFC or RFC-XL optional remotes and compatibility with the cutting edge Integrated Lighting System (ILS) that makes creating coordinated light shows across different fixture types easy. But there’s more! COLORband Pix ILS also has D-Fi USB compatibility for wireless Master/Slave or DMX control. Create amazing animations and video effects with individual LED control and access multiple pre-built programs with or without DMX. COLORband Pix ILS is also great for on-camera use because of its flicker-free operation. Easily generate complex shows with ShowXpress Pixels and COLORband Pix ILS is ideal for quiet applications due to its silent operation and no moving parts.

Features

• Full-size LED strip light functions as a pixel mapping effect, blinder, or wall washer
• Built-in RF receiver for wireless control using the RFC or RFC-XL optional remotes
• ILS compatibility for use in the ILS ecosystem
• D-Fi USB compatibility for wireless Master/Slave or DMX control
• Create amazing animations and video effects with individual LED control
• Convenient access to multiple pre-built programs with or without DMX
• Easily generate complex shows with ShowXpress Pixels
• Achieve flicker-free video operation with high-frequency LED dimming
• Ideal for quiet applications due to silent operation and no moving parts
• Easily transports in the optional CHS-60 VIP Gear Bag

Specifications

• DMX Channels: 3, 4, 6, 7, 8, 9, 12, 18, 36 or 41
• DMX Connectors: 3- and 5-pin XLR
• Light Source: 12 LEDs (tri-color RGB) 3 W (1,000 mA), 50,000 hours life expectancy
• Strobe Rate: 0 to 20 Hz
• Beam Angle: 14°
• Field Angle: 27°
• Illuminance:
  • (2m): 4,142 lux @ 2 m
  • (5m): 663 lux @ 5 m
• Lumens: 1402
• Power Linking: 19 units @ 120 V; 35 units @ 230 V
• Power and Current:
  • 49 W, 0.7 A @ 120 V, 60 Hz
  • 48 W, 0.4 A @ 230 V, 50 Hz
• Weight: 7 lb (3.2 kg)
• Size: 38.9 x 2 x 6.2 in (987 x 49 x 157 mm)
• Approvals: CE, MET, UKCA, RoHS
• Cable Length: 5 ft (1.5 m)
• Bracket Mounting Hole: 13 mm
• Optional Controllers: RFC, RFC-XL, DFI-USB

What's Included

• Fixture
• Power cord
• Quick Reference Guide
