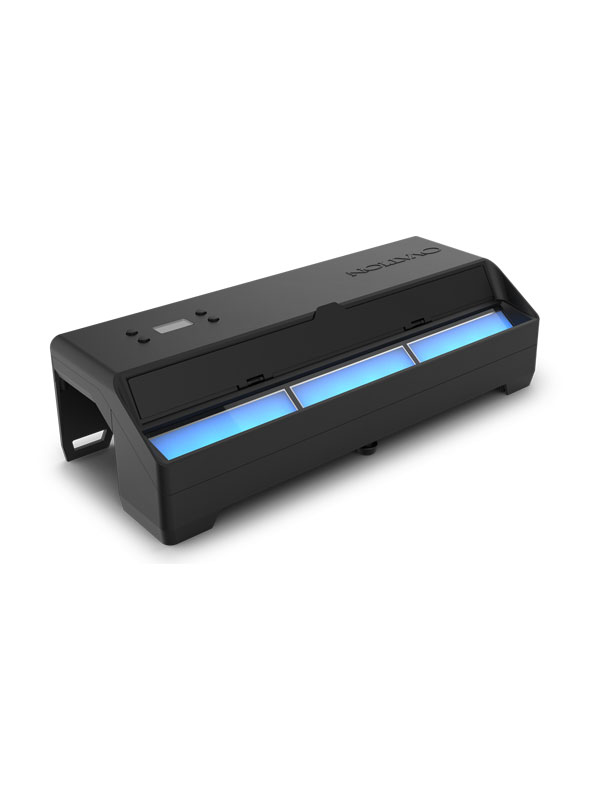

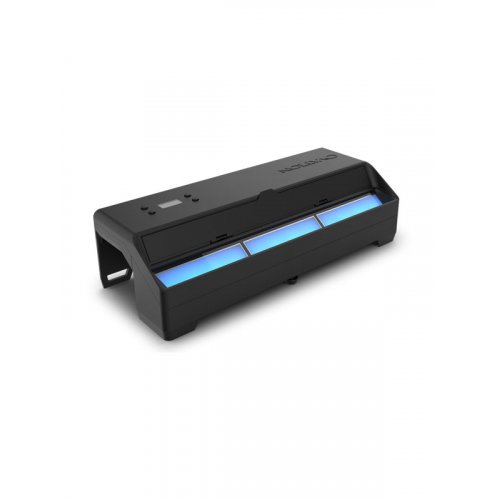

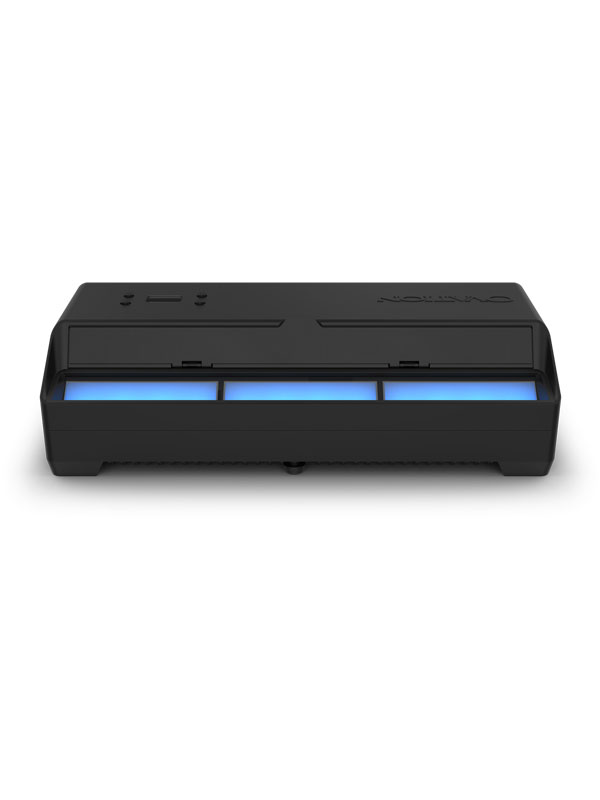

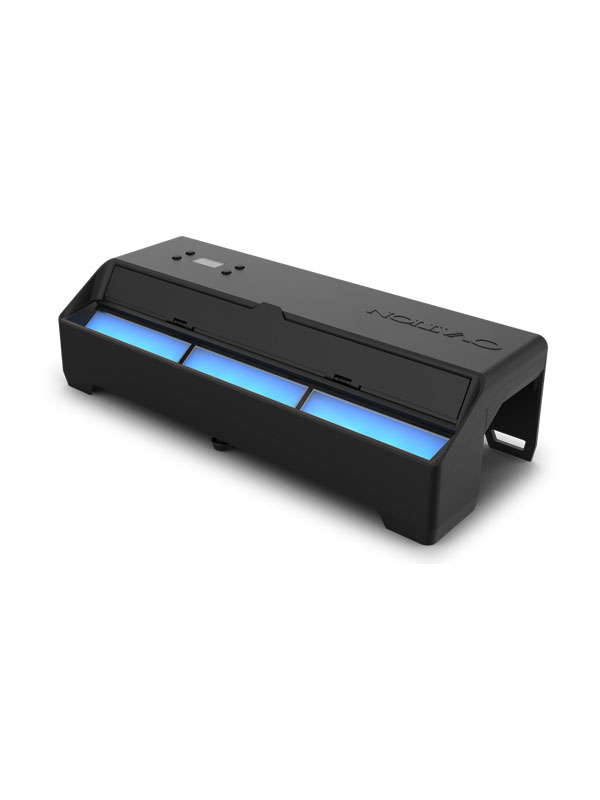

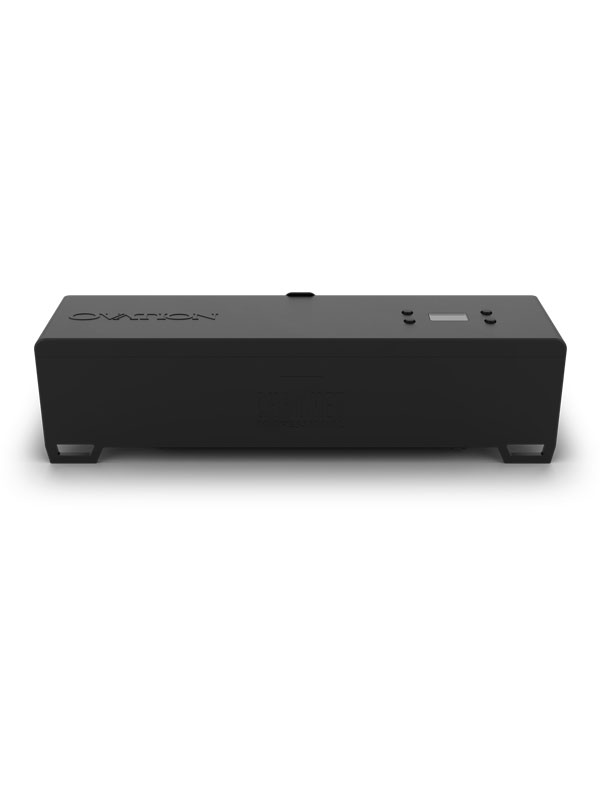

Chauvet Pro Ovation CYC 1 FC LED Light

About: Chauvet Pro Ovation CYC 1 FC LED Light

Ovation CYC 1 FC is an incredibly sleek, discreet, and light weight CYC that delivers a wide, smooth field of light with significant reach. Completely convection cooled, the unit is ideal for applications where silent operation is critical. Ovation Cyc 1 FC features the advanced RGBAL color-mixing system found in our other Full Color Ovation units to render nearly any color with tremendous realism and saturation. Given the low-profile of the unit, it can also be used effectively as a footlight. The versatile fixture has an integrated kick stand and included glare shield that can adjust and shape its throw and also features an included omega bracket.

• Low-profile and lightweight cyclorama wash or footlight fixture
• Display a full spectrum of hues with RGBAL LEDs for theatre, film and production
• Theatre-ready with 16-bit dimming of master dimmer and individual colors
• Beam modification with built in “kick stand” and adjustable glare shield
• Flat, even field of light with superior color mixing
• Virtual Color wheel with color matched to popular gel colors and color temperature presets
• RDM (Remote Device Management) for added flexibility
• Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
• Silent operation for use in studio and theatre applications

Specifications

Optical

• Light Source: 60 LEDs (12 red, 12 green, 12 blue, 12 amber, 12 lime) 1.75 to 4.57 W, (1.4 A), 6935 K, 50,000 hours life expectancy.
• Color Temperature (range): 2800 to 6500 K
• CRI (3200 K): 91
• Beam Angle: 87° (Horizontal)
• Beam Angle: 84° (Vertical)
• Field Angle: 141° (Horizontal)
• Field Angle: 145° (Vertical)
• Lumens: 7,421
• Illuminance: 173 lux @ 5 m

Dynamic Effects

• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 27 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Modes: 4
• Built-in Automated Programs: Yes
• Customizable Programs: No
• Recall Custom Programs: No

Construction / Physical

• Dimensions: 16.14 x 6.29 x 4.33 in (410 x 160 x 110 mm)
• Weight: 8.8 lb (3.9 kg)
• Exterior Color: Black
• Housing Material: Aluminum die-cast

Connections

• Power Connection: Edison (Local) plug to Neutrik® powerCON®
• Power Input: Neutrik® powerCON®
• Power Output: Neutrik® powerCON®
• Data Connectors: 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)

Control

• Control Protocol: DMX, RDM
• DMX Channels: 1, 3, 5, 7, 10, 12, 13, 15, or HSV
• Modes/Personalities: 9 personalities (1, 3, 5, 7, 10, 12, 13, 15, HSV)

Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 12 units @ 120 V; 21 units @ 208 V; 23 units @ 230 V
• Power and Current: 136 W, 1.13 A @ 120 V, 60 Hz
• Power and Current: 133 W, 0.64 A @ 208 V, 60 Hz
• Power and Current: 133 W, 0.58 A @ 230 V, 50 Hz

Certifications / Qualifications

• CE, MET, FCC
• IP Rating: IP20, dry location
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What's Included

• OVATION CYC-1FC
• Neutrik powerCON power cord
• Omega bracket with mounting hardware
