Astera LunaBulb with E26 Base - PrepInlay Kit
Model: FP7-PRPINL-KIT-E26
About: Astera LunaBulb with E26 Base - PrepInlay Kit
Looks like a traditional bulb, works like a professional luminaire. Designed to meet filmmakers’ requirements for practicals on camera and to discover endless creative possibilities without disrupting event planners’ workflow. From delivering perfect skin tones and the same controls as any other wireless DMX fixture to intimate gatherings to grand events, LunaBulb offers intuitive control via your smart device, remote, or console. Let your creativity shine wherever there’s a lamp socket.
- Built-in CRMX and Bluetooth
- Engineered as a standard bulb size
- Accurate skin tones
- High-quality 5-colour engine

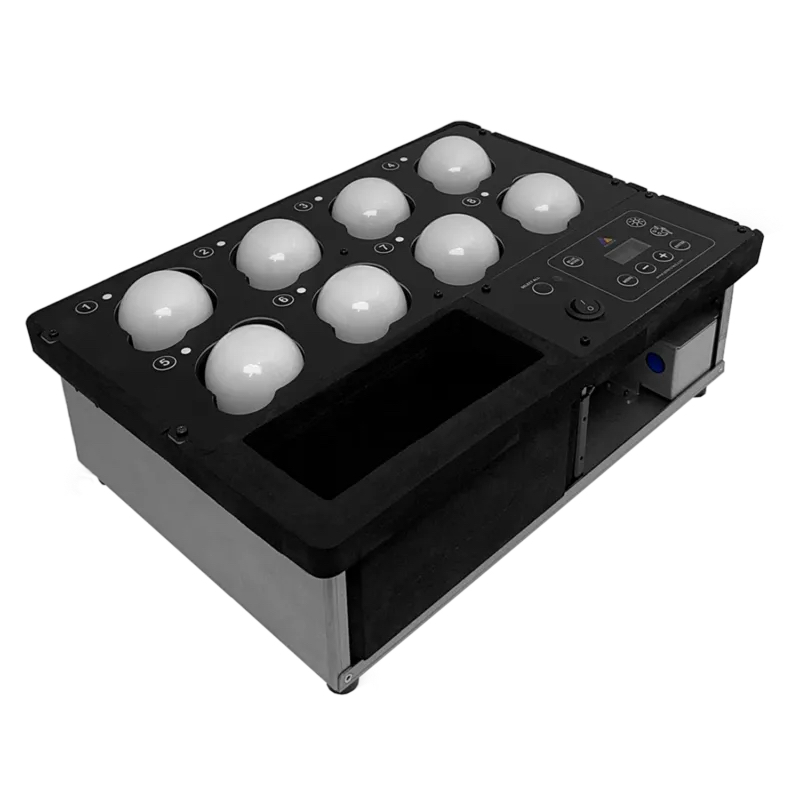

PREPPING MADE EASY WITH THE PREPINLAY KIT
The PrepInlay Kit contains 8 LunaBulbs stored in a the PrepInlay and is made for you to make your own cases or flightcases after your own need. The PrepInlay has a built-in battery which will make prepping easy no matter when and where you need to set up and configure your LunaBulbs for a job.
- Save time and effort - Time is always of the essence. With the PrepInlay having a built-in battery, you don’t need to worry about when and where you prep your LunaBulbs, because that can be done anytime whether it’s for Standalone, App or DMX control. One display can rule them all.
- Battery powered - We developed the PrepInlay with a built-in battery with the purpose of saving time and effort no matter where you are. The PrepInlay fully charged will run around 1 hour, when the LunaBulbs is set to 4000K and MAX brightness. You can always hardwire the PrepInlay if needed.
- Configure LunaBulbs - Prepare your color temperature, color, or brightness level settings directly in the case, without the need of AC sockets nor App pairing. The interface is so easy that any freelancer can operate it without training. If you want to control via DMX, then you can decide which DMX address you want to start with and all LunaBulbs in the case will receive the same or subsequent DMX addresses. The units will remember the settings to maximize speed and control.
- BlueMode Lights - With two button presses, you can have all 8 LunaBulbs in BlueMode, being ready to be paired with the AsteraApp. We added a BlueMode button in the PrepInlay to speed up the process when the desire is to control the LunaBulbs with the AsteraApp.
- Bluetooth Bridge - We developed the PrepInlay with the BTB function. When prepping your LunaBulbs you will now always have Bluetooth Bridge nearby, which gives you the option to have the PrepInlay act as an AsteraBox. Pair your lights to the AsteraApp, make the needed changes and you are all set.

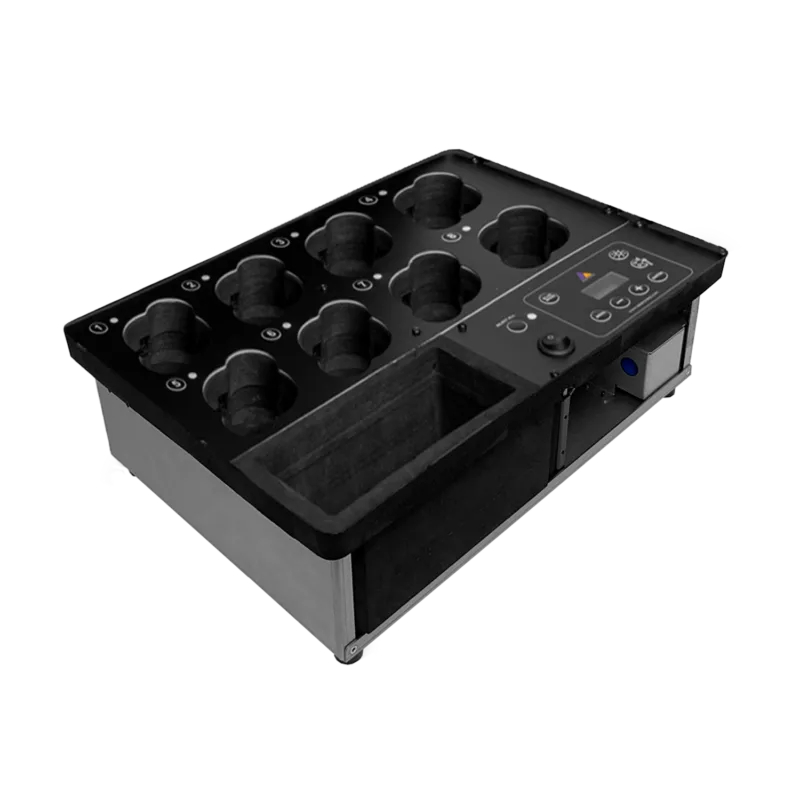

PrepInlay
ADD VALUE TO YOUR SETUP
- One Bulb, Two Shapes - Thanks to the LunaBulb’s classic look, your lighting blends seamlessly into any setting. It offers the familiar look and feel of a classic, frosted incandescent bulb or a bright and thin hotspot, while performingwith the same efficiency amd power of a professional full-color luminaire.
- Matches any Color - Equipped with the revolutionary Titan LED Engine, the LunaBulb has a wide color temperature range and excellent color rendition to maximize flexibility and precision when mixing different light sources. Each bulb is calibrated during the manufacturing process to match the needs of advanced camera sensors.
- Smooth Dimming - Having flicker-free, in-sync output regulation and an impressive color consistency for the whole dimming range. LunaBulb qualifies both for subtle practical lighting and complex mapping effects. Unlike classic Tungsten alternatives. LunaBulb does not change the color temperature while dimming down.
HOW TO CONTROL
- Built-in CRMX - LunaBulb includes LumenRadio’s wireless DMX and RDM, ensuring seamless integration with lighting consoles and other standard controllers. The DMX patch is extremely easy to configure: assign profiles, starting addresses and fixture numbers in no time via the PrepInlay or the AsteraApp.
- App Control and BTB - Take command of your Astera lights! The AsteraApp offers full control over LunaBulbs and other Astera fixtures in the same smart ecosystem, while offering setup features and real-time monitoring
- White Remote via IR - The WhiteRemote is not only a really useful tool to apply different color temperatures and dimming values, but also a simple and easy alternative to pair LunaBuls with the AsteraApp when the PrepInlay is not available.
Specifications
LunaBuld (individual)
- LED Engine - Titan LED Engine
- Colors - RGBMintAmber
- Total LED Power - 4.25 W
- LED Power Draw - 3.3 W
- CRI (Ra) / TLCI 3200-6500K* - ≥96
- Strobe - 0 – 25 Hertz
- Pixels - 1
- AC Input - 100-120 VAC
- AC Connector - E26
- Power Consumption (max.) - 4.25 W
- Wired DMX - N/A
- CRMX Receiver - Built-in
- Bluetooth Bridge BTB - Built-in
- Wireless Protocols - CRMX, UHF, Bluetooth, WiFi
- Wireless Range - CRMX / UHF up to 100 m / 110 yds Bluetooth up to 3 m / 3.3 yds
- RDM Support - Wireless
- Infrared Control - Yes
- ControlSync - No
- TouchSlider - No
- Housing Material - Metal & Polycarbonate
- IP Rating - IP44 – Depending on socket used
- Ambient Operating Temperature - 0 – 40°C / 32 – 104 °F
- Weight - 0.081 kg / 0.179 lbs
- Dimensions Classic Look (Ø x H) - Ø 55 mm x 99 mm
- Dimensions Slim Look (Ø x H) - Ø 27 mm / Ø 33 mm x 91.6 mm
- PrepInlay
- Battery Runtime - 2 h
- Battery Lifetime - 70% after 300 cycles
- Charging Time (nominal) - 2 h 50 min
- AC Input (via FP1-CHR) - 100 – 240 VAC, 50/60 Hertz, 1.8 A
- DC Input - 2 A / 24 VDC; 48 W
- DC Connector - 5.5 mm / 2.1 mm
- Power Consumption (max.) - 37 W
- BluetoothBridge BTB - Built-in
- Wireless Protocols - UHF, Bluetooth, WiFi
- Wireless Range - UHF up to 300 m / 330 yds Bluetooth up to 3 m / 3.3 yds
- Housing Material - Metal & Polymer
- IP Rating - IP 20
- Ambient Operating Temperature - 0 – 40 °C / 32 – 104 °F
- Weight
- Empty: 2.92 kg / 6.44 lbs
- Full (8x FP7 and 1x FP1-CHR): 3.87 kg / 8.53 lbs
- Dimensions (LxWxD) - 385 mm x 270 mm x 124.7 mm / 15.16" x 10.63" x 4.91"
What's in the Box
- 8x LunaBulb (FP7)
- 1x LunaBulb PrepInlay (FP7-PRPINL)
- 1x Charger (FP1-CHR)
Videos: Astera LunaBulb with E26 Base - PrepInlay Kit
Reviews: Astera LunaBulb with E26 Base - PrepInlay Kit
Warranty: Astera LunaBulb with E26 Base - PrepInlay Kit
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
- 2 Years warranty on electronics
- 3 Month warranty on batteries
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
