AVShop 0-10v LED Dimmer DMX Controlled
Model: DL
About: AVShop 0-10v LED Dimmer DMX Controlled

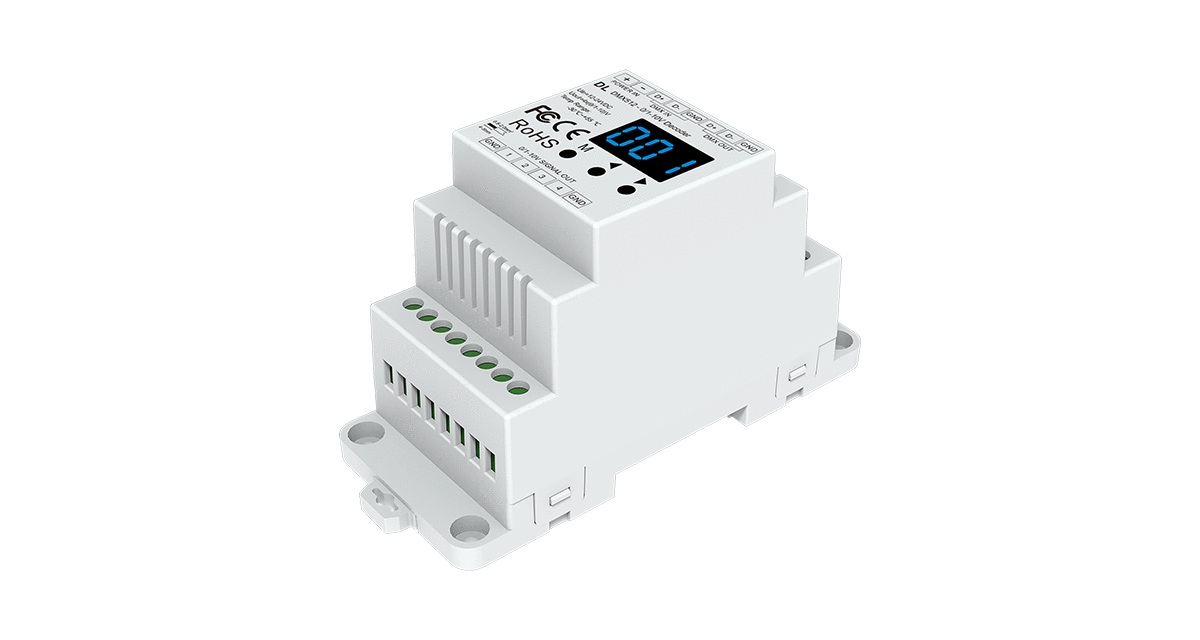

AVShop.ca 4-Channel DMX512 to 0–10V / 1–10V Decoder
Bring compatible analog dimming systems into your DMX lighting setup with the AVShop.ca 4-Channel DMX512 Decoder. This compact interface converts DMX512 control signals into four channels of selectable 0 - 10V or 1 - 10V analog output, making it ideal for integrating compatible LED drivers and dimmers into architectural, retail, hospitality and entertainment lighting systems.
Configure the decoder using its digital display and onboard buttons, or set the DMX starting address remotely through a compatible RDM controller. Select 1, 2 or 4-channel operation and choose a linear or logarithmic dimming curve to suit your application / fixtures.
For installations without a DMX controller, built-in standalone RGB, RGBW and four-channel dimmer modes provide local control through the onboard buttons. Available in white or black, the compact housing keeps installation neat and organized.
Key Features
Selectable 1, 2 or 4 channel DMX operation
- DMX512 input with RDM support for remote address configuration
- Four analog outputs with selectable 0 - 10V or 1 - 10V operation
- Linear or logarithmic dimming curves
- Digital address display with push-button configuration
- Standalone RGB, RGBW and four-channel dimmer modes with built-in programs
Specifications
| Specification | Details |
|---|---|
| Input voltage | 12 - 24V DC |
| Input signal | DMX512 |
| Output signal | 0 - 10v or 1 - 10v analog |
| Output current | 20mA per channel, four channels |
| Operating temperature | -30°C to +55°C |
| Maximum case temperature | +65°C |
| IP rating | IP20 |
| Dimensions | 120 × 55 × 78mm |
| Gross weight | 0.132kg |
| Warranty | 1 years |
