Shape Shapelini 3-Inch End/Centre Jaw Clamp
Model: CDJAW
About: Shape Shapelini 3-Inch End/Centre Jaw Clamp

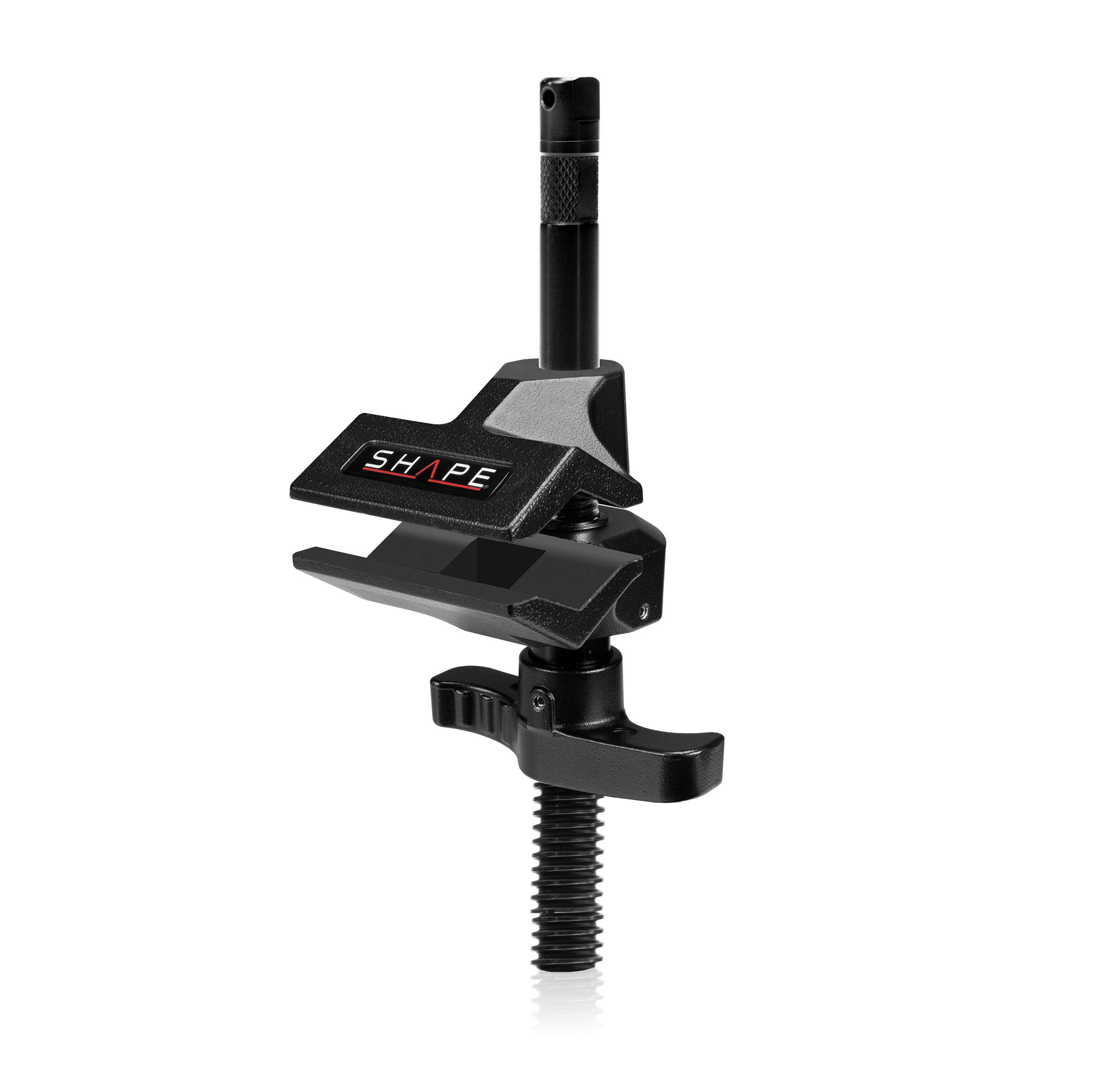

Introducing our 3-inch clamp with a unique design offering both center and end jaw configurations. Made of solid steel, it features a special anti-slip material with the vulcanization rubber process, inside the clamp for secure gripping on various surfaces. Equipped with a 5/8-inch anti-rotating baby pin, lockable at both ends, providing stability in any setup.
With both end and center jaw configurations, this clamp offers four setups in one, allowing for endless rigging options. The inclusion of a drive screw for the lower jaw eliminates the need for additional tools when unclamping. Versatile and strong, it grips square, round, or rectangular tubing, as well as other common and irregular shapes. Experience convenience and flexibility with our multifunctional clamp.
- 3’’ clamp offering both Center & End jaw configurations.
- Special anti-slip material inside clamp. (Vulcanization rubber process).

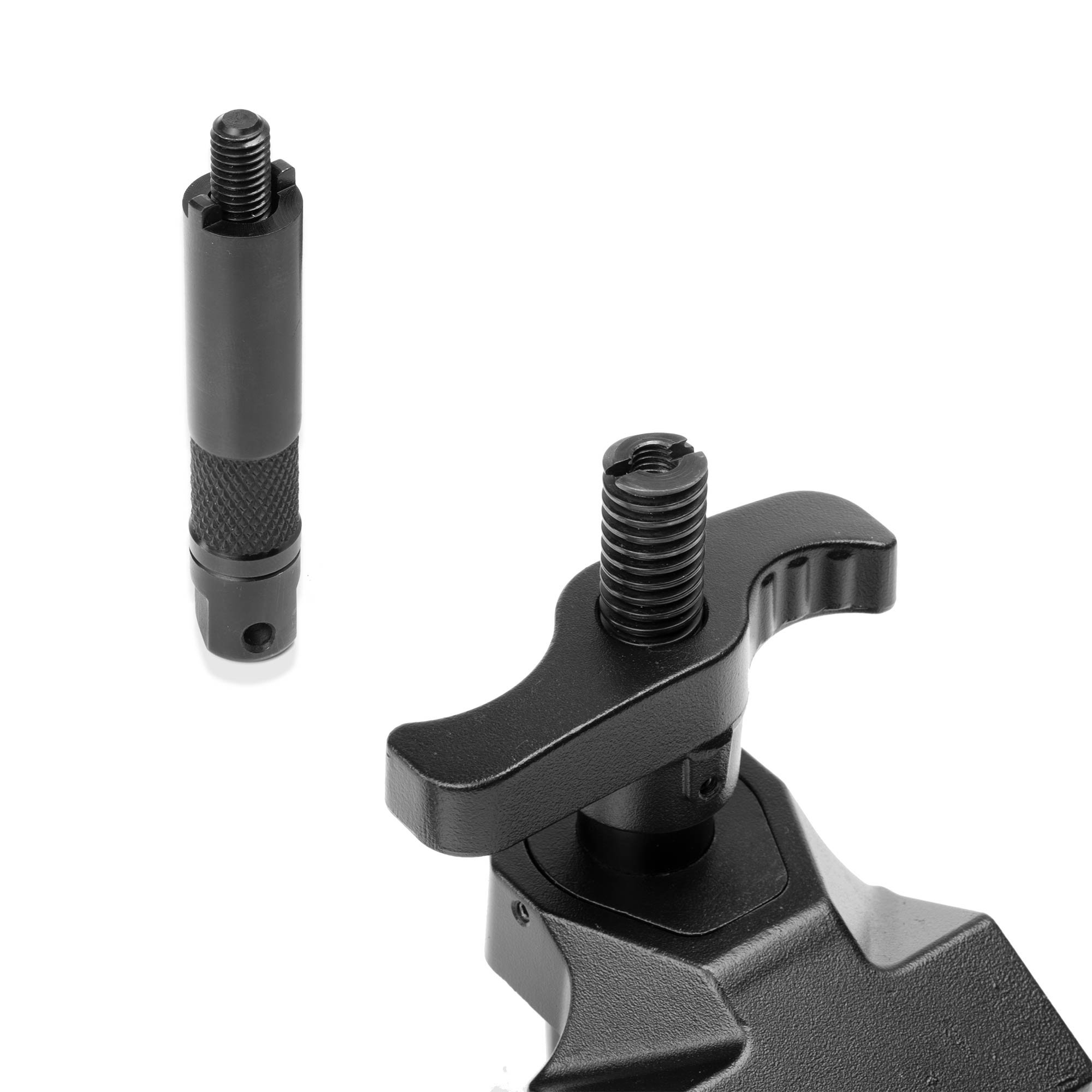

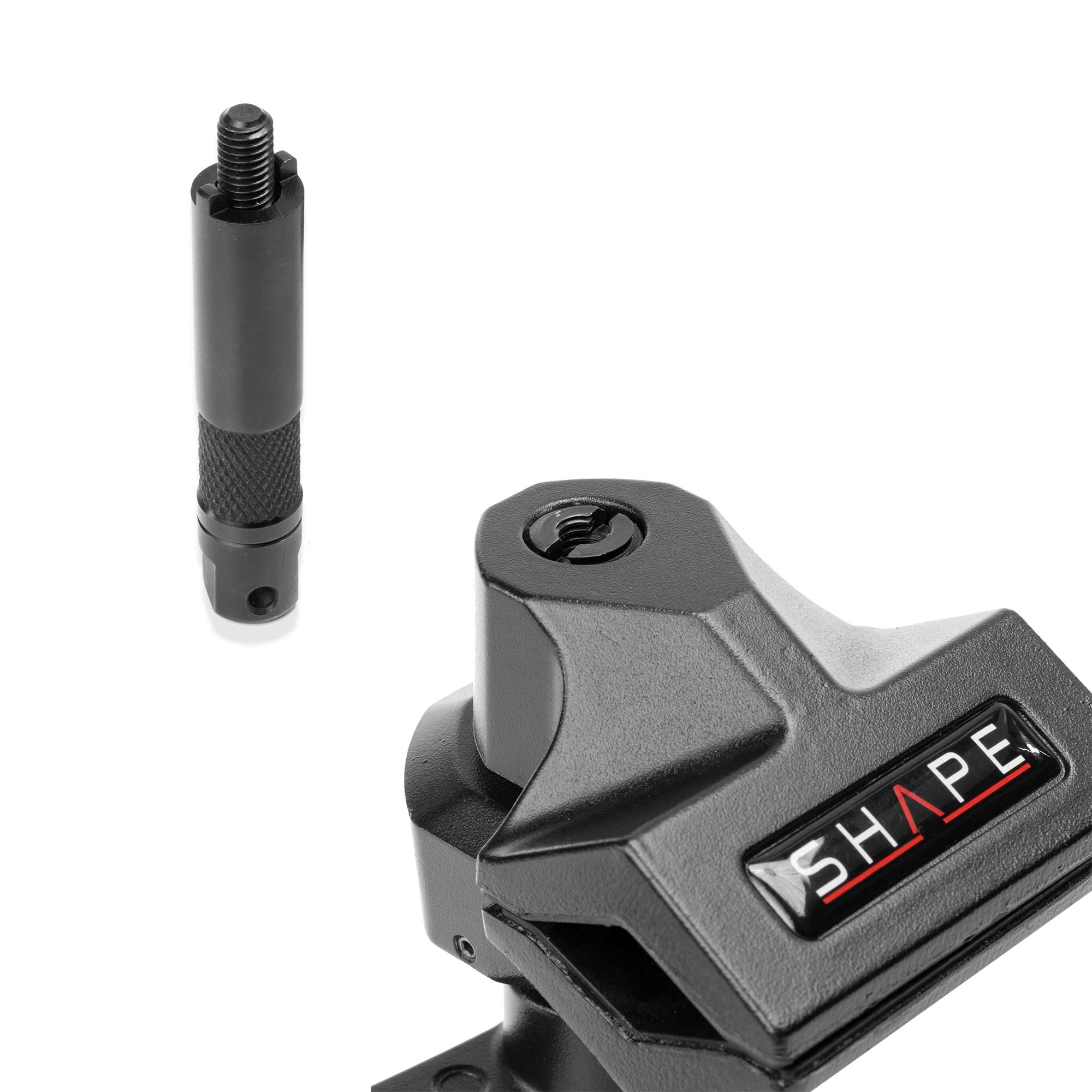

- 5/8’’ anti-rotating baby pin capable of being locked at both ends.
- End & Center jaw configurations.

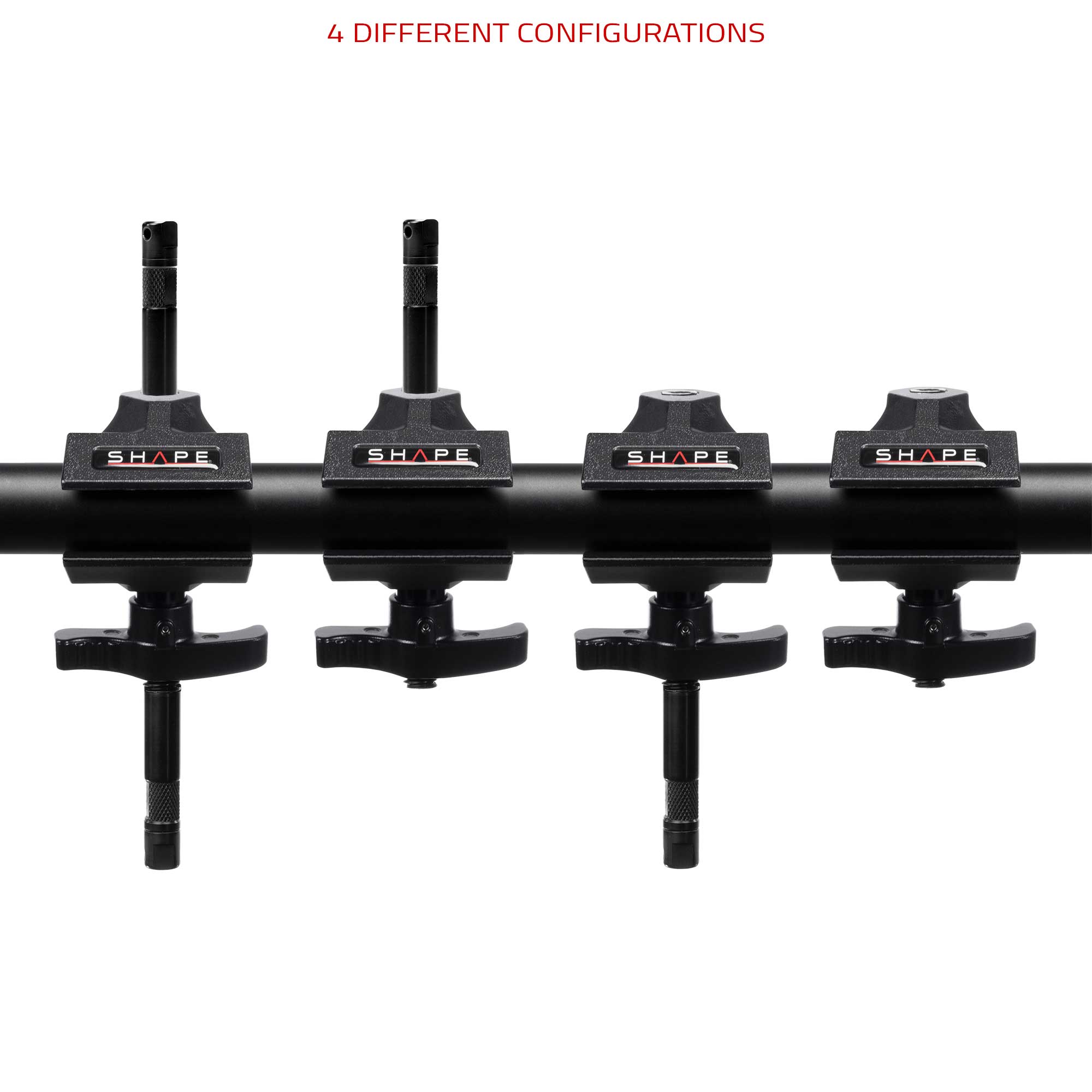

- Four configurations in one.

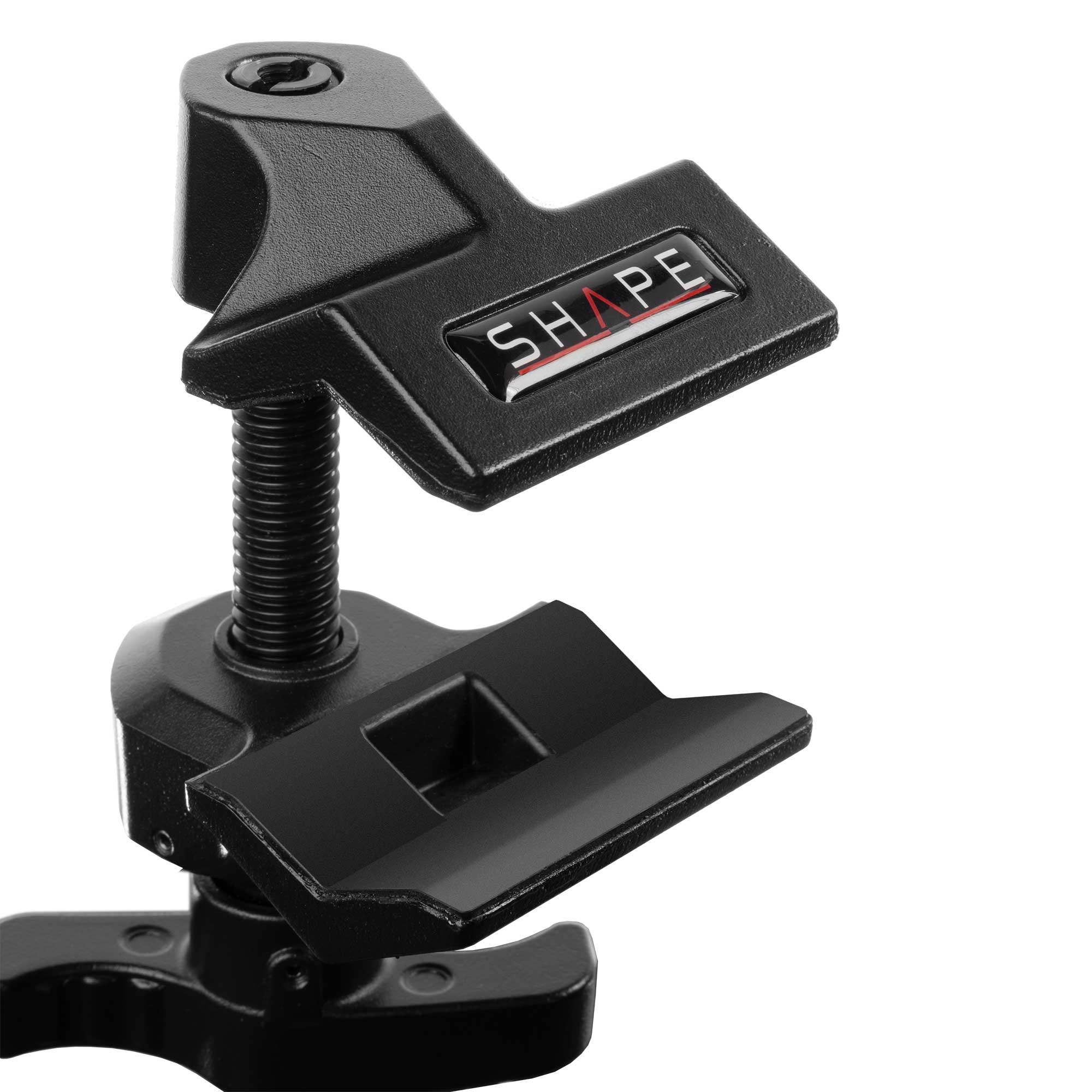

- Drive screw for lower jaw.
- No more tools needed to unclamp lower jaw.
- Clamps and spreads, providing for endless rigging options.
- Provides strong gripping for square, round or rectangular tubing, and many other common & irregular shapes.
- Made of solid steel.
Specifications
- Weight: 1.75 lbs / 0.79 kg
- Dimensions: 9.00 x 4.00 x 3.00 in / 22.86 x 10.16 x 7.62 cm
- Jaw width: 3’’ / 76.2mm.
- Shaft length: 3 ½ ‘’ / 89mm.
- Length of baby pin: 3’’ / 76.2mm.
- Thread on end of shaft: ¼-20.
- Additional 5/8’’ baby pin available in option.
UPC: 629266103739
