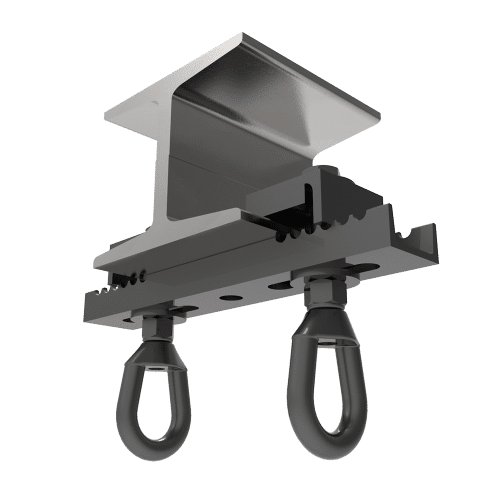

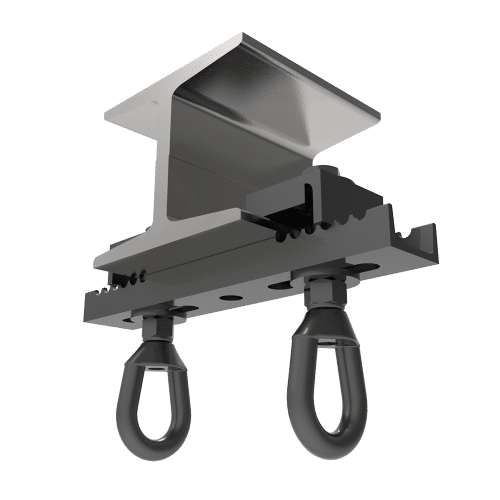

Adaptive Technologies BC3-8-2 Dual Hang Point Beam Clamp
Model: BC3-8-2
About: Adaptive Technologies BC3-8-2 Dual Hang Point Beam Clamp
Use the BC3-8-2 channel style beam clamp to provide an offset load rated overhead rigging point from structural I-Beams with flange widths ranging between 3” and 8” (76-203 mm). This beam clamp model provides a fast, easy and safe way to rig direct loads, bridles and hitches. A hand wrench is all that is required to secure the clamp to the beam. Beam flanges must be parallel to the floor to achieve the stated safe working loads.
- For Beam Flanges 3″-8″
- Two load-rated suspension points
- Clamps quickly / permanently to I-Beams
- NOTE: Recommended torque = 40-50 ft/lb
SPECIFICATIONS
- Material: All Steel Components
- Width: (BC3-8) 3” to 8” / 76mm to 203mm
- WLL:2100 lb / 953 Kg WLL (VERTICAL)
- Finish: Powder Coat
- Color: Black
- Design Factor: 4:1
- 45 DEG. WL: 825 lb / 375 Kg
