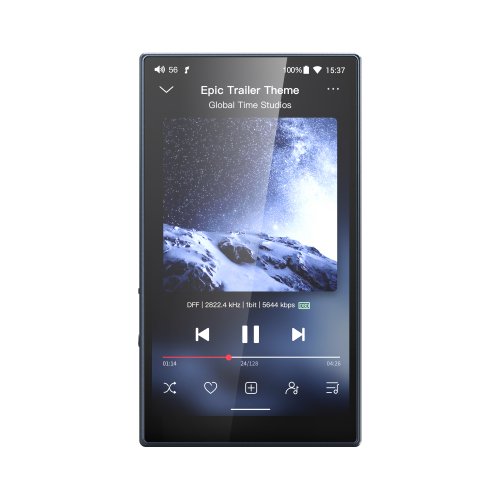

FiiO M21 Portable High-Res Lossless Music Player - Blue

About: FiiO M21 Portable High-Res Lossless Music Player - Blue

M21 Portable High-Res Lossless Music Player

• New octa-core 6nm Snapdragon 680
• Android 13
• 4x CS43198 DACs
• Fully balanced 2-stage amplifications
• Dual Type-C ports
• Low jitter coaxial output
• Desktop/Portable dual power supply modes
• 950mW high output power
• 4.7-inch compact HD screen
• 3.5mm+4.4mm headphone/LO dual output
• Retro cassette-style protective case

A “Hearty” Benchmark New Paradigm

The M21 redefines the entry-level class with its flagship lineage, Its internal and external “hearts” are full of “heart” in providing you with enjoyment. Its compact screen and class-defying performance are a massive step forward, Aiming to be a benchmark for an entirely new generation.

Flagship SoC - A New Entry-Level Benchmark

The Qualcomm Snapdragon 680 has superior performance with less power consumption than the SoCs used by players in the same class. It provides a smooth experience with Android 13.

• 4G+64G Storage combination
• 6nm Process engineering
• 2.4Ghz Max. core frequency (up to)

4 x CS43198 - Full of "Hearty" Power

The four DAC chips allow for an eight-channel fully differential output design, fully unleashing the potential of headphones with class-defying dynamic performance and high anti-interference capabilities. The headphone amplifier section adopts a two-stage circuit design: the first stage is responsible for voltage amplification, while the second stage handles current expansion - all ensuring purer sound with rich detail.

Patented Desktop Mode, Battery Protection Expert

Desktop mode makes an appearance on an entry-level FIIO player for the first time. When desktop mode is enabled, the M21 is completely powered by an external power supply. The built-in battery is neither charged nor discharged, allowing you to use the player safely on the desktop without degrading its battery.

Portable/desktop Dual Power Supply Modes, a Jump in Performance

In portable mode, it operates with standard voltage power supply. When using the external power “Super high gain” mode, the player automatically switches to using a high￾voltage power supply with 21Vpp (300Ω) peak drive voltage and 950mW (32Ω) massive output power. This delivers desktop-level power output, making the player a better fit with a wider range of earbuds or headphones for a truly extraordinary auditory feast.

Go Back to the Walkman Era With Just One Touch

The custom cassette-style protective case* paired with an exclusive retro UI and tailored vintage sound effects all take you on a nostalgic journey back to the Walkman era. Remove the protective case to seamlessly switch back to the original system, giving you the flexibility to use it how you want to.

• * The cassette-style protective case is sold separately.
• * When using the cassette-style protective case, touchscreen operation is disabled; only button operation is supported.

True Quality, Inside and Out

The fully aluminum alloy body with an AG frosted glass back offers a delicate texture and comfortable grip. The screen features an oleophobic coating that significantly reduces fingerprints and smudges, making for smoother touch operation.

Digital and Analog Partition Shielding, Purely Heavenly Sound

The digital and headphone amplifier sections exist in separate partitions and each is equipped with independent shielding covers for isolation. This not only further reduces signal crosstalk but also enables efficient heat dissipation, delivering purer sound.

Flagship-Grade Power

There are separate power supply paths for the digital and analog circuits, which effectively reduce crosstalk between the two. The result is more precise digital processing, purer analog output, and enhanced driving power. The analog circuit is further subdivided into multiple independent power supplies for components such as the DAC and headphone amplifier. This clean and robust power delivery enhances the dynamic range and leads to greater reproduction of details in the audio – for a more refined and natural sound.

High-End HiFi Parts for Better Sound

In the M21's audio circuit are high-precision thin-film resistors and low- temperature-drift capacitors that ensure refined and stable sound quality - specifically the greater consistency between the left and right channels and across all frequency ranges. Additionally, fine circuits such as the DAC and headphone amplifier are equipped with over 10 low-impedance, high-capacity tantalum capacitors. These provide abundant energy reserves and a robust power supply for more powerful, dynamic sound.

Global Audio Optimization

5th-gen FPGA + dual custom femtosecond crystal oscillators FIIO developed a custom crystal oscillator specifically for the M21, which has been carefully selected to meet femtosecond-level standards, in order to ensure consistency and stability in its output. With a high-precision, low-jitter unified clock source, it accurately matches PCM and DSD audio at various sampling rates, ensuring precise reproduction of digital audio signals.

Versatile connectivity, High-Performance Output

• Analog Outputs
• 3.5mm, 4.4mm outputs: Connect to headphones
  • The independent line amplification circuits allow you to connect to active speakers or external amplifiers.
• Digital Output
  • SPDIF output: The low-jitter coaxial output is comparable to that of pro equipment, with the jitter reduced by 70% and achieving high performance when connected to an external high-end audio DAC.
• USB Audio output: Connect to an external audio DAC and instantly turn it into a streaming jukebox.

15h Long Battery Life, Exploring the World of Music

The M21’s 4000mAh high-voltage battery provides up to 15 hours of ultra-long battery life, effortlessly providing the energy for extended listening sessions when commuting or traveling, allowing you to fully immerse yourself in the world of music. It also supports 20W PD fast charging, enabling quick recharges even during short breaks.

• 15h Single-ended battery life
• 125h Balanced battery life
• 1.5h Charging time
• 20W PD fast charging

Specifications

• Color: Dark blue
• Dimensions: About 68mm x 121mm x 17mm
• Weight: About 193g
• Hardware configurations
  • SoC: Snapdragon 680
  • OS: Android13
  • DAC: CS43198*4
  • Display: 4.7-inch (750x1334) fully laminated screen
  • Battery capacity: 4000mAh
  • Charging: Supports PD2.0 and PD3.0 PPS fast charging
  • Battery life: 15h single-ended, 12.5h balanced RAM: 4GB
  • Internal storage/available capacity: 64GB/about 52GB
  • Storage expansion: MicroSD card, supports 2TB
  • Headphone outputs: Single-ended 3.5mm PO/LO/SPDIF + Balanced 4.4mm PO/LO
  • USB interfaces: 1x Type-C USB3.0 (charging/data transmission) + 1x Type-C POWER IN (charging/independent power supply)
• Bluetooth Specifications
  • Bluetooth version: 5.0
  • Bluetooth Transmitter: SBC/aptX/aptX HD/LDAC/LHDC
  • Bluetooth reception: SBC/LDAC
• Headphone outputs
  • Output power 1: L + R≥ 950mW +950mW(32Ω/THD + N<1%/balanced/Super high gain mode)
  • Output power 2: L + R≥ 185mW +185mW(300 Ω/THD + N<1%/balanced/Super high gain mode)
  • Output power 3: L + R≥ 405mW +405mW(32Ω/THD + N<1%/single-ended/Super high gain mode)
  • Output power 4: L + R≥ 45mW +45mW(300 Ω/THD + N<1%/single-ended/Super high gain mode)
  • Output power 5: L + R≥ 720mW +720mW(32Ω/THD + N<1%/balanced/High gain)
  • Output power 6: L + R≥ 290mW +290mW(32Ω/THD + N<1%/single-ended/High gain)
  • SNR: ≥ 126dB (A-weighted)
  • Bottom noise: <1.6uV(A weight)
  • Output impedance: <1Ω
  • THD+N: <0.0003%(1kHz/-4dB@32Ω)

What's Included

• M21
• Tempered film screen protector (pre-installed at factory)
• Protective case
• Warranty card
• Quick Start Guide
• USB data cable
• GPL V2 instruction manual
