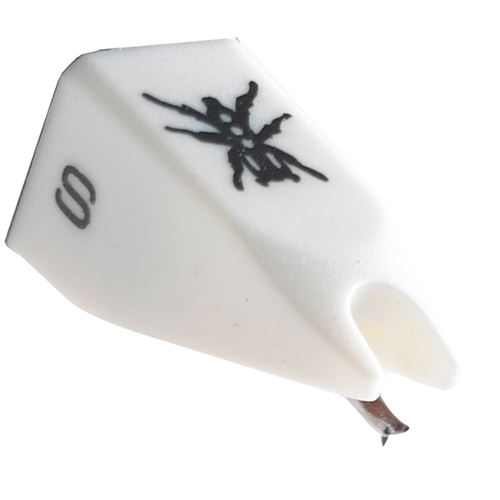

Ortofon Q.Bert Replacement Stylus
Model: Q.Bert Stylus
About: Ortofon Q.Bert Replacement Stylus
Turntablists and mix DJs alike will appreciate the strong output of this cartridge, coupled with unrivaled tracking ability and sonic characteristics. The Q.Bert features a more subdued high end, which helps to minimize surface noise from worn vinyl, and an accentuated mid-range to help bring scratching to the front of the sound stage.
The Q-Bert has a supreme ability to trace the grooves of your records and it is tailored specifically for scratch. Due to its enomous output, it is perfect for scratch of all music with deep bass frequences.
Q.Bert stylus Technical Data
- Output voltage at 1000Hz, 5cm/sec. - 11 mV
- Channel balance at 1kHz - 1,5 dB
- Channel separation at 1kHz - 22 dB
- Frequency range at -3dB - 20-18.000 Hz
- Frequency response - 20-20.000 Hz -3 dB
- Tracking ability at 315 Hz at recommmended tracking force - 980 μm
- Compliance, dynamic lateral - 12 μm/m N
- Stylus type - Spherical
- Stylus tip radius - R 18 μm
- Tracking force range - 2.0-4.0 g (20-40 mN)
- Tracking force recommended - 3.0 g (30 mN)
- Tracking angle - 20°
- Internal impedance, DC resistance - 1.680 Ohm
- Internal inductance - 920 mH
- Recommended load resistance - 47 kOhm
- Recommended load capacitance - 200-400 pF
- Concorde cartridge weight - 18.5 g
Compatible with cartridges - Concorde Q.Bert and OM Q.Bert, S-120
UPC: 5705796140309
Reviews: Ortofon Q.Bert Replacement Stylus
Warranty: Ortofon Q.Bert Replacement Stylus
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
2 year warranty
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
For Quebec Residents - Disclosure under the Consumer Protection Act
In compliance with Bill 29, AVShop.ca and Ortofon do not guarantee the availability of replacement parts, repair services, or maintenance information for any products. Any applicable manufacturer warranties will remain in place.
